INSTRUCTIONS MANUAL

EXTERIOR LED WALL LANTERN

HOME DEPOT SKU# 924-901 (UPC# 046335947689)

Page 1

Page 2

Thank you for purchasing this Hampton Bay Exterior LED Wall

Lantern. This product has been manufactured with the highest standards

of safety and quality. The finish of this lantern is weather resistant but

over time will naturally weather and fade. This fixture is equipped with

energy-saving Light Emitting Diodes (LEDs).

FEATURES:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (924-901) or UPC (046335947689).

QUESTIONS, PROBLEMS, MISSING PARTS:

1. Exterior wall lantern in black with clear water glass.

2. This fixture has been engineered to safely use energy-saving Light

Emitting Diodes (LEDs) (included).

3. ENERGY STAR®qualified

Page 3

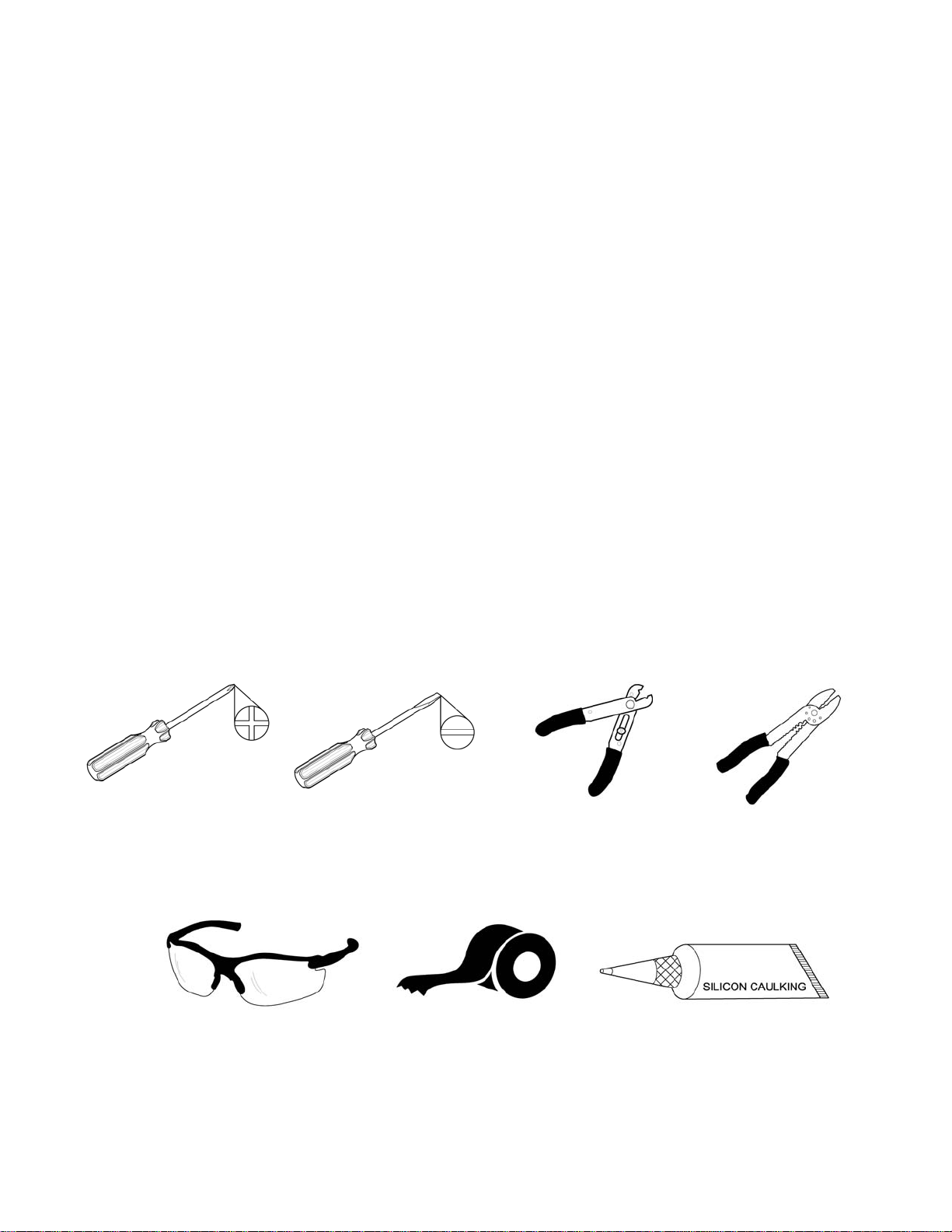

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

CAUTION:

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS. If you have any non-electrical

questions about this fixture, please call our Customer Service Team at

1-877-527-0313 or visit www.homedepot.com. Please reference your

SKU (924-901) or UPC (046335947689).

3. KEEP your receipt and these Instructions for Proof of Purchase.

Safety

goggles

Wire

strippers

Phillips

screwdriver

Electrical

tape

Wire

cutters

Silicon Rubber

Sealant

for exterior use

Flathead

screwdriver

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

(NONE)

ASSEMBLY INSTRUCTIONS:

1. Carefully unpack the fixture.

2. No other assembly required.

Page 4

ASSEMBLY:

Page 5

Page 6

3 ea Wire

Nuts (#10)

2 ea Bracket Mounting

Screws (#5)

INSTALLATION INSTRUCTIONS:

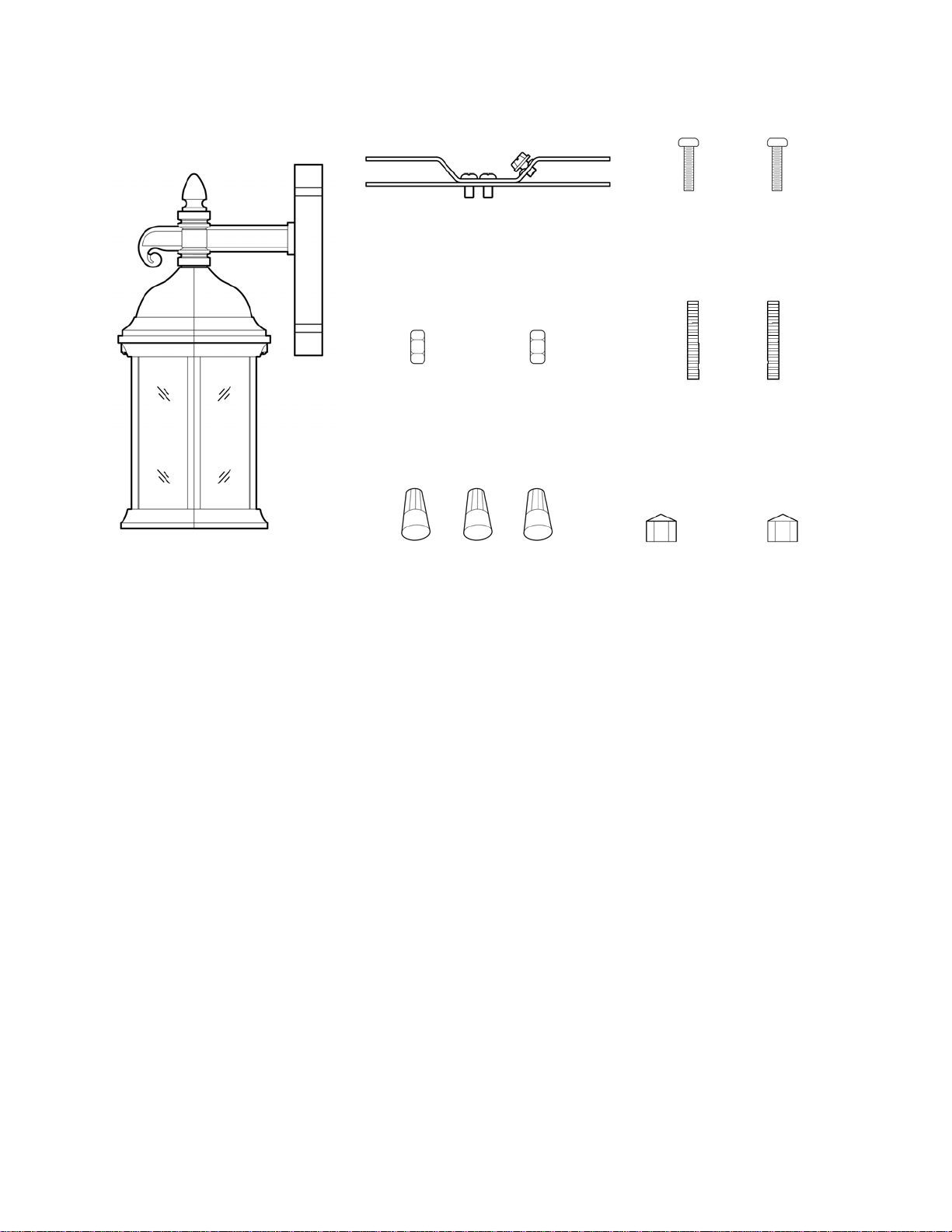

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

1. Thread the Fixture Mounting Screws (#3) into the provided holes of the Mounting Bracket (#2) as shown. Thread

the Hex Nuts (#4) onto the Fixture Mounting Screws (#3), as shown. Do not tighten the Hex Nuts (#4) at this time.

2. Pull the power supply wires out from the Outlet Box (#1), and mount the Mounting Bracket (#2) to the Outlet Box

(#1), using the Bracket Mounting Screws (#5).

3. Attach the Black Supply Wire (#6) to the Black Fixture Wire (#7) and the White Supply Wire (#8) to the White

Fixture Wire (#9) using Wire Nuts (#10). Connect the Fixture Ground Wire (#11) and the Supply Ground Wire

(#12) together using a Wire Nut (#10). Wrap all wire connections with electrical tape for a more secure connection.

Note: If you have electrical questions, consult your local electrical code for approved grounding methods.

4. Place the Wall Plate (#13) over the Outlet Box (#1) and onto the Fixture Mounting Screws (#3), and adjust the

Fixture Mounting Screws (#3) until they protrude out from the Wall Plate (#13) 1/4". Remove the Wall Plate (#13)

and secure the position of the Fixture Mounting Screws (#3) by tightening the Hex Nuts (#4) against the Mounting

Bracket (#2). Place the Wall Plate (#13) back onto the Fixture Mounting Screws (#3), and secure it into place using

the Lock Nuts (#14) provided.

5. After installing the fixture, caulk upper 2/3 of the Wall Plate (#3) to mounting surface. Leave bottom 1/3 un-

caulked for drainage of any water that might leak into the enclosure. The manufacturer recommends a non-drying

exterior caulking material. A good example is a clear silicone rubber sealant for exterior use.

6. Installation is complete. Turn on power at the circuit breaker or fuse box. Turn the light switch on to activate the

fixture.

1 ea Main Fixture

Body

1 ea Mounting

Bracket (#2)

2 ea Fixture Mounting

Screws (#3)

2 ea Hex

Nuts (#4)

2 ea Lock

Nuts (#14)

Page 7

INSTALLATION:

13. Wall Plate

14. Lock

Nut

9. White

Fixture

Wire

11. Fixture

Ground

Wire

10. Wire

Nut

8. White

Supply

Wire

6. Black Supply

Wire

12. Supply

Ground

Wire

1. Outlet

Box

2. Mounting

Bracket

5. Bracket

Mounting

Screw

4. Hex Nut

3. Fixture

Mounting

Screw

7. Black

Fixture

Wire

Page 8

Possible Cause Corrective Action

1. Power is off. 1. Make sure power supply is on.

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Lights will not turn on.

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of the

fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of three (3) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at

the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,

accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product

that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,

such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not

warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a

particular purpose, other than the warranty contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any consequential or incidental loss or damage,

including but not limited to any labor/expense costs involved in the replacement or repair of said

product.

Page 9

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Install the product onto on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes made to the electronics circuit will void this equipment’s

compliance with Part 15 of the FCC Rules and should not be operated.

DISCLAIMER

MANUAL DE INSTRUCCIONES

FAROL DE PARED CON LEDs PARA
