HAMPTON BAY 1001352550 Bedienungsanleitung

Page 1

INSTRUCTION MANUAL

3 Light Vanity Fixture

Home Depot SKU 1001352550 (UPC 718212153239)

(Oil Rubbed Bronze Finish)

Page 2

Thank you for purchasing this Hampton Bay interior light fixture. This

product has been manufactured with the highest standards of safety and

quality.

FEATURES:

1. Transitional 3 Light Vanity Fixture in Oil Rubbed Bronze Finish.

2. Timeless Elegant Design.

3. Easy to assemble and install.

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-855-HD-Hampton or visit www.hamptonbay.com.

Please reference your SKU (1001352550

or UPC (718212153239 Oil Rubbed Bronze Fixture)

Oil Rubbed Bronze Fixture).

Page 3

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS.

3. If you have any non-electrical questions about this fixture, please

contact our Customer Service Team at 1-855-HD-HAMPTON or visit

www.hamptonbay.com. Please reference your SKU (1001352550 Oil

Rubbed Bronze fixture) or UPC (718212153239 Oil Rubbed Bronze

fixture).

4. Keep your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION

(not included):

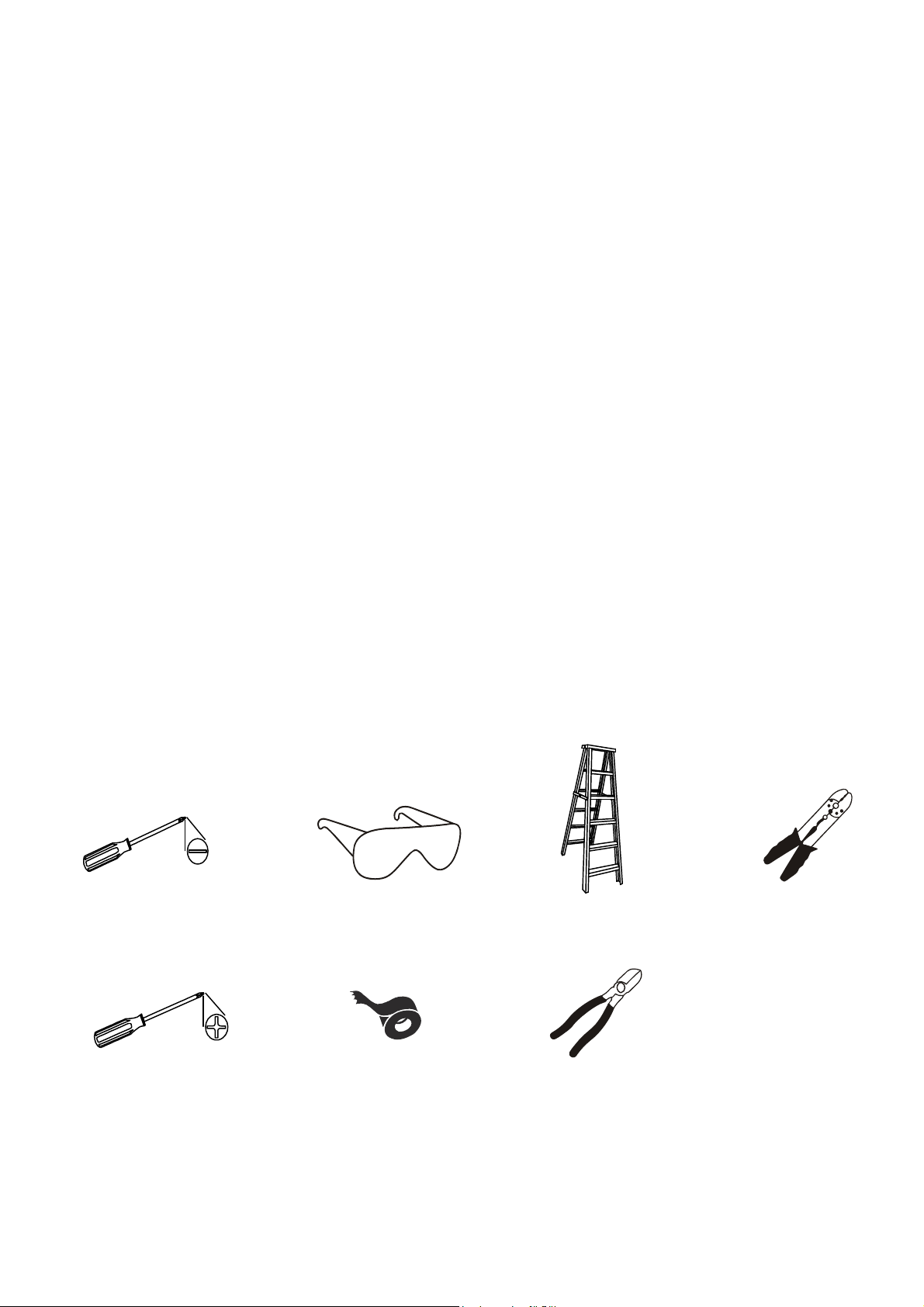

Safety goggles Step Ladder Wire strippers

Flathead screwdrive

Phillips screwdriver Electrical tape Wire cutters

CAUTION:

Page 4

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

ASSEMBLY INSTRUCTIONS:

1. Shut off power at the fuse box or circuit breaker box. If necessary, remove old fixture

and all mounting hardware from wall outlet box.

2. Carefully unpack your new fixture and lay out all the parts on a clear area. Take care

not to lose any small parts necessary for installation.

3. Place the Glass Shade (#1) into the Socket Cup (#6) and secure in place with the

Screw Shell (#2).

3 Glass Shade (#1)

3 Screw Shell (#2)

Page 5

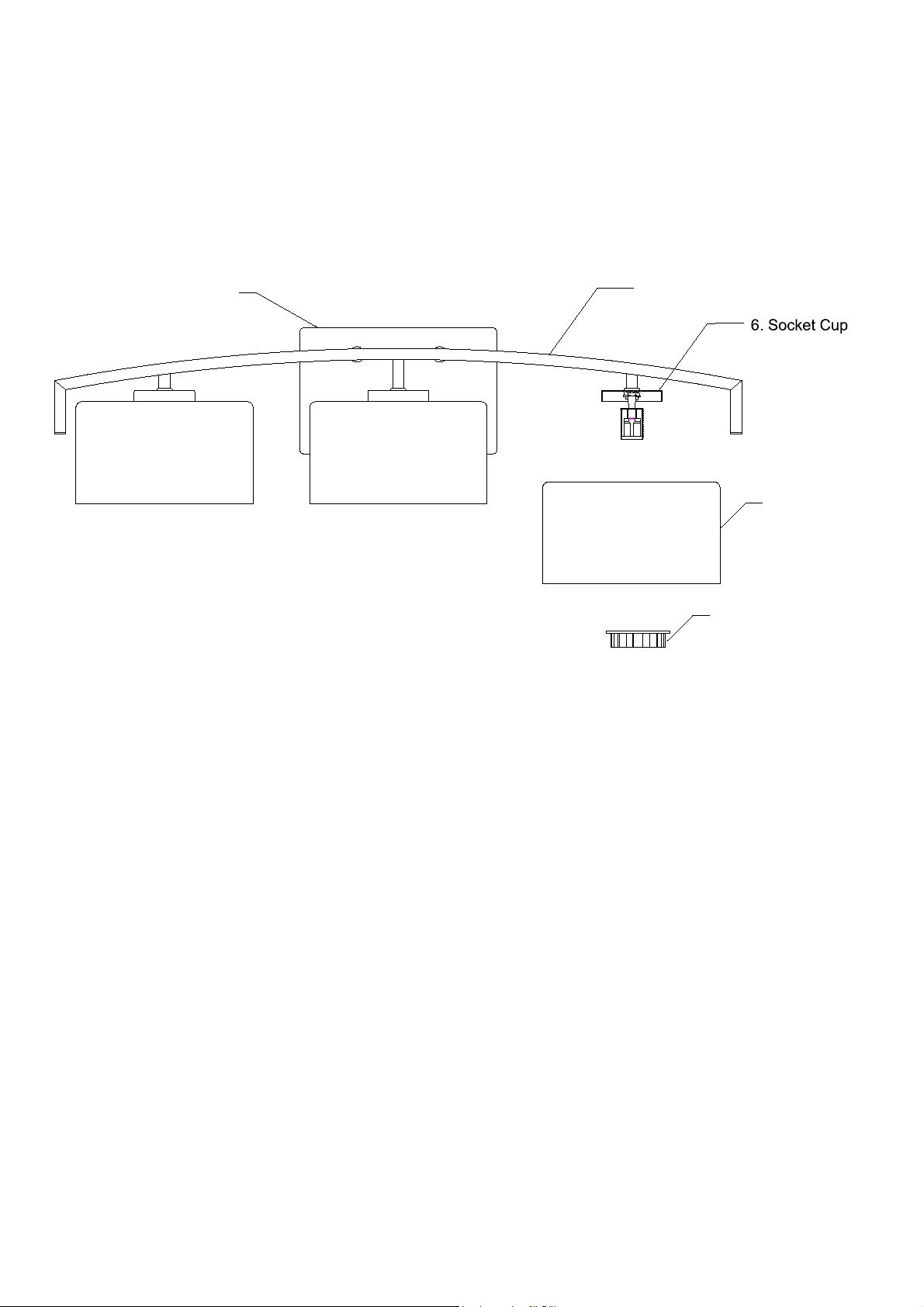

ASSEMBLY:

1. Glass Shade

5. Fixture Body

7. Back Plate

2. Screw Shell

Page 6

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

2 Outlet Box Screws (#11)

3 Wire Connectors (#12)

1 Ground Screw (#10)

INSTALLATION INSTRUCTIONS:

4 Mounting Screw (#8)

Connect the white wire from the fixture to the white wire from the Outlet Box (#13),

and the black wire from the fixture to the black wire from the Outlet Box (#13). Cover

the two wire connections using the two provided Wire Connectors (#12). Wrap the two

wire connections with electrical tape for a more secure connection. If your outlet box

has a ground wire (green or bare copper), connect fixture’s ground wire to it using the

wire connector (#12). Otherwise connect the copper ground from the fixture to Ground

screw (#10) on the Mountig Plate (#9). Note: If you have electrical questions, consult

your local electrical code for approved grounding method.

3. Place the Fixture body (#5) over the Mounting Plate (#9), install the Mounting

Screws (#8) onto the Mounting Plate (#9) until fixture is secured to the wall.

4. Install the light bulbs (#4) onto the socket, and screwed the Bulb Barrier (#3) in place.

(DO NOT EXCEED THE SPECIFIED WATTAGE!)

5. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn the

light switch on to activate the fixture.

1 Mounting Plate (#9)

Take apart the mounting screws (#8) and Mounting Plate (#9) from the Back Plate (#7),

attach the Mounting plate (#9) to the Outlet Box (#13) with the two Outlet Box

Screws (#11) as shown. The side of the Mounting Plate (#9) marked “GND” must face out.

3 Bulb Barrier (#3) 3 Bulb (#4)

Page 7

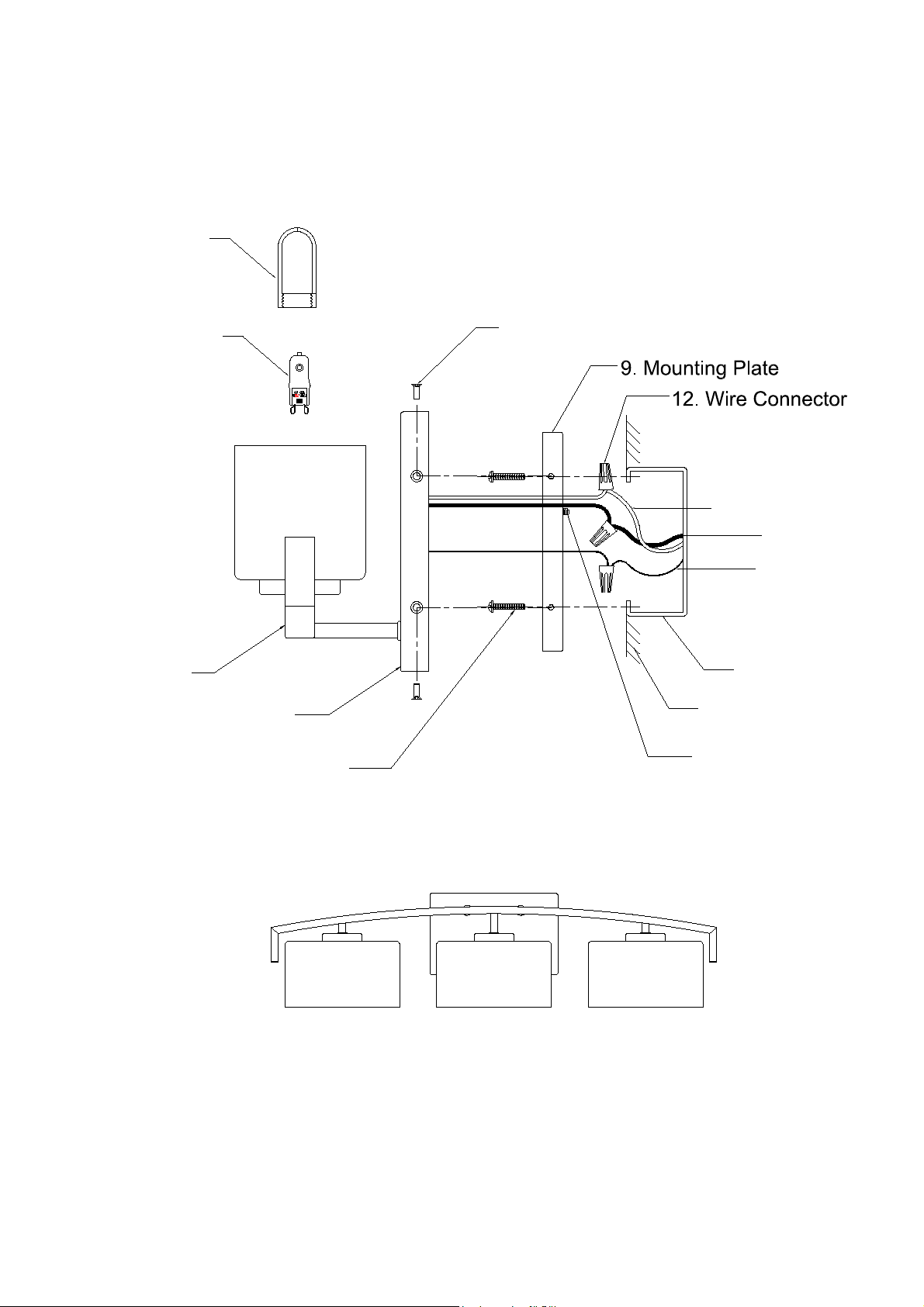

INSTALLATION:

5. Fixture Body

7. Back Plate

11. Outlet Box Screw

4. Bulb

3. Bulb Barrier

8. Mounting Screws

13. Outlet Box

Wall

White Wire

Black Wire

Ground Wire

10. Ground Screw

Page 8

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use

clean water, never a solvent) to wipe the glass and surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off

the circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry

soft cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of five (5) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the

manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident,

modifications, alterations, neglect or mishandling. This warranty shall not apply to any product that is found

to have been improperly installed, set-up, or used in any way not in accordance with the instructions

supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident,

misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty material

or workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface

and/or weathering, as this is considered normal wear and tear.

The manufacturer does not warrant and specially disclaims any warranty, whether express or implied,

of fitness for a particular purpose, other than the warranty contained herein. The manufacturer

specifically disclaims any liability and shall not be liable for any consequential or incidental loss or

damage, including but not limited to any labor / expense costs involved in the replacement or repair of

said product.

Possible Cause Corrective Action

Bulb will not light. 1. Bulb is burned out. 1. Replace light bulb.

2. Power is off. 2. Make sure power

supply is on.

3. Faulty wire connection. 3. Check wiring.

4. Faulty switch. 4. Test or replace switch.

Fuse blows or circuit

breaker trips when light

is turned on.

Crossed wires or power wire

is grounding out. Check wire connections.

Page 9

MANUAL DE INSTRUCCIONE

3 Luz Lámpara de Tocador

Home Depot SKU 1001352550(UPC 718212153239)

（Acabado en Bronce Lustrado con Aceite）

Page 10

Gracias por la compra de este accesorio Hampton Bay luz interior. Este

producto ha sido fabricado con los más altos niveles de seguridad y

calidad.

CARACTERÍSTICAS:

2. Atemporal Elegante diseño.

3. Fácil de montar e instalar con Enlace rápido.

Preguntas, problemas, piezas faltantes:

Luz Transicional de 3 luces en Acabado en Bronce Lustrado con Aceite.

Antes de regresar a su oficina local de Home Depot, llame a nuestro

ServiciodeAtenciónal 1-855-HD-Hampton o visite www.hamptonbay.com.

Por favor, referir a SKU (1001352550 Lampara Bronce Lustrado con Aceite)

or UPC (718212153239 Lampara Bronce Lustrado con Aceite).
