HCZ-6321

High Resolution 32X Zoom

Color Camera

User Manual

High Resolution 32X Zoom Color Camera

User Manual

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks

mentioned in this manual are the registered trademark of their respective company.

Restriction

reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Techwin makes the best to verify the integrity and correctness of the contents

in this document, but no formal guarantee shall be provided. Use of this document and the

subsequent results shall be entirely on the user’s own responsibility. Hanwha Techwin

reserves the right to change the contents of this document without prior notice.

❖Design and speci cations are subject to change without prior notice.

English_3

●SAFETY INFORMATION

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric

shock is present within this unit.

This exclamation point symbol is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions

in the literature accompanying the appliance.

WARNING

• To prevent damage which may result in fire or electric shock hazard, do not expose this

appliance to rain or moisture.

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance

with the installation instructions.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,

electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may

cause abnormal heat generation or fire.

4. Securely plug the power cord into the power receptacle. insecure connection may

cause fire.

5. When installing the camera, fasten it securely and firmly. The fall of camera may cause

personal injury.

4_ safety information

safety information

6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or

containers filled with water on top of the camera. doing so may cause personal injury

due to fire, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or

electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product. in such

case, immediately disconnect the power source and contact the service center.

continued use in such a condition may cause fire or electric shock.

9. If this product fails to operate normally, contact the nearest service center. never

disassemble or modify this product in any way. (Hanwha Techwin is not liable for

problems caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. doing so may

cause fire or electric shock.

CAUTION

1. Do not drop objects on the product or apply strong shock to it. Keep away from a

location subject to excessive vibrationor magnetic interference.

2. Do not install in a location subject to high temperature (over 55°C), low temperature

(below -10°C), or high humidity. Doing so may cause fire or electric shock.

3. If you want to relocate the already installed product, be sure to turn off the power and

then move or reinstall it.

4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do

so may cause fire or damage to the product.

5. Keep out of direct sunlight and heat radiation sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this

may damage the CCD image sensor.

8. Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

9. The Mains plug is used as a disconnect device and shall stay readily operable at any

time.

10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the

CMOS.

English_5

●SAFETY INFORMATION

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may cause

undesired operation.

CAUTION

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian

Interference.-Causing Equipment Regulations of ICES-003.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be

disposed of with other household waste at the end of their working life. Where marked, the chemical symbols

Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC

Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health

or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste

and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their

working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

please separate these items from other types of waste and recycle them responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

6_ important safety instructions

important safety instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp

cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or

surfactants or oil constituents as they may deform or cause damage to the product.)

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong is provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus.

13. Unplug this apparatus when a card is used. Use caution when

moving the cart/ apparatus combination to avoid injury from tip-over.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way, such

as powersupply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product is intended to be supplied by Listed Power Unit marked "Class 2" or

"LPS" and rated 12 Vdc, min. 0.45 A.

16. If you use excessive force when installing the product, the camera may be damaged

and malfunction. If you forcibly install the product using non-compliant tools, the

product may be damaged.

17. Do not install the product in a place where chemical substances or oil mist exists

or may be generated. As edible oils such as soybean oil may damage or warp the

product, do not install the product in the kitchen or near the kitchen table. This may

cause damage to the product.

18. When installing the product, be careful not to allow the surface of the product to

English_7

●

IMPORTANT SAFETY INSTRUCTIONS

be stained with chemical substance. Some chemical solvents such as cleaner or

adhesives may cause serious damage to the product’s surface.

19. If you install/disassemble the product in a manner that has not been recommended,

the production functions/performance may not be guaranteed. Install the product by

referring to “Installation & connection” in the user manual.

20. Installing or using the product in water can cause serious damage to the product.

Hanwha Techwin cares for the environment at all product

manufacturing stages to preserve the environment, and is taking a

number of steps to provide customers with more environment-friendly

products.The Eco mark represents Hanwha Techwin’s will to create

environment-friendly products, and indicates that the product satisfies

the EU RoHS Directive.

8_ contents

contents

INTRODUCTION

9Features

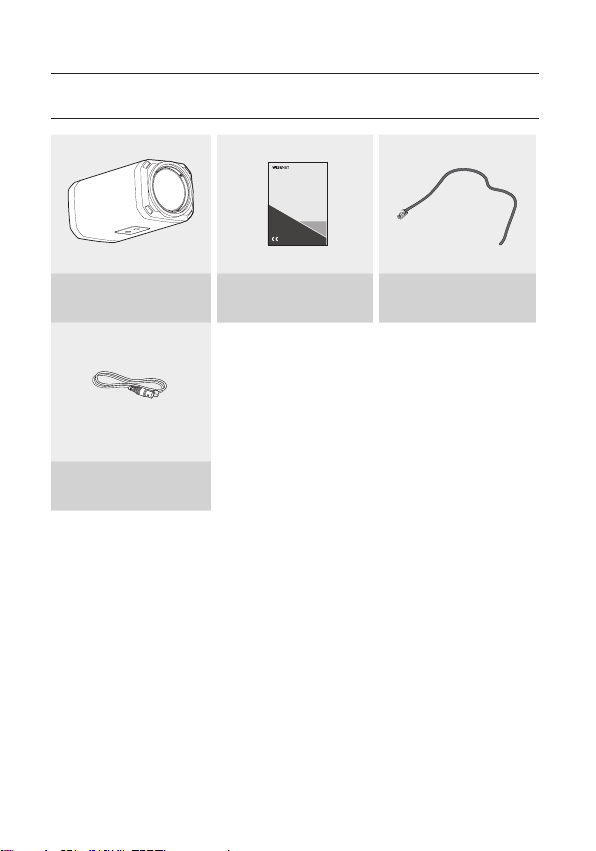

10 What’s included

11 Component names and

functions

CONNECTION

13 Connecting to Monitor

13 Connecting to Power

14 CONTROL VIA RS-485

INTERFACE

15 Using Coaxial Communications

Connecting to 8P Control Terminal

CAMERA OPERATION

18 Menu Configuration

19 Menu Setup

TROUBLESHOOTING

38 Troubleshooting

SPECIFICATIONS

39 Specifications

41 Dimensions

SAMSUNG-T PROTOCOL

COMMAND DESCRIPTION

42 SAMSUNG-T Protocol

Command Description

English_9

●INTRODUCTION

FEATURES

y32x Optical Zoom

The built-in HCZ-6321(32x) optical zoom lens is a highly durable component. It features

auto focus, auto iris, and zoom functions.

yHigh Resolution

Use of a 2.38 mega pixel CMOS device provides clear pictures with a horizontal resolution

of 1000TV lines.

ySSNR (Samsung Super Noise Reduction)

The high-performance WN2 chip effectively removes low-light gain noise and ghosting to

provide clear images even in dark environments.

yDIS (Digital Image Stabilizer)

Digital image stabilization compensates camera shakings for enhanced image capture.

ySSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from difficult lighting

conditions such as backlighting, this camera selectively illuminates darker areas while

retaining the same light level for brighter areas to even out the overall brightness.

yDAY&NIGHT(ICR)

This camera has a function that automatically selects the mode that is appropriate for

daytime or night-time conditions.The COLOR mode operates in daytime conditions to

provide optimum colors, and BW mode operates in night-time conditions to enhance the

definition of the image.

yMotion Detection

Since the camera detects motion without any additional external sensor, you can monitor

activity more efficient.

yMiscellaneous Functions

HLC(High Light Compensation), FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION

DETECTION and PRIVACY functions are provided.

yCommunication

RS-485, Coaxial communication methods are supported.

- RS-485 Communications:

Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, Vicon,

Honeywell

- Coaxial Communications: ACP (AHD Coax Protocol)

yOSD

The camera’s OSD is complimented by 9 foreign languages.

- English, French, German, Spanish, Italian, Russian, Portuguese, Japanese, Korean

introduction

10_ introduction

WHAT’S INCLUDED

Main Body Quick Manual 8-PIN CABLE ASSY

Cable for the testing

monitor

HCZ-6321

High Resolution 32X Zoom

Color Camera

User Manual

Andere Hanwha Techwin Sicherheitskamera Handbücher

Hanwha Techwin

Hanwha Techwin QNP-6250R Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet HCD-6070R Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNV-6080RSA Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet HCP-6230 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNV-6011 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet HCV-6080 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet XNP-6370RH Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet HCB-7000 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNV-6081Z Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet QND-8011 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNB-6001 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet SNP-6320RH Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet PNP-9200RH Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet SNP-L6233H Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet SNB-6004F Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Bandit Barrier XNB-H6280B Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin XNV-C9083R Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNF-9013RV Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet XNB-6002 Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet TNO-6321E Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet XNO-6010R Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin Wisenet QNE-8011R Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET TNO-6010M Bedienungsanleitung

Hanwha Techwin

Hanwha Techwin WISENET XNV-6012M Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
