GENERALSAFETYINSTRUCTIONS
1. Always wear proper clothing, safety glasses and gloves when
exothermicwelding.
2. Only weld items mold is designed for.
3. Do not use worn or broken molds which could cause leakage
ofmoltenweldmetal.
4. Make sure that the material being welded fits in the mold
properly and that the mold will close tightly around them.
5. Donotaltermoldsor accessorieswithout factoryauthorization.
6. Avoid breathing concentrations of smoke, as it may be hazard-
ous to your health.
7. Avoid contact with hot materials.
8. Remove or protect fire hazards in the welding area.
9. Avoid moisture and contaminants in the mold and materials
being welded. Contact of molten weld metal with moisture or
contaminants may cause weld metal to spew out of mold.
10. When welding to pipe or vessels, you should consider the
following:
a.the effect welding may have on structural members and
thin wall pipe or vessels.
b.pipe or vessels that are pressurized or contain (or have
contained)flammable,explosiveorhazardousmateri-
als should be evaluated in the case of a melt-through or
hot molten weld metal coming in contact with any
flammable,explosiveorhazardousmaterials.
11. Failure to abide by the above and follow welding procedures
may result in improper welds, damage to the material being
welded or create hazardous situations for the individual.
PREPARATIONOFCABLE
1. Cable must be bright, clean and dry.
2. Cablethatissaturatedwithoilorgreasemustbecleaned. Cable
may be cleaned by burning it off with a torch (gasoline blow
torch, butane torch, acetylene torch). After burning off oil or
grease, a wire brush should be used to remove residue. Wet
cable must be dried out. Use a hand torch.
3. Corroded cable must be cleaned. Use the CCBRSH1 cable
cleaning brush or a card cloth brush. It is important that the
ends of the individual strands are clean. This can best be
accomplished by making a fresh cut on the end of the cable.
4. Cable should be straightened before clamping mold in place.
Bent or out of round cable will hold mold open and cause leaks.
5. Remove insulation from insulated cable before cutting with
hack saw. Otherwise ends of strands will become coated with
insulating material which may cause defective welds.
6. FLEXIBLECABLE
A sleeve must be used when welding flexible cable.
CUWPSLVwrapsleevesarerecommendedfor300MCMand
smallercable.
PREPARATIONOFSTEEL,CASTIRONORRAIL
1. Surface to be welded must be bright clean and dry.
2. Remove rust and mill scale with rasp, coarse file or grinder.
3. Remove oil, grease or pitch coatings with a solvent or torch.
4. Galvanized surfaces may be cleaned with emery cloth to
remove oxide film. It is not necessary to remove galvaniz-
ing unless it is double or triple galvanized.
5. Cast iron surfaces must be free from large pits and flaws.
For cast iron less than 1/2" thick, do not use larger than a
#65cartridge.
NOTE: Use powder marked C.I. for cast iron. Do not use
regular powder.
6. Under some conditions of temperature and humidity the
surface to be welded will sweat causing porous welds. This
can be eliminated by warming the surface with a hand torch
priortowelding.
WELDINGPROCEDURE
1. Check mold tag for material to be welded and proper cartridge
size to use.
2. Makesure all surfaces andconductorsare clean, dryandare the
proper sizes for the mold's application per mold tag.
3. Molds can be dried by heating to approximately 250o F. Molds
may be dried with a hand operated butane torch or by firing a
charge in the mold before making the desired weld.

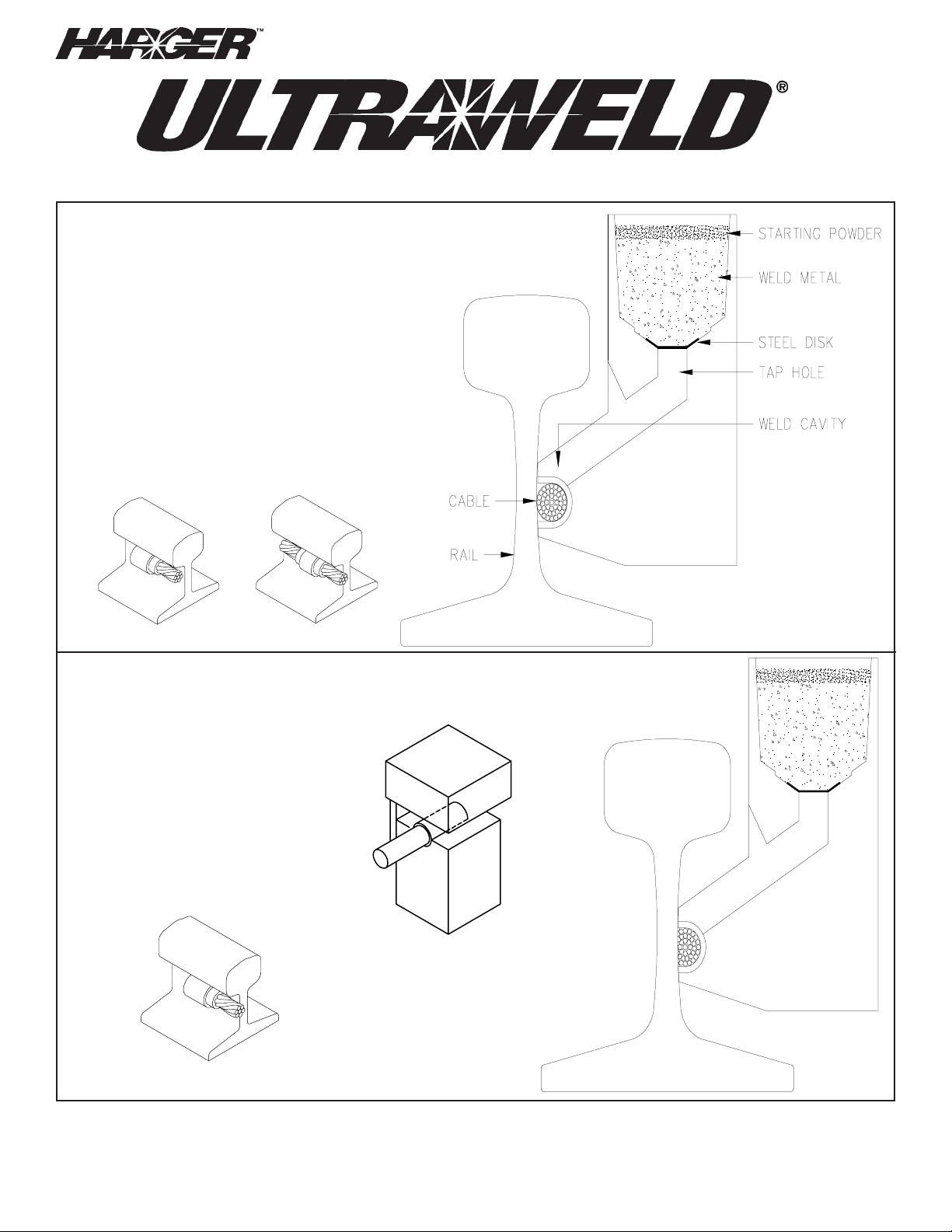

4. Position mold onto conductor(s). See front of this sheet for
positioning of conductors into mold. Lock mold with handle
clamps or frame, which ever is the case.
5. Insert steel disk being sure it is directly centered over the tap
hole. Failuretoinsertdiskintomoldwillcreateimproperwelds
and spewing of weld metal.
6. Pourcartridgeorcartridgesintothecruciblebeingcarefulnottoupset
the steel disk. Tap bottom of cartridge to loosen all starting powder
and spread 2/3 of the powder evenly over the top of the welding
powder. Close the lid of the mold and pour the remaining starting
powder into the ignition pocket on top of mold lid.
7. Before igniting, verify conductor positioning and that mold is
closedcompletely.
8. Close cover and ignite starting powder with flint gun. Pull flint
gun away quickly to prevent fouling flint. When necessary to
holddownonmoldcoverusealongtooltokeephandawayfrom
flash of igniting powder.
9. Wait approximately 30 seconds before opening mold to permit
metaltosolidify.
10. To clean the mold, use a natural bristle brush, soft cloth or
newspaperbeforemaking next weld. Onhorizontallysplit
molds, use a small diameter rod or screw driver to remove slag
from tap hole. Caution should be used when cleaning molds to
avoid burns from contact with hot mold.
DONOTUSEWIREBRUSHTOCLEANMOLD!
NOTE: 1. A fouled flint gun may be cleaned by soaking in house
holdammonia.
2.Proper cartridge size is marked on mold tag and shown
on the bottom of the cartridge tube.
3. Cartridge size is the approximate weight of the powder
in grams. When the cartridge size specified is not
available, two or more smaller cartridges or part of a
larger cartridge may be used. Care should be taken not
tomixstartingmaterialin-betweencartridges.
4. Handle Clamp adjustments may be made by remov-
ing cotter pin and clevis pin and turning eye bolt one
turn clockwise to tighten or one turn counter clock-
wise to loosen.
