HKS 6

LOUDSPEAKERS

OWNER’S MANUAL

HKS 6 OM 10/20/06 10:17 AM Page 3

2 INTRODUCTION

INTRODUCTION

2Introduction

3Speaker Placement

3Color-Coding System

4Mounting Options

5Speaker Connections

5Connection Guide

5Configuring Your Receiver

or Processor

6Troubleshooting

7Specifications

Introduction

Thank you for purchasing the Harman Kardon®

HKS 6 loudspeakers, with which you are

about to begin many years of listening enjoy-

ment. The HKS 6 has been custom-designed

to provide high-fidelity audio reproduction of

your favorite music and movie selections. The

HKS 6 loudspeakers are suitable for upgrad-

ing almost any 5.1 home theater system to

7.1 channels when used with a 7.1-channel

receiver or processor and any necessary

additional amplifiers.

To obtain maximum enjoyment from your new

speakers, we urge you to take a few minutes

to read through this manual. This will ensure

that connections to your receiver or amplifier

are made properly. In addition, a few minutes

spent understanding the setup options will

enable you to take advantage of all the power

and refinement the HKS 6 is able to deliver.

If you have any questions about this product,

its installation or operation, please contact

your dealer, the best local source of information.

Features

The HKS 6 is a pair of 2-way satellite

speakers for use in a home theater system.

The HKS 6 speakers are identical to the

satellites in the Harman Kardon HKTS 15

system, and are designed to be used with

the HKTS 15 in a complete 7.1-channel

home theater. Color-coded speaker cables

are included to facilitate installing the

speakers in the surround back left and

right positions.

Harman Kardon invented the high-fidelity

receiver more than 50 years ago. The

HKS 6 is a perfect complement to a

Harman Kardon receiver or any home

theater system.

nMatched Pair of Loudspeakers for

Use in Multichannel Applications

nSpeakers Are Magnetically Shielded

for Flexible Placement Near Video

Monitors

nThree-Inch Driver

nOne-Half-Inch Dome Tweeter

nMetal-Wire-Mesh Grille

nElegant Cabinet With Black-Lacquer

Finish Includes Shelf Stands

nIncludes Wall-Mount Brackets and

Color-Coded Speaker Cables

nMay Be Used With Optional Floor

Stands

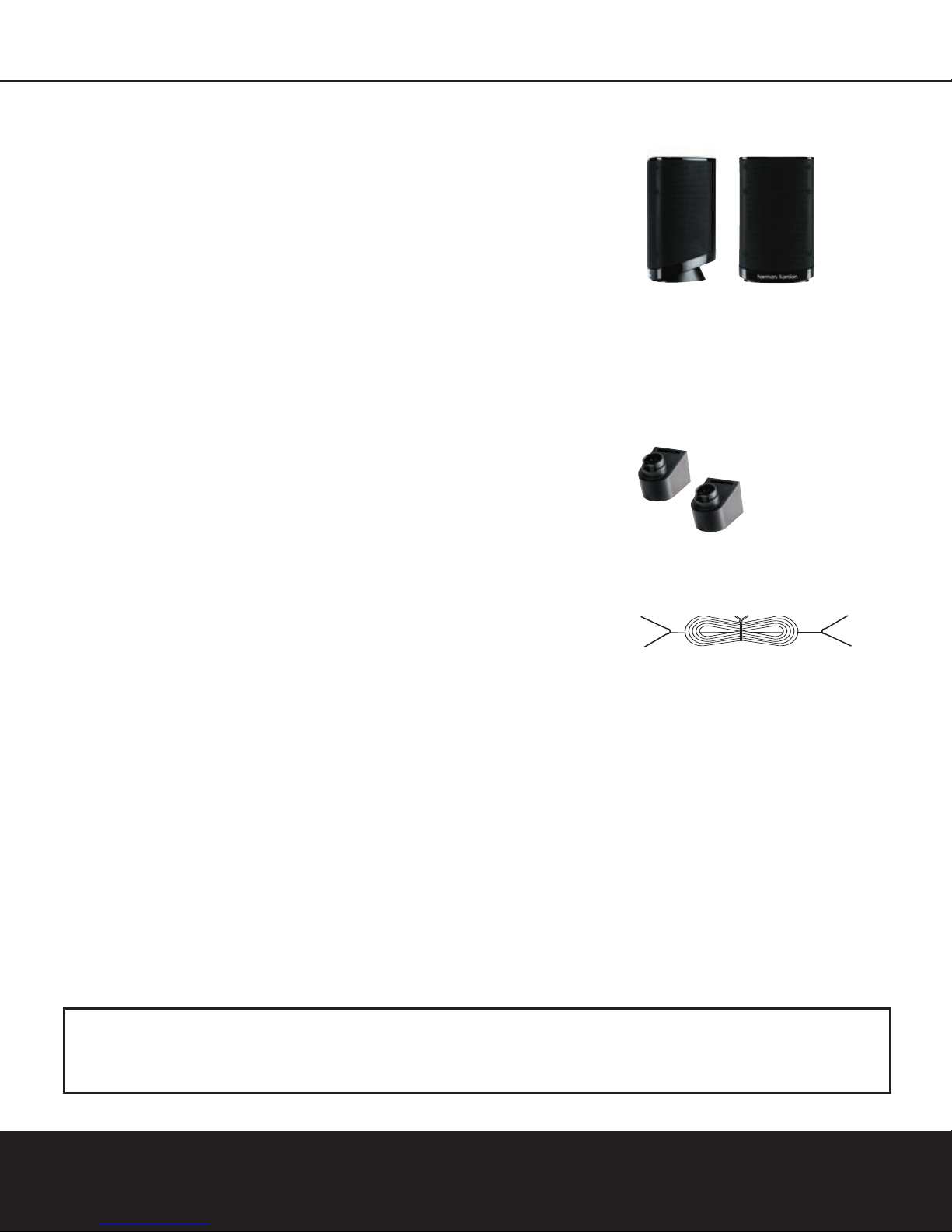

Included

• Two satellites for left/right front, surround

or surround back channels, shown with

included shelf stands

• Two leatherette coasters

Two 40' speaker cables for connection

from receiver or amplifier to speakers

Two wall-mount brackets

Please register your product on our Web site at www.harmankardon.com. Note: You’ll need the serial number of your

new home theater speaker system. At the same time, you can choose to be notified about our new products and/or

special promotions.

HKS 6 OM 10/20/06 10:17 AM Page 4

Color-Coding System

The HKS 6 and the HKTS 15 use the

channel color-coding system established

by the Consumer Electronics Association to

make setting up your home theater speaker

system as easy as possible. Your system

includes a set of colored stickers that may

be placed near the speaker terminals of

each of the

satellite speakers. In addition, the

included speaker wires have colored bands

at each end to assist you in connecting them

correctly. Use the brown sticker and cable for

the surround back left speaker, and the tan

sticker and cable for the surround back right

speaker. Although the wires included with

your HKS 6 speakers are color-coded for the

surround back left and right channels, they are

interchangeable with the wires supplied with

the HKTS 15 system.

It doesn’t matter which

satellite speaker is used for any of the front

or rear positions. (The center speaker and

powered subwoofer of the HKTS 15 are

already color-coded.)

Before you begin to connect cables, it is

important to set up your speakers in their

correct locations in the room.

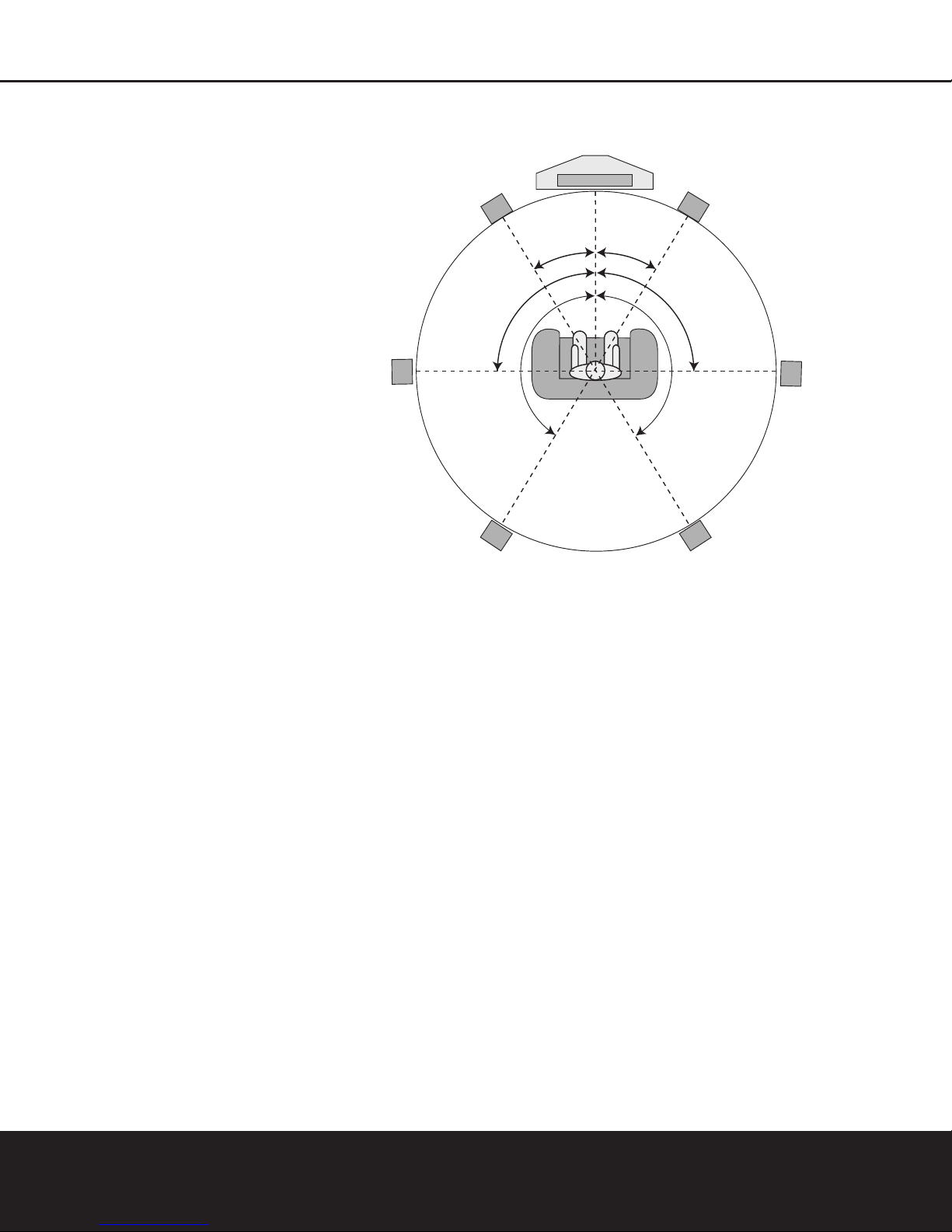

Optimally, the speakers should be placed

in a circle with the listening position at its

center. The distance from the listening

position to the video display forms the radius

of the circle.

The speakers should be angled so that they

directly face the listening position.

The front left and right speakers are placed

along the circle,about 30 degrees from

the center speaker or video display and

angled toward the listener.

When used as a stereo pair, the speakers

should be placed the same distance from

each other as they are from the listener.

It is best to place the front left/right and

center speakers as close to the same height

as possible, preferably about the same

height as the listener’s ears. In any event, the

center speaker should be no more than two

feet above or below the left/right speakers.

When the HKS 6 speakers are used

to upgrade an HKTS 15 system to a 7.1-

channel system, the side surround speakers

should be placed even with and facing the

listening position, 90 degrees from the

center speaker. The HKS 6 speakers are

then placed in the left and right surround

back speaker positions, 150 degrees from

the center speaker.

When setting up your system, refer to the

diagram above instead of the diagram in the

HKTS 15 owner’s guide.

The subwoofer’s location is less critical, since

low-frequency sounds are omnidirectional.

Placing the subwoofer close to a wall or in

a corner will reinforce the low fre

quencies,

and may create a “boomy” sound.

You may

wish to experiment over time by placing

the subwoofer where the listener normally

sits and then walking around the room until

the low frequencies sound best. Place the

subwoofer in that spot.

SPEAKER PLACEMENT 3

SPEAKER PLACEMENT

Center Speaker

Video Screen

Front Right

Speaker

Front Left

Speaker

Side Surround

Left Speaker

Back Surround

Left Speaker

Side Surround

Right Speaker

Back Surround

Right Speaker

90°

150°

90°

150°

30° 30°

HKS 6 OM 10/20/06 10:17 AM Page 5

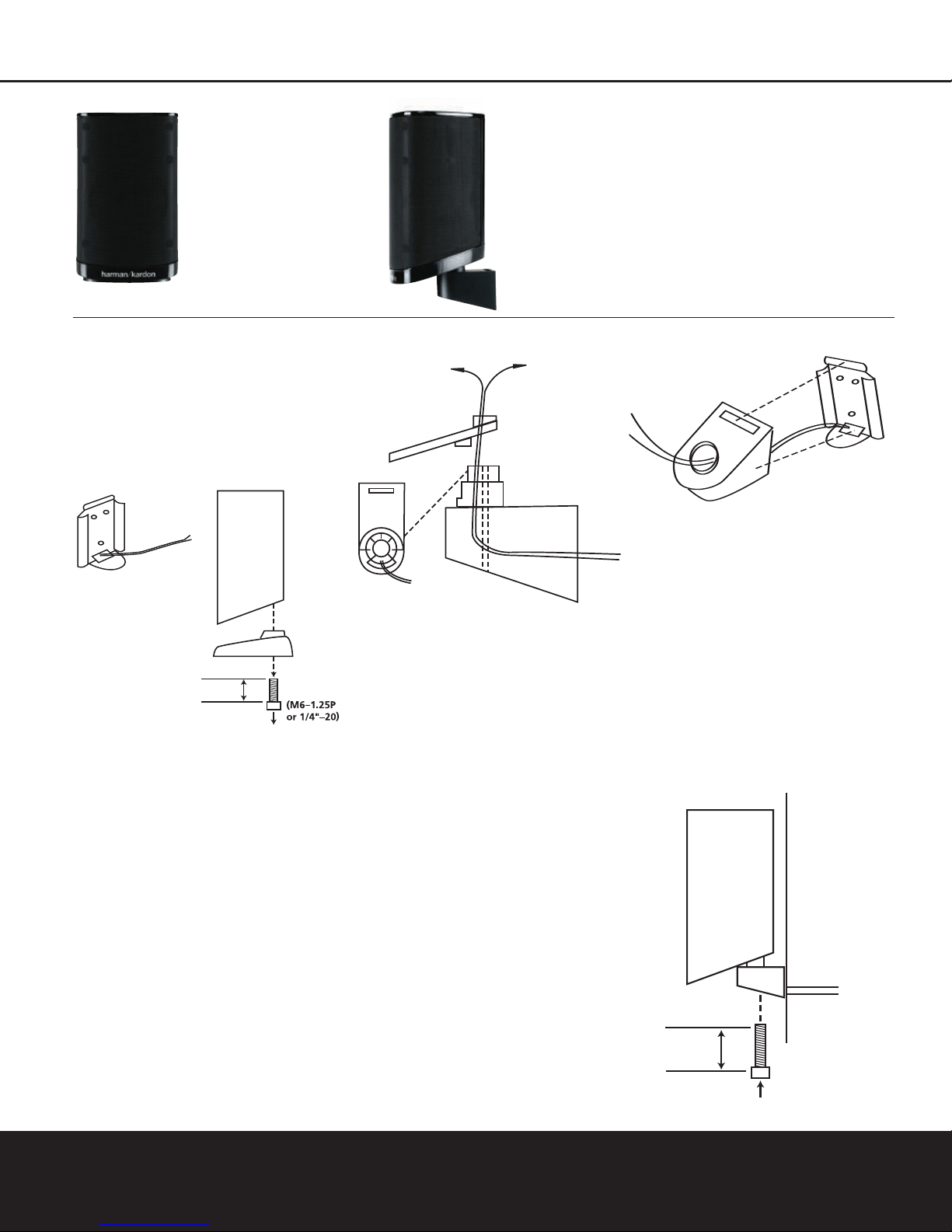

4 MOUNTING OPTIONS

MOUNTING OPTIONS

The satellite speakers

may also be wall-

mounted using the

supplied brackets.

Wall-Mounting

Unscrew the bolt that attaches the black

shelf stand to the bottom of the speaker.

Store the stand and bolt in a safe place

in case they are needed for a future

installation.

Mount the wall-

bracket attachment

plate on the wall in

the desired location.

If possible, position

the speakers so that the mounting screws

(not included; use size #8) may be

installed directly into a wooden wall stud.

If that is not possible, use optional wall

anchors that are rated to support at least 25

pounds. The customer is responsible for

proper selection and use of mounting hard-

ware, available through hardware stores, to

properly and safely wall-mount the speakers.

Referring to the speaker connection instruc-

tions on Page 5, thread the appropriate

speaker cable through the opening in the

bottom of the wall plate, and then through

the back of the bracket as shown in the

diagram. The bracket has two openings on

top: a round screw hole, and an

arc-shaped

opening in front of it. The speaker

cable

should be threaded through the arc-shaped

opening, not the screw hole.

Attach the bracket to the wall plate by insert-

ing the tab at the top of the wall plate into

the slot on top of the bracket and snapping

the bracket onto the wall plate.

Thread the cable through the round opening

in the terminal cover, and then insert the

speaker wires into the terminals on the

underside of the speaker, remembering to

observe the correct polarity (see Page 5).

Place the terminal cover over the opening

on the underside of the speaker so that it fits

flush against the speaker and covers the ter-

minals, with its round opening exposing the

threaded insert. The bracket fits through the

round opening in the terminal cover.

Insert the supplied bracket bolt up through

the bottom of the bracket and terminal

cover, and screw it into the threaded insert

on the underside of the speaker. The bolt

should be snug, but not so tight as to

prevent the bracket from pivoting.

The wall-mounted speaker may be pivoted

from side to side; however, the bracket is

not designed to tilt up or down, and

attempting to tilt it will damage the bracket

and possibly the wall, which would not be

covered by your warranty.

The satellite speakers may

be placed on a shelf. Place

each satellite speaker on

one of the supplied coasters

for added stability and to

protect your furniture.

Wall Plate

Remove

Stand

15mm

or 1/2"

Wall

Wall Plate

Wires to Speaker

Terminal Cover

Overhead

View

Wire

From

Wall

Plate

23mm

or 3/4"

(M6–1.25P

or 1/4"–20)

Wall Plate

Remove

Stand

15mm

or 1/2"

Wall

Wall Plate

Wires to Speaker

Terminal Cover

Overhead

View

Wire

From

Wall

Plate

23mm

or 3/4"

(M6–1.25P

or 1/4"–20)

Wall Plate

Remove

Stand

15mm

or 1/2"

Wall

Wall Plate

Wires to Speaker

Terminal Cover

Overhead

View

Wire

From

Wall

Plate

23mm

or 3/4"

(M6–1.25P

or 1/4"–20)

Wall Plate

Remove

Stand

15mm

or 1/2"

Wall

Wall Plate

Wires to Speaker

Terminal Cover

Overhead

View

Wire

From

Wall

Plate

23mm

or 3/4"

(M6–1.25P

or 1/4"–20)

Wall Plate

Remove

Stand

15mm

or 1/2"

Wall

Wall Plate

Wires to Speaker

Terminal Cover

Overhead

View

Wire

From

Wall

Plate

23mm

or 3/4"

(M6–1.25P

or 1/4"–20)

HKS 6 OM 10/20/06 10:17 AM Page 6

Connection Guide

IMPORTANT NOTE:

Before making speaker

connections, be certain that your receiver

or audio power amplifier is turned off and,

preferably, unplugged from its AC power

source.

Speakers and electronics terminals have

corresponding (+) and (–) terminals. Most

manufacturers of speakers and electronics,

including Harman Kardon, use red to

denote the (+) terminal and black for

the (–) terminal.

Newer Harman Kardon receivers conform to

the new CEA®standard and therefore use a

color other than red for the (+) terminal to

indicate some speaker positions: e.g., blue

for surround left positive (+). However, the

black terminal will always be the negative (–)

connection. Please see the owner’s guide

for your Harman Kardon receiver for further

details.

Although the HKS 6 speakers may be placed

in the front, side surround or surround back

positions, the speaker wires provided with the

system have been color-coded brown for the

surround back left speaker and tan for the

surround back right speaker. When used with

the HKTS 15 system, it is recommended that

you maintain the color-coding system for all

cables to simplify setup,and to ensure that

each wire in a channel pair (e.g., front left and

right) is the same length as its partner.

The (+) lead of the speaker wire is noted

with a stripe. It is important to connect

both

speakers identically: (+) on the speaker

(+) on the amplifier and (–) on the speaker

to (–) on the amplifier. Wiring “out of phase”

results in thin sound, weak bass and a poor

stereo image.

With the advent of multichannel surround

sound systems, connecting all of the speakers

in your system with the correct polarity

remains equally important in order to preserve

the proper ambience and directionality

of the

program material.

To connect the supplied speaker wires to

the satellite speaker terminals located on

the bottom of each speaker, press the red or

black tab, insert the bare end of the wire into

the hole,and release the tab. Gently tug on

the wire to make sure that it is fully inserted.

Configuring Your Receiver or

Processor

Many receivers and processors feature pro-

grammable bass-management capability,

which allows the component to output the

lowest frequencies (the bass information)

exclusively to a separate subwoofer speaker,

or to a main speaker that is capable of han-

dling low frequencies, or sometimes to both.

During the setup process you will be asked

to specify whether the speaker for a given

channel is “Large” or “Small.” The terms

“Large” and “Small” do not refer to physical

size, but to the size of the frequency range

the speaker is capable of handling. When

configuring your receiver or processor for

the channels where HKS 6 speakers are

being used, select “Small.”

SPEAKER CONNECTIONS 5

SPEAKER CONNECTIONS

Front-, Surround- or Surround Back-Channel

Receiver/Amplifier Output

Left Right

–

– + – +

Left Speaker Right Speaker

HKS 6 OM 10/20/06 10:17 AM Page 7

6 TROUBLESHOOTING

TROUBLESHOOTING

SYMPTOM SOLUTION

If there is no sound from • Check that the receiver/amplifier is on and a source is playing.

any of the speakers: • Check all wires and connections between receiver/amplifier and speakers. Make sure all wires are

connected. Make sure none of the speaker wires are frayed, cut or punctured, and that no wires

are touching each other.

• Review proper operation of your receiver/amplifier.

If there is no sound coming from • Check the “Balance” control on your receiver/amplifier.

one speaker: • Check all wires and connections between receiver/amplifier and speakers. Make sure all wires

are connected. Make sure none of the speaker wires are frayed, cut or punctured, and that

no wires are touching each other.

• In Dolby®Digital or DTS®mode, make sure that the receiver/processor is configured so that the

speaker in question is enabled.

• In Dolby Digital or DTS mode, check the speaker and channel output levels and adjust if needed.

• Turn off all electronics and switch the speaker in question with one of the other speakers that

is working correctly. Turn everything back on, and determine whether the problem is in the

same place: i.e., the speaker that was working previously now has no sound and the speaker

that was not working now sounds fine; or whether it has moved: i.e., the speaker that was

not working still has no sound and the speaker that was working is still fine. If the problem is in

the same place, the source of the problem is most likely with your receiver or amplifier, and you

should consult the owner’s manual

for that product for further information. If the

problem has

followed the speaker, consult your dealer for further assistance or, if that is not possible,

visit our Web site at www.harmankardon.com for further information.

If the system plays at low volumes but • Check all wires and connections between receiver/amplifier and speakers. Make sure all wires

shuts off as volume is increased: are connected. Make sure none of the speaker wires are frayed, cut or punctured, and that

no wires are touching each other.

• If more than one pair of main speakers is being used, check the minimum impedance

requirements of your receiver/amplifier.

If there is low (or no) bass output: • Make sure the polarities (+ and –) of the left and right speaker inputs are connected properly.

• Consider adding a powered subwoofer to your system.

If there is no sound from the • Check all wires and connections between receiver/amplifier and speakers. Make sure all wires

surround speakers: are connected. Make sure none of the speaker wires are frayed, cut or punctured, and that

no wires are touching each other.

• Review proper operation of your receiver/processor and its surround sound features.

• Make sure the movie or TV show you are watching is recorded in a surround sound mode.

If it is not, check to see whether your receiver/processor has other surround modes you may use.

• In Dolby Digital or DTS mode, make sure your receiver/processor is configured so that the

surround speakers are enabled.

• Review the operation of your DVD player and the jacket of your DVD to make sure that the

DVD features the desired Dolby Digital or DTS mode, and that you have properly selected that

mode using both the DVD player’s menu and the DVD disc’s menu.

HKS 6 OM 10/20/06 10:17 AM Page 8

SPECIFICATIONS 7

Recommended Power

10 – 80 Watts

Impedance

8 Ohms nominal

Sensitivity

86dB @ 1 Watt/1 meter

Frequency Response

110Hz – 20kHz (–6dB)

Tweeter

One 1/2" dome, video-shielded

Midrange

One 3" driver, video-shielded

Dimensions (Product) (Shipping)

Height: 6-9/16" (167mm) 6-1/8" (156mm)

Width: 3-15/16" (100mm) 11-5/16" (287mm)

Depth: 3-5/8" (92mm) 10" (253mm)

Weight

1.65 lb (0.74kg) 5.1 lb (2.3kg)

Care and Cleaning

The loudspeaker enclosures may be cleaned by gently wiping with a soft cotton or microfiber cloth.

Do not use water or any liquid cleaners.

HKS 6 SPECIFICATIONS

Features, specifications and appearance are subject to change without notice.

Harman Kardon is a registered trademark, and Designed to Entertain is a trademark, of Harman International Industries, Incorporated.

CEA is a registered trademark of the Consumer Electronics Association.

Dolby is a registered trademark of Dolby Laboratories.

DTS is a registered trademark of DTS, Inc.

HKS 6 OM 10/20/06 10:17 AM Page 9

250 Crossways Park Drive, Woodbury, New York 11797

516.255.HKHK (4545) Fax: 516.682.3523

Printed 10/06 Part No. 406-000-05547-E

HKS 6 OM 10/20/06 10:17 AM Page 2

Inhaltsverzeichnis

Andere Harman Kardon Sprecher Handbücher

Harman Kardon

Harman Kardon CITATION BAR Bedienungsanleitung

Harman Kardon

Harman Kardon Go Plus Play Mini Bedienungsanleitung

Harman Kardon

Harman Kardon INVOKE Bedienungsanleitung

Harman Kardon

Harman Kardon CITATION DELUXE 5.1 CHANNEL Bedienungsanleitung

Harman Kardon

Harman Kardon Esquire Mini Bedienungsanleitung

Harman Kardon

Harman Kardon CITATION TOWER Bedienungsanleitung

Harman Kardon

Harman Kardon ONYX Bedienungsanleitung

Harman Kardon

Harman Kardon Sabre SB35 Bedienungsanleitung

Harman Kardon

Harman Kardon AVR 7500 Bedienungsanleitung

Harman Kardon

Harman Kardon SB26 soundbar Installations- und Betriebshandbuch

Harman Kardon

Harman Kardon ASTRA Bedienungsanleitung

Harman Kardon

Harman Kardon OMNI 10+ Bedienungsanleitung

Harman Kardon

Harman Kardon HKTS30SAT-2 Bedienungsanleitung

Harman Kardon

Harman Kardon ONYX STUDIO 4 Bedienungsanleitung

Harman Kardon

Harman Kardon HKS 9 Bedienungsanleitung

Harman Kardon

Harman Kardon CITATION 300 Bedienungsanleitung

Harman Kardon

Harman Kardon Aura Installations- und Betriebshandbuch

Harman Kardon

Harman Kardon JBL PULSE 4 Bedienungsanleitung

Harman Kardon

Harman Kardon SOUNDSTICKSII Bedienungsanleitung

Harman Kardon

Harman Kardon JBL XTREME Bedienungsanleitung

Harman Kardon

Harman Kardon FSTS1 Bedienungsanleitung

Harman Kardon

Harman Kardon JBL Bar 2.1 Deep Bass Bedienungsanleitung

Harman Kardon

Harman Kardon ESQUIRE 2 Bedienungsanleitung

Harman Kardon

Harman Kardon AURA STUDIO 4 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
