Havis-Shields Silver Billet Telescoping Computer Mounts C-PED... Konfigurationshandbuch

INSTALL INSTRUCTIONS C-PED SERIES

(C-PED1612-W2 or C-PED1612-W4)

SILVER BILLET™ TELESCOPING COMPUTER MOUNTS

C-PED1612-W2 Silver Billet Telescoping Computer Pedestal with 2” Offset Bracket

C-PED1612-W4 Silver Billet Telescoping Computer Pedestal with 4” Offset Bracket

TOOLS REQUIRED:

Ratcheting wrench

Socket set

Powered drill

Drill bit set

Screwdriver set

Standard Allen key set

HARDWARE:

QTY DESCRIPTION PART #

1 White Teflon washer CM93081

7 ¼-20 x ¾” Phillips machine screw GSM33124

3 ¼-20 Thin Nylock nut GSM30016-1

7 ¼” Flat washer GSM31005

4 ¼” Lock washer GSM31026

4 5/16” x 1” Hex head lag bolt GSM34203

Always!

 Read all instructions before installing any Havis-Shields Equipment Corp products.

 Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

 Use hardware provided with install kit

C-PED-SERIES-INST-9-06

1. SUBASSEMBLY:

• Determine location in vehicle where you can obtain a side and floor mount.

• Be sure that determined locations would accept mounting bolts and screws without

interference to other controls, wires, etc.

2. INSTALLATION

• The C-PED Series mounts to a horizontal flat surface as well as a vertical flat surface.

Determine location to obtain both.

• With offset bracket positioned against flat surface, (i.e., console, divider wall, etc.),

mark and drill 5/16” hole at location of bolt on offset bracket.

• Bolt offset bracket to “flat surface” using a fender washer and 5/16” nut.

• Bolt C-PED1612 to floor of vehicle using ¼” x 1” –1 ½” hex head lag bolts,

depending on particular vehicle application.

• Mount optional laptop mounts (C-3090 series), monitor mounts (C-3522), keyboard

mounts (C-3329) or tilt swivels (C-3075 series) (optional - order separately) using ¼-

20 x ¾” bolts, washers, and nylock nuts.

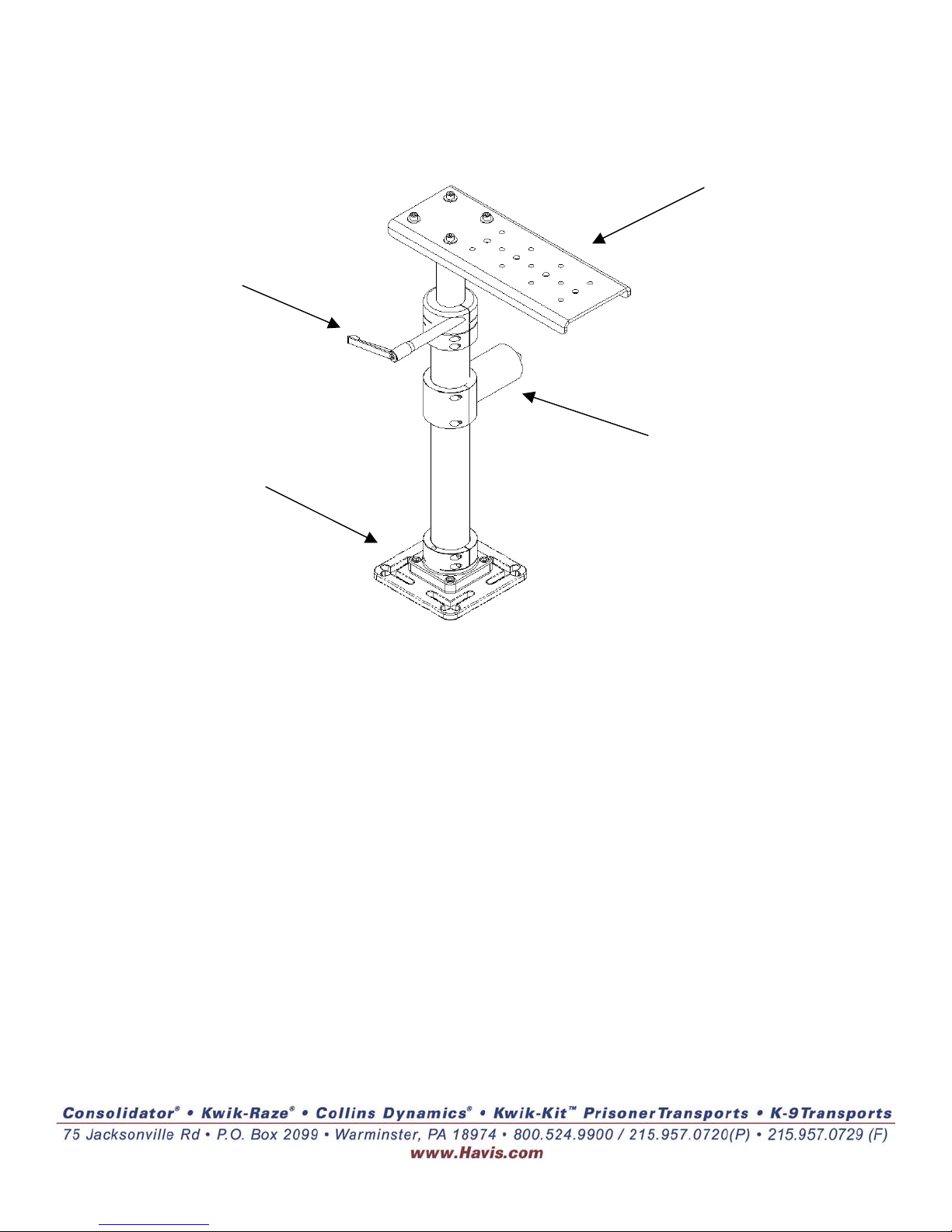

Optional Mounting Base

C-PED-PLT shown

(Mounts to floor)

Computer mount

platform

Adjust lever

Offset bracket

C-PED1612-W4 shown

suppo
