Hayes ACCURA Bedienungsanleitung
ACCURA PCI
ISDN Terminal
Adapter
Installation Guide
ISDN Card Installation Guide
ii
Regulatory Compliance Information
Declaration of Conformity
The manufacturer declares under sole responsibility that this
equipment is compliant to Directive 1999/5/EC (R&TTE Directive)
via the following:
Standards Directives Test Reports Issued
EN 60950 73/23/EEC – Low
Voltage electrical safety
EN 50082-1 89/336/EEC – EMC EMC-immunity
EN 50081-1 89/336/EEC – EMC EMC-emissions
The product is CE Marked.
Additional Test Information
This product also meets the requirements of the following:
European Harmonized Standard: CTR 3
European Technical Standard: NET 3
CE/EMC Restriction of Liability
The product described in this handbook was designed, produced and
approved according to the EMC-regulations and is certified to be
within EMC limitations. If the product is used with an uncertified
PC, Zoom Telephonics, Inc. undertakes no warranty in respect to the
EMC limits. The described product in this handbook was
constructed, produced and certified so that the measured values are
iii
within EMC limitations. In practice and under special circumstances,
it may be possible, that the product may be outside of the given
limits if it is used with a PC that is not produced under EMC
certification.
Electrostatic Discharge Statement:
The PC may require resetting after a severe electrostatic discharge
event
Table of Contents
CHAPTER 1 1
Introduction 1
1.1 An Overview of the ISDN Card 1
1.2 Package Contents 2
1.3 ISDN Card Features 3
CHAPTER 2 4
Installation 4
2.1 Before Installing 4
2.2 Installing the ISDN Card 5
2.3 Installing the ISDN Card Drivers 6
2.4 ISDN Utility Installation 13
2.5 The Diagnostic Program 14
2.6 Using Multilink in Windows 95, OSR2 or 98 16
2.7 Uninstalling the ISDN Card 18
Chapter 1
Introduction
1.1 An Overview of the ISDN Card
The ISDN Card is ideally suited to give your PC access to the world
of the Integrated Services Digital Network. The card is easy to
install, and easy to configure because it is fully Plug and Play
compatible. The Windows 95/OSR2 or 98 operating system
automatically installs and configures the ISDN card.
ISDN Card Installation Guide
2

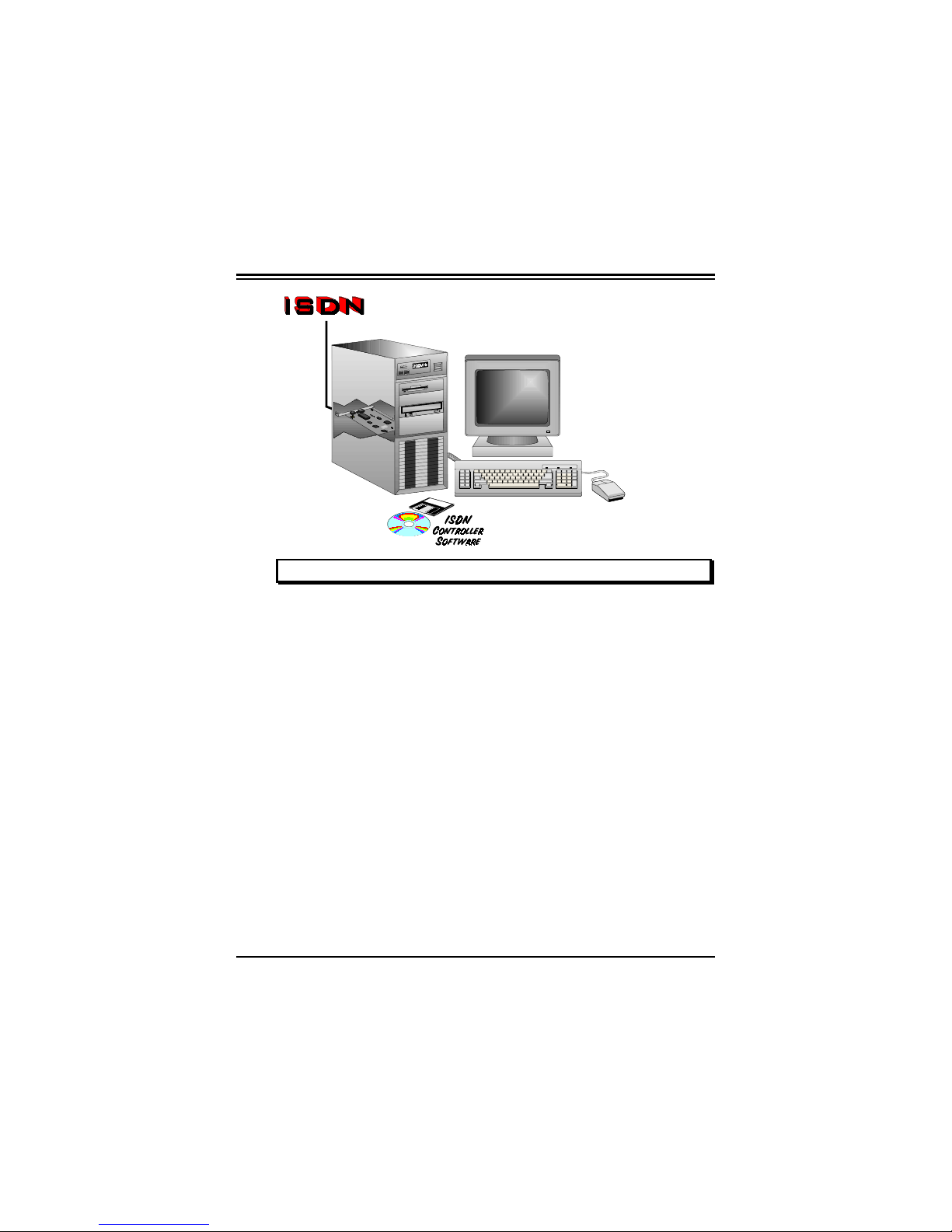

FIGURE 1-1: THE ISDN SYSTEM
With the ISDN card, you can have an answering machine, file
transfer, videotex, G3/G4 Fax functions, and Internet access. This
brings you more versatility and efficiency in the ISDN era.
1.2 Package Contents
The product package comes with the following accessories:
1. The ISDN card
2. The installation diskettes or CD of the ISDN card
3. The installation diskettes or CD of the bundled application
software programs
4. One RJ-45 cable.
Chapter 1 — Introduction
3
1.3 ISDN Card Features
The ISDN card supports many standard and enhanced features,
including the following:
♦It is fully Plug and Play compatible.
♦It provides telephony functions with a headset (optional).
♦It supports both 16-bit and 32-bit CAPI drivers for Windows
95/OSR2, 98 and NT.
♦It supports TAPI and NDIS WAN miniport drivers for Windows
95/OSR2, 98 and NT.
♦It supports Multilink PPP (MP) for 128Kbps (two B channels)
Internet access and data transfer.
♦It supports X.75, T.70NL, ISO8208, T.90, and HDLC
transparent protocols on the B channel for T-Online, AOL,
CompuServe, BTX, BBS, Eurofile transfer, and G4 Fax.
♦It has support for a bit-transparent driver on the B channel for
answering machine and G3 Fax functions.
♦It supports both V.110 and V.120 rate adaptation.
♦It supports COM port simulation for modem-based application
programs.
If you want to send and receive the Group 3
(G3) fax at 14.4Kbps, you should have a
Pentium processor.
Chapter 2
Installation
2.1 Before Installing
Make sure that you have all you need to install the ISDN card. You
should have the following:
1. An IBM-compatible 486 DX2-66 or higher with at least
8MB of RAM
2. One free interrupt (IRQ)
3. Microsoft Windows 95/OSR2, 98 or NT
4. At least 5MB of free disk space for the controller
software
5. A VGA compatible monitor
6. An IBM or Microsoft compatible mouse
7. An ISDN basic rate S0 interface released by PTT (Post,
Telephone and Telegraph administration).
