Haztec 4-3056-T Bedienungsanleitung

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK

T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk

4-3056-T

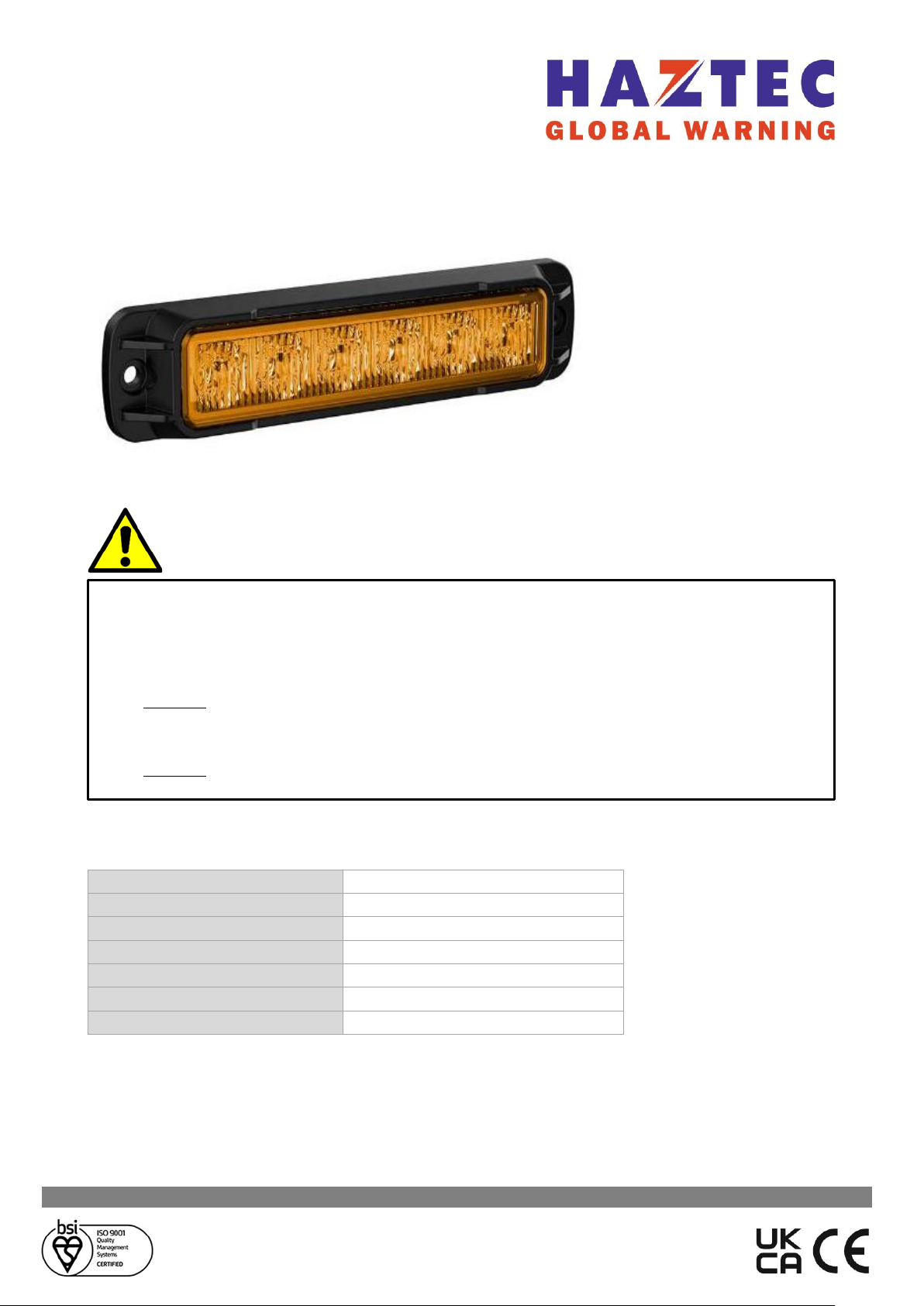

6-LED Slim Turn Light

M389.1.0 - 1 - July 2022

Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to

read and understand this instruction booklet.

▪This product must be installed by persons competent in vehicle electrical installations

▪Care should be taken to ensure that water ingress cannot occur through mounting or

wiring holes

▪Regularly inspect the product to confirm correct operation

▪DO NOT stare directly into the light it produces as permanent damage to the eyes

may result

▪Use only a mixture of soap and water to clean this product

▪DO NOT allow solvents, fuels, acetone-based cleaners etc. to contact with this product

Basic Operating Specifications:

Supply voltage range:

10-30VDC

Maximum current draw:

0.06A @ 12VDC / 0.03A @ 24VDC

Operating temperature range:

-40OC ~ +65OC

LED Power:

1W per LED

Dimensions (mm):

130 (L) x 28.5 (H) x 13 (D)

Cable length:

200mm

Weight:

84g

▪Ultra slim LED turn light

▪12/24VDC

▪6-LED

▪UNECE R6 approved

▪IP67 rated

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK

T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk

4-3056-T

6-LED Slim Turn Light

M389.1.0 - 2 - July 2022

Installation Notes

▪Ensure that the mounting surface is completely flat. The lamp is not flexible, and will be

damaged if any attempt is made to mount on a curved surface

▪Always use the fixing screws provided. If a different fixing screw must be used, it is

essential that the screw head fits comfortably in the screw-head recess on the lamp. If

the screw head is larger than the recess, then the lamp lens will be damaged during

installation

▪DO NOT over tighten mounting screws as this will cause damage to the assembly

Connection Instructions:

Wire

Connect to

Function

Red

Positive [+] via fuse

Main feed

Black

Permanent Negative [-]

Ground

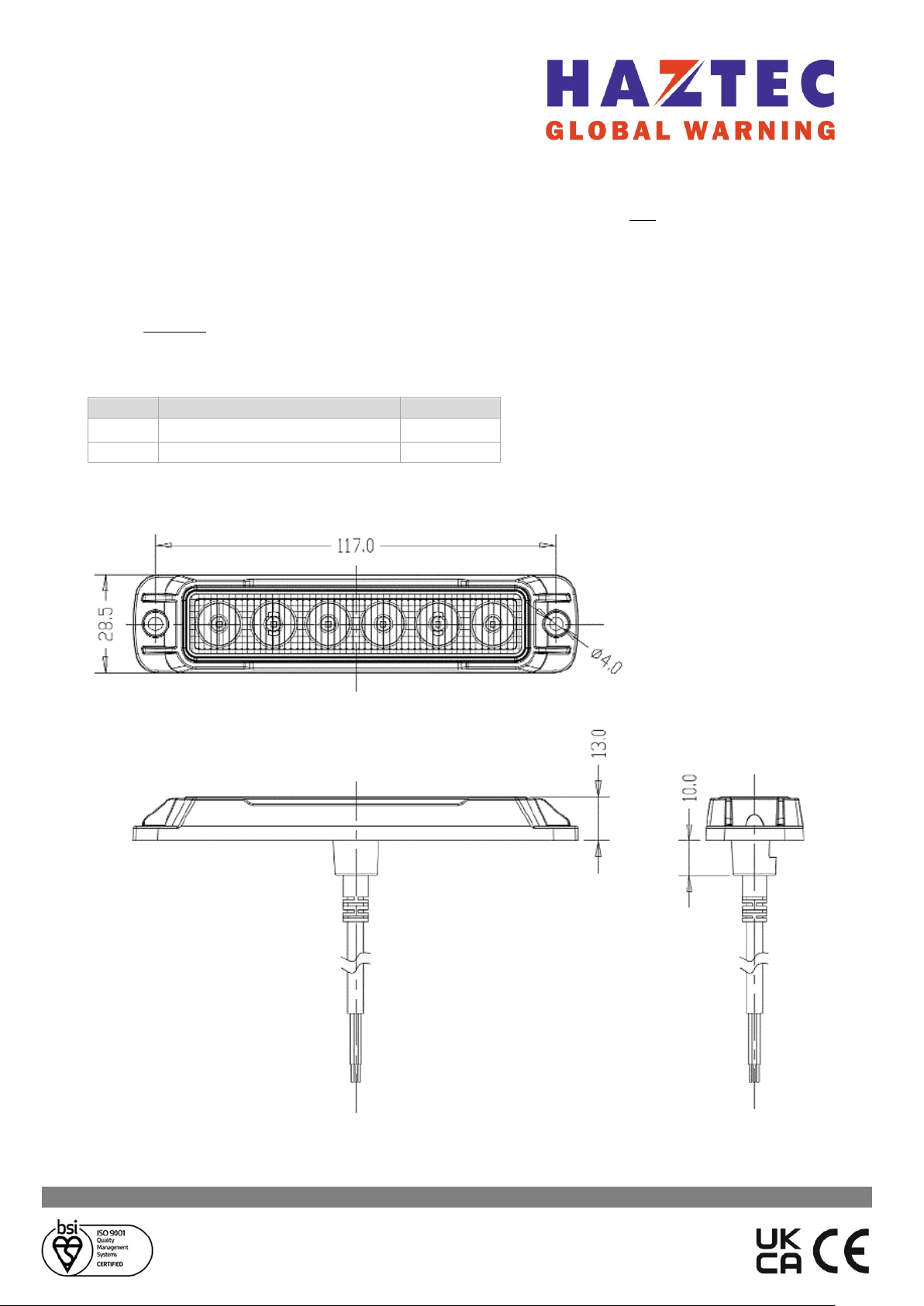

Basic Dimensions:
