2. Configuration
Voltage : DC 10V to 15V
Power Consumption : 200mA Max @12VDC
Transporting Frequency : 125KHz
Reading Range : Up to 10 ㎝(In noise-free environment)
Keyboard : 12 keys (0~9,＊,＃)
Indicator : Double-color LED (Greed/Red)
Memory : 512KByte SARM Allowable for saving up to 12,000 card
holder / 14,000 data events
Connection Distance with
Power : 150MeterMIN. (0.5mmCable Line)
Connection Distance with
Subordinated Reader : 80MeterMIN. (0.5mmCable Line)
Weight : 312g MAX
Humidity : 30%~95% (No condensation)
Temperature : 5℃~45℃
Out Case Material : ABS (UL94V0) fully waterproof
Dimension : 148mm (L) x 95mm (W) x 34 ㎜(H)
Communication Interface: RS232 or RS485 Selectable
Power Capacity : enable to reserve memory data and work in reader IC for
over 2 months without power supply

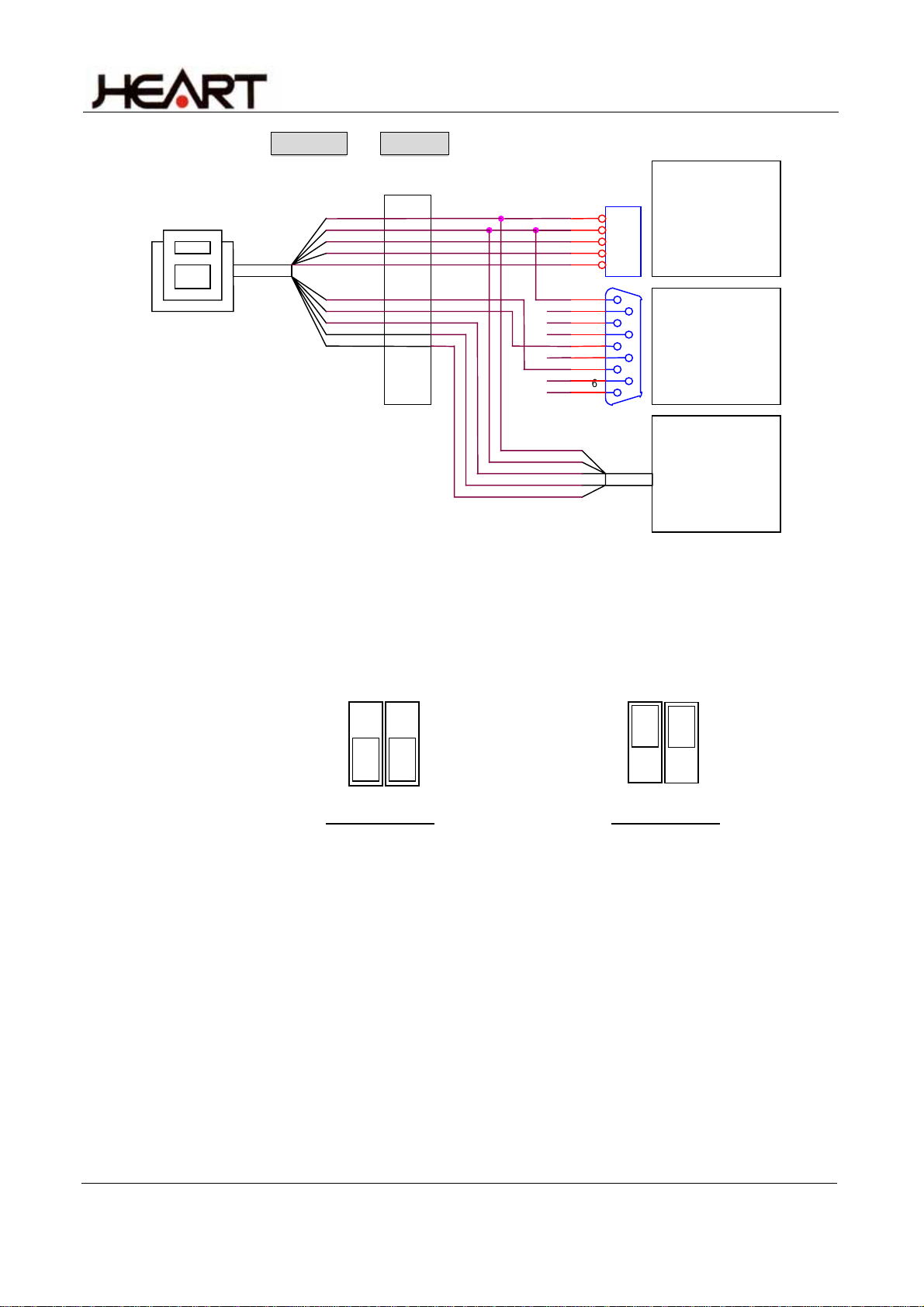

3. Wiring
Color Title Function
Red V+ +12VDC Voltage for card reader
Black GND Ground
Brown CLK 〝Clock〞Signal on card reader
Orange DATA 〝Data〞Signal on card reader
Yellow ACP AC Power Failure for Spare Battery, and no
connection necessary with HB0312
Green T-/TXD RS485 T- or RS232 TXD
Blue T+/RXD RS485 T+ or RS232 RXD
Purple DATA1 “WIEGAND data1〞on subordinated reader
Gray DATA0 “WIEGAND data0〞on subordinated reader
White LED LED Signal Light on subordinated reader
