Heat Controller AS-W303DPZ0 Bedienungsanleitung

Wall Mounted

Mini-Split System

Inverter Single-Zone

Air Conditioning

Service Manual

AS-W303DPZ0[VMH30SB-1]

AS-Q303DPZ0[VMC30SB-1]

Before servicing the unit, read the

“safety precautions” in this manual.

Only for authorized service personnel.

HEAT CONTROLLER, INC.

- 2 -

Only for training and service purposes LGE Internal Use Only

1. Specification

Cooling Capacity kW

(Min~Rating~Max) Btu/h

Heating Capacity kW

(Min~Rating~Max) Btu/h

Power Input Cooling/Heating W

Running Current Cooling/Heating A

Starting Current Cooling/Heating A

EER W/W

Btu/h.W

COP W/W

Power Supply Ø / V / Hz

Power Factor %

Air Flow Rate Indoor,Max m3/min(cfm)

Outdoor,Max m3/min(cfm)

Moisture Removal l/h

Sound Level Indoor,H/M/L dB(A)+3

Outdoor,Max dB(A)+3

Refrigerant & Charge(at 7.5m) g(oz)

Additional Refrigerant Charge g/m(oz/ft)

Compressor Type

Model

Motor Type

Oil Type

Oil Charge cc

O.L.P Name

Fan(Indoor) Type

Motor Output W

Fan(outdoor) Type

Motor Type

Motor Output W

Circuit Breaker* A

Power Supply Cable No.*mm2

Power and Transmission Cable No.*mm2+No.*mm2

Piping Liquid Side mm(in)

Connections Gas Side mm(in)

Drain Hose O.D , I.D mm(in)

Dimension Indoor(W*H*D) mm

inch

Outdoor(W*H*D) mm

inch

Net Weight Indoor kg(lbs)

Outdoor kg(lbs)

Operation Range Cooling(Outdoor) °C(°F)

Heating(Outdoor) °C(°F)

Max. Piping Length m(ft)

Max. Elevation Difference m(ft)

Tool Code(Chassis) Indoor + Outdoor

Functions Temperature Control

Plasma Filter

Prefilter(washable/anti-fungus)

Auto Clean

CHAOS Wind(Auto Wind)

Steps, Fan/Cool/Heat

Airflow Direction Control(up&down)

Airflow Direction Control(left&right)

Remocon Type

Setting Temperature Cooling

Range Heating

Auto Operation (Micom Control)

Auto Changeover (Micom Control)

Self Diagnosis

Timer

Sleep Operation

Soft Dry Operation

Restart Delay(minute)

Deice Control(Defrost)

Hot Start

Jet Cool

Low Ambient Operation

Special Function

Network Functions Dry Contact

Network Solution(LGAP)

PI485

Models

AS-W303DPZ0[VMH30SB-1] AS-Q303DPZ0[VMC30SB-1]

3.5~7.9~7.9

12000~27000~27000

3.5~8.5~8.5

12000~29000~29000

3100/3200

13.6/14.0

13.1/14.0

2.55

8.71

2.66

1/208~230/60

21(742)

58(2048)

2.8

47/43/41

R410A 1830(64.6)

20(0.22)

SCROLL + ROTARY

5CS130XCC03 + GK141KAA

BLDC + AC

POE

480 + 350

Cross Flow Fan

Propeller

140

3*2.08

4*0.82

6.35(1/4)

15.88(5/8)

21.5,16(0.85,0.63)

1209*346*205

47.6*13.6*8.1

800*870*320

31.5*34.3*12.6

17(37.5)

67(147.7)

-5°C~43°C (23~109.4)

-5°C~27°C(23~80.6)

30(98.4)

15(49)

SD+UE1

Thermistor

O(-)

3/4/4

Auto

Wireless LCD

18 ~ 30(64~86)

16 ~ 30

24h, On/Off

3.5~7.9~7.9

12000~29000~29000

3100/3200

13.6/14.0

13.1/14.0

2.55

8.71

1/208~230/60

21(742)

58(2048)

2.8

47/43/41

R410A 1830(64.6)

20(0.22)

SCROLL + ROTARY

5CS130XCC03 + GK141KAA

BLDC + AC

POE

480 + 350

Cross Flow Fan

Propeller

140

3*2.08

4*0.82

6.35(1/4)

15.88(5/8)

21.5,16(0.85,0.63)

1209*346*205

47.6*13.6*8.1

800*870*320

31.5*34.3*12.6

17(37.5)

67(147.7)

-5°C~43°C (23~109.4)

30(98.4)

15(49)

SD+UE1

Thermistor

O(-)

3/4/4

Auto

Wireless LCD

18 ~ 30(64~86)

24h, On/Off

Note:

: Applied, - : No relation

For circuit breaker rating, please conform to local standards wherever necessary.

❈

Some of functions are slightly different depending upon models.

❈

The specification may be subject to change without prior notice for purpose of improvement.

❈

Capacity : based on 230V.

- 3 -

Only for training and service purposes LGE Internal Use Only

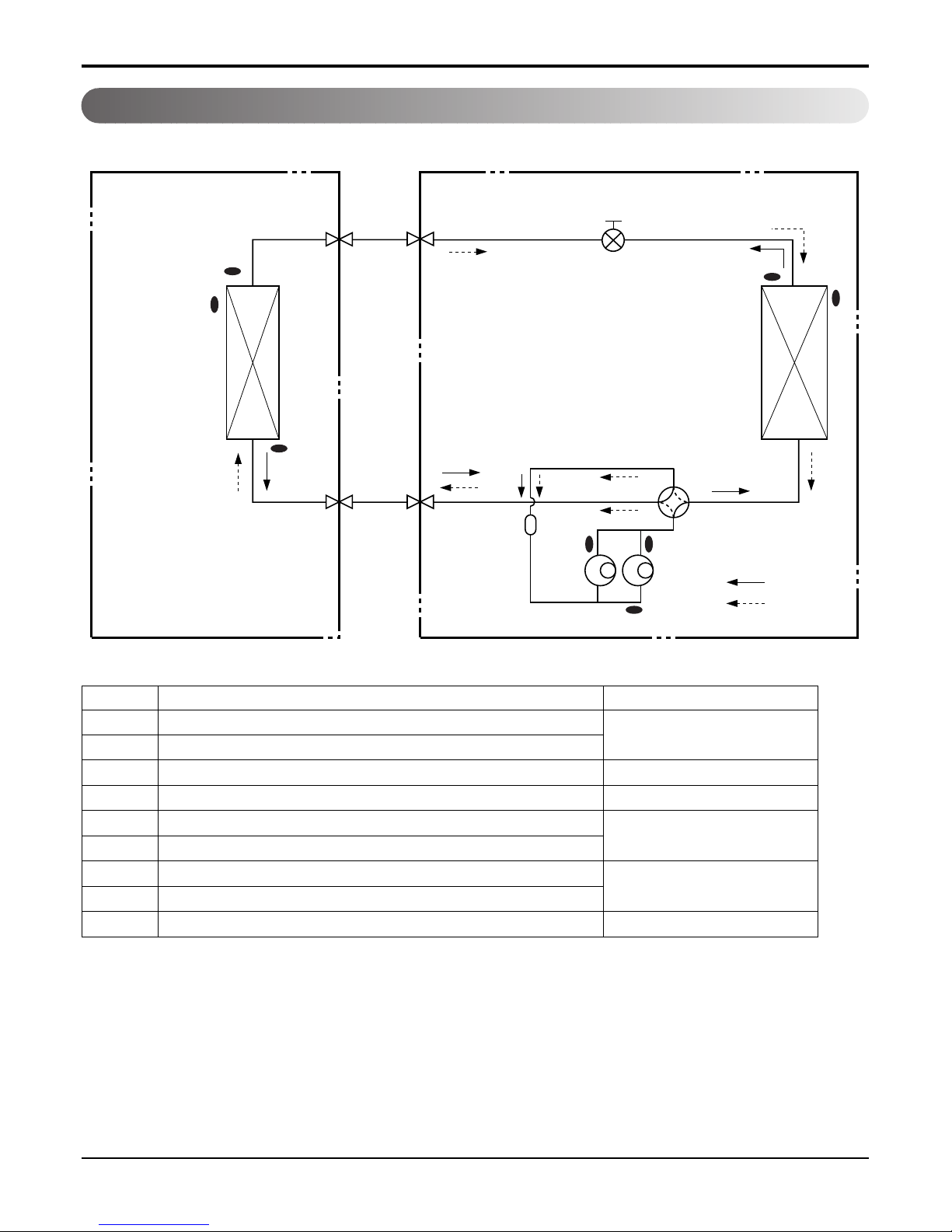

2. Piping Diagrams

INDOOR UNIT OUTDOOR UNIT

HEAT

EXCHANGE

(EVAPORATOR)

HEAT

EXCHANGE

(CONDENSER)

EEV

COMPRESSOR

ACCUMU

LATOR

GAS SIDE

3-WAY VALVE

LIQUID SIDE

3-WAY VALVE

Th2

Th1

COOLING

HEATING

REVERSING

VALVE

Th5 Th6

Th7Th9

Th3

Th8

Constant Inverter

❈EEV : Electronic Expansion Valve

LOC. Description PCB Connector

Th1 Thermister for indoor air temperature CN-TH1(Indoor)

Th2 Thermister for indoor pipe(in) temperature

Th3 Thermister for Indoor pipe(out) temperature CN-TH2(Indoor)

Th4 Thermister for outdoor heat sink temperature CN-TH1(Outdoor)

Th5 Thermister for outdoor pipe temperature CN-TH2(Outdoor)

Th6 Thermister for outdoor air temperature

Th7 Thermister for outdoor discharge pipe temperature(Inverter) CN-TH3(Outdoor)

Th8 Thermister for outdoor suction pipe temperature (Inverter)

Th9 Thermister for outdoor discharge pipe temperature(Constant) CN-TH4 (Outdoor)

- 4 -

Only for training and service purposes LGE Internal Use Only

3. Wiring Diagrams

CN-MOTOR1 CN-L/R(BL)

CN-TH1

CN-DISP1(WH)

CN-DISP2(BL)

CN-U/D(WH)

CN-TH2

Indoor Unit

- 5 -

Only for training and service purposes LGE Internal Use Only

CN_4WAY

CN_OIL/S

CN_PRESS

CN_FAN(A)

CN-COIL1

CN-COIL2

CN_LEV1

CN_TH4

CN_TH3

CN_TH2

CN_TH1

Outdoor Unit

- 6 -

Only for training and service purposes LGE Internal Use Only

Indoor Unit

4. Exploded View

152302

342800

359011

131410

135511 733010

249951

135311

147581A

Upper

Lower

147581B

135516

268711A

146811B

346810

567480C

267110

135314

149304

152313

135316

146811A

567480A

35211B

354210B

352150

354210A

268711B

Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.

Please check the correct parts in View RPL(Replacement Part List) on GCSC.

(GCSC Website http://biz.Lgservice.com,)

- 7 -

Only for training and service purposes LGE Internal Use Only

Outdoor Unit

435511

566000

554160A

550140

552116

554160C

567480E

552203A

W49810

552204

552203B

554031

567480D

558511

435512

559010

349600B

435301

349480

546810

447910

437210

430410

437211

152503

548490

137213B

137213A

435300

261704

352113

649950

552204

567480G

552111

552115

561410

558511F

349600A

CONS

DISCHARGE

INTERNAL

OLP TYPE

COMPRESSOR

INTERNAL

OLP TYPE

COMPRESSOR

INV.

DISCHARGE

SUCTION

661400

AIR/TUBE SENSOR

Note) * Please ensure GCSC since the replacement parts may be changed depending upon the buyer's request.

Please check the correct parts in View RPL(Replacement Part List) on GCSC.

(GCSC Website http://biz.Lgservice.com,)

Specifications and performance data subject to change without notice.

HEAT CONTROLLER, INC.

1900 WELLWORTH AVENUE •JACKSON, MICHIGAN 49203

THE QUALITY LEADER IN CONDITIONING AIR

P/No.:MFL42286416
