Installation, Operation

& Maintenance Manual

Commercial Horizontal Packaged

Water Source Heat Pump:

HBH Series

6-10 Tons

IOM Manual HBH SERIES Heat Controller, Inc.

Table of Contents

Model Nomenclature ....................................2

Storage...........................................................3

Pre-Installation ..............................................3

Physical Data.................................................5

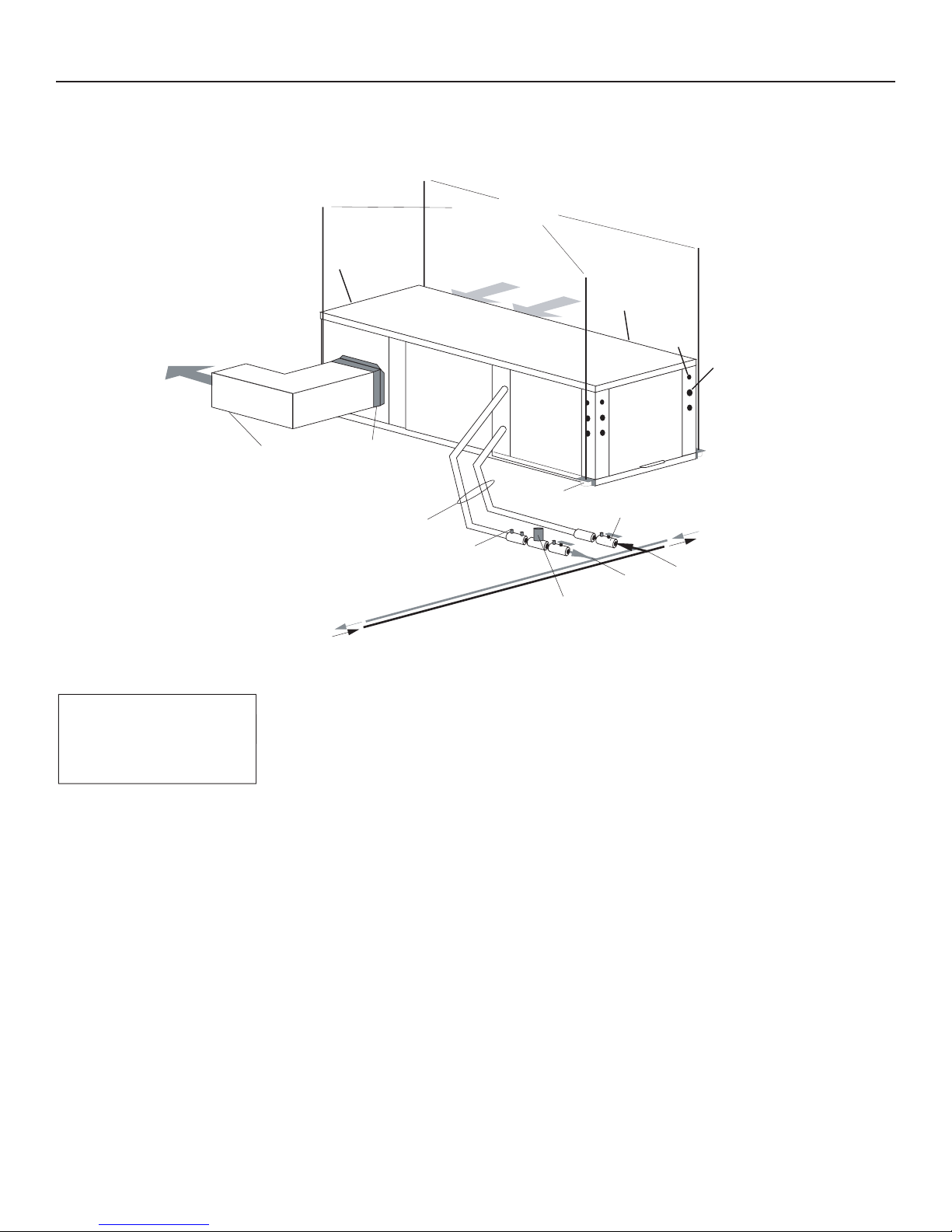

Horizontal Installation...................................6

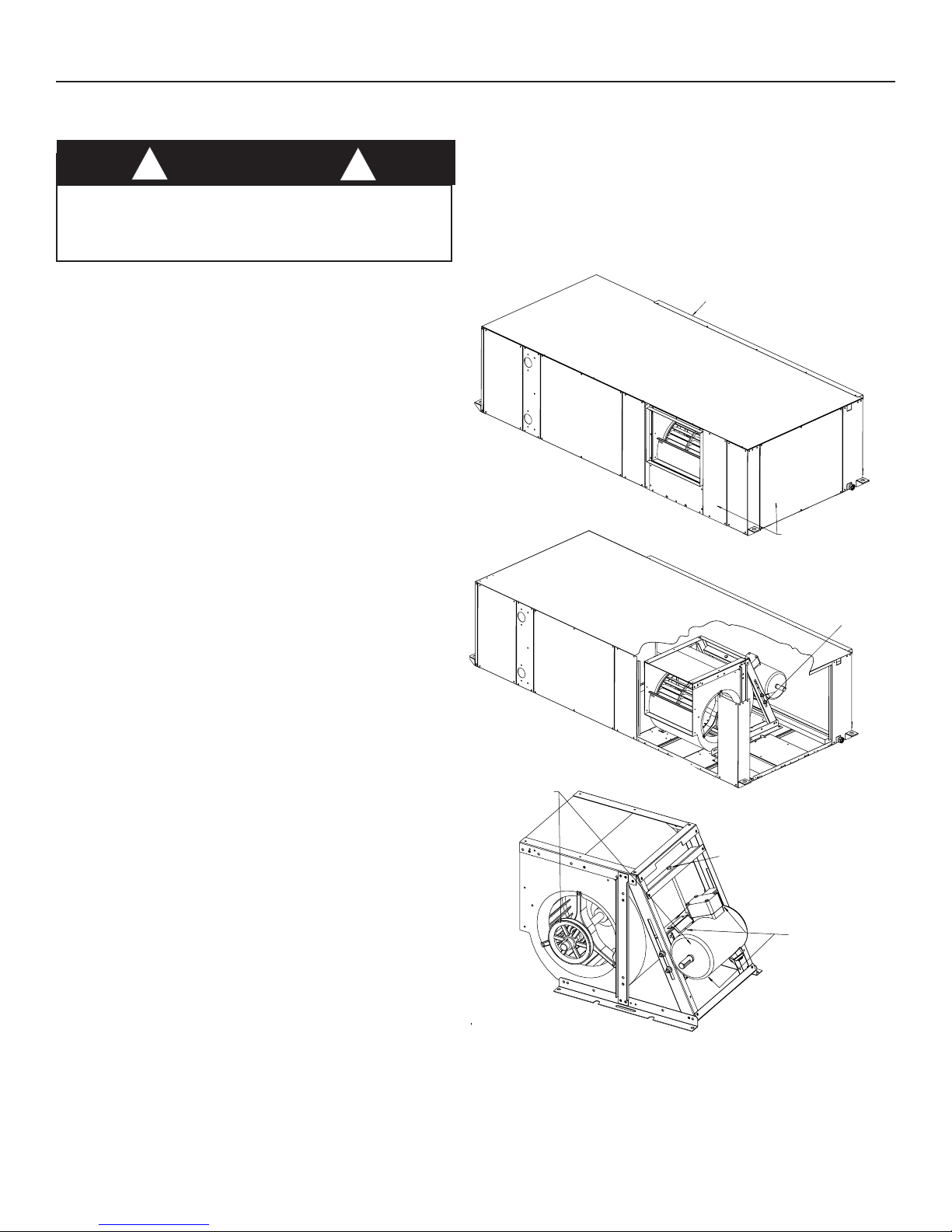

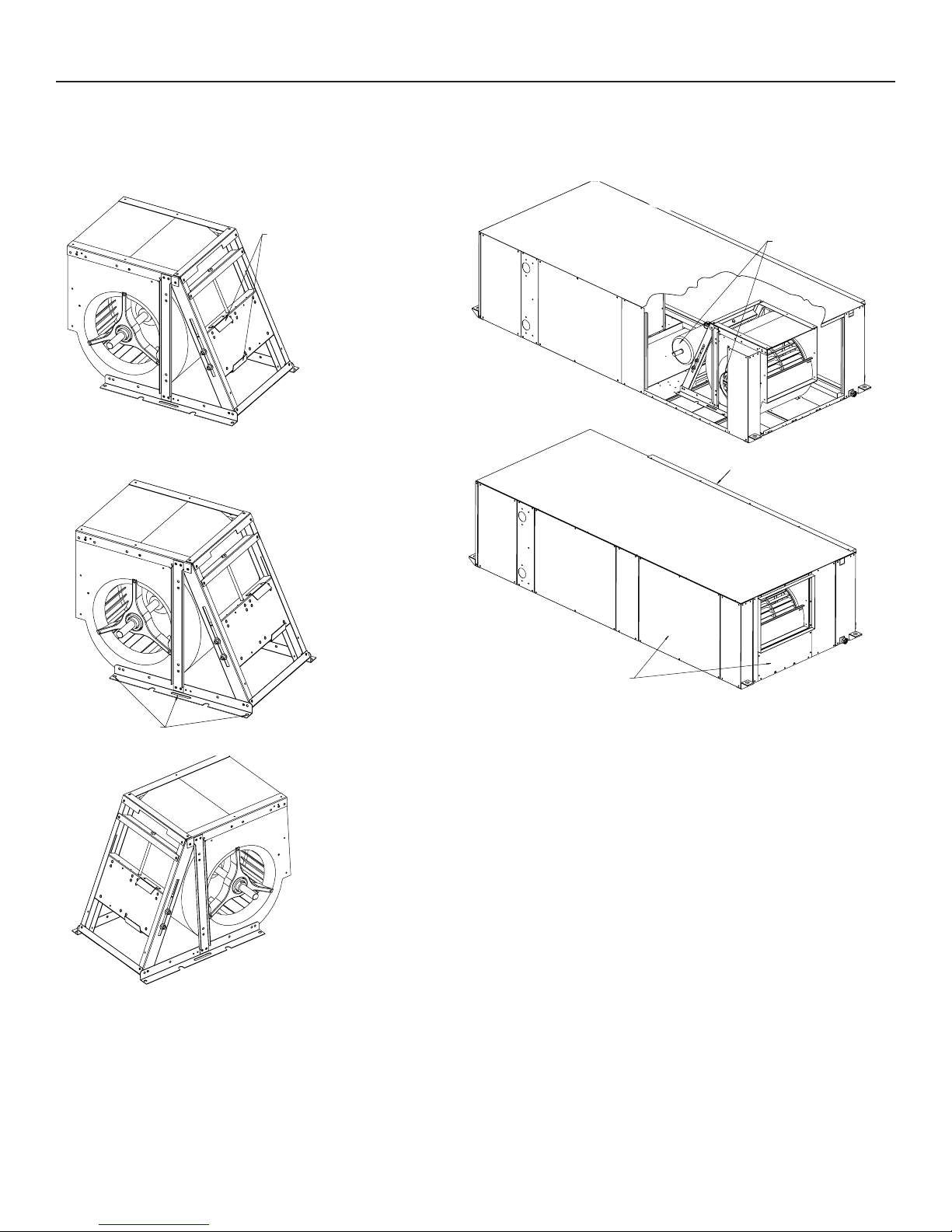

Field Conversion of Air Discharge ................8

Horizontal Installation-Condensate Piping ..... 10

Duct System Installation.............................10

Piping Installation ...................................... 11

Water-Loop Applications ............................ 12

Ground-Loop Applications ......................... 13

Open Loop-Ground Water Systems ........... 15

Water Quality Standards.............................17

Electrical-Line Voltage................................ 18

Power Wiring............................................... 20

Electrical-Low Voltage Wiring......................21

Low Water Temperature Cutout Selection.21

Water Valve Wiring ......................................21

Thermostat Wiring...................................... 22

Typical Wiring Diagrams............................. 23

CXM Controls ...............................................24

Safety Features .......................................... 25

Blower Adjustment......................................27

Tensioning V-Belt Drives ............................ 28

Blower Sheave Information ....................... 29

Blower Performance Tables....................... 30

Unit Starting and Operating Conditions.... 35

Piping System Cleaning and Flushing ...... 36

Unit Starting and Operating Conditions.....37

Unit Start-Up Procedure............................. 38

Unit Operating Conditions ......................... 39

Preventative Maintenance..........................41

Functional Troubleshooting ....................... 42

Refrigerant Circuit Diagrams..................... 44

Heat Controller, Inc. HBH SERIES IOM Manual

Model Nomenclature

Heat Controller OEM Price List

HBH Large Compact Horizontal Units

Entering Water Temperature Range: 20 - 120°F (-6.7 - 48.9°C)

Horizontal Sizes 072 - 120

HBH Large Model Structure

Basic Unit Description:

The basic unit price includes sealed heat pump refrigerant circuit and

•

Reversing Valve

- 4-way, pilot operated, solenoid activated in

air handler within cabinetry, filter, and a factory installed hanger kit on

cooling.

horizontal units.

•

Water to Refrigerant Coil

- Tube-in-tube, convoluted copper inner

•

Cabinetry

- Compact design - galvanized steel construction -

water tube.

FPT water connections, high and low voltage knockouts - filter

and filter brackets. All horizontal units have field convertible discharge

•

Refrigerant to Air Coil

- Lanced aluminum fins on rifled copper

air patterns, no extra parts required.

tubes.

•

Standard Controls

- CXM Controller, loss of charge switch, high

• Blower Motor

- Belt drive with adjustable sheave, single blower and

pressure switch, water coil low temperature cutout, lockout safety

single blower motor.

circuit reset at thermostat or disconnect, LED fault indication,

five minute anti-short cycle, random start, high and low voltage

•

Application

- Units can be applied in WLHP, GWHP or GLHP

protection, condensate overflow protection, dry contact for alarm.

applications.

• Compressor

- High efficiency scroll compressor - overload

• Field Connections

- For supply, return and condensate can be made

protected.

on either side (plug opposite side). Condensate connection on end

opposite compressor end.

• Refrigerant Circuit

- Dual refrigerant circuit. Thermostatic

expansion valve’s for refrigerant metering, copper tubing

interconnecting all components - sealed & tested non-ozone

depleting, HFC-410A refrigerant circuit with high and low-side

Schrader ports.

Page 15

R-410A refrigerant circuit with high and low-side

IOM Manual HBH SERIES Heat Controller, Inc.

Inspection - Upon receipt of the equipment, carefully check

the shipment against the bill of lading. Make sure all units

have been received. Inspect the packaging of each unit,

and inspect each unit for damage. Insure that the carrier

makes proper notation of any shortages or damage on all

copies of the freight bill and completes a common carrier

inspection report. Concealed damage not discovered

during unloading must be reported to the carrier within

15 days of receipt of shipment. If not led within 15 days,

the freight company can deny the claim without recourse.

Note: It is the responsibility of the purchaser to le all

necessary claims with the carrier. Notify your equipment

supplier of all damage within fteen (15) days of shipment.

Storage - Equipment should be stored in its original

packaging in a clean, dry area. Store units in an upright

position at all times.

Unit Protection - Cover units on the job site with either the

original packaging or an equivalent protective covering.

Cap the open ends of pipes stored on the job site. In areas

where painting, plastering, and/or spraying has not been

completed, all due precautions must be taken to avoid

physical damage to the units and contamination by foreign

material. Physical damage and contamination may prevent

proper start-up and may result in costly equipment clean-up.

Examine all pipes, ttings, and valves before installing

any of the system components. Remove any dirt or debris

found in or on these components.

WARNING! To avoid the release of refrigerant into the

atmosphere, the refrigerant circuit of this unit must be

serviced only by technicians who meet local, state, and

federal prociency requirements.

WARNING! All refrigerant discharged from this unit must be

recovered WITHOUT EXCEPTION. Technicians must follow

industry accepted guidelines and all local, state, and federal

statutes for the recovery and disposal of refrigerants. If a

compressor is removed from this unit, refrigerant circuit oil will

remain in the compressor. To avoid leakage of compressor oil,

refrigerant lines of the compressor must be sealed after it is

removed.

CAUTION! To avoid equipment damage, DO NOT use

these units as a source of heating or cooling during the

construction process. The mechanical components and

lters will quickly become clogged with construction dirt and

debris, which may cause system damage.

�WARNING! �

� WARNING! �

� CAUTION! �

General Information

Safety

Warnings, cautions and notices appear throughout this

manual. Read these items carefully before attempting any

installation, service or troubleshooting of the equipment.

DANGER: Indicates an immediate hazardous situation,

which if not avoided will result in death or serious injury.

DANGER labels on unit access panels must be observed.

WARNING: Indicates a potentially hazardous situation,

which if not avoided could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation or

an unsafe practice, which if not avoided could result in

minor or moderate injury or product or property damage.

NOTICE: Notication of installation, operation or

maintenance information, which is important, but which is

not hazard-related.

WARNING!

CAUTION!

Heat Controller, Inc. HBH SERIES IOM Manual

Pre-Installation - Installation, Operation, and Maintenance

instructions are provided with each unit. Horizontal

equipment is designed for installation above false ceiling or

in a ceiling plenum. Other unit congurations are typically

installed in a mechanical room. The installation site chosen

should include adequate service clearance around the unit.

Before unit start-up, read all manuals and become familiar

with the unit and its operation. Thoroughly check the system

before operation.

Prepare units for installation as follows:

1. Compare the electrical data on the unit nameplate

with ordering and shipping information to verify that

the correct unit has been shipped.

2. Keep the cabinet covered with the original packaging

until installation is complete and all plastering,

painting, etc. is nished.

3. Verify refrigerant tubing is free of kinks or dents and

that it does not touch other unit components.

4. Inspect all electrical connections. Connections must

be clean and tight at the terminals.

5. Remove any blower support packaging (water-to-air

units only).

6. Some airow patterns are eld convertible (horizontal

units only). Locate the airow conversion section of

this IOM.

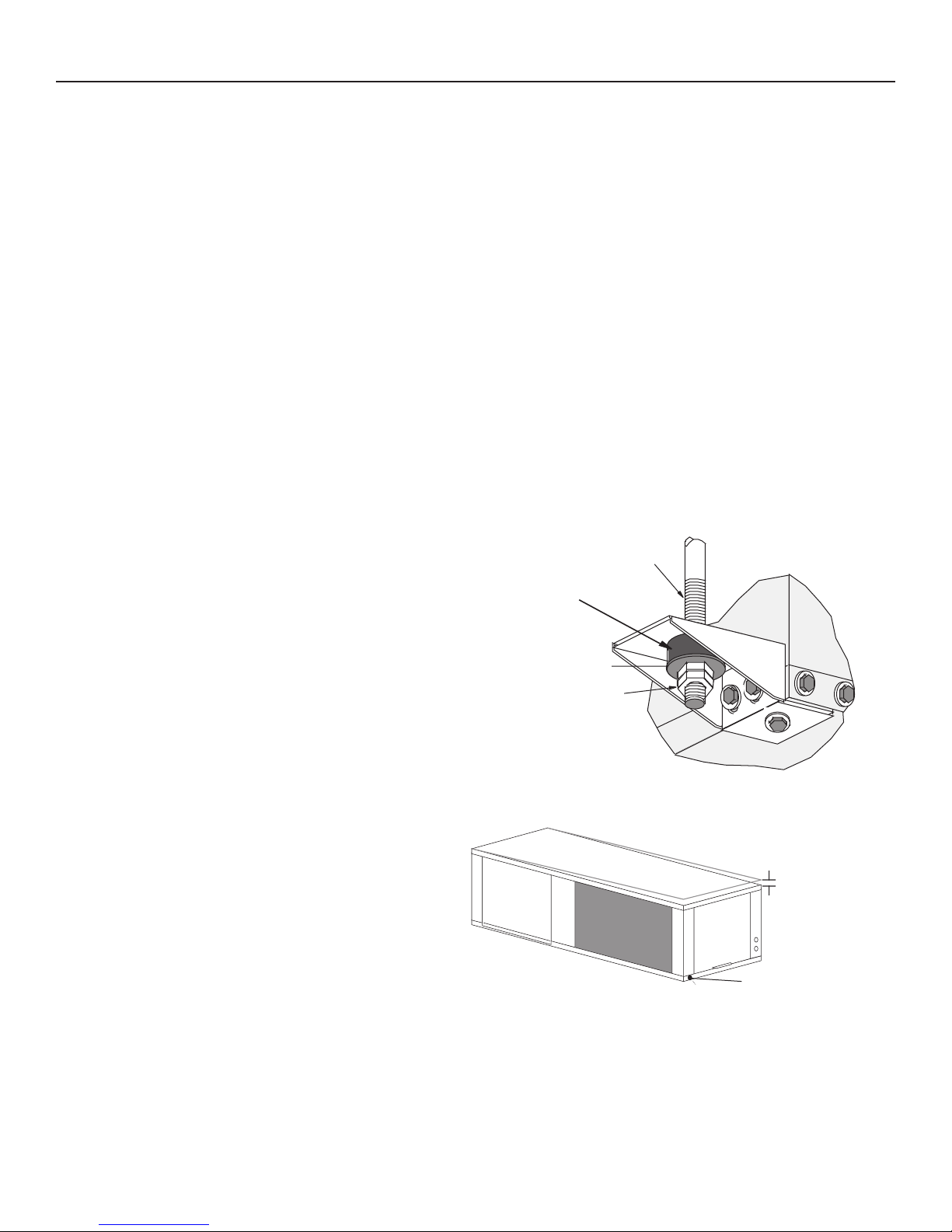

7. Locate the package of hanger grommets (shipped

inside of the blower outlet) and retain for use with the

hanger brackets when mounting the unit.

CAUTION!

All three phase scroll compressors must have

direction of rotation veried at start-up. Verication is achieved by

checking compressor Amp draw. Amp draw will be substantially

lower compared to nameplate values. Additionally, reverse rotation

results in an elevated sound level compared to correct rotation.

Reverse rotation will result in compressor internal overload trip

within several minutes. Verify compressor type before proceeding.

CAUTION! DO NOT store or install units in corrosive

environments or in locations subject to temperature or

humidity extremes (e.g., attics, garages, rooftops, etc.).

Corrosive conditions and high temperature or humidity can

signicantly reduce performance, reliability, and service life.

Always move and store units in an upright position. Tilting

units on their sides may cause equipment damage.

� CAUTION! �

CAUTION! CUT HAZARD - Failure to follow this caution

may result in personal injury. Sheet metal parts may have

sharp edges or burrs. Use care and wear appropriate

protective clothing, safety glasses and gloves when

handling parts and servicing heat pumps.

CAUTION!

General Information

IOM Manual HBH SERIES Heat Controller, Inc.

HBH Series (60 Hz)

Weight - Operating (lbs) [kg] 586 [265.8] 644 [292.1] 698 [316.6]

Weight - Packaged (lbs) [kg] 626 [283.9] 684 [310.3] 738 [334.8]

Weight - Corner - Control box/Compressor side (lbs) [kg] 235 [106.6] 254 [115.2] 271 [122.9]

Weight - Corner - Compressor side (lbs) [kg] 101 [45.8] 120 [54.4] 137 [62.1]

Weight - Corner - Blower side side (lbs) [kg] 180 [81.6] 190 [86.2] 200 [90.7]

Weight - Corner - Air Coil side (lbs) [kg] 70 [31.8] 80 [36.3] 90 [40.8]

Model 072 096 120

Compressor Quantity Scroll

Number of Circuits (Compressors) 2

Factory Charge HFC-410a (oz) [kg] per circuit 60 [1.70] 76 [2.15] 80 [2.27]

Blower Motor

Blower Motor Quantity 1

Standard Motor (hp) [kw] 1 [0.75] 2 [1.49] 3 [2.24]

Large Motor (hp)[KW] (2)[1.49] 3[2.24] 5[3.73]

Blower

No. of Blowers 1

Blower Wheel Size D x W (in0 [cm] 12 x 12 [30.48 x 30.48]

Water Connection Size

FPT (in) [mm] 1-1/4" [31.8] 1-1/2" [38.1]

Coax Volume

Volume (US Gallons) [liters] 1.62 [6.13] 1.81 [6.85] 2.40 [9.08]

Condensate Connection Size

FPT (in) [mm] 3/4" [19.1]

Air Coil Data

Air Coil Dimensions H x W (in) [cm] 20 x 54 [50.8 x 137.16] 20 x 64 [50.8 x 162.56]

Air Coil Total Face Area (ft2) [m2] 7.5 [0.70] 8.9 [0.83]

Air Coil Tube Size (in) [cm] 3/8" [0.953]

Air Coil Fin Spacing (fpi) [ns per cm] 14 [5.5]

Air Coil Number of Rows 3

Miscellaneous Data

Filter Standard - 1" [25.4mm] Throwaway (qty)

(in) [cm] (QTY.4) 16 x20 [40.64 x 50.80]

Weight - Operating (lbs) [kg] 586 [265.8] 644 [292.1] 698 [316.6]

Weight - Packaged (lbs) [kg] 626 [283.9] 684 [310.3] 738 [334.8]

All units have grommet compressor mountings, and 1/2" & 1-3/4" electrical knockouts.

Unit Maximum Water Working

Pressure Max Pressure PSIG [kPa]

Base Unit 500 [3445]

HBH Corner Weights

Unit Physical Data

HBH072 HBH096 HBH120

Heat Controller, Inc. HBH SERIES IOM Manual

Horizontal Installation

Figure 1: Hanger Bracket

Figure 2: Horizontal Unit Pitch

3/8" [10mm] Threaded

Rod (by others)

Vibration Isolator

(factory supplied)

Washer

(by others)

Double Hex Nuts

(by others)

Varilla Roscada de 3/8"

(fabricada por terceros)

Arandela

(fabricada por terceros)

Tuercas Hexagonales

Dobles (por terceros)

Instale losTornillos como

se Indica en el Diagrama

La longitud de este tornillo

debe ser de solamente 1/2”para evitar daños

Aislador deVibraciones

(para codificación por color y

notas de instalación, consulte

las instrucciones de

instalación del soport

e colgador)

1/4" [6.4mm] pitch

for drainage

Drain

Connection

Horizontal Unit Location - Units are not designed for

outdoor installation. Locate the unit in an INDOOR area

that allows enough space for service personnel to perform

typical maintenance or repairs without removing unit from

the ceiling. Horizontal units are typically installed above

a false ceiling or in a ceiling plenum. Never install units in

areas subject to freezing or where humidity levels could

cause cabinet condensation (such as unconditioned

spaces subject to 100% outside air). Consideration should

be given to access for easy removal of the lter and

access panels. Provide sufcient room to make water,

electrical, and duct connection(s). Allow 3 feet (91 cm)

clearance for servicing unit through all access panels.

If the unit is located in a conned space, such as a closet,

provisions must be made for return air to freely enter the

space by means of a louvered door, etc. Any access panel

screws that would be difcult to remove after the unit is

installed should be removed prior to setting the unit. Refer

to Figure 3 for an illustration of a typical installation. Refer

to unit submittal data or engineering design guide for

dimensional data.

Conform to the following guidelines when selecting

unit location:

1. Provide a hinged access door in concealed-spline

or plaster ceilings. Provide removable ceiling

tiles in T-bar or lay-in ceilings. Refer to horizontal

unit dimensions for specic series and model in

unit submittal data. Size the access opening to

accommodate the service technician during the

removal or replacement of the compressor and the

removal or installation of the unit itself.

2. Provide access to hanger brackets, water valves

and ttings. Provide screwdriver clearance to

access panels, discharge collars and all electrical

connections.

3. DO NOT obstruct the space beneath the unit with

piping, electrical cables and other items that prohibit

future removal of components or the unit itself.

4. Use a manual portable jack/lift to lift and support the

weight of the unit during installation and servicing.

The installation of water source heat pump units and all

associated components, parts and accessories which

make up the installation shall be in accordance with

the regulations of ALL authorities having jurisdiction

and MUST conform to all applicable codes. It is the

responsibility of the installing contractor to determine and

comply with ALL applicable codes and regulations.

Mounting Horizontal Units - Horizontal units have hanger

kits pre-installed from the factory as shown in Figure 1.

Figure 3 shows a typical horizontal unit installation.

Horizontal heat pumps are typically suspended above a

ceiling or within a soft using eld supplied, threaded rods

sized to support the weight of the unit.

Use four (4) eld supplied threaded rods and factory

provided vibration isolators to suspend the unit. Hang the

unit clear of the oor slab above and support the unit by

the mounting bracket assemblies only. DO NOT attach the

unit ush with the oor slab above.

Pitch the unit toward the drain as shown in Figure 2 to

improve the condensate drainage.

IOM Manual HBH SERIES Heat Controller, Inc.

Horizontal Installation

Figure 3: Typical Horizontal Unit Installation

(by others)

Thermostat

Wiring

Insulated supply duct with

at least one 90 deg elbow

to reduce air noise

Return Air

Supply Air

Unit Hanger

3/8" [10mm] threaded rods

Flexible Duct

Connector

Optional

Balancing Valve

Water Out

Optional Low Pressure Drop Water

Control Valve

(can be internally mounted

on some models)

Stainless steel braid hose

with integral ÒJÓ swivel

Building

Loop

HORIZONTAL INSTALLATION

Figure 3: Typical Horizontal Unit Installation

Water In

Ball valve with optional

integral P/T plug

Unit

Power

CAP CAP

EAP

BSP

CBP

LEFT RETURN STRAIGHT DISCHARGE

CAP

FRONT

BSP

EAP

CBP

PQR

BSP

RIGHT RETURN STRAIGHT DISCHARGE

EAP

2CAP

CAP 2

FRONT

CBP

LEGEND

CAP=Compressor Access Panel

CBP=Control Box Panel

BSP=Blower Service Panel

EAP=Expansion Valve Access panel

1=Water Outlet 1-1/4Ó FPT (072-096) 1-1/2Ó FPT (120)

2=Water Inlet 1-1/4Ó FPT (072-096) 1-1/2Ó FPT (120)

3=Condensate 3/4Ó FPT

4=High Voltage 1-1/8Ó [2.9cm] KO

5=Low Voltage 7/8Ó [2.2cm] KO

HANGER BRACKET DIMENSIONS

87Ó

[221cm]

1.0Ó

[2.54cm]

PLAN VIEW

TOP

4.3Ó

[10.8cm]

34.1Ó

[86.6cm]

FRONT

CONTROL BOX

1.3Ó

[3.3cm]

condensate LEFT RETURN LEFT VIEW-

AIR COIL SIDE

LEFT RETURN END DISCHARGE

CBP

EAP

BSP

CAP

FRONT

CAP

CBP

CAP

EAP

BSP

FRONT

CONTROL BOX

PLAN VIEW

TOP

VSU

RIGHT RETURN RIGHT VIEW-

AIR COIL SIDE

RIGHT RETURN END DISCHARGE

1.3Ó

[3.3cm]

condensate drain

NOTES FOR LEGEND:

1. Access is required for all removable panels and installer should take care to comply with

all building codes and allow adequate clearance for future field service.

2. Water inlet and water outlet connections are available on either side (left or right) of the

unit. Qty (2x) MPT Plugs are shipped loose in a plastic bag tied to the water leg in front of

the unit. Installer must plug water inlet/outlet side not being connected to.

3. Condensate drain is available on end opposite compressor.

4. Electrical access is available on either side (left or right) of the front.

5. Electric box is on right side. It can be field converted to left side. Conversion should only

be attempted by qualified service technician.

NOTES:

- All dimensions in inches (cm)

- Units require 3Õ (9.1 cm) clearance for water connections, CAP, CSP, EAP and BSP service access.

- Overall cabinet width dimensions does not include filter rail and duct flange.

SERVICE ACCESS

3Õ (91 cm.) TYPICAL

ALL CONFIGURATIONS
