Heatmiser PRTHW-W Bedienungsanleitung

Model: PRTHW-W

REF: PRTHW-W

Revision 1.1 12/11

Contents Page

Install Procedure 2-3

Pairing the Thermostat 4-7

Icons Explained 8

Temperature Display 9

Seng the Clock 9

Locking the Thermostat 10

Seng the Comfort Levels 11-13

Seng the Hot Water Switching Times 13

Hot Water Override 14

Temperature Hold 14

Turning the Heang On/Oﬀ 15

Holiday Feature 16

Factory Reset 17

Oponal Feature Setup 18-25

$()"")%$'%*'



%+$***(#%)***/","4



$()"")%$



(+""/)&(**(%$*"%*

*(#%)**(%#*!&"*/&"$

)#"""**(#$"(,($*%*)"%*)

%$*%**%#%**(#%)**4



.*!&"**%*-""4"&*(%$*%

**(#%)***%*!&"*4



@

$()""$)))'(

@**()()+&&"-***(#%)**4



%))***(/%"(1&+)$

(")*%#&(*#$*%%(9"%*%$

*%**%#%**(#%)**:



$)*""***()$*%"(1%""%-$

*&%"(*/%***()4$&+)*

%"(!$)**(#%)**4



%+)%+"(&"***()$**(#%)**-$*

**(/%$))&"/%$*4$/%+,*!$*

**()%+*%**(#%)**1$)+(/%+(&"***()

-*$?#$+*$%((*%(*$*+(($*"%!)**$4



A

Pages 17-24 explain the diﬀerent features available on this

thermostat.

Pairing with the RC1-W Receiver

If using with the UH1-W wiring centre, turn to page 6.

With the thermostat turned oﬀ:

numbers appear.

•The small number 01 in the top right corner of the LCD is the

feature number.

01 = RC1-W receiver.

•Use the Up/Down keys to set feature 06 to 01 (RC1-W).

You can now select a Receiver Address from 01-32.

•Use the Up/Down keys to set feature 07 to 01. (You should set

a unique receiver address for each receiver installed).

•Press A to accept, the display will now go blank.

Pairing the thermostat

Comms LED comes on.

5 seconds. The thermostat will send a signal for 1 minute, and

will ﬂash the RF signal icon.

If successful, the Comms LED on the receiver will ﬂash.

pairing.

•If the pairing is unsuccessful, check features 06 and 07 have

been conﬁgured correctly, to eliminate a possible signal issue

repeat the pairing process again.

Feature 08 does not need altering as the heang

output will always be assigned to zone 1 on the

receiver & the hot water output will be on zone 2.

Pairing with the UH1-W Wiring Centre

On the UH1-W wiring centre, take note of the

number set on the rotary switch (Board ID number

1-9). Each UH1-W on the system will need a diﬀerent ID number.

With the thermostat turned oﬀ:

numbers appear.

•The small number 01 in the top right corner of the LCD is the

feature number.

RC1-W receiver.

•Use the Up/Down keys to set feature 06 to 00 (UH1-W).

Address).

• Use the Up/Down keys & set the large digits to the board

address of the UH1-W, this is the number set on the UH1-W

rotary switch. (You should set a unique board address on each

UH1-W installed).

• Press Clock again unl you see feature 08 (Zone Number,

01-08). The UH1-W is an 8 zone receiver. Use the up/down

buons to select the zone this thermostat should be linked to.

• Press Clock again unl you see feature 09.

00 = Under-ﬂoor heang, 01 = Radiators. Use the up/down

buons to select if the thermostat is controlling Under-Floor

heang or radiators.

• Press A to accept, the display will now go blank.

• Press the power buon once to turn the thermostat back on,

press the up buon & set the target temperature above the

room temperature, the ﬂame symbol should then appear and

the assigned zone on the UH1-W should now be acvated.

This indicates pairing between the thermostat & the UH1-W is

successful.

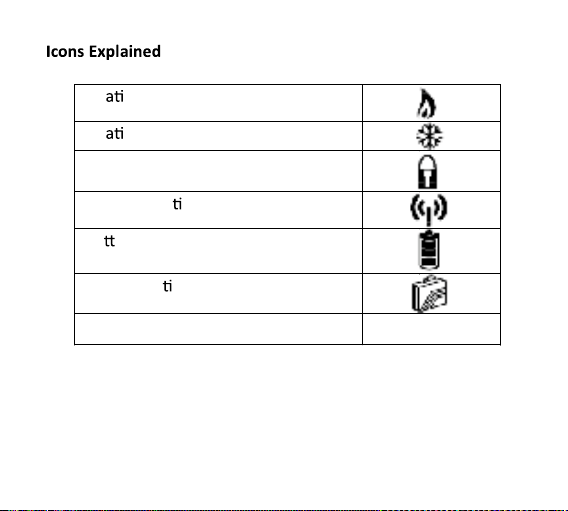

He ng On

He ng Oﬀ – Frost Mode

Key Lock

RF Signal Ac ve

Ba ery

Holiday Ac ve

Timer On/Oﬀ Hot water on/oﬀ
