Heatmiser Touch-n Bedienungsanleitung

Model: Touch-N

Touch Series

Model: Touch-N

3-4

5-6

7-8

11-12

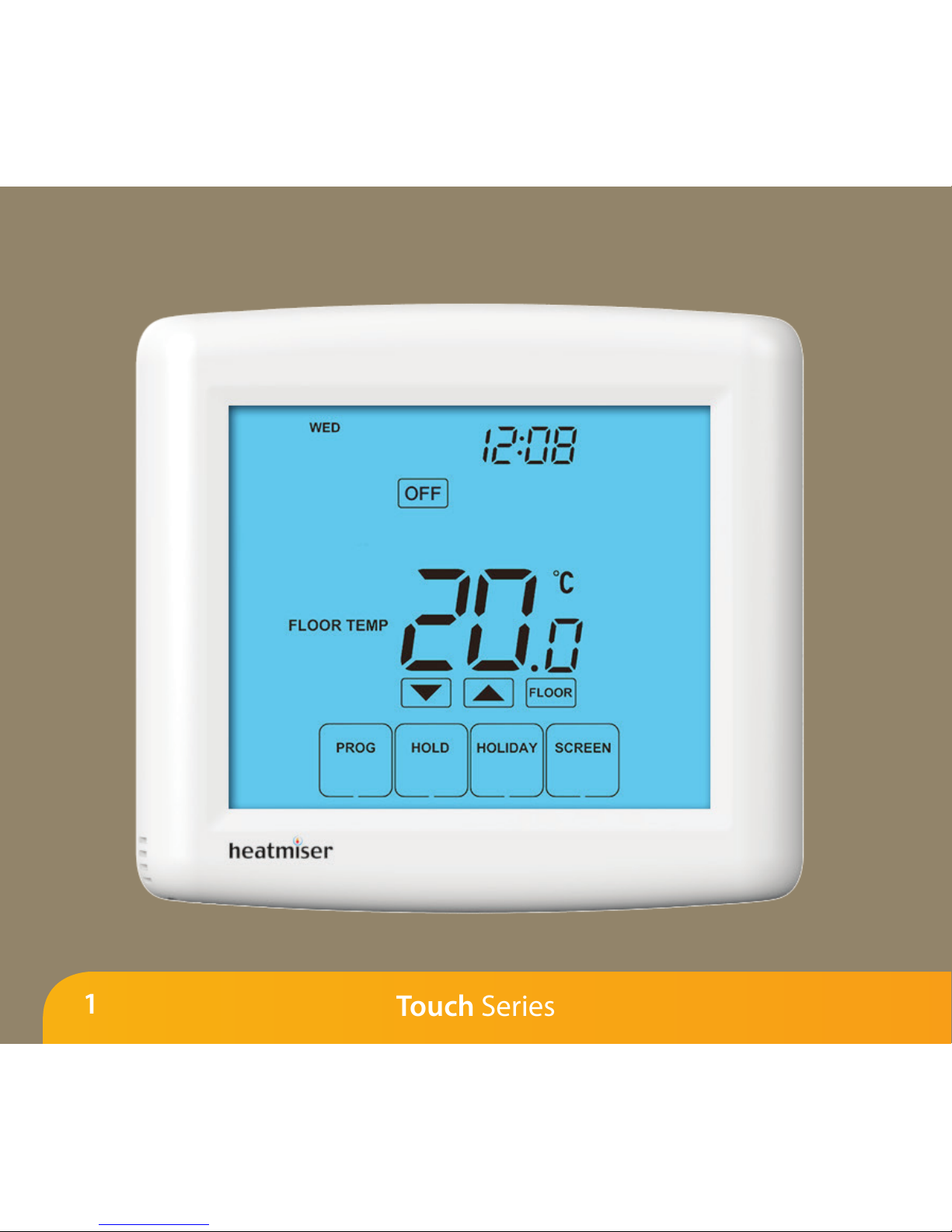

Product Image

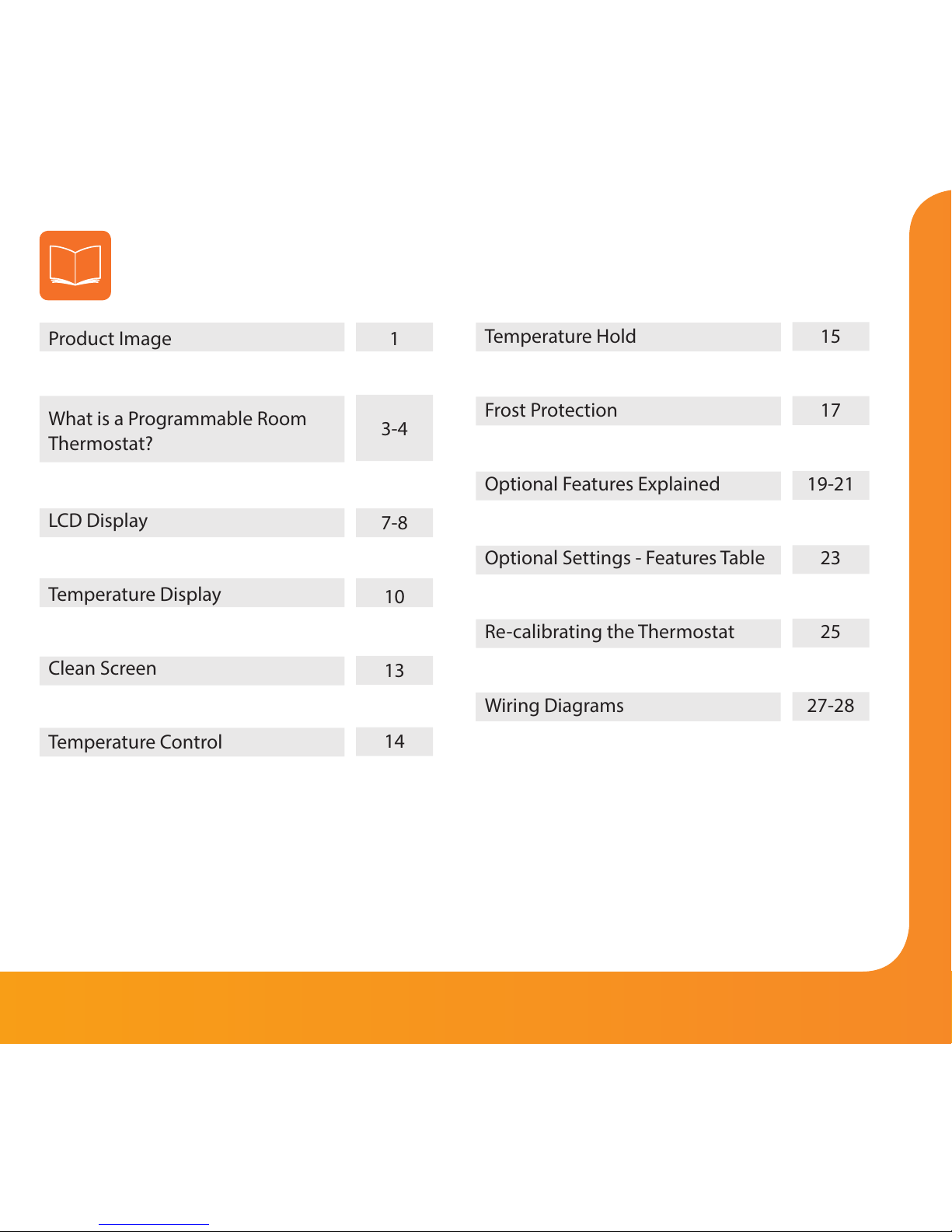

Table of Contents

What is a Programmable Room

Thermostat?

Installation Procedure

LCD Display

Setting the Clock

Temperature Display

Comfort Levels Explained

Clean Screen

Locking the Keypad

Temperature Control

19-21

27-28

Temperature Hold

Holiday Programming

Frost Protection

Heating ON/OFF

Optional Features Explained

Adjusting the Optional Settings

Optional Settings - Features Table

Error Codes

Re-calibrating the Thermostat

Factory Reset

Wiring Diagrams

Table Of Contents

Touch Series

Section Header

What is a Programmable Room Thermostat?

A programmable room thermostat is both a programmer and a room thermostat.

The programmer allows you to set “On” and “Off” periods to suit your own lifestyle.

The room thermostat works by sensing the air temperature, switching on the heating

when the air temperature falls below the thermostat setting, and switching it off once this

set temperature has been reached.

So a programmable room thermostat lets you choose what times you want the heating

to be on, and what temperature it should reach while it is on. It will allow you to select

different temperatures in your home at different times of the day (and days of the week)

to meet your particular needs and preferences.

Setting a room thermostat to a higher temperature will not make the room heat up

any faster. How quickly the room heats up depends on the design & size of the heating

system.

Similarly reducing the temperature setting does not affect how quickly the room cools

down. Setting a programmable room thermostat to a lower temperature will result in the

room being controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest

temperature settings that you are comfortable with at the different times you have

chosen, and then leave it alone to do its job.

Section Header

Model: Touch-N

The best way to do this is to set the room thermostat to a low temperature

– say 18°C , and then turn it up by 1°C each day until you are comfortable with the

temperature. You won’t have to adjust the thermostat further. Any adjustment above

this setting will waste energy and cost you more money.

If your heating system is a boiler with radiators, there will usually be only one

programmable room thermostat to control the whole house. But you can have

different temperatures in individual rooms by installing thermostatic radiator valves

(TRVs) on individual radiators.

If you don’t have TRVs, you should choose a temperature that is reasonable for the

whole house. If you do have TRVs, you can choose a slightly higher setting to make

sure that even the coldest room is comfortable, then prevent any overheating in other

rooms by adjusting the TRVs.

You are able to temporarily adjust the heating program by overriding or using the

temperature hold feature. These features are explained further on pages 14 and 15 of

this manual.

Programmable room thermostats need a free flow of air to sense the temperature,

so they must not be covered by curtains or blocked by furniture. Nearby electric

fires, televisions, wall or table lamps may also prevent the thermostat from working

properly.

Touch Series

Section Header

Installation Procedure

This Touch Series thermostat is designed to be flush mounted and requires a back

box of 35mm (minimum depth) to be sunk into the wall prior to installation.

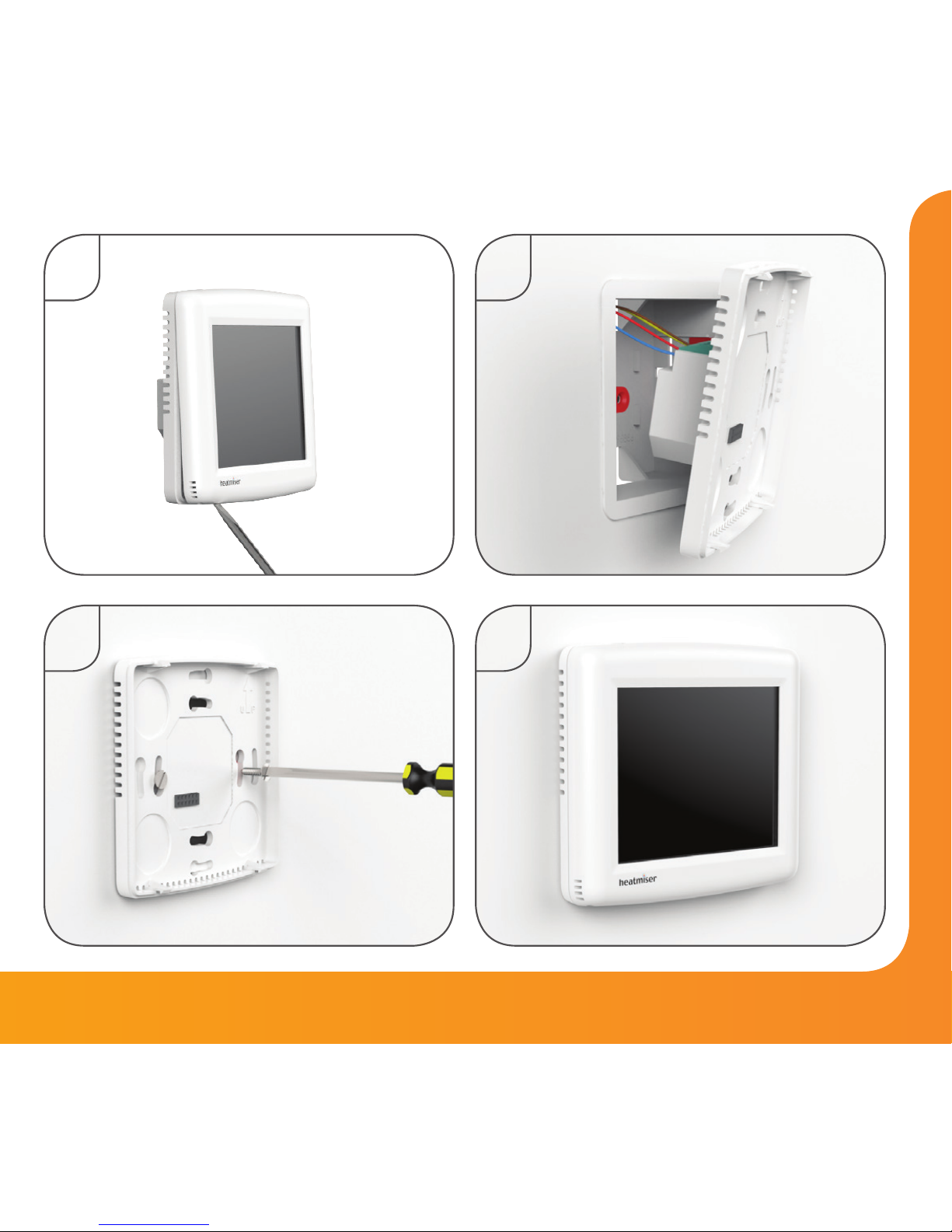

Step 1

Carefully separate the front half of the thermostat from the back plate by placing a

small flat head terminal driver into the slots on the bottom face of the thermostat.

Step 2

Place the thermostat front somewhere safe.

Terminate the thermostat as shown in the diagrams on pages 27-28 of this booklet.

Step 3

Screw the thermostat back plate securely into the back box.

Step 4

Clip the front of the thermostat back onto the thermostat back plate.

Mount the thermostat at eye level.

Read the instructions fully so you get the best from our product.

Don’t

Do not install near to a direct heat source as this will affect functionality.

Do not push hard on the LCD screen as this may cause irreparable damage.

Section Header

Model: Touch-N

1 2

3 4

Touch Series

Section Header

1432 5

Section Header

Model: Touch-N

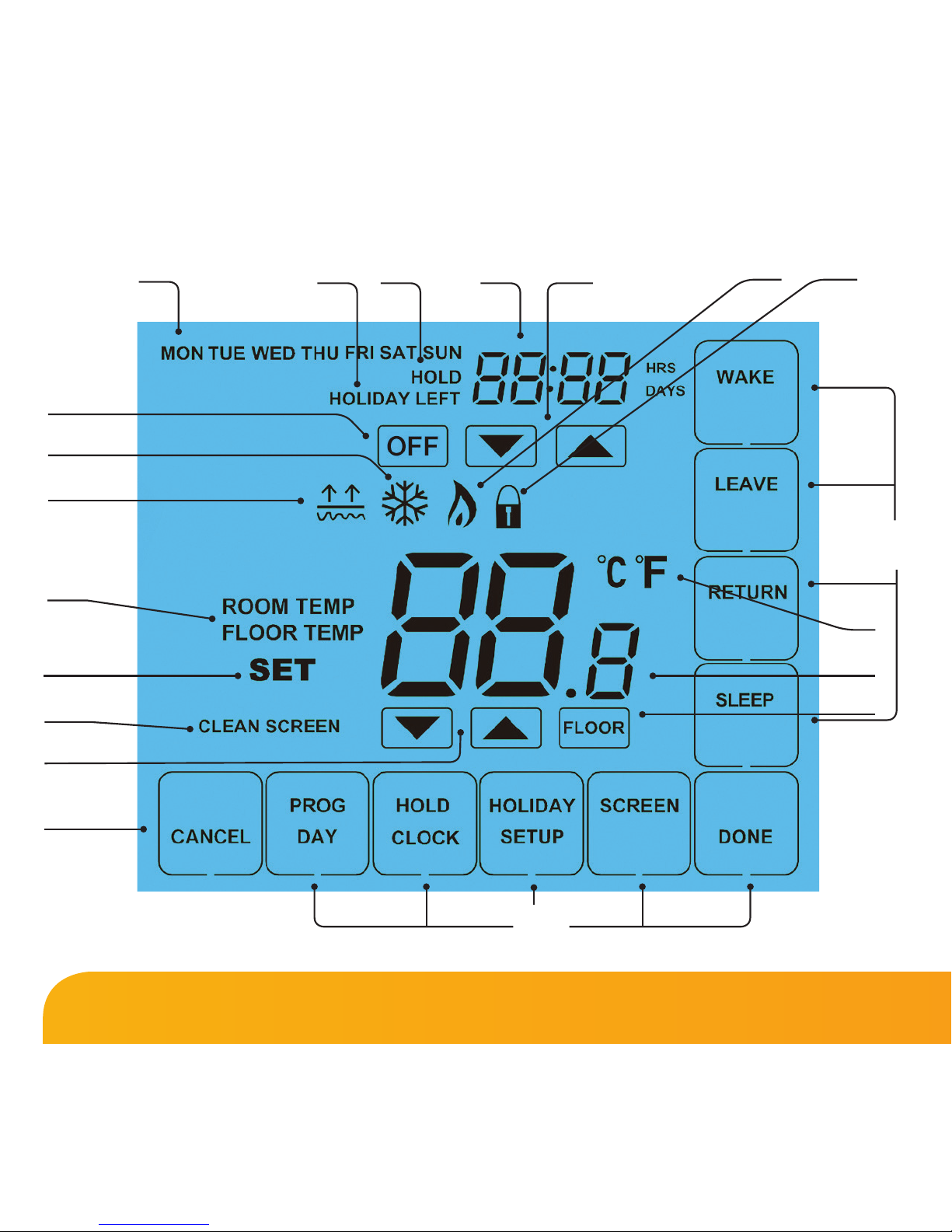

1. Day Indicator - Displays the day of the week.

2. Holiday Indicator - Displayed when the thermostat is in Holiday mode.

3. Temperature Hold - Displayed when the thermostat is in Hold mode.

4. Clock - Displays time in normal operation, time left in hold or days left in

holiday mode.

5. Up/Down Keys - Increase or decrease values shown on top digit group.

6. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon will

flash when optimum start function is in operation.

7. Keypad Lock Icon - Displayed when the keypad is locked.

8. OFF Key - Single press to enable/disable frost protection or press and hold to

turn off display.

9. Frost Icon - Displayed when the thermostat is in frost protection mode.

10. Floor Temp Achieved Icon - Displayed when the floor set point temperature is reached.

11. Room/Floor Temp - Indicates the current temperature sensor mode.

12. Set - Indicates when changes are being made to programs or temperature set points.

13. Clean Screen - Freezes screen temporarily to enable cleaning.

14. Up/Down Keys - Increase of decrease values shown on bottom digit group.

15. Cancel Key - Used to exit setup/program operations.

16. Setup/Programming Keys - Used to navigate setup options.

17. View Floor Temperature Key - Used to change display to show floor temperature.

18. Current Temp - Indicates the current sensor temperature.

19. Units of Temperature - Degrees Celsius or Fahrenheit.

20. Comfort Level Selection Keys - Used in comfort level setup (see page 11).

LCD Display

Touch Series

Section Header

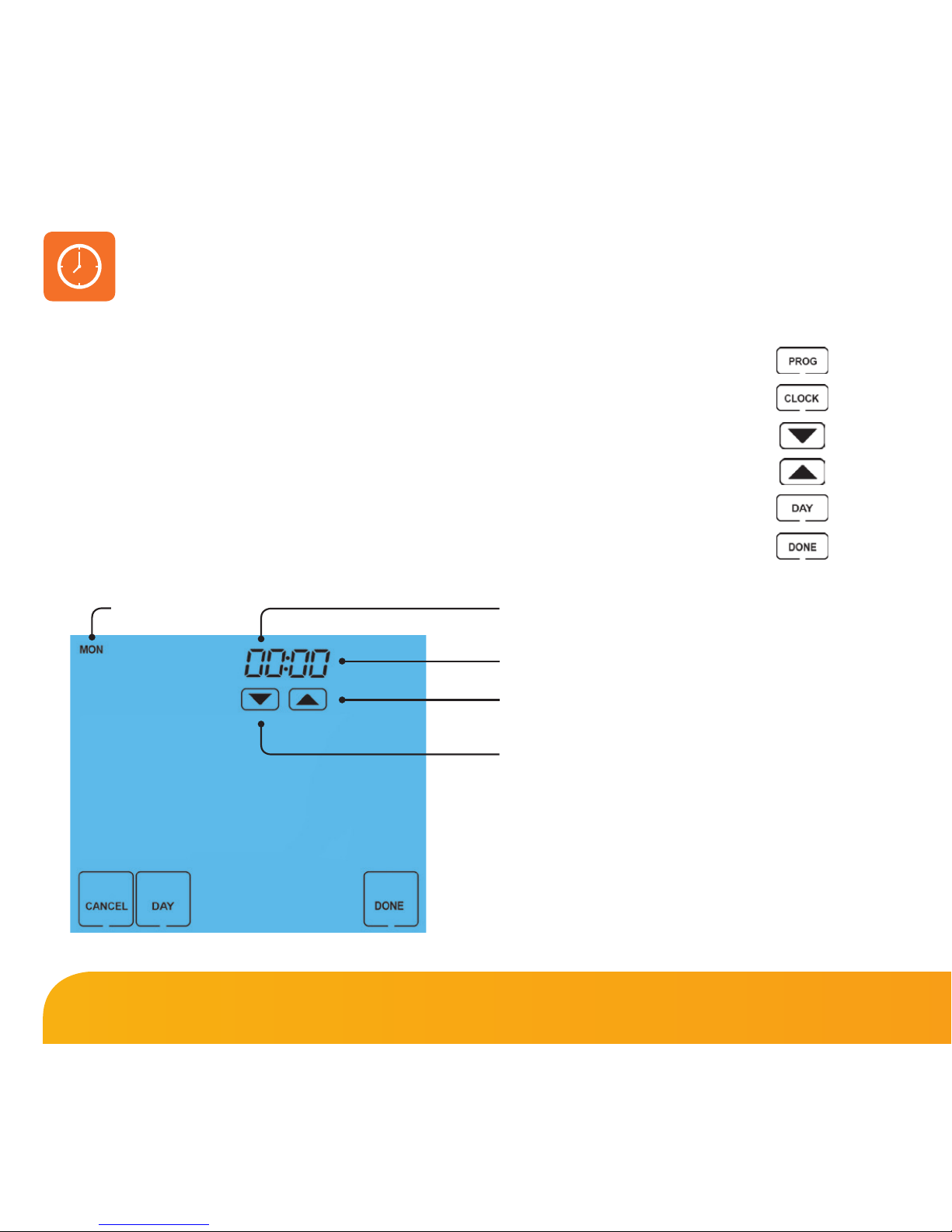

To set the clock, follow these steps.

• Press PROG ...............................................................................................................

• Press CLOCK .............................................................................................................

• Use the Down key to set the hours .................................................................

• Use the Up key to set the minutes ..................................................................

• Use the Day key to set the day of the week .................................................

• Press DONE to confirm and exit ........................................................................

Setting the Clock

Hours

Change Hours

Minutes

Day

Change Minutes
