HSUFCDC Colour Touchscreen Thermostat

Installation and Operating Instructions

IMPORTANT SAFEGUARDS

WHEN USING ANY ELECTRICAL APPLIANCE, BASIC

SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.

PLEASE READ ALL INSTRUCTIONS CAREFULLY AND

RETAIN FOR FUTURE REFERENCE.

IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF

THIS PRODUCT, CONSULT A COMPETENT ELECTRICIAN.

Important information - Please read before proceeding

All wiring must conform to UK IEE 17th Edition Part P

regulations. This product is rated IP30.

• All electrical and repair work must be carried out by a qualied

electrician in accordance with current UK IEE regulations and any

local codes or regulations.

• Isolate power to the circuit before installation or maintenance.

• Ensure the underoor heating circuit is protected by a suitably rated

RCD.

• HSUFDC is IP30 rated so is suitable for safe installation in bathrooms

outside of special locations such as wet zones.

• Install an electrical back box & conduit before thermostat installation.

• Ensure substrate is secure before inserting a groove for the conduit.

• Do not ignore IP30 regulations.

• Do not install this thermostat in a wet zone.

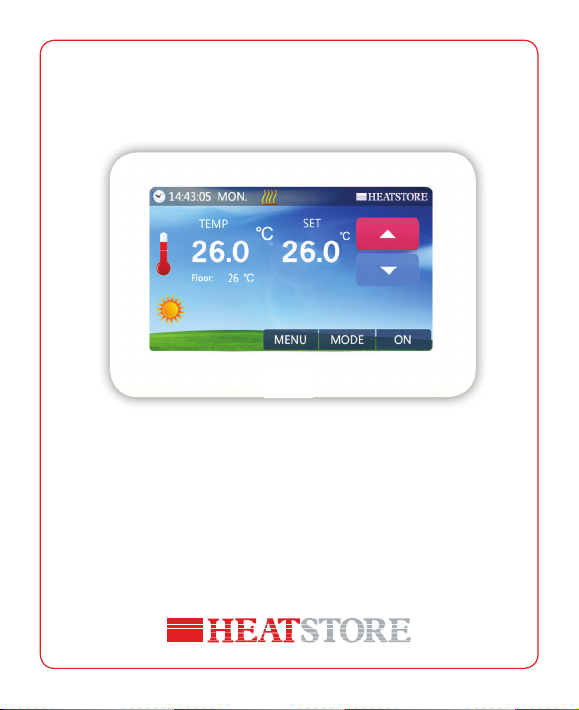

HSUFCDC Colour Touchscreen Thermostat

HSUFCDC Colour Touchscreen Thermostat is a digital thermostat, which

is designed for electric oor heating systems with a maximum load of

up to 16A (3600W). The thermostat features a 4.3” colour touchscreen

display and 4 languages.

Before you begin

A sensor conduit and deep back box must be installed to continue this

installation. Feed the provided sensor probe (3m) down through the

sensor conduit into a representative area of the oor.

Installation

Push the three clips located on the bottom of the thermostat in with a

screwdriver, releasing the face plate.

Once the face plate has been gently released, disconnect the ribbon

cable to free the face plate from the main body of the thermostat. Put the

faceplate somewhere it will not get damaged.

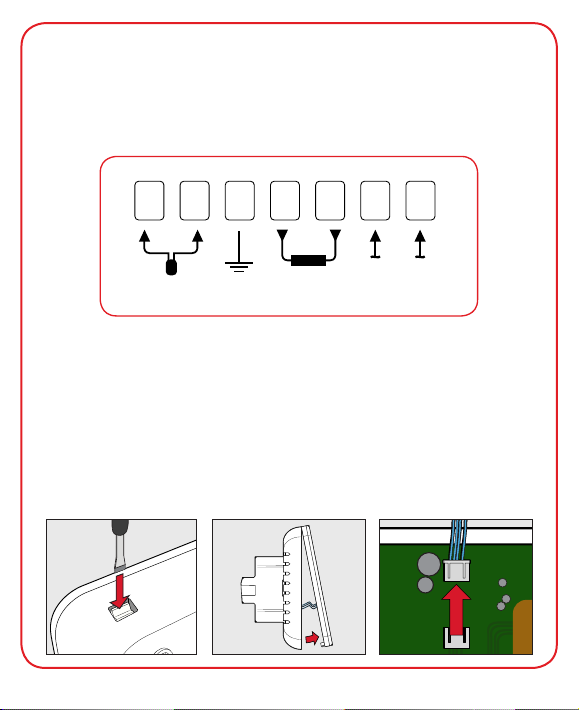

Wiring diagram

Loosen the tension screws to allow the wires to be inserted and xed.

Position the cables as shown in the wiring diagram and ensure each

screw is tightened correctly. Ensure system is correctly earthed.

Sensor

7 6 4 3 2 15

3600W/16A

230V/AC

Fix thermostat to the wall

Align the holes in the back of the thermostat with the holes in your pre

installed electrical back box and x in place with the screws provided.

Now reconnect the ribbon connection and re-seat the face plate (bottom

edge rst). Ensure the thermostat is securely xed before continuing. You

should hear a loud click when the face plate is secure.

3 4 5

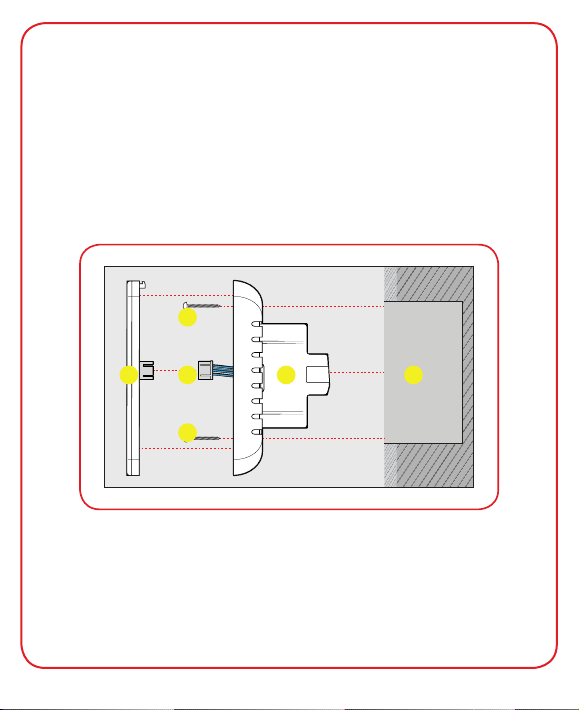

1. Faceplate

2. Provided screws

3. Ribbon connectors

4. Back plate

5. Back box

Interface

678910

3 12

1. On / Off button

2. Mode button

3. Menu button

4. Down button

5. Up button

6. Mode icon

7. Set temperature

8. Heating icon

9. Weekday icon

10. Ambient temperature

11. Clock icon

12. Temperature icon

13. Floor temperature

14. Mode icon area

Icon key

Press to choose one of

four languages

Use to dene pre-set

temperatures

Use to check your 5+1+1

day schedule

Use to set the correct

weekday and time

Use to dene min and

max temperatures

Language selection

Pre-set temperatures

Program review

Date & time Button

Protection temperatures

Once selected, enables

‘Holiday mode’

Once selected, enables

‘Boost mode’

Once selected, enables

‘Economy mode’

Once selected, enables

your custom schedule

Once selected, enables

‘Comfort mode’

Holiday mode

Boost mode

Economy mode

Program mode

Comfort mode

Menu Mode

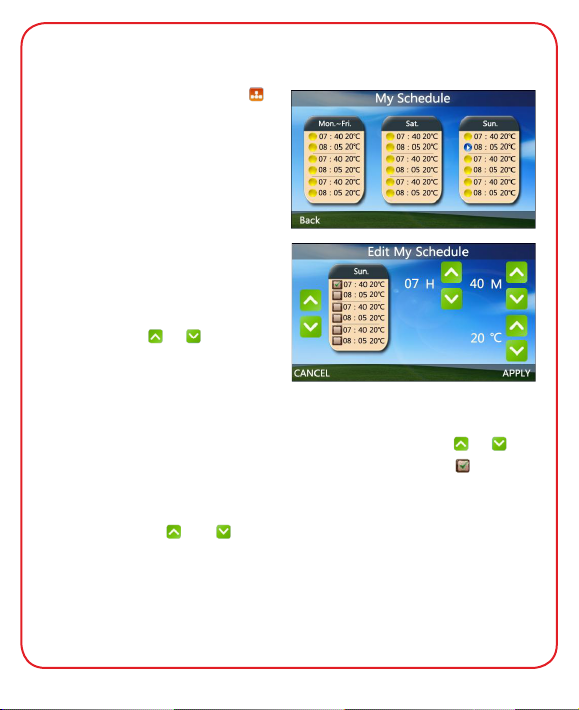

Schedule settings

Press Menu Button, then press

to review your weekly schedule.

Select Mon - Fri, Sat or Sun to edit

your custom heating schedule.

Example: if you want to edit

Sun schedule, press Sun column to

enter the edit page as shown.

Every setting can be selected and

edited with the or buttons.

1. In the Sun column, there are six periods. You can press or

buttons to choose the period you are going to change. will

display next to which ever period is selected.

2. Next you can set the start time and desired temperature by

pressing the and buttons.

3. Press APPLY to save your new schedule.

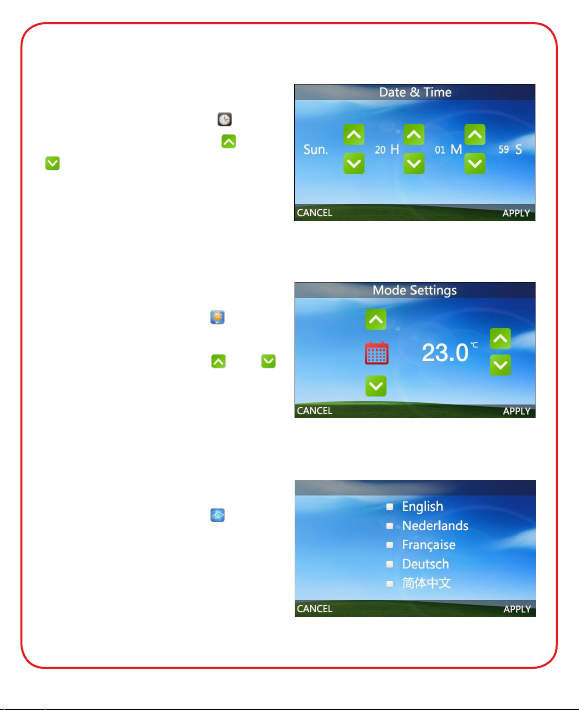

Edit time & date

Press MENU button, then

button

to edit date and time with and

buttons. Press APPLY to save the

changes.

Mode pre-set temp.

Press Menu button, then

button

to select a mode. Now edit that

modes temperature with and

buttons. Press APPLY to save the

changes.

Language select

Press Menu button, then

button

to enter languages page. Choose

the desired language and press

APPLY to save the changes.

Protection settings

Press Menu then

button to enter

protection settings page. You can

set Over Protection temperature &

Low Protection temperature with

the and buttons. Press APPLY

to save the changes.

High protection:

This is an overheat protection setting designed to monitor the oor

temperature and limit it to a level set by you. If the system reaches the

set protection temperature the system will shut off automatically.

Low protection:

This is a frost protection mode designed to function when the thermostat

is switched off. If the ambient temperature reaches the set protection

temperature the system will automatically switch on to maintain a

minimum temperature.

Please note:

The upper limit should be no higher than 280C to conform with

European regulations. Check with your oor nish manufacturer for

guidelines on maximum recommended underoor heating temperature.

Technical Specification

Menu Description Range

1 Temp. Offset -8 0C ~80C

2 Dead Zone 00C ~30C

3 Set Point Max. 5 0C ~350C

4 Set Point Min. 5 0C ~350C

5NTC Select (Ambient - I, Floor - E) I only, E only, I & E, I or E

6Low Protection Max. 5 0C ~100C

7Low Protection Min. 5 0C ~100C

8High Protection Max. 5 0C ~900C

9High Protection Min. 5 0C ~900C

10 Backlight off Time after Operation. 3s~180s

11 Min. Backlight Brightness of Standby Status 1%~100%

12 Relay Delay Time 0s~250s

13 Relay Output Normal(NO);Inverted(NC)

14 Restore << or >>

Parameter settings

To access parameter settings switch the thermostat OFF and immediately

press

for 2 seconds. You can set the desired values by pressing <<

or >> , and go to other pages by pressing Pre or Next. Please note the

upper limit should be no higher than 280C to conform with European

regulations.
