Heinner HTCH-F400BK Bedienungsanleitung

TELESCOPIC COOKER HOOD

Models: HTCH-F400IX /

HTCH-F400BK/ HTCH-F400WH

www.heinner.ro

•Telescopic cooker hood

•Suction power: 358.4 m3/h

•Color: white / black / stainless steel

www.heinner.com 65W, 50Hz, 220-240V

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and

maintenance of the unit. In order to operate the unit correctly and safely, please read this

instruction manual carefully before installation and use.

I. INTRODUCTION

III. SAFETY PRECAUTION

II. PACKAGE CONTENT

➢

Telescopic cooker hood

➢User manual

➢

Warranty card

Thank you for purchasing this product!

www.heinner.com 65W, 50Hz, 220-240V

1. Never let the children operate the machine.

The cooker hood is for home use only, not suitable for commercial purpose. The

cooker hood and its filter should be clean, regularly in order to keep in good working

conditions.

Clean the cooker hood according to the instruction manual and keep the unit from

danger of burning. There is a fire risk if cleaning is not carried out in accordance with

the instructions.

Please keep the kitchen room a good convection before connecting this appliance.

Please check that the power supply cord is not damaged. A damage supply cord

must be replaced by qualified service personnel only.

There shall be adequate ventiulation of the room when the range hood is used at

the same time as appliances burning gas or other fuels; the air must not be

discharged into a flue that is used for exhausting fumes from appliances burning gas

or other fuels.

6. Regulations concerning the discharge of air have to be fulfilled.

7. Do not flame under the range hood.

This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made by children

without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

CAUTION: Accessible parts may become hot when with cooking appliance.

Electrical Shock Hazard

Only play this unit into a properly earthed outlet. If in doubt, seek advice from a suitably

qualified engineer.

www.heinner.com 65W, 50Hz, 220-240V

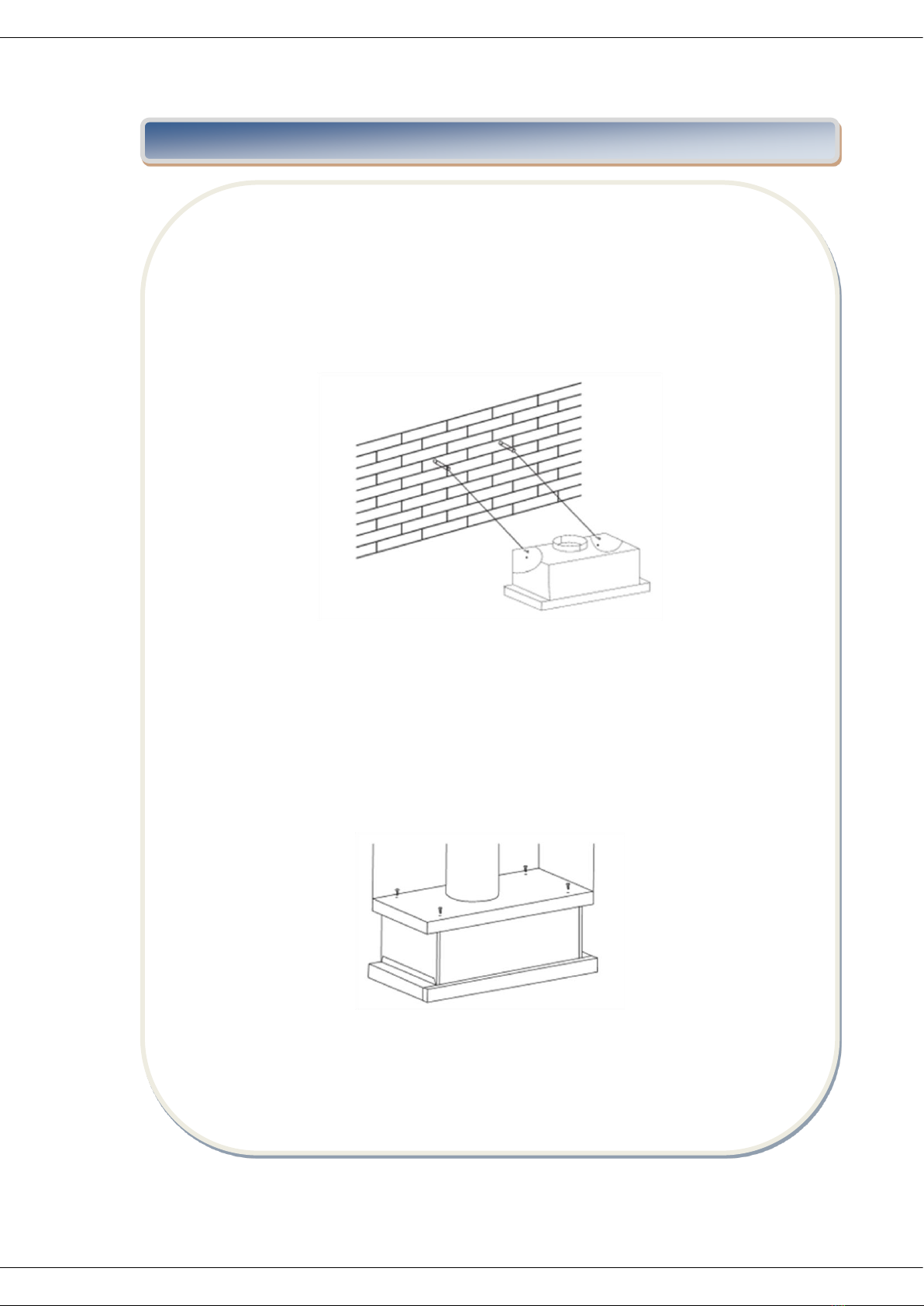

IV. TELESCOPIC MODEL INSTALLATION

Way 1

To install onto the wall drill 2 holes of 8 mm on a suitable place according with the centre

distance of hole in the back of the cooker hood.

Insert the nut into the holes.

Insert the screws into the nuts and tight. Put the cooker hood onto the tighten screws.

Fix the cooker hood with safety screw. The two safety vents are position on the back

casing, with diameter of 6mm. Put the one way valve onto the cooker hood.

Way 2

Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard.

Put the one way valve on the cooker hood, then install the cooker hood on the bottom

of the hanging cupboard, tighten the hood with enclosed 4 screws.

Note:

1. The extensible pipe is optional accessory, not supplied.

2. Take off protection film before installation.

www.heinner.com 65W, 50Hz, 220-240V

Mechanical rocker button

It just appears in Telescopic model.

Ventilation

Heinner telescopic hoods can be used on two modes: outdoor air ventilation and indoor air

ventilation. For indoor air ventilation, it is necessary to install carbon filters, which must be

purchase separately.

For outdoor air ventilation install the outlet, turn on the cooker hood, the the air will be

vented outside.

For indoor air ventilation, install the carbon filter, turn on the cooker hood, then the air will

be vented inside.

V. OPERATION

Light button

On the left side of the hood

Speed button

On the right side of hood

“=”: High speed level

“-“: Low speed level

“0”: Off

www.heinner.com 65W, 50Hz, 220-240V

1. Switch the unit off and unplug the appliance.

2. Remove the lamp cover by unscrewing the 2 screws.

3. Unscrew lamp.

4. Replace with the same type and rated bulb/lamp.

LED lamp (max 2W)

VI. MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft moistened with hand-warn mildly soapy water or household cleaning detergent.

Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly cleaning for Crease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease,

smoke and dust. So the filter is directly affecting the efficiency of the cooker hood. If not cleaned,

the grease residue (potential flammable) will saturate on the filter. Clean it with household

cleaning detergent.

III. Annual Cleaning for Activated Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter

traps odours and must be replaced at least once a year depending on how frequent the cooker

hood used.

VII. BULB REPLACEMENT

www.heinner.com 65W, 50Hz, 220-240V

FAULT

POSSIBLE CAUSE

SOLUTION

Light on, but fan does not

work

The fan blade id jammed

Switch of the unit. The repair must be

done by qualified service personnel only.

The motor is damaged

Both light and fan do not

work

Light bulb burn

Replace the bulb with correct rating

Power cord looses

Plug in to the power supply again

Serious vibration of the unit

The fan blade is

damaged

Switch of the unit and repair by qualified

personnel only

The fan motor is not

fixed

Switch of the unit and repair by qualified

service personnel only

The unit is not hung

properly on the bracket

Take down the unit and check whether the

bracket is in proper location

Suction performance not

good

Too long distance

between the unit and

the cooking plane

Readjust the distance to 65-75 cm

NOTE: Any electrical repairs to this appliance must conform to your local, state and federal

laws. Please contact the service centre if in any doubt before undertaking any of the above.

Always disconnect the unit from the power source when opening the unit.

VIII. TROUBLESHOOTING

www.heinner.com 65W, 50Hz, 220-240V

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014

Trademark

Heinner

Model

HTCH-F400WH / HTCH-F400BK / HTCH-F400IX

Annual energy consumption (kWh/year)

30.37

Energy efficiency class

Fluid dynamic efficiency

14.38

Fluid dynamic efficiency class

Lighting efficiency (lux/W)

2.55

Lighting efficiency class

Grease filtering efficiency (%)

77.48

Grease filtering efficiency class

Airflow at minimum and maximum speed under

normal conditions of use (m3/h)

169.39/358.43

Airborne acoustical A-weighted sound power

emissions at minimum and maximum speed

under normal conditions of use (dB(A))

61/63.8

Time increase factor

1.8

Energy efficiency index

92.45

Measured airflow rate at best efficiency point

(m3/h)

209.29

Measured airflow pressure at best efficiency

point (Pa)

132.19

Measured electric power at best efficiency point

(W)

53.43

Nominal power of the lighting system (W)

Average illumination of the lighting system on the

cooking surface (lux)

142.8

Power consumption in standby mode (W)

Power consumption in off mode (W)

IX. TECHNICAL FICHE

www.heinner.com 65W, 50Hz, 220-240V

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment’s to

an appropriate waste disposal center.

HEINNER

is a registered trademark of Network One Distribution SRL. Other brands and product

names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from NETWORK

ONE DISTRIBUTION.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: +40 21 211 18 56, www.heinner.com , www.nod.ro
