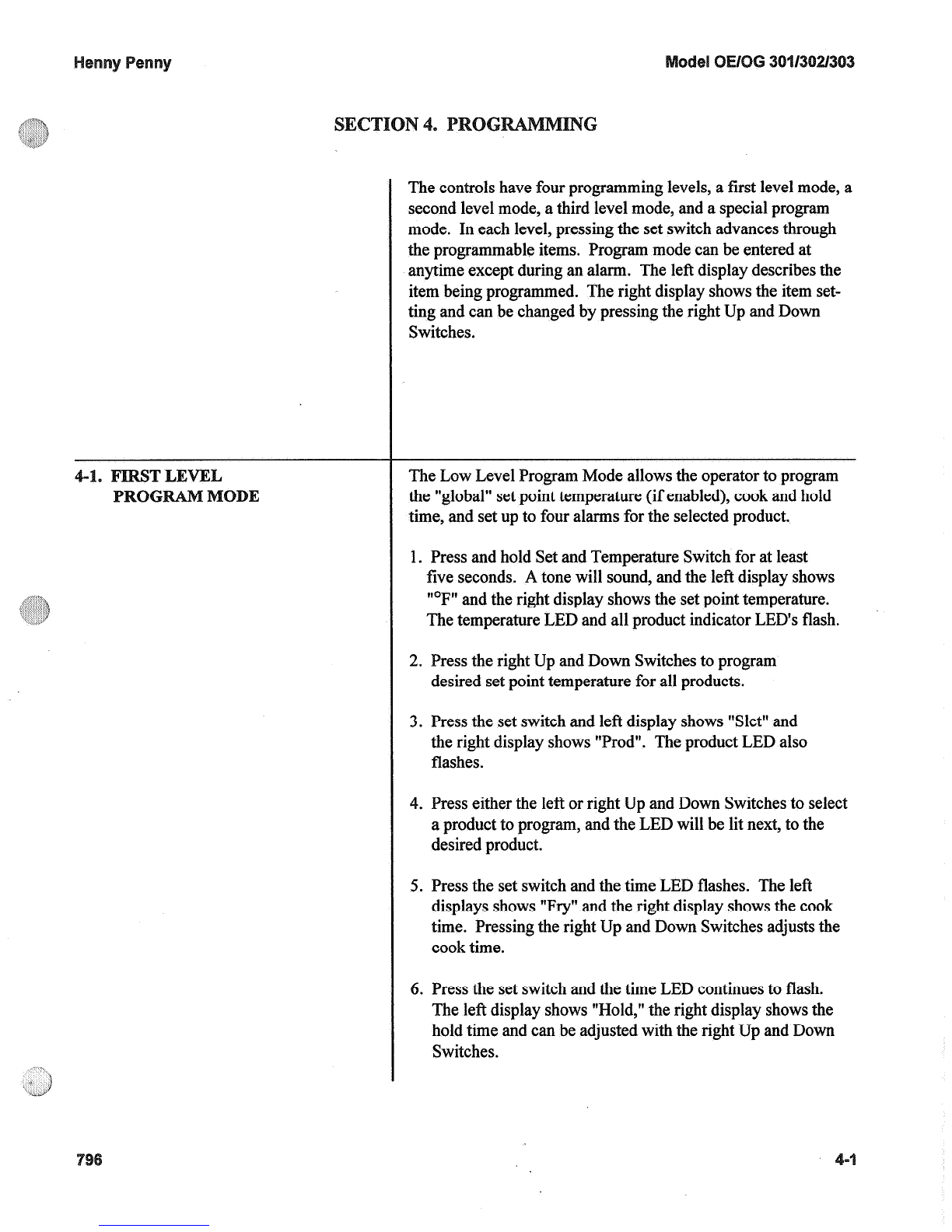

Thecontrols havefour programming levels,afirst level mode,a
secondlevel mode,athird level mode,andaspecialprogram
mode. In eachlevel,pressingthe setswitch advancesthrough
the programmableitems. Programmodecanbeenteredat
anytimeexceptduring analarm. The left displaydescribesthe
item beingprogrammed. Theright display showsthe item set-
ting andcanbechangedby pressingtheright Up andDown
Switches.
The Low Level ProgramMode allows theoperatorto program
the “global“ setpoint temperature(if enabled),cookandhold
time, andsetupto four alarmsfor the selectedproduct.
1. Pressandhold SetandTemperatureSwitch for atleast
five seconds.A tonewill sound,andthe left displayshows
“OF”andtheright displayshowsthesetpoint temperature.
ThetemperatureLED andall product indicator LED’s flash.
2. Presstheright Up andDown Switchesto program
desiredsetpoint temperaturefor all products.
3. Pressthe setswitch andleft display shows“Slct” and
theright displayshows“Prod”. TheproductLED also
flashes.
4. Presseitherthe left or right Up andDown Switchesto select
aproductto program,andthe LED will belit next,to the
desiredproduct.
5. Pressthe setswitch andthetime LED flashes. The left
displaysshows“Fry” andthe right displayshowsthecook
time. Pressingtheright Up andDown Switchesadjuststhe
cooktime.
6. Pressthe setswitch andthetime LED continuesto flash.
The left display shows“Hold,” theright display showsthe
hold time andcanbeadjustedwith theright Up andDown
Switches.
7. Pressthe setswitch andthe alarmLED flashes. The left
display shows“AL 1”)the right display showsthe alarm
time andcanbeadjustedwith the right Up andDown
Switches.
8. Repeatstep8for alarms2,3, and4.
9. Pressandhold the SetSwitch to exit program mode,or
continueto secondlevelmode.
The SecondLevel ProgramMode allowsthe operatorto pro-
gramloadcompensation,loadanticipation, proportional control,
filter cycle for the selectedproduct,andthe idle parameters.
1. While in the first level mode,pushandhold the Setand
Exit Melt Switchesfor five seconds.The beeperwill sound
the left display will show“Slct” (Select)andthe right display
will show “Prod” (Product). TheProductLED alsoflashes.
2. Presseither theright or left Up andDown Switchesto
selectaproduct to program.
3. PressSetSwitch andtheOther LED flashes. The left display
shows“LdCo,” andtheright display showsload compen-
sationsetting,andcanbeadjustedwith the right Up and
Down Switches.
4. Pressthe SetSwitch andtheOther LED continuesto flash.
The left display shows“PC,” theright display showsthe
proportional control setting,andcanbeadjustedwith the
right Up andDown Switches.
5. Pressthe SetSwitch andtheOther LED continuesto flash.
The left display shows.“LdAn,” andtheright display shows
loadanticipation setting,andcanbeadjustedwith the right
Up andDown Switches.
6. Pressthe SetSwitch andthe OtherLED continuesto flash.
The left display shows“Filtr,” andthe right display shows
filter cyclessetting,andcanbeadjustedwith the right Up
andDown Switches.
~ 7. Pressthe SetSwitch andthe ProductLED flashes. Press
eitherright or left Up andDown Switchesto selectanother
productto program. Pressandhold the SetSwitch to exit the
programmode,or continueon to thethird level program
mode.
4-3. I ING
8. Also, with the Product LED flashing, pressing the right
Up and Down Switches will access the Idle Mode
parameters. The idle LED will be flashing, the left display
will continue to show “Slct” and the right display shows
“Prod.” Pressing the Set Switch allows the operator to
program the idle parameters (See Section 4-3).
The Idle Mode must be enabled for the operator to accessthis
mode.
1. While in the SecondProgram Mode, and the Product LED
isflashing, press the right Up and Down Switches to select
the idle mode items. The Idle LED will be flashing.
2. Press the Set Switch and the Time LED flashes, the left
display shows “idle,” and the right display shows “ON or
OFF”. Pressing the right Up and Down Switches to turn
idle on or off.
3. Press the Set Switch and the Time LED flashes. The left
display shows “Auto” and the right display shows
automatic idle time. Adjust the automatic idle time with
the right Up and Down Switches, and to disable the auto
idle feature set time to “OFF.”
4. Press the Set Switch and the Temperature LED flashes.
The left display shows “F” or “C”, and the right display
showsthe idle temperature setpoint, which canbe adjusted
with the right Up and Down Switches.
5. Press Set Switch and the Product LED flashes. Press and
hold the Set Switch to exit the program mode or continue
to the third level program mode.
The Third Level Program Mode allows the operator to enable,
or disable “global” setpoints, program Fahrenheit or Celcius,
probe calibration, alarm duration, and hold duration.
1. While in the third level program mode, press and hold Exit
Melt and Temp switches until the buzzer sounds, and the
left display flashes “glob” and OF”, and the right display
shows “ON” or “OFF.” Pressing the right Up and Down
Switches enables, or disables the global setpoint
programming.
2. Press the Set Switch and the left displays shows “deg”
and the right display shows “OF” or ““C.” Pressing the
right Up and Down Switches allows the operator to select
Fahrenheit, or Celcius.
el
30113Q21303
3. Press the Set Switch and the left display flashes “Prob”
and “Calib.” The right display shows the actual pot
temperature, and the right Up and Down Switches are
used for calibration.
4. Press the Set Switch and the left display flashes “AL”
and “dur.” The right display shows the duration of this
alarm at the end of a cook cycle, and can be adjusted with
the right Up and Down Switches.
5. Press the Set Switch and the left display flashes “Hold”
and “dur.” The left display shows the duration of the hold
alarm at the end of the hold cycle, and can be adjusted
with the right Up & Down Switches.
I
6. Press and hold the Set Switch to exit the program mode.
The Special Program Mode allows the operator to initialize
the program, or to perform an input/output test.
1. Turn Power Switch off, then press and hold the right Up
and Down Switches while turning power switch back on.
The left display shows “init” and the right displays shows
“sgs.” Press and hold the right Up or Down Switch for
five secondsto initialize all settings. SpecialProgram Mode
is automatically exited if initialize is done.
2. While in the Special Program Mode, press the Set Switch
and the left display shows “10” and the right display shows
“test,” then they go blank. By pressing all switches,
enables all LED’s and displays. Pressing temp. switch
turns on heat. Press and hold Set Switch exits SpecialPro-
gram Mode.
