1. Introduction

1.1 Brief Structure

This solution is designed to control the entrance and exit of office building, factory, cell and so on through

face verification, and the event can be managed and monitored on iVMS-4200 client software.

Figure 1 Structure for Face Recognition System

From front Figure 1，mainly we have two types scenarios: one is to add face recognition terminal based

on previous old swing barrier, the face recognition terminal will be connected to barrier control board through

RS232 interface; The second scenario is used more common, connect DS-K5603(T)-Z face recognition

terminal and swing barrier DS-K3B601-XXX, the quantity of barrier, face terminal, card or fingerprint reader

are selected according to customer requirement. In second scenario (picture on the right), one channel is for

entrance and another for out, so we need 4 face recognition terminals and 4 card readers.

Please refer to Figure 2 for the data flow, card number and fingerprint is registered to client software

iVMS-4200 through card issuer or fingerprint enrollment station. Face will be registered from enrollment

device or import from PC to iVMS-4200, then these cards and faces will be synchronized to terminals(DS-

K5603-Z), card number, fingerprint and permission will be synchronized to barrier control board(DS-K3M200)

in swing barrier. The fingerprint data will be send to fingerprint reader (optional) from barrier control board.

When swiping card, card number will be send to barrier control board for permission check. When put

finger on FP reader, it will verify inside the reader first, after verify successfully, reader will send the card

number, which is linked to this fingerprint, to barrier control board, then the board will check the permission

for this card number. When verify face on DS-K5603(T)-Z, it will verify face picture inside the terminal first,

after verify successfully, card number which linked to this face picture will be send to barrier control board,

then the board will check the permission for this card number. If the card number is verified, this board will

send signal to the motor to open the gate. The access event will be uploaded from face recognition terminal

iVMS-4200

LAN

RS232

I/O output

Old pedestrian turnstile with

newly added face recognition terminal

New pedestrian turnstile

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

and barrier control board to iVMS-4200 client software.

Figure 2 Swing Barrier Solution Data Flow

1.2 Device Model

For face recognition swing barrier solution, here are the baseline model：L for left，M for medium，R for right

Swing Type

Verification

Model

Note

Acrylic

Two-way Mifare Card

DS-K3B601-α/M-DpXXX

α: L/M/R

XXX: 65/75/90/110cm

Two-way Mifare Card or Face

DS-K3B601-α/MPg-DpXXX

In: Mifare Card or Face

Out: Mifare Card

DS-K3B601-L/M-DpXXX

DS-K3B601-M/M-InPg-DpXXX

DS-K3B601-R/MPg-DpXXX

XXX: 65/75/90/110cm

Stainless

Two-way Mifare Card

DS-K3B601-α/M-DmXXX

α: L/M/R

XXX: 65/75/90/110cm

Two-way Mifare Card or Face

DS-K3B601-α/MPg-DmXXX

α: L/M/R

XXX: 75/90/110cm

In: Mifare Card or Face

Out: Mifare Card

DS-K3B601-L/M-DmXXX

DS-K3B601-M/M-InPg-

DmXXX

DS-K3B601-R/MPg-DmXXX

XXX: 90/110cm

NOTE：

Select middle barrier according to channel quantity in customer side and select correct width for each

channel according to the site. If customer wants to use face recognition for verification, please purchase

DS-K5603-Z face recognition terminal separately.

For special requirement(optional function), such as fingerprint reader, cooling system or heating system

or remote control, please select according to customer requirement. You can get the final barrier model

Readers

Swing Barrier

Card Enrollment

Station

LAN (TCP/IP)

iVMS - 4200 Client

FP Enrollment Station

TCP/IP

RS485

USB

RVV

Barrier Control Board

①Card No.

②Cards, faces and permission information

①Fingerprints

③Card No.

④

Card

No.

②Access control events

②Cards and permission

④FP

④Card

RS232

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

according to the barrier model generation tool which is available from below path:

/Product File(Overseas)/00 Oversea Products/05 Access Control_Intercom/12 swing barrier（temporary）/

Please mark in the order if customer need base for the cable between barriers.

You can get the document which will help you to make order from below path:

/Product File(Overseas)/00 Oversea Products/05 Access Control_Intercom/12 swing barrier（temporary）/

For iVMS-4200 software, currently we use baseline V2.8.1.4，it’s available from Hikvision official website：

https://www.hikvision.com/en/Support/Downloads/Client-Software

1.3 Parameters

a. Face picture capacity: 10,000(DS-K5603-Z), 50,000(DS-K5603T-Z)；

b. Face recognition distance: 0.3 m to 1.0 m;

c. Person height: 1.40 m –1.90 m;

d. Import face picture through USB flash, file name format must be same as below:

Card Number_Name_Department_Employee Number_Gender.jpg

For example：1234567890_Nero_HQ_1_0.jpg

e. Face picture：Frontal photo without a hat，in jpeg or jpg format, resolution should be higher than 640*480

pixel, picture size should between 60 KB ~ 200 KB

f. When register face in device local, position requirement as below:

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

2. Installation Guide

2.1 Installation for swing barrier

Swing barrier is mainly used in the entrance or exit of office building and high-end department,

below instruction is only for indoor use(better to install a shield if use in outdoor).

1）The barrier should be installed on the concrete or non-flammable ground, please check

with customer and site situation to confirm whether can trench on the ground for

interconnect and network cables. If not allowed, please purchase base for barriers

Standard scenario example:

2）Ensure the ground is smooth so the IR transmitter and receiver on both side of barrier can

work normally, same as Figure 1；

Figure 3 IR sensor on barriers

Notes:

A.The device should be installed on the concrete surface or other non-flammable surfaces.

B.If the installation area is too close to the wall, make sure the distance between the

pedestal and the wall should be more than 120 mm, or you cannot open the pedestal top

cover.

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

3）Draw a central line on the installation surface for installing the center pedestal.

4）Draw another two parallel lines on each side of the central line for installing the other two

pedestals.

Note: The distance between the nearest two line is L+200 mm. L represents the lane width.

5）Confirm ground drill hole place on both sides according to Figure 2.

6）Drill holes on the ground according to the installation holes on the pedestals and insert the

expansion sleeves, each channel need 6*M12 screws.

7）Bury interconnecting cables for pedestal communication.

Note: For detailed information about burying and wiring interconnecting cables, see Wiring

Interconnecting Cable.

8）According to the entrance and exit marks on the pedestals, move the pedestals to the

corresponded positions.

Note: Make sure the installation holes on the pedestals and the base are aligned with each

other.

9）Secure the pedestals with expansion bolts.

Note: Do not immerse the pedestal in the water. In special circumstances, the immersed

height should be no more than 10 mm.

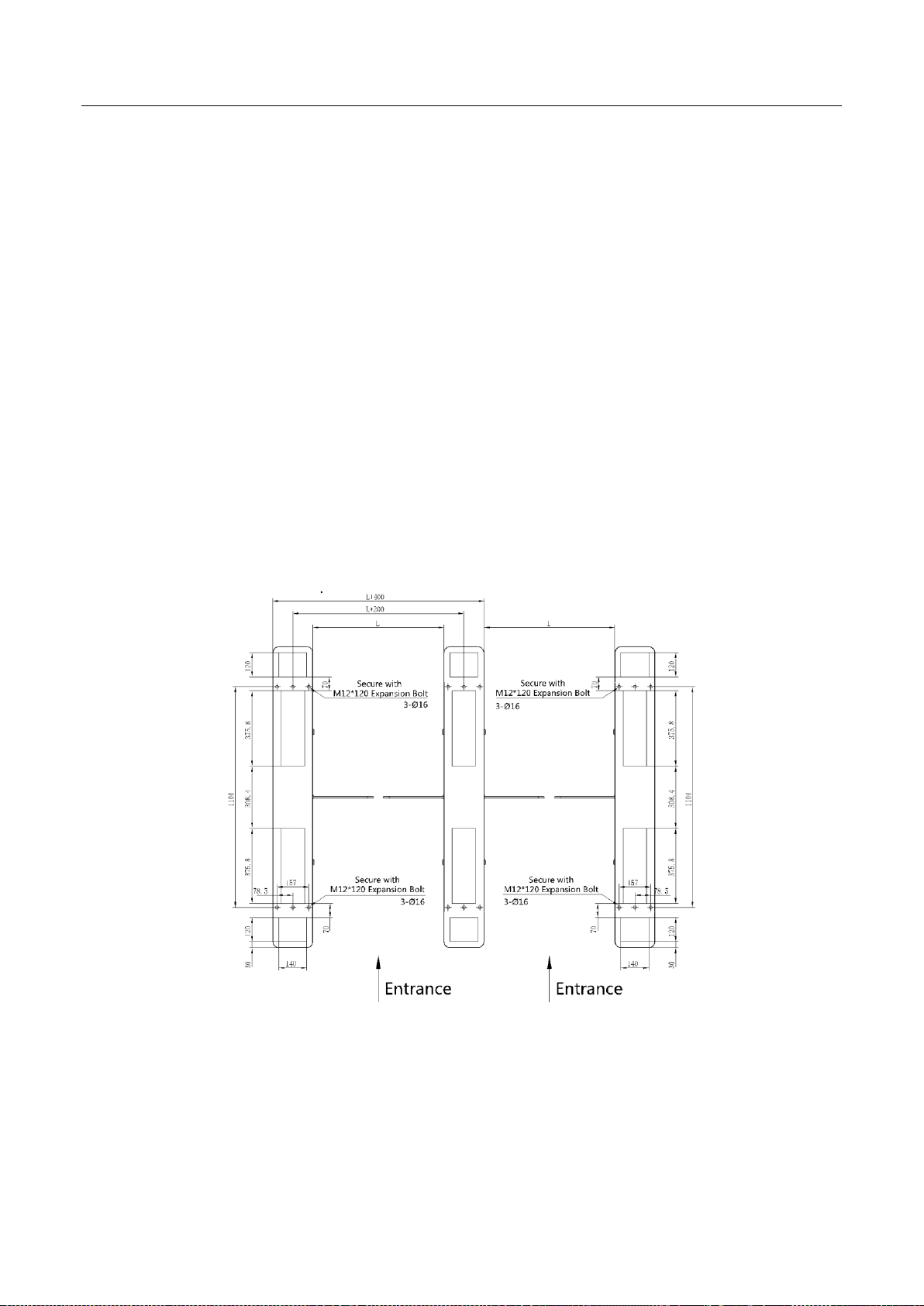

Figure 4 Installation top view

2.2 Barrier Wiring

1）Wire electric supply with the switch in the pedestal. Terminal L and terminal N are on the

switch, while terminal PE should connect to a ground wire (yellow and green wire).；

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

NOTE：Power OFF before wiring to ensure safety.

2）Connect master lane board and slave lane board through interconnecting cable, the

cable hole is in the bottom of barrier, see Figure 5

Figure 5 Interconnecting Cable Hole

3）The ports on master and slave lane board are as below

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

Note:

The supplied interconnecting cable length is 3.75 m. If you need a longer one, ask our technical

support or sales to purchase 5.5 m interconnecting cables；

The inner diameters of the low voltage conduit and the high voltage conduit should be larger

than 30 mm. If there is a high-power peripheral (for authentication) installed on the left pedestal

(according to the picture displayed above), you should increase the inner diameter of the high

voltage conduit；

General burying method: Bury one network cable and one AC power cord for the right pedestal

and bury one network cable and one AC power cord for the central pedestal before installation.

If no AC power cord buried independently, you should bury an AC power cord between the

right pedestal and the central pedestal.；

If you want to bury both of the AC power cord and the low voltage cable at the entrance side,

the two cables should be in separated conduits to avoid interference.；

If all wires of the interconnecting cable have connected with peripherals and more peripherals

are required to connect, you should increase the conduit diameter or bury another conduit for

the external cable；

2.3 Face recognition terminal wiring

Installation Environment:

1.Avoid backlight and direct sunlight.

2. If use barrier outdoors, please install a sun shield over the device.

3.The face recognition device should install on the pedestals of the barriers.

1) Route the cables through the pipe from top to bottom and thread them through the

cable holes on the barrier pedestal top cover；

Wiring the RS232 signal cable to barrier controller reserved RS232 interface

Face Recognition Swing Barrier Installation Guide_V1.1-20190215.docx

Product Support Team

Figure 6 Face recognition terminal power and RS232 cable wiring(master barrier side)

Figure 7 Face recognition terminal power and RS232 cable wiring(slave barrier side)

3) Raise the pipe and make sure the pipe and the pedestal top panel are vertical.；

4) Secure hex socket screws.

a) Rotate the pipe and align the four holes on the round panel with the holes on the

pedestal top panel.

b) Thread the supplied four M6 × 15 socket screws from up to down through the four

holes respectively. (Do not tight up.)

c) Rotate the pipe and make sure the device display screen is in the correct direction.

d) Tight the four screws to secure the device on the barrier pedestal.；

Figure 8 Install Screws

Inhaltsverzeichnis

Andere HIK VISION IP-Zugriffskontrollsysteme Handbücher

HIK VISION

HIK VISION DS-K1T500S Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T501SF Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T673-T Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T501SF Bedienungsanleitung

HIK VISION

HIK VISION DS-K1F600U-D6E Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K2601 Bedienungs- und Wartungsanleitung

HIK VISION

HIK VISION DS-TME401-TPC Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T105 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T501 Bedienungsanleitung

HIK VISION

HIK VISION DS-K4E100 Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T502 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K2801 Bedienungsanleitung

HIK VISION

HIK VISION DS-K1TA70MI-T Bedienungsanleitung

HIK VISION

HIK VISION DS-K1F600-D6E Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T804AMF Bedienungsanleitung

HIK VISION

HIK VISION MinMoe DS-K1T671TM-3XF Bedienungsanleitung

HIK VISION

HIK VISION DS-K3M200 Bedienungsanleitung

HIK VISION

HIK VISION DS-K1801 Series Bedienungsanleitung

HIK VISION

HIK VISION 26 series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T804A Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1T105M Sicherheitsleitfaden

HIK VISION

HIK VISION DS-K1T681 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-K1A802 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-PTA-WL-868 Bedienungsanleitung

Beliebte IP-Zugriffskontrollsysteme Handbücher anderer Marken

ZKTeco

ZKTeco SpeedFace-V5L Bedienungsanleitung

Jantar

Jantar REX A-1-9 Bedienungsanleitung

2N Access Unit Merkblatt

Kedacom

Kedacom KSCA120 Series Bedienungsanleitung

H3C

H3C WX2880X Bedienungsanleitung

G4S

G4S S870-EX Leitfaden

PRASTEL

PRASTEL M2000PE Bedienungsanleitung

Allegion

Allegion interflex IF-281 Cylinder Bedienungsanleitung

TECOM

TECOM TS1067E Bedienungsanleitung

Fermax

Fermax Memokey 100C Benutzerhandbuch

Fermax

Fermax CITYLINE MEMOKEY Bedienungsanleitung

Software House

Software House iSTAR Pro 2U RM Bedienungsanleitung

AKCP

AKCP SP+ Bedienungsanleitung

Bpt

Bpt HNA/102 Bedienungsanleitung

Civintec

Civintec CV9601T-T-1F Bedienungsanleitung

BioMax

BioMax N-X90W Bedienungsanleitung

ZKTeco

ZKTeco OP-200 Bedienungsanleitung

FingerTec

FingerTec s-Kadex Bedienungsanleitung
