HIK VISION DS-3WF0AC-2NT Bedienungsanleitung

DS-3WF0AC-2NT User Guide

Wireless Bridge DS-3WF0AC-2NT

User Guide

DS-3WF0AC-2NT User Guide

User Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

The Guide includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Guide is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user guide under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various

jurisdictions. Other trademarks and logos mentioned below are the properties of their respective

owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS

USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

DS-3WF0AC-2NT User Guide

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at

his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of

as unsorted municipal waste in the European Union. For proper recycling, return this

product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed

of as unsorted municipal waste in the European Union. See the product documentation

for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return

the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

DS-3WF0AC-2NT User Guide

iii

Applicable Models

This guide is applicable to DS-3WF0AC-2NT.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

During the installation and utilization of the device, please strictly conform to electrical safety

rules in different nations and regions.

You shall acknowledge that the use of the device with Internet access might be under network

security risks, please strengthen protection for your personal information and data security. If

you find the device might be under network security risks, please contact with us.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

DS-3WF0AC-2NT User Guide

Contents

Chapter 1 Application Scenario..................................................................................................1

1.1 Networking requirement .........................................................................................................1

1.2 Solution ....................................................................................................................................1

1.3 Connecting the wireless bridges..............................................................................................1

1.3.1 Hardware connection of AP device..................................................................................1

1.3.2 Hardware connection of CPE device................................................................................2

1.4 Networking topology ...............................................................................................................3

Chapter 2 Login .........................................................................................................................5

2.1 Logging in to the web UI of the wireless bridge ......................................................................5

2.2 Logging out of the web UI of the wireless bridge....................................................................7

Chapter 3 System Status............................................................................................................8

3.1 Device info ...............................................................................................................................8

3.2 Information of peer device ......................................................................................................9

Chapter 4 Network ..................................................................................................................11

4.1 Overview ................................................................................................................................11

4.2 Changing the IP address.........................................................................................................12

Chapter 5 Wireless ..................................................................................................................14

5.1 Overview ................................................................................................................................14

5.2 Changing wireless parameters...............................................................................................16

5.3 Scanning SSID nearby.............................................................................................................17

Chapter 6 System ....................................................................................................................19

6.1 Maintenance ..........................................................................................................................19

6.1.1 Device info .....................................................................................................................19

6.1.2 Maintenance ..................................................................................................................19

6.1.3 Import/Export ................................................................................................................22

6.1.4 Upgrade..........................................................................................................................23

6.2 Time settings..........................................................................................................................25

6.2.1 Manual ...........................................................................................................................25

6.2.2 Synchronize with the internet .......................................................................................25

6.3 Basic Service...........................................................................................................................26

6.3.1 SSH server ......................................................................................................................26

6.3.2 Export .............................................................................................................................28

6.4 Account ..................................................................................................................................29

Appendix.................................................................................................................................... 30

A Default parameters.....................................................................................................................30

B Acronyms and Abbreviations......................................................................................................31

DS-3WF0AC-2NT User Guide

Chapter 1 Application Scenario

1.1 Networking requirement

To ensure the safety of employees and property, a video surveillance system needs to be installed

in a building site.

1.2 Solution

The wireless bridges are used to address this requirement.

1.3 Connecting the wireless bridges

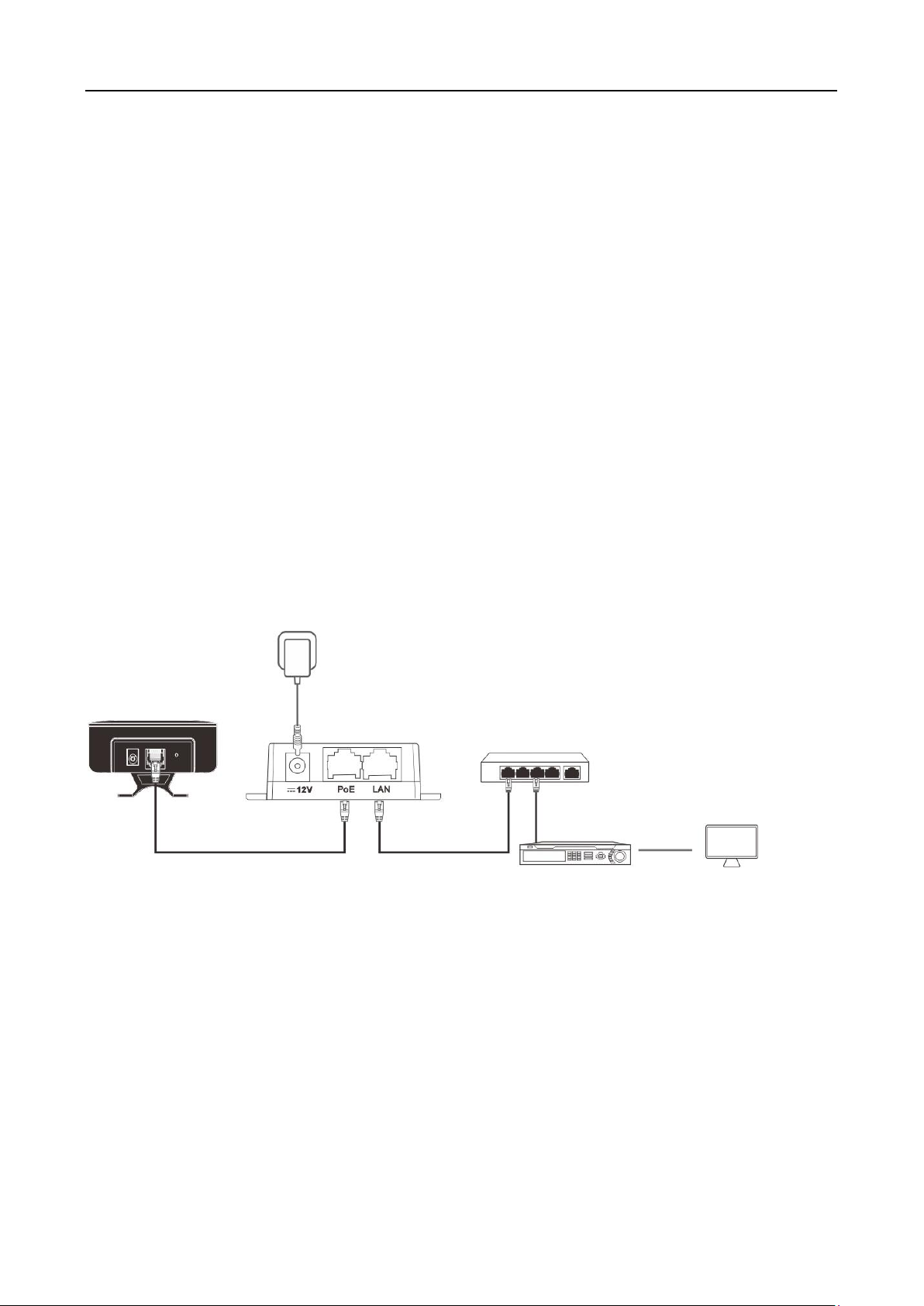

1.3.1 Hardware connection of AP device

Connect the AP device to a switch in monitor center. See the following figure:

AP device

PoE power supply

Switch

NVR

Monitor

DS-3WF0AC-2NT User Guide

1.3.2 Hardware connection of CPE device

Connect the CPE device to an IP camera in the monitoring site.

CPE device

PoE power supply

IP camera

DS-3WF0AC-2NT User Guide

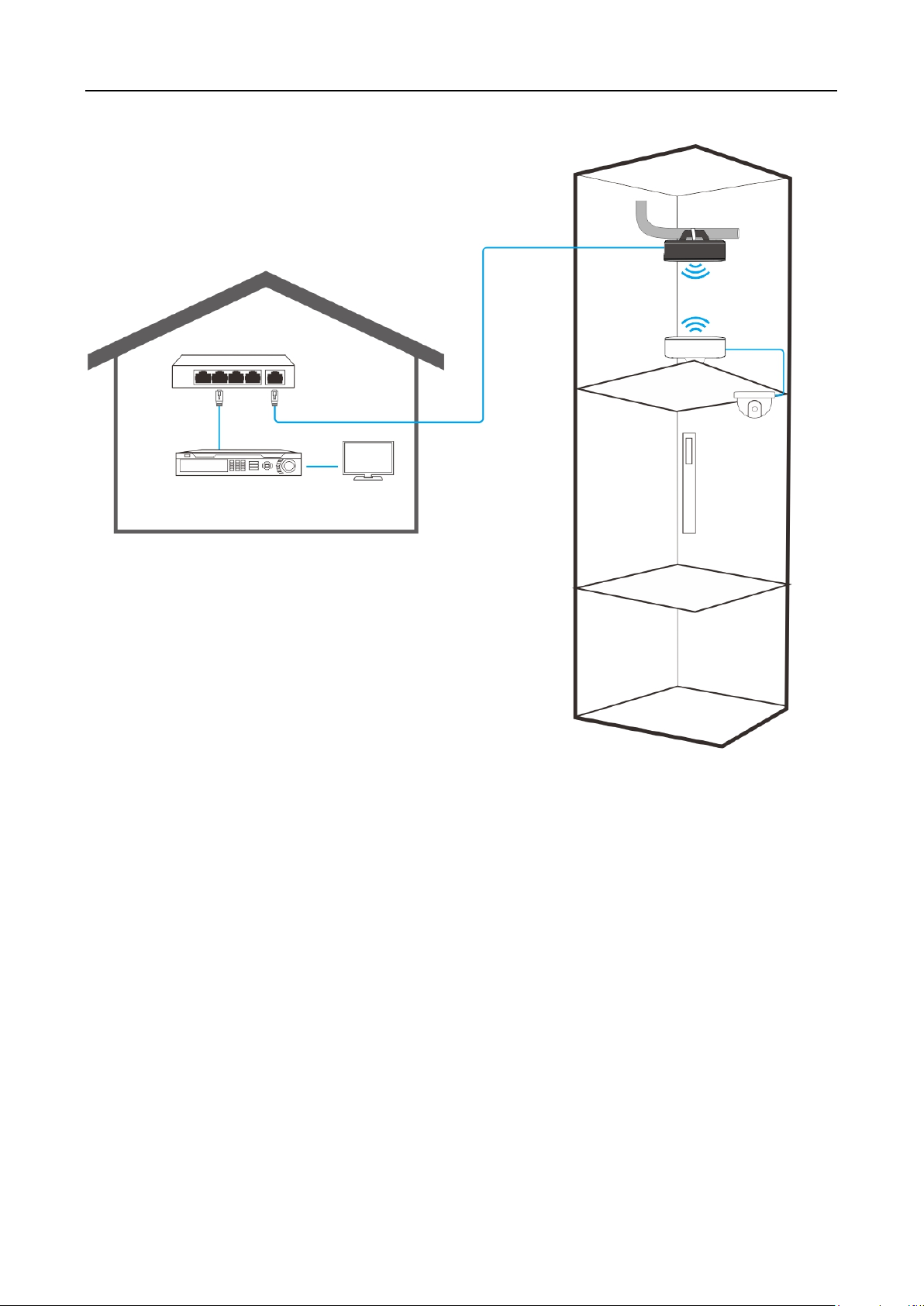

1.4 Networking topology

Select one scenario to install the wireless bridge to the corresponding site.

Scenario 1

Switch

NVR

Monitor

Elevator shaft

DS-3WF0AC-2NT User Guide

Switch

NVR

Monitor

Elevator shaft

Scenario 2

DS-3WF0AC-2NT User Guide

Chapter 2 Login

2.1 Logging in to the web UI of the wireless bridge

For initial use of the router, refer to the quick start guide of the wireless bridge. After activating

the wireless bridge, you can refer to the following procedure for login.

Step 1 Connect a computer to the wireless bridge, or the switch connected to the wireless bridge.

Step 2 Configure the IP address of the computer used to configure the wireless bridge. OS

example: Windows 7

1) Right-click the icon on the lower right corner of the desktop.

2) Click Open Network and Sharing Center.

3) Click Local Area Connection, then click Properties.
