Network Video Recorder

User Manual

Network Video Recorder User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of

Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be

“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,

changed, translated, or distributed, partially or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Video Recorder (NVR).

The Manual includes instructions for using and managing the product. Pictures, charts, images and

all other information hereinafter are for description and explanation only. The information

contained in the Manual is subject to change, without notice, due to firmware updates or other

reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned below are the properties of their respective owners.

: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States

and other countries.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS

HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,

EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY

AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL

OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER

ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL

PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS

USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER

PREVAILS.

Network Video Recorder User Manual

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his

own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and

comply therefore with the applicable harmonized European standards listed under the

EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as

unsorted municipal waste in the European Union. For proper recycling, return this

product to your local supplier upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of

as unsorted municipal waste in the European Union. See the product documentation for

specific battery information. The battery is marked with this symbol, which may include

lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder User Manual

Applicable Models

This manual is applicable to the models listed in the following table.

Series

Model

DS-7600NI-Q1

DS-7604NI-Q1

DS-7608NI-Q1

DS-7616NI-Q1

DS-7600NI-Q2

DS-7608NI-Q2

DS-7616NI-Q2

DS-7600NI-Q1/P

DS-7604NI-Q1/4P

DS-7608NI-Q1/8P

DS-7600NI-Q2/P

DS-7608NI-Q2/8P

DS-7616NI-Q2/16P

DS-7600NI-K1(B)

DS-7604NI-K1(B)

DS-7608NI-K1(B)

DS-7616NI-K1(B)

DS-7600NI-K1/P(B)

DS-7604NI-K1/4P(B)

DS-7608NI-K1/8P(B)

DS-7700NI-Q4

DS-7708NI-Q4

DS-7716NI-Q4

DS-7732NI-Q4

DS-7700NI-Q4/P

DS-7708NI-Q4/8P

DS-7716NI-Q4/16P

DS-7732NI-Q4/16P

DS-8600NI-Q8

DS-8608NI-Q8

DS-8616NI-Q8

DS-8632NI-Q8

Network Video Recorder User Manual

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Safety Instructions

Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

In the use of the product, you must be in strict compliance with the electrical safety

regulations of the nation and region. Please refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power

Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to

technical specifications for detailed information.

Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

Please make sure that the plug is firmly connected to the power socket.

If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

Ensure unit is installed in a well-ventilated, dust-free environment.

Unit is designed for indoor use only.

Keep all liquids away from the device.

Ensure environmental conditions meet factory specifications.

Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of

dropping it may cause damage to the sensitive electronics within the unit.

Symbol

Description

Provides additional information to emphasize or supplement

important points of the main text.

Indicates a potentially hazardous situation, which if not avoided,

could result in equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk, which if not avoided, will

result in death or serious injury.

Network Video Recorder User Manual

Use the device in conjunction with an UPS if possible.

Power down the unit before connecting and disconnecting accessories and peripherals.

A factory recommended HDD should be used for this device.

Improper use or replacement of the battery may result in hazard of explosion. Replace with

the same or equivalent type only. Dispose of used batteries according to the instructions

provided by the battery manufacturer.

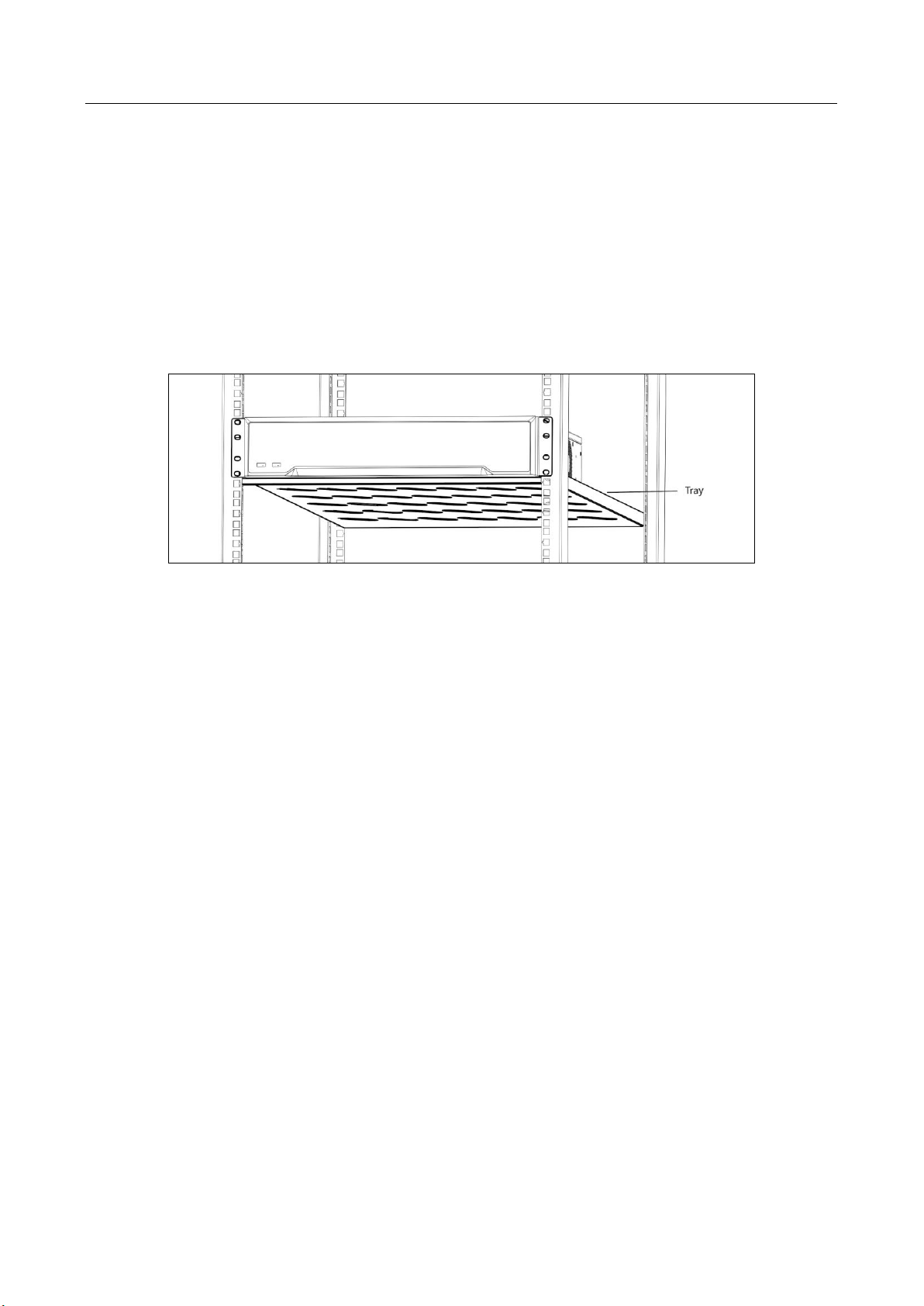

When installing the device into a cabinet over 2U height, it is suggested to use rack shelf to

bear the weight. If the cabinet height is over 4U, it is suggested to use slide rails or rack shelf

to bear the weight.

Network Video Recorder User Manual

Product Key Features

General

Connectable to network cameras, network dome and encoders.

Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom,

Canon, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO, and cameras that

adopt ONVIF or PSIA protocol.

Connectable to the smart IP cameras.

H.265+/H.265/ H.264+/H.264/MPEG4 video formats.

PAL/NTSC adaptive video inputs.

Each channel supports dual-stream.

Up to 8/16/32 network cameras can be added according to different models.

Independent configuration for each channel, including resolution, frame rate, bit rate, image

quality, etc.

The quality of the input and output record is configurable.

Local Monitoring

HDMI and VGA outputs provided.

HDMI video output at up to 4K resolution.

Multiple screen display in live view is supported, and the display sequence of channels is

adjustable.

Live view screen can be switched in group. Manual switch and auto-switch are provided and

the auto-switch interval is configurable.

Configurable main stream and sub-stream for the live view.

Quick setting menu is provided for live view.

Motion detection, video tampering, video exception alert and video loss alert functions.

Privacy mask.

Multiple PTZ protocols supported; PTZ preset, patrol and pattern.

Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

Up to 6 TB storage capacity for each disk supported.

Supports 8 network disks (NAS/IP SAN disk).

Supports S.M.A.R.T. and bad sector detection.

HDD group management.

Supports HDD standby function.

HDD property: redundancy, read-only, read/write (R/W).

Network Video Recorder User Manual

HDD quota management; different capacity can be assigned to different channel.

Recording and Playback

Holiday recording schedule configuration.

Continuous and event video recording parameters.

Multiple recording types: manual, continuous, alarm, motion, motion | alarm, and motion &

alarm VCA.

8 recording time periods with separated recording types.

Pre-record and post-record for alarm, motion detection for recording, and pre-record time for

schedule and manual recording.

Searching record files and captured pictures by events (alarm input/motion detection).

Tag adding for record files, searching and playing back by tags.

Locking and unlocking record files.

Local redundant recording.

Provide new playback interface with easy and flexible operation.

Searching and playing back record files by channel number, recording type, start time, end

time, etc.

Smart search for the selected area in the video.

Zooming in when playback.

Reverse playback of multi-channel.

Supports pause, play reverse, speed up, speed down, skip forward, and skip backward when

playback, and locating by dragging the mouse.

Supports thumbnails view and fast view during playback.

Up to 16-ch synchronous playback at 1080p real time.

Supports playback by transcoded stream.

Supports enabling H.264+ to ensure high video quality with lowered bitrate.

Backup

Export video data by USB, or SATA device.

Export video clips when playback.

Management and maintenance of backup devices.

Alarm and Exception

Configurable arming time of alarm input/output.

Alarm for video loss, motion detection, tampering, abnormal signal, video input/output

standard mismatch, illegal login, network disconnected, IP confliction, abnormal

record/capture, HDD error, and HDD full, etc.

VCA detection alarm is supported.

VCA search for face detection and behavior analysis.

Network Video Recorder User Manual

Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email

and alarm output.

Automatic restore when system is abnormal.

Other Local Functions

Operable by front panel, mouse, remote control, or control keyboard.

Three-level user management; admin user is allowed to create many operating accounts and

define their operating permission, which includes the limit to access any channel.

Admin password resetting by exporting/importing the GUID file.

Operation, alarm, exceptions and log recording and searching.

Manually triggering and clearing alarms.

Import and export of device configuration information.

Network Functions

Self-adaptive 10M/100M/1000Mbps network interface.

Four independent PoE network interfaces are provided for /4P models, eight independent PoE

network interfaces for the /8P models, and sixteen independent PoE network interfaces for the

/16P models.

Long distance (100-300 m) network transmission via PoE (for /P models).

IPv6 is supported.

TCP/IP protocol, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, and iSCSI are supported.

TCP, UDP and RTP for unicast.

Auto/Manual port mapping by UPnPTM.

Support access by Hik-Connect.

Remote web browser access by HTTPS ensures high security.

The ANR (Automatic Network Replenishment) function is supported, it enables the IP camera

save the recording files in the local storage when the network is disconnected, and

synchronizes the files to the NVR when the network is resumed.

Remote reverse playback via RTSP.

Supports accessing by the platform via ONVIF.

Remote search, playback, download, locking and unlocking of the record files, and support

downloading files broken transfer resume.

Remote parameters setup; remote import/export of device parameters.

Remote viewing of the device status, system logs and alarm status.

Remote keyboard operation.

Remote HDD formatting and program upgrading.

Remote system restart and shutdown.

RS-485 transparent channel transmission.

Network Video Recorder User Manual

Alarm and exception information can be sent to the remote host.

Remotely start/stop recording.

Remotely start/stop alarm output.

Remote PTZ control.

Remote JPEG capture.

Virtual host function is provided to get access and manage the IP camera directly.

Two-way audio and voice broadcasting.

Embedded WEB server.

Development Scalability:

SDK for Windows system.

Source code of application software for demo.

Development support and training for application system.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Netzwerk-Hardware Handbücher

HIK VISION

HIK VISION DS-KH6320-TE1 Bedienungsanleitung

HIK VISION

HIK VISION DS-M5504HNI Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7608NI-K2/8P/4G Bedienungsanleitung

HIK VISION

HIK VISION LV-N9600 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9600 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF01C-2N/O Bedienungsanleitung

HIK VISION

HIK VISION Network Video Recorder Benutzerhandbuch

HIK VISION

HIK VISION DS-7700NXI-I/S Series Bedienungsanleitung

HIK VISION

HIK VISION HIK-7104NI Bedienungsanleitung

HIK VISION

HIK VISION DS-7104NI-SL Bedienungsanleitung

HIK VISION

HIK VISION DS-7608NI-M2 Series Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind Super iDS-96128NXI-I24 Bedienungsanleitung

HIK VISION

HIK VISION DS-7600NI-Q1 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-9504NI-S Bedienungsanleitung

HIK VISION

HIK VISION HiWatch Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100NI-Q1 Series Bedienungsanleitung

HIK VISION

HIK VISION HWN-2100H Series Bedienungsanleitung

HIK VISION

HIK VISION DeepinMind iDS-6700NXI Series Bedienungsanleitung

HIK VISION

HIK VISION DS-7100NI-SL series Bedienungsanleitung

HIK VISION

HIK VISION 7600NI-SE Series Bedienungsanleitung

HIK VISION

HIK VISION HWN-2104H-4P Bedienungsanleitung

HIK VISION

HIK VISION DS-76O4NI-K1 B Bedienungsanleitung

HIK VISION

HIK VISION DS-7732NI-I4/16P Bedienungsanleitung

HIK VISION

HIK VISION iDS-96000NXI-I16/24B Bedienungsanleitung

Beliebte Netzwerk-Hardware Handbücher anderer Marken

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Bedienungsanleitung

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Bedienungsanleitung

Yudor

Yudor YDS-16 Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-320L Bedienungsanleitung

Samsung

Samsung ES1642dc Gebrauchsanweisung

Honeywell Home

Honeywell Home LTEM-PV Montageanleitung

evertz

evertz 7700 Series Bedienungsanleitung

D-Link

D-Link ShareCenter DNS-343 Bedienungsanleitung

Asante

Asante AsanteBridge 1012 Bedienungsanleitung

FireBrick

FireBrick FB2700 Bedienungsanleitung

Audiovox Electronics

Audiovox Electronics ARWH2T Bedienungsanleitung

ADC

ADC DSX-1 Handbuch

NetComm

NetComm NF2 Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 5620 Bedienungsanleitung

Dell EMC

Dell EMC XC6420 Series Bedienungsanleitung

Lanner

Lanner NCA-1020A Bedienungsanleitung

Allied Telesis

Allied Telesis AT-TN121-A Bedienungsanleitung

Arista

Arista CCA-ETM-Q12 Bedienungsanleitung
