TURBO HD TVI

Bullet & Turret Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the model listed below.

Type

Model

Type I

DS-2CE16D0T-IT1E/3E/5E

Type II

DS-2CE16D0T-IRE/IRPE

Type III

DS-2CE56D0T-IT1E/3E

Type IV

DS-2CE56D0T-ITME

This manual may contain several technically incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0100001080625

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the EMC Directive 2014/30/EU,

the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Warning

This is a class A product. In a domestic environment this

product may cause radio interference in which case the

user may be required to take adequate measures.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the product, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12 V

DC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect several devices to one power adapter

as adapter overload may cause over-heating or a fire

hazard.

Make sure that the plug is firmly connected to the

power socket.

When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cable, and

then contact the service center.

If the product does not work properly, contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by

unauthorized repair or maintenance.)

Cautions

Make sure the power supply voltage is correct before

using the camera.

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers. If cleaning

is necessary, use clean cloth with a bit of ethanol and

wipe it gently.

Do not aim the camera at the sun or extra bright

places. Blooming or smearing may occur otherwise

(which is not a malfunction), and affect the

endurance of sensor at the same time.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not place the camera in extremely hot, cold, dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

To avoid heat accumulation, good ventilation is

required for operating environment.

Keep the camera away from liquid while in use.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, parking lot, office, campus, etc..

The main features are as follows:

High performance CMOS sensor

1080p resolution

Auto white balance

Auto electronic shutter

Auto gain control (AGC)

IR cut filter

PoC

3-axis adjustment

Note:

Type III camera is applicable for indoor condition only.

1.2 Overview

1.2.1 Type I Camera Overview

Power Cord

Video Cable

Mounting Base

Sun Shield

Lens

Figure 1. 1 Type I Camera Overview

1.2.2 Type II Camera Overview

Power Cord

Mounting

Base

Main Body

Lens

IR LED

Video Cable

Figure 1. 2 Type III Camera Overview

1.2.3 Type III Camera Overview

Enclosure

Camera

Mounting

Base

Power Cord

Video Cable

Figure 1. 3 Type II Camera Overview

1.2.4 Type IV Camera Overview

DC12VIN

Clip Plate

Mounting Base

Enclosure

Main Body

Trim Ring

Video Cable

Power Cord

Figure 1. 4 Type IV Camera

Installation

2.1 Installation Preparation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

mounting bracket.

If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.2 Installation of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the bullet camera. Ceiling mounting will be taken as

an example in this section. You can take the steps of

ceiling mounting as a reference, when adopting the wall

mounting.

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

47.6

13.7 27.5

Φ68

3-Φ4

Unit：mm

Figure 2. 1 Drill Template

Note:

Cable hole is required when adopting ceiling outlet

to route the cable.

3. Attach the mounting base of the type I camera to

the ceiling and secure the camera with supplied

screws.

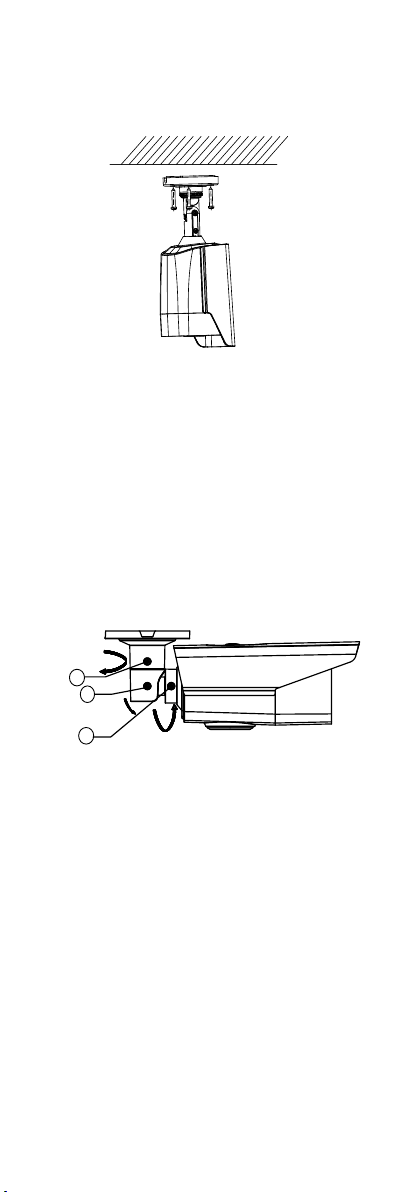

Figure 2. 2 Secure the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws

are required.

4. Route the cables through the cable hole (optional),

or the side opening.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle.

If not, adjust the camera according to the figure

below to get an optimum angle.

0°to 90°

0°to 360°

Figure 2. 3 3-Axis Adjustment

1) Loosen the No.1 adjusting screw to adjust the

pan position (0° to 360°).

2) Tighten the No.1 adjusting screw.

3) Loosen the No.2 adjusting screw to adjust the

tilting position (0° to 90°).

4) Tighten the No. 2 adjusting screw.

5) Loosen the No.3 adjusting screw to adjust the

rotation position (0° to 360°).

6) Tighten the No.3 adjusting screw.

2.3 Installation of Type II Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the bullet camera. Ceiling mounting will be taken as

an example in this section. You can take the steps of

ceiling mounting as a reference, when adopting wall

mounting.

Steps:

1. Paste the dill template to the ceiling.

2. Drill the screw holes according to the drill template,

and the cable hole (optional) on the ceiling.

47.6

13.7 27.5

Φ68

3-Φ4

Unit: mm

Figure 2. 4 Drill Template

Note:

Cable hole is required when adopting ceiling outlet

to route the cable.

3. Attach the mounting base of the type I camera to

the ceiling and secure the camera with supplied

screws.

Figure 2. 5 Secure the camera to the ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws

are required.

4. Route the cables through the cable hole (optional),

or the side opening.

5. Connect the corresponding power cord and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle.

If not, adjust the camera according to the figure

below to get an optimum angle.

0°to 360°

0°to 360° 0°to 180°

Figure 2. 6 3-Axis Adjustment

1). Loosen the No.1 adjusting screw to adjust the

pan position (0° to 360°).

2). Tighten the No.1 adjusting screw.

3). Loosen the No.2 adjusting screw to adjust the

tilting position (0° to 180°).

4). Tighten the No. 2 adjusting screw.

5). Loosen the No.3 adjusting screw to adjust the

rotation position (0° to 360°).

6). Tighten the No.3 adjusting screw.

2.4 Installation of Type III camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the turret camera. Ceiling mounting will be taken as

an example in this section. You can take the steps of

ceiling mounting as a reference, when adopting wall

mounting.

Steps:

1. Disassemble the turret camera by rotating the

camera to align the notch to one of the marks, as

shown in Figure 2. 1.

Mark

Notch

Figure 2. 7 Disassemble the Camera

2. Remove the mounting base from the camera body

with a flat object, e.g., a coin.

3. Paste the drill template (supplied) to the place

where you want to install the camera, and then drill

the screw holes and the cable hole (optional) on the

ceiling according to the drill template.

Screw Hole

Cable Hole

Figure 2. 8 Drill Template

Note:

Cable hole is required when adopting the ceiling

outlet to route the cable.

4. Attach the mounting base to the ceiling and secure

them with supplied screws

Figure 2. 9 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws

are required.

5. Route the cables through the cable hole (optional),

or the side opening.

6. Align the camera with the mounting base, and

tighten the screws to secure the camera with the

mounting base.

Figure 2. 10 Secure the Camera with Mounting Base

7. Connect the corresponding cables, such as power

cord, and video cable.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Tilt Position Range

[0°to 75°]

Pan Position Range

[0°to 360°]

Rotation Position Range

[0°to 360°]

Figure 2. 11 3-axis Adjustment

1). Hold the camera body and rotate the enclosure

to adjust the pan position [0° to 360°].

2). Move the camera body up and down to adjust

the tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation

position [0° to 360°].

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION iDS-2CD8A47G0/SC-ZY Bedienungsanleitung

HIK VISION

HIK VISION EPI-5225I-AE Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7A26G0P-IZHS Kurzanleitung

HIK VISION

HIK VISION DS-2TD2608-2/QA/FP Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD8283F-EI Bedienungsanleitung

HIK VISION

HIK VISION HiLook PTZ-T5225I-A Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE12DF0T-FS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC1181P(N)(-A) Bedienungsanleitung

HIK VISION

HIK VISION IDS-2CD7A46G0-IZHSY 8-32 Bedienungsanleitung

HIK VISION

HIK VISION HWI-T241H Bedienungsanleitung

HIK VISION

HIK VISION DS-2AF1-513 Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD2637T-15/QY Bedienungsanleitung

HIK VISION

HIK VISION DS-2DE3204W-DE Bedienungsanleitung

HIK VISION

HIK VISION HiWatch HWI-D620H-Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2D21G0/M/NF Bedienungsanleitung

HIK VISION

HIK VISION DS-2DE4425IW-DE Bedienungsanleitung

HIK VISION

HIK VISION NK44W1H-1T Bedienungsanleitung

HIK VISION

HIK VISION EPI-4225I-DE Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC52C1S-VPIR Bedienungsanleitung

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION DS-2XS2T47G0-LD/4G/C14S40 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD852F Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2XM6222G0-IM-ND-4mm Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
