HD Vari-Focal Bullet &

Turret & Dome Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Type

Model

Type I Camera

HWT-B310-VF

Type II Camera

HWT-T310-VF

Type III Camera

HWT-D310-VF

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0200001071226

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not place the camera in extremely hot, cold (the

operating temperature shall be -40°C to 60°C), dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1Introduction

1.1 Product Features

The main features are as follows:

High performance CMOS sensor

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance

Internal synchronization

SMART IR mode

3-axis adjustment

1.2 Overview

1.2.1 Overview of Type I Camera

Lens

Main Body

Bracket

Switch Button

Power Cord

12 VDC

Video Cable

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

DC12VIN

Enclosure

Main Body

Mounting

Base

Switch Botton

Power Cord

12 VDC

Video Cable

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

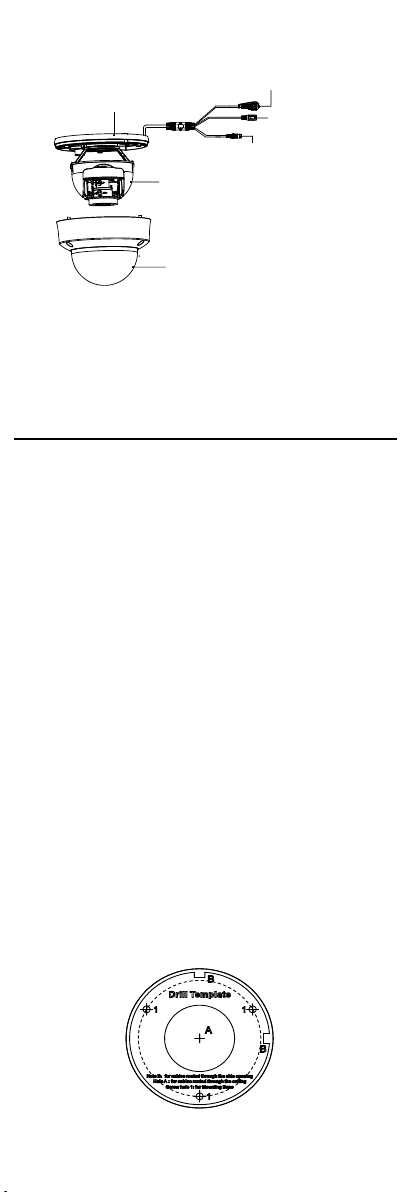

1.2.3 Overview of Type III Camera

DC12VIN

Bubble

Black Liner

Mounting Base

Switch Button

Power Cord

12 VDC

Video Cable

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the mount.

If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. Do NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of Type I Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the bullet camera. Ceiling mounting will be taken as

an example in this section. And you can take steps of

ceiling mounting as a reference for wall mounting.

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional) in

the ceiling according to the drill template.

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting ceiling outlet to

route the cable.

3. Route the cables through the cable hole, or the side

opening.

4. Fix the camera to the ceiling with supplied screws.

Figure 2-2 Fix the Camera to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws are

required.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the surveillance angle.

0°to 360°

0°to 90°

Figure 2-3 3-axis Adjustment

1) Loosen the No.① adjusting screw to adjust the

pan position [0° to 360°]. Tighten the No.①

adjusting screw.

2) Loosen the No.② adjusting screw to adjust the

tilting position [0° to 90°]. Tighten the No.②

adjusting screw.

3) Loosen the No.③ adjusting screw to adjust the

rotation position [0° to 360°]. Tighten the No.③

adjusting screw.

2.2 Installation of Type II Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the bullet camera. Ceiling mounting will be taken as

an example in this section. And you can take steps of

ceiling mounting as a reference for wall mounting.

Steps:

1. Disassemble the turret camera by rotating the

camera to align the notch to one of the marks, as

shown in the figure below.

Mark

Notch

Figure 2-4 Disassemble the Camera

2. Remove the mounting base from the camera body

with a flat object, e.g., a coin

3. Paste the drill template to the place where you want

to install the camera.

4. Drill the screw holes according to the drill template

and the cable hole (optional) in the ceiling.

Figure 2-5 Drill Template

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

5. Attach the mounting base to the ceiling, and secure

them with supplied screws

Method 1

Method 2

Figure 2-6 Attach the Mounting Base to the Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

For cement ceiling, expansion bolts are required to fix

the camera. For wooden ceiling, self-tapping screws

are required.

6. Route the cables through the cable hole, or the side

opening.

7. Align the camera with the mounting base, and

secure the camera on the mounting base.

Figure 2-7 Secure the Camera with Mounting Base

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

[0°to 360°]

Rotation Position

[0°to 360°]

Tilt Position

[0°to 75°]

Figure 2-8 3-axis Adjustment

1). Rotate the enclosure to adjust the pan position

[0° to 360°].

2). Move the camera body up and down to adjust

the tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation

position [0° to 360°.

2.3 Installation of Type III Camera

Before you start:

Both wall mounting and ceiling mounting are suitable

for the dome camera. Ceiling mounting will be taken as

an example in this section. You can take steps of ceiling

mounting as a reference for wall mounting.

Steps:

1. Paste the drill template to the celling.

2. Drill screw holes and the cable hole (optional) on

the ceiling according to the supplied drill template.

Note:

Drill the cable hole, when adopting the ceiling outlet

to route the cable.

Figure 2-9 The Drill Template

3. Loosen the screws on the bubble of the dome

camera to remove the bubble and the black liner.

4. Attach the mounting base to the ceiling, and secure

them with supplied screws.

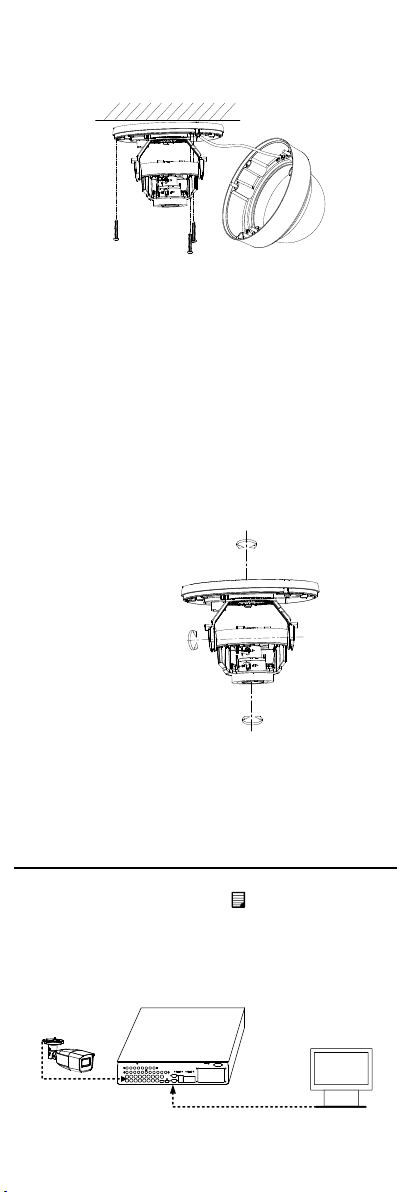

Figure 2-10 Secure the Mounting Base

Note:

In the supplied screw package, both self-tapping

screws and expansion bolts are contained.

For cement ceiling, expansion bolts are required to

fix the camera. For wooden ceiling, self-tapping

screws are required.

5. Route the cables through the cable hole, or the side

opening.

6. Connect the corresponding cables, such as power

cable and video cable.

7. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

[0°to 355°]

Tilt Position

[0°to 75°]

Rotation Position

[0°to 355°]

Figure 2-11 3-Axis Adjustment

8. Fit the black liner back to the camera and tighten

the screws on the bubble of the dome camera to

finish the installation.

3Menu Description

Purpose:

Call the menu by clicking button on the PTZ Control

interface, or click Iris+.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or click

Iris+.

BRIGHTNESS

MAIN-

FORMAT

LANGUAGE

DAY NIGHT

VIDEO

SETTINGS

RESET

SAVE - EXIT

EXPOSURE MODE

AGC

DWDR

MODE

RETURN

CONTRAST

SHARPNESS

COLOR GAIN

DNR

RETURN

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

1) Click up/down direction button to select the

item.

2) Click Iris + to confirm the selection.

3) Click left/right direction button to adjust the

value of the selected item.

3.1 FORMAT

You can set the format as 720p@25fps, or 720p@30fps.

3.2 LANGUAGE

Supports English, and Chinese.

3.3 MAIN MENU

3.3.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related

parameters, which can be adjusted by BRIGHTNESS,

EXPOSURE MODE, AGC, and DWDR.

EXPOSURE

BRIGHTNESS

EXPOSURE MODE

AGC

DWDR

RETURN

GLOBAL

MIDDLE

OFF

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image.

You can set the brightness value from 1 to 10 to darken

or brighten the image. The higher the value, the

brighter the image is.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HIK VISION Sicherheitskamera Handbücher

HIK VISION

HIK VISION DS-2CC1181P(N)(-A) Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC502 / 572P(N)-M Bedienungsanleitung

HIK VISION

HIK VISION HWT-T120-P Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD2532F-I Bedienungsanleitung

HIK VISION

HIK VISION XM61 Series Bedienungsanleitung

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD4668-35A4/W Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD5A46G1-IZHS Bedienungsanleitung

HIK VISION

HIK VISION DS-2CC11D3S-IR Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD D8T PIR Series Bedienungsanleitung

HIK VISION

HIK VISION DS-2XS6A25G0-I/CH20S40 Bedienungsanleitung

HIK VISION

HIK VISION DS-2DE4425IW-DE Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD8167-230ZG2FL/W Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD6365G0E-IVS Bedienungsanleitung

HIK VISION

HIK VISION HiWatch HWI-D620H-Z Bedienungsanleitung

HIK VISION

HIK VISION DS-2TD6267-75C4L/WY Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE56D0T-I2FB Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD7255F-EIZHS Bedienungsanleitung

HIK VISION

HIK VISION TURBO HD DS-2CE56H0T-IT1F Bedienungsanleitung

HIK VISION

HIK VISION DS-2CD852 Series Bedienungsanleitung

HIK VISION

HIK VISION UD.6L0201B2074A01 Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE16H1T-IT3Z Bedienungsanleitung

HIK VISION

HIK VISION NETWORK CAMERA Bedienungsanleitung

HIK VISION

HIK VISION DS-2CE59H8T-(A)VPIT3ZF Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
