HIK VISION iDS-2CD8426G0-F-I Bedienungsanleitung
DeepinView Dual-Lens Camera
Quick Start Guide
COPYRIGHT © 2017 Hikvision. ALL RIGHTS RESERVED
Quick Start Guide
ALL RIGHTS RESERVED
Any and all information, including, among others, wordings, pictures,
graphs are the properties of Hangzhou Hikvision Digital Technology
Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This
user manual (hereinafter referred to be “the Manual”) cannot be repro-
duced, changed, translated, or distributed, partially or wholly, by any
means, without the prior written permission of Hikvision. Unless other-
wise stipulated, Hikvision does not make any warranties, guarantees
or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to DeepinView series Dual-lens Network
Camera.
The Manual includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
Manual is subject to change, without notice, due to rmware updates
or other reasons. Please nd the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are
the properties of Hikvision in various jurisdictions. Other trademarks
and logos mentioned below are the properties of their respective own-
ers.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE
AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND
ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANT-
ABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR
PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO
EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOY-
EES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSE-
QUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTA-
TION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN
IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE
USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR AB-
NORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES
RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEV-
ER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF
REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK
ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING
THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CON-
FORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE
IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE
PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND
THE APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
Please take attention that changes or modication not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
FCC compliance: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interfer-
ence that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories
too are marked with "CE" and comply therefore withthe
applicable harmonized European standards listed under
the the EMC Directive 2014/30/EU, the RoHS Directive
2011/65/EU.
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted municipal
waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated
collection points. For more information see: www.
recyclethis.info
2006/66/EC and its amendment 2013/56/EU (battery
directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European
Union. See the product documentation for specic battery
information. The battery is marked with this symbol, which
may include lettering to indicate cadmium (Cd), lead (Pb),
or mercury (Hg). For proper recycling, return the battery to
your supplier or to a designated collection point. For more
information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards require-
ments.
Safety Instruction
These instructions are intended to ensure that the user can use the
product correctly to avoid danger or property loss.
Laws and Regulations
The device should be used in compliance with local laws, electrical
safety regulations, and re prevention regulations.
Transportation
Keep the device in original or similar packaging while transporting it.
Power Supply
The input voltage should conform to IEC60950-1 standard: SELV
(Safety Extra Low Voltage) and the Limited Power Source. Refer to
the appropriate documentation for detailed information.
DO NOT connect multiple devices to one power adapter, to avoid
over-heating or re hazards caused by overload.
Make sure the plug is properly connected to the power socket.
System Security
The installer and user are responsible for password and security
conguration and its settings.
Battery
Improper use or replacement of the battery may result in explosion
hazard. Replace with the same or equivalent type only. Dispose of
used batteries in conformance with the local codes.
Maintenance
If the product does not work properly, please contact your dealer or
the nearest service center. We shall not assume any responsibility
for problems caused by unauthorized repair or maintenance.
A few device components (e.g., electrolytic capacitor) require
regular replacement. The average lifespan varies, so periodic
checking is recommended. Contact your dealer for details.
Cleaning
Please use a soft and dry cloth when clean inside and outside
surfaces of the product cover. Do not use alkaline detergents.
Using Environment
When any laser equipment is in use, make sure that the device lens
is not exposed to the laser beam, or it may burn out.
Do not expose the device to high electromagnetic radiation or dusty
environments.
For indoor-only device, place it in a dry and well-ventilated
environment.
Do not aim the lens at the sun or any other bright light.
Make sure the running environment meets the requirement of the
device. The operating temperature shall be -10 °C to 40 °C (-14°F
to 104 °F), and the operating humidity shall be 95% or less (no
condensing).
Do not place the camera in extremely hot, cold, dusty or damp
locations, and do not expose it to high electromagnetic radiation.
Emergency
If smoke, odor, or noise arises from the device, immediately turn off
the power, unplug the power cable, and contact the service center.
Time Synchronization
Set up camera time manually for the rst time access if the local
time is not synchronized with that of the network. Visit the camera
via Web browse/client software and go to time settings interface.
Installation
Make sure the device is firmly secured to any wall or ceiling
mountings.
Be sure that there is enough space to install the camera and
accessories.
Make sure that the device in the package is in good condition and
all the assembly parts are included.
Make sure that the wall is strong enough to withstand at least 4
times the weight of the camera and the mount.
The standard power supply is 36 VDC, please make sure your
power supply matches with your camera.
Make sure that the power has been disconnected before you wire,
install, or disassemble the device.
Make sure that no reective surface is too close to the camera lens.
The IR light from the camera may reect back into the lens causing
reection.
Symbols and Marks
Notice
Warning
Forbidden
Correct
Incorrect

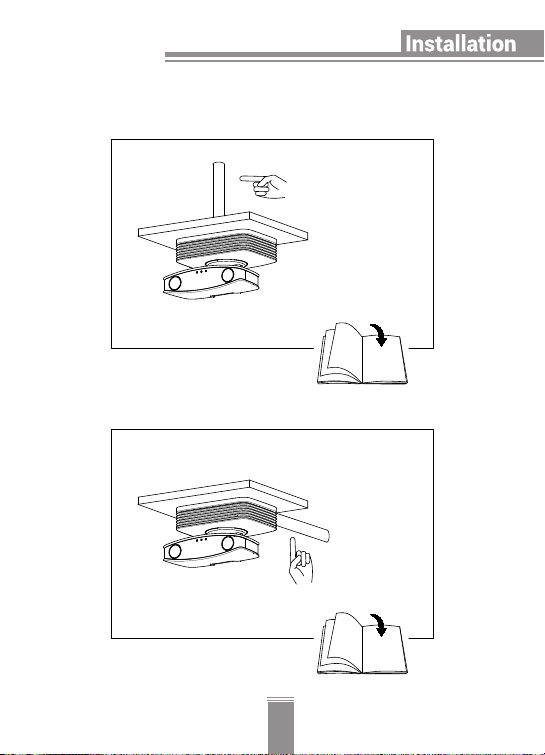

Turn to page A and continue.
i. Not necessarily included accessory.
ii. Variable accessory amount.
iii. Skip this step if not required.

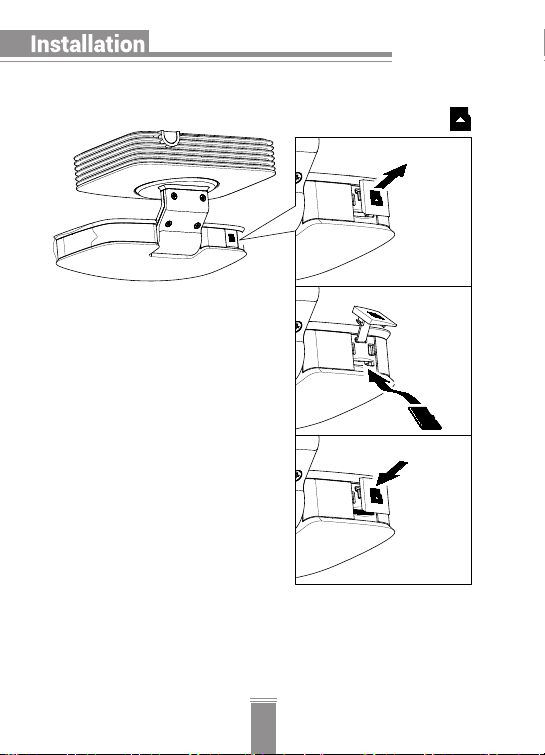

MicroSD card
Grounding
Disposal
Purchase separately

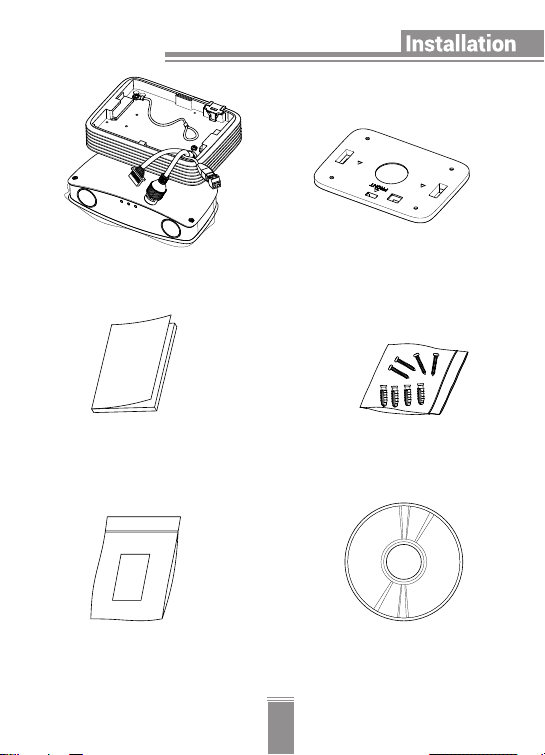

2x
1x
1x
1x 1x
1x
**
*
1
2.1
A
B
1.1
microSD
23
2.1
A
B
23
