Preface

Applicable Models

This manual is applicable to 0500P series gigabit PoE switches.

Symbol Conventions

The symbols that may be found in this document are defined as

follows.

Symbol

Description

Provides additional information to emphasize

or supplement important points of the main

text.

Indicates a potentially hazardous situation,

which if not avoided, could result in

equipment damage, data loss, performance

degradation, or unexpected results.

Indicates a hazard with a high level of risk,

which if not avoided, will result in death or

serious injury.

Safety Instructions

Danger

This is a class A product and may cause radio interference in

which case the user may be required to take adequate

measures.

Ensure that your devices powered via the PoE port have their

shells protected and fire-proofed, because the switches are

not compliant with the Limited Power Source (LPS) standard.

In the use of the product, you must be in strict compliance

with the electrical safety regulations of the nation and region.

The socket-outlet shall be installed near the device and shall

be easily accessible.

The device must be connected to an earthed mains socket-

outlet.

Install the device according to the instructions in this manual.

 indicates hazardous live and the external wiring connected

to the terminals requires installation by an instructed person.

Keep body parts away from fan blades. Disconnect the power

source during servicing.

Never place the device in an unstable location. The device

may fall, causing serious personal injury or death.

This device is not suitable for use in locations where children

are likely to be present.

Caution

CAUTION: Double pole/Neutral fusing. After operation of the

fuse, parts of the device that remain energized might

represent a hazard during servicing.

This device is suitable for mounting on concrete or other non-

combustible surface only.

The ventilation should not be impeded by covering the

ventilation openings with items, such as newspapers, table-

cloths, curtains, etc. The openings shall never be blocked by

placing the device on a bed, sofa, rug or other similar surface.

No naked flame sources, such as lighted candles, should be

placed on the device.

The device shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases, shall be

placed on the device.

Burned fingers when handling the cover area of the device.

Wait one-half hour after switching off before handling the

parts.

CLASS 1 LASER PRODUCT

1 Introduction

1.1 Product Introduction

0500P series gigabit PoE switches are layer 2 PoE switches,

providing advanced PoE power supply technology on the basis of

high-performance access. The devices provide eight 10/100/1000

Mbps Ethernet ports to upload data via convergence switches. The

devices are reliable, easy to install and maintain, and equipped with

rapid switching functions. With multiple access ports, the devices

are applicable for access of small-scale LAN devices.

1.2 Packing List

Accessory

Quantity

Switch

× 1

Power Adapter

× 1

Power Cord

× 1

Rubber Pad

× 4

Quick Start Guide

× 1

Multilingual Information of Network Switch

× 1

1.3 Appearance

Device appearances vary with different models. The actual device

prevails.

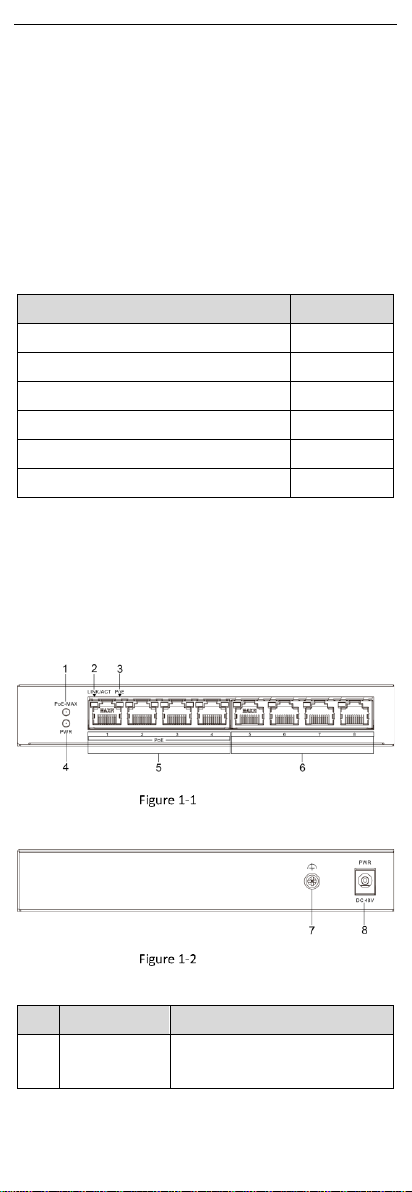

Front Panel

0508P series switches feature four gigabit PoE RJ45 ports and four

gigabit RJ45 ports.

0508P Series

Rear Panel

0508P Series

Port/Indicator Description

No.

Indicator/Port

Description

PoE-MAX

Indicator

●Solid on/Flashing: The output

power of the switch is about to

reach the upper limit. The power

No.

Indicator/Port

Description

supply may be abnormal if more

devices are connected.

●Unlit: The switch supplies power

to a powered device (PD)

normally.

LINK/ACT

Indicator

●Solid on: The port is connected.

●Flashing: The port is transmitting

data.

●Unlit: The port is disconnected or

connection is abnormal.

PoE Indicator

●Solid on: The switch supplies

power to a PD normally.

●Unlit: The switch is disconnected

from a PD or power supply is

abnormal.

PWR Indicator

●Solid on: The switch is powered

on normally.

●Unlit: No power supply is

connected or power supply is

abnormal.

Gigabit PoE

RJ45 Port

Used for connection to a PD via a

network cable.

Gigabit RJ45

Port

Used for connection to another

device via a network cable.

Grounding

Terminal

Used for connecting to the

grounding cable to protect the

switch from lightning.

Power Supply

Use the attached power cord to

connect the switch to a socket.

2 Installation

Please select an appropriate installation method according to the

actual needs.

Note

If screws are not provided in the package, prepare them yourself.

Before You Start

●Ensure that the desktop, wall, rack, or rail is stable and firm

enough.

●Keep the room well-ventilated. Leave at least 10 cm of heat

dissipation space around the device.

●Keep at least 1.5 cm vertical distance between two adjacent

devices for rack-mounted installation.

Desktop Installation

Place the device on the desk.

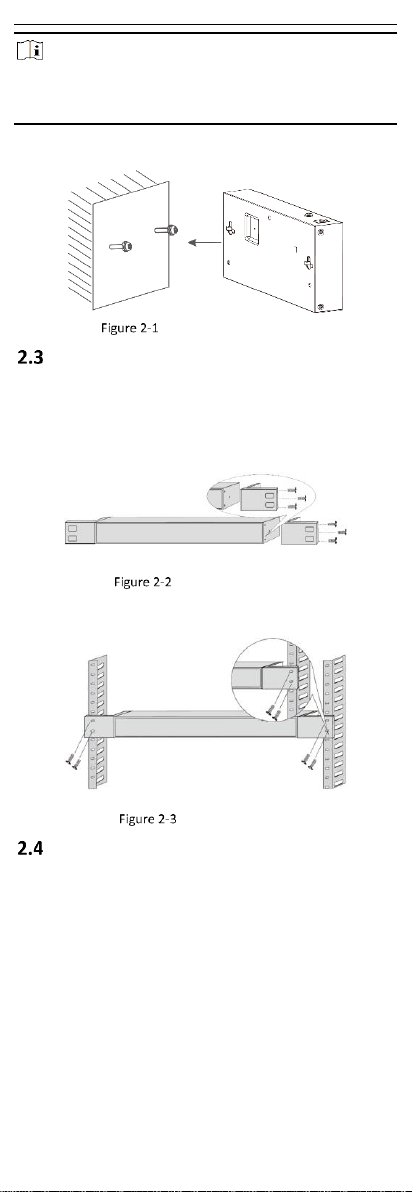

Wall-Mounted Installation

Steps

1. Check the distance between the two hanging holes on the rear

cover of the device.

2. Insert two M4 screws into the wall.

Note

●Ensure that the distance between the two screws equals to the

distance between the two hanging holes.

●Set aside at least 4 mm of the screw bodies outside the wall.

3. Align the hanging holes with the screws, and hang the device on

the screws.

Wall-Mounted Installation

Rack-Mounted Installation

Steps

1. Check the grounding and stability of the rack.

2. Use screws to fix the two L-shaped brackets to both sides of the

device.

Fix L-Shaped Brackets

3. Place your device against the rack, and fix the brackets to the

rack with screws to stably install your device.

Fix Brackets to Rack

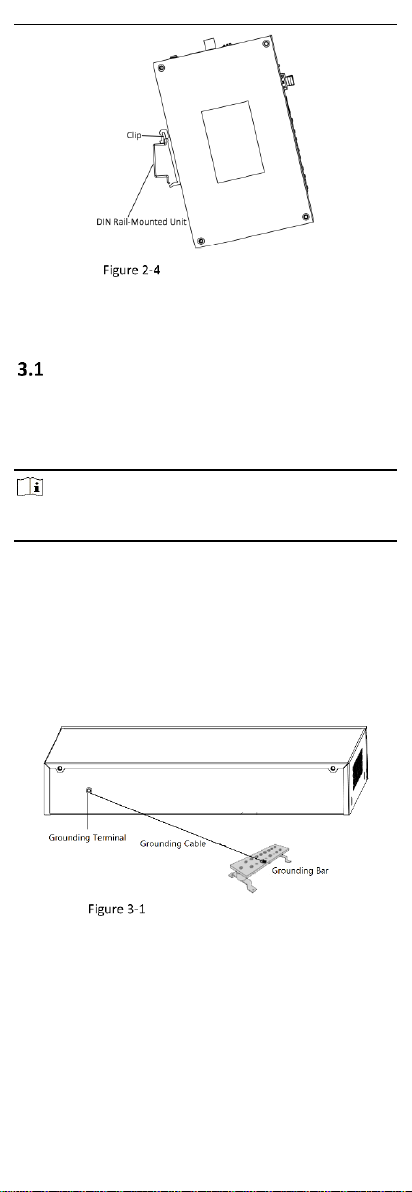

Rail-Mounted Installation

Steps

1. Fix the clip to the device. Insert the end of the DIN rail-mounted

unit into the notch under the clip.

Rail-Mounted Installation

2. Press the DIN rail-mounted unit in quickly.

3 Grounding

Connect Grounding Cable

Grounding is used to quickly release overvoltage and overcurrent

induced by lightening on the device, and to protect personal safety.

Select an appropriate grounding method according to the

installation conditions.

Note

The grounding terminal is on the rear panel or side panel of the

device. The actual device prevails.

3.1.1 With Grounding Bar

If a grounding bar is available at the installation site, follow the

steps below.

Steps

1. Connect one end of the grounding cable to the binding post on

the grounding bar.

2. Connect the other end of the grounding cable to the grounding

terminal of the device and tighten the screw.

Grounding with Grounding Bar

3.1.2 Without Grounding Bar

If there is no grounding bar but the earth is nearby and the

grounding body is allowed to be buried, follow the steps below.

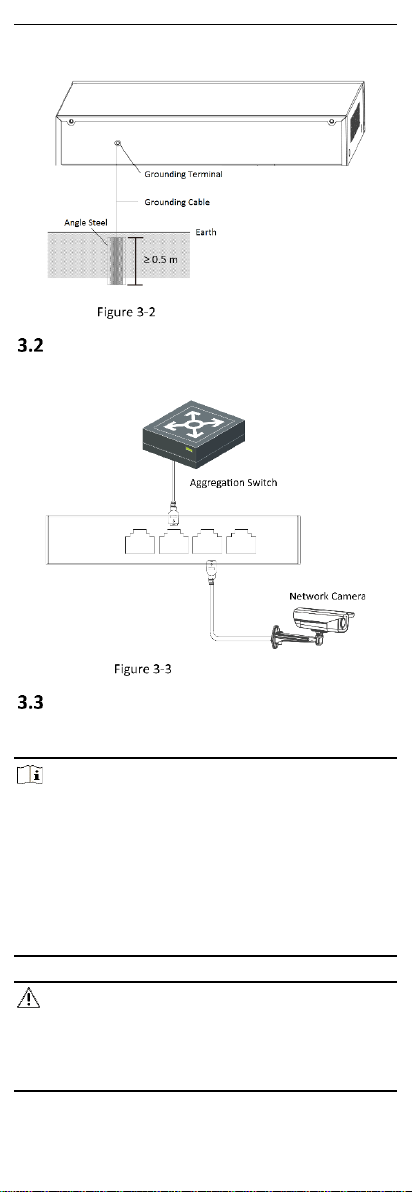

Steps

1. Bury an angle steel or steel pipe (≥ 0.5 m) into the earth.

2. Weld one end of the grounding cable to the angle steel or steel

pipe and embalm the welding point via electroplating or coating.

3. Connect the other end of the grounding cable to the grounding

terminal.

Grounding with Angle Steel

Connect RJ45 Port

Use a network cable to connect the device to the RJ45 port of a

peer device such as network camera, NVR, switch, etc.

RJ45 Port Connection

Connect SFP Optical Module

Connecting an SFP optical module is supported when the device

has a fiber optical port or a combo interface.

Note

A combo interface consists of a RJ45 port and a fiber optical port.

You can use either the RJ45 port or the fiber optical port of a combo

interface, but cannot use them at the same time.

-When connected to a network cable, the combo interface is a

RJ45 port.

-When plugged into with an optical module and connected to an

optical fiber, the combo interface functions as a fiber optical port.

-When connected to both a network cable and an optical fiber,

the combo interface works as a fiber optical port.

Steps

Caution

●Single-Mode optical module needs to be paired for use.

●Do not bend an optical fiber (curvature radius ≥ 10 cm) overly.

●Do not look directly at an optical fiber connector because the

laser generated is harmful to eyes.

1. Connect the two paired SFP optical modules with an optical fiber.

2. Hold the SFP optical module from one side, and smoothly plug it

into the device along the SFP port slot until the optical module

and the device are closely attached.

3. After powering on the device, check the status of the optical port

indicator.

-If the indicator is lit, the link is connected.

-If the indicator is unlit, the link is disconnected.

4. Check the line, and make sure that the peer device has been

enabled.

4 Device Powering-On

Please use the attached power adapter or power cord to power on

the device.

Before powering on your device, make sure that:

●The operating power supply is compliant with rated input

standard.

●Port cables and grounding cables are correctly connected.

●If there is outdoor cabling, connect a lightning rod and a

lightening arrester to the cable.

Caution

PoE power supply lines and strong current wires cannot be wired

together, otherwise PDs or switch ports will be burnt.

Inhaltsverzeichnis

Andere HIK VISION Schalten Handbücher

HIK VISION

HIK VISION DS-3E15 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3TXX06HP-E Series Bedienungsanleitung

HIK VISION

HIK VISION DS-PDEB-EG2-WE Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0509 Bedienungsanleitung

HIK VISION

HIK VISION DS-3E1X05P Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E1510P Bedienungsanleitung

HIK VISION

HIK VISION DS-3T1310P-SI/HS Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0516 Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0318P-E/M Bedienungsanleitung

HIK VISION

HIK VISION DS-3E03 P Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E2500-H Series Bedienungs- und Wartungshandbuch

HIK VISION

HIK VISION DS-3E15 P Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0526P Series Bedienungsanleitung

HIK VISION

HIK VISION 0300P Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E1326P-EI Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0318P-E Bedienungsanleitung

HIK VISION

HIK VISION DS-3WF01C-2N Bedienungsanleitung

HIK VISION

HIK VISION DS-3D2216P Montageanleitung

HIK VISION

HIK VISION DS-3E0109P-E Bedienungsanleitung

HIK VISION

HIK VISION DS-3E0108P-E Bedienungsanleitung

HIK VISION

HIK VISION DS-3E1 P Series Bedienungsanleitung

HIK VISION

HIK VISION 24 series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E2300P-H Series Bedienungsanleitung

HIK VISION

HIK VISION DS-3E1552P Series Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
