Product Specification
Serial Port
No. of Ports : RS-232 / 422 / 485 * 1 Port
●Port Type : DB9 Female
●Built-in RS-422/RS-485 Terminal Resister (Surge Protection)
●Speed : 1200 bps〜115.2 K bps
●Parity : None , Odd , Even
●Data Bit : 8
●Stop Bit : 1 , 2
●Flow Control : DTR / DSR
●RS-232 Signals : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
●RS-422 Signals : Rx+ , Rx- , Tx+ , Tx- (Full-duplex)
●RS-485 Signals : Data+ , Data- (Half-duplex)
Bluetooth I/O Port
No. of Ports :Bluetooth * 1 Port
●Compliant with Bluetooth v2.0+EDR
●Support Bluetooth Serial port profile(SPP)
●Operate in 2.4GHz – 2.483GHz ISM Band
●Support Bluetooth Radio with Class 1 & 2 RF
●Operating Distance up to 100 Meters
Power : 9V DC / 200mA, Consumption 150mA

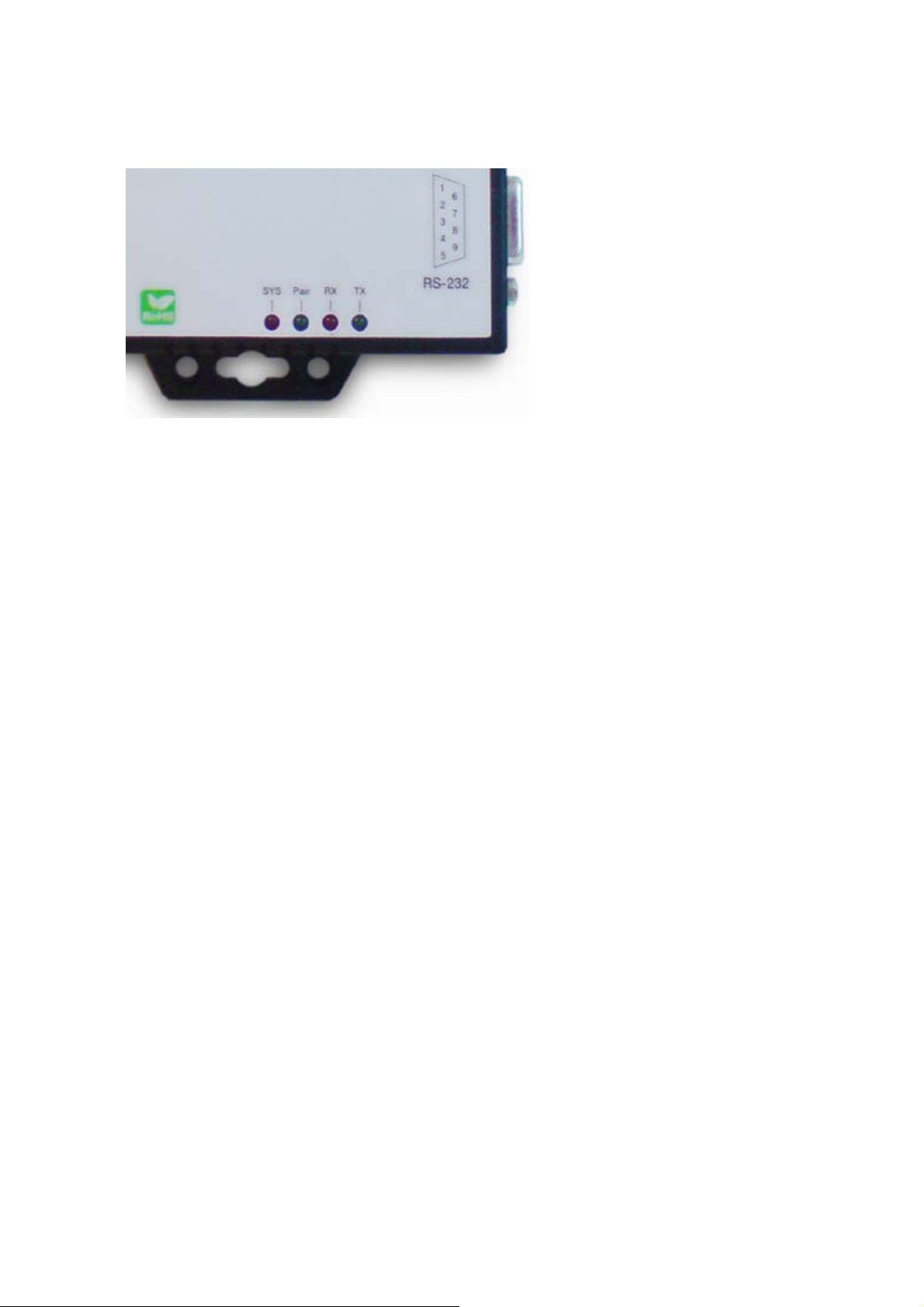

Led Lamp :
SYS (red), Pair (green), Rx (red), Tx (green)
Environment : Operating Temperature: 0℃〜60℃
Storage Temperature : -25℃〜70℃
