HITWAY BK5 Benutzerhandbuch
QUICK OPERATION GUIDE
BK5
V2022.0.1
EN------------------------------------------------------01
FR------------------------------------------------------14
DE------------------------------------------------------27
ES------------------------------------------------------40
IT-------------------------------------------------------53
NL------------------------------------------------------66
PL------------------------------------------------------79
-1-
-2-
1.Pedals 2.Front Reflector
3.Bell 4.Wheel Reflectors
5.16 in one tool
CONFIRM ACCESSORIES
BK5-Parts
Remove the package, place the
whole bicycle on a flat ground,
and unfold the frame in the
direction of the arrow.

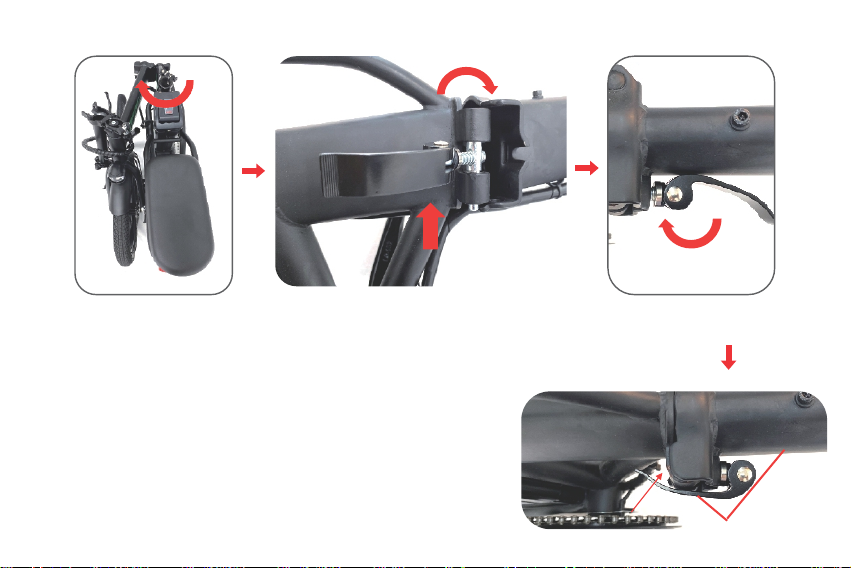

1. Pull up the folder for slotting in
the direction of the arrow.
Adjust the angle of the folding handle,follow the
direction shown,squeeze the folding handle of the
frame.
Note: If the folding handle of the frame cannot be
pressed tightly or too tightly, please adjust the screw
at "1" appropriately.
2. Fold the frame in the
direction of the arrow.
-3-
1
UNFOLD BIKE
1
2
1. Open the foldable riser telescopic adjustment buckle.
2. Insert the telescopic vertical pipe in the same direc-
tion, adjust the required suitable height, and tighten the
adjusting buckle.
Note: If the adjustment buckle is too tight or too loose,
please adjust the screw at "3" appropriately.
Stand up
and close
the folded
riser in the
direction of
the arrow in
the picture.
After confirming that
the quick release
slotting is inserted,
lift the lever and
wrench in the
direction of the
arrow in the picture.
Press down the
folding wrench in
the direction of
the arrow in the
figure,lock the
folding riser.
Note: If the folding
wrench is too tight
or too loose, please
adjust the screw at
"1" appropriately.
-4-
INSTALL HANDLEBARS
ADJUST THE FOLDING TUBE

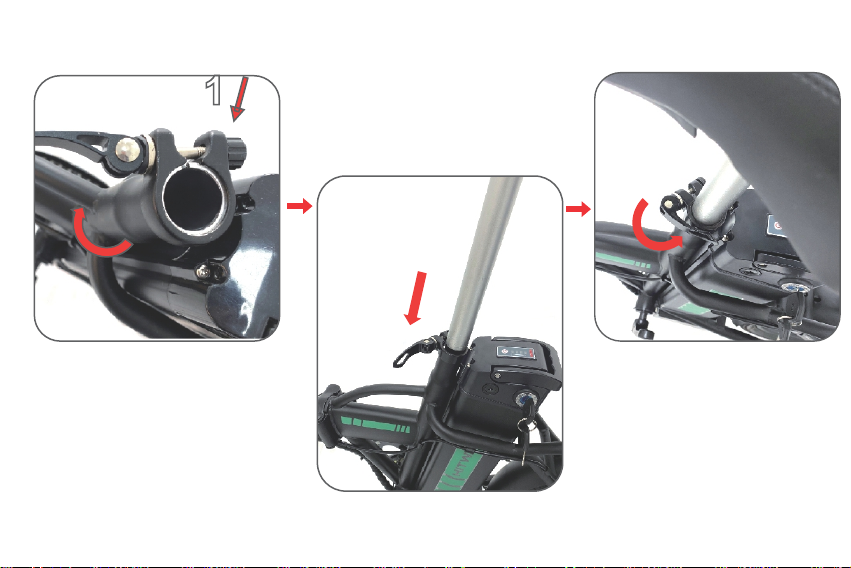

Pull the seat tube adjust-
ment quick release lever in
the direction of the arrow in
the picture.
Insert the seat tube and
adjust to the desired height.
Press the quick release
wrench in the direction of
the arrow in the figure
Note: If the folding wrench
is too tight or too loose,
please adjust the screw at
"1" appropriately.
-5-
INSTALL THE SEAT TUBE
1
Put the bell bracket into the
corresponding position of
the handlebar.
Use a Phillips screwdriver
to tighten the screws.
-6-
INSTALL THE BELL
Put the front reflector
bracket into the corre-
sponding position of the
handlebar.
Tighten the screws with a
Phillips screwdriver.
-7-
INSTALL THE FRONT REFLECTOR
Pre-assemble the wheel reflector,
spacers and screws according to
the picture,
Tighten it with No. 4 hex socket
and No. 8 open-end wrench.
The operation method of the front
and rear wheel reflectors is the
same.
-8-
INSTALL THE WHEEL
REFLECTOR
