Holux GM-82 Bedienungsanleitung

GM-82 GPS Receiver

 Features

 SiRF Star II/LP (low power) chipset with embedded ARM7TDMI CPU available for

customized applications in firmware。

 12 parallel satellite-tracking channels for fast acquisition and reacquisition。

 High speed signal acquisition using 1920 time/frequency search channels。

 Built-in WAAS/EGNOS Demodulator。

 Low power consumption with Advanced Trickle-Power and Push-To-Fix mode。。

 Optional Rechargeable battery for memory and RTC backup and for fast Time to

First Fix(TTFF)。

 Support NMEA0183 v2.2 data protocol and SiRF binary code。

 Enhanced algorithms -SnapLock and SnapStart provide superior navigation

performance in urban, canyon and foliage environments。

 For Car Navigation , Marine Navigation ,Fleet Management ,AVL and

Location-Based Services , Auto Pilot ,Personal Navigation or touring devices,

Tracking devices/systems and Mapping devices application。

 Specifications

Snap Start < 3 sec (at < 25 minutes off period ).

Hot Start 8 sec(typ).

Warm Start 38 sec(typ).

Cold Start 45 sec(typ).

Satellite Reacquisition

Time Accuracy 100 ms

Channels 12 satellites

Position Accuracy 25m CEP without SA

Receiver L1, C/A code

Protocol NMEA V2.2, 4800, 8, N, 1 or SiRF Binary

Maximum Altitude < 18,000 M (60,000 feet)

Maximum Velocity < 515 M (700 節)

Max. Update Rate 1 Hz

RF Connector MCX or SMA

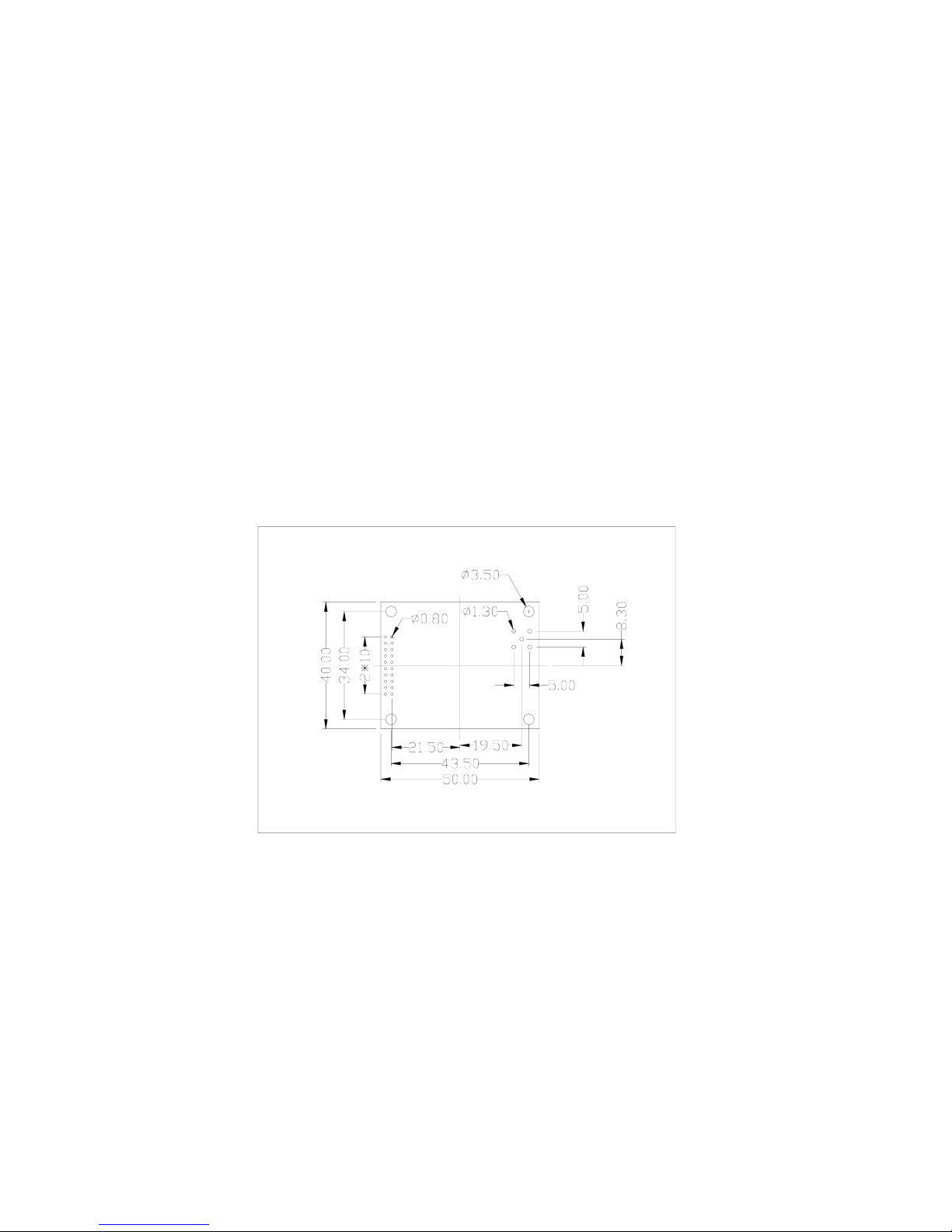

Dimension 40mm(L)x50mm(w)x7.6mm(H)

Weight 18g

Firmware Upgrade Flash EPROM field programming software

available

Time Mark Output 1 pulse/sec, aligned with GPS time +/ -0.1

usec

Operating

Temperature -40 to +85

Storage Temperature -45 to +100

Operating Humidity 5% to 95%, No Condensing

 Electrical specifications：

Less than 80mA (without antenna )。

Electrical Output specification：

 Interface

1、RS-232。

2、CMOS TTL Level。

3、5 GPIO

 NMEA output protocol:

Baud rate: 4800 bps

Data bit: 8

Parity: N

Stop bit: 1

Output format: GGA, GSA, GSV, MC.(VTG , GLL, RMS option)

 Output terminal and definition

20 Pin header (2.0mm Pitch).

J1 connector pin definition:

Pin Pin Name Function description Pin Pin Name Function description

1 NC No function 11 TXA Serial Data output A

2 VCC_5V +5V DC power input 12 RXA Serial Data input A

3 VBAT Backup Battery (2.5–3.3V) 13 GND Ground

4 NC No function 14 TXB Serial Data output B

5 PBRESEN Reset input, Active low 15 RXB Serial Data input B

6 GPIO1 General purpose I/O pin 16 GND Ground

7 GPIO2 General purpose I/O pin 17 GPIO5 General purpose I/O pin

8 GPIO3 General purpose I/O pin 18 GND Ground

9 GPIO4 General purpose I/O pin 19 TIMEMARK 1PPS Time mark output

10 GND Ground 20 NC No function

 Products List

Output

Level

Back-up battery

Type

Input

Power

Saving

Connector

Type

Model No.

TTL or RS-232 Lithium No Volt. MCX SMA

GM-82-A0X-5 RS-232 Y - 5 Y Y -

GM-82-A0X-3 RS-232 Y - 3 Y Y -

GM-82-A0A-5 RS-232 Y - 5 Y - Y

GM-82-A0A-3 RS-232 Y - 3 Y - Y

GM-82-A1X-5 RS-232 - Y 5 - Y -

GM-82-A1X-3 RS-232 - Y 3 - Y -

GM-82-A1A-5 RS-232 - Y 5 - - Y

GM-82-A1A-3 RS-232 - Y 3 - - Y

GM-82-T0X-5 TTL Y 5 Y Y -

GM-82-T0X-3 TTL Y 3 Y Y -

GM-82-T0A-5 TTL Y 5 Y - Y

GM-82-T0A-3 TTL Y 3 Y - Y

GM-82-T1X-5 TTL - Y 5 - Y -

GM-82-T1X-3 TTL - Y 3 - Y -

GM-82-T1A-5 TTL - Y 5 - - Y

GM-82-T1A-3 TTL - Y 3 - - Y
