USE AND CARE GUIDE

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1005 806 050

Model #52111

UL Model #52-LION

EVERAINE 52-INCH CEILING FAN

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top

right corner of the cover of this instruction manual, in the search eld.

2. Click on your product from the list of search results and click on the video link in the

“Product Overview” section.

Table of Contents ................................................................ 2

Safety Information............................................................... 2

Warranty ............................................................................... 3

Pre-Installation .................................................................... 3

Installation............................................................................ 6

Assembly.............................................................................. 7

Operation ........................................................................... 13

Care and Cleaning............................................................. 14

Troubleshooting................................................................. 14

1. To reduce the risk of electric shock, ensure the electricity has

been turned off at the circuit breaker or fuse box before you

begin.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70 and local electrical codes. Electrical

installation should be performed by a qualified licensed

electrician.

3. The outlet box and support structure must be securely mounted

and capable of reliably supporting 35 lbs. (15.9 kg). Use only

UL Listed outlet boxes marked “Acceptable for Fan Support of

35 lbs. (15.9 kg) or less”.

4. CAUTION: The fan must be mounted with a minimum of 7 ft (2.1

m) clearance from the trailing edge of the blades to the oor.

5. Do not operate the reversing switch while the fan blades are

in motion. You must turn the fan off and stop the blades before

you reverse the blade direction.

6. Do not place objects in the path of the blades.

7. To avoid personal injury or damage to the fan and other items,

use caution when working around or cleaning the fan.

8. Electrical diagrams are for reference only. Light kits that are

not packed with the fan must be UL-listed and marked suitable

for use with the model fan you are installing. Switches must be

UL General Use Switches. Refer to the instructions packaged

with the light kits and switches for proper assembly.

9. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

outlet box.

10. All setscrews must be checked and retightened where

necessary before installation.

WARNING: To reduce the risk of personal injury,

do not bend the blade brackets (also referred to as

anges) during assembly or after installation. Do not

insert objects in the path of the blades.

WARNING: To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring. If you feel you do not have enough electrical

wiring knowledge or experience, contact a licensed

electrician.

WARNING: Electrical diagrams are for reference

only. Optional use of any light kit shall be UL-listed

and marked suitable for use with this fan.

WARNING: To reduce the risk of re or electric

shock, “this fan should only be used with fan speed

control part no. DP-51R, manufactured by DAWNSUN

ELECTRONIC TECHNOLOGY CO LTD ZHONGSHAN.

Safety Information

Table of Contents

CAUTION: To reduce the risk of personal injury,

use only the screws provided with the outlet box.

READ AND SAVE THESE INSTRUCTIONS.

CAUTION: Changes or modications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate the

equipment.

CAUTION: Do NOT use this fan with a dimmer switch

or wall control. Using a dimmer switch or wall control

will damage the fan.

WARNING: To reduce the risk of electric shock, this

fan must be installed with an isolating wall switch.

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

Warranty

The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a

lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in

workmanship and material at the time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser.

The supplier also warrants that other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the

time of shipment from the factory for a period of two years after the date of purchase by the original purchaser. We agree to correct such defects

without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present

a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part, such as

by accident, misuse, improper installation, or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions

this warranty does not cover any changes in brass nish, including rusting, pitting, corroding, tarnishing, or peeling. Brass nishes of this type give

their longest useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered

a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators

Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the

extent permitted by law. The duration of any implied warranty, which cannot be disclaimed, is limited to the time period as specied in the express

warranty. Some states do not allow a limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer

shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as may

otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation

may not apply to you. This warranty gives specic legal rights, and you may also have other rights that vary from state to state. This warranty

supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

SPECIFICATIONS

TOOLS REQUIRED

NOTE: These are approximate measures. They do not

include the Amps and Wattage used by the light kit.

Phillips

screwdriver

Flat blade

screwdriver

Adjustable

wrench

Electrical

tape

Wire

cutter

Step ladder

Size Speed Volts Amps Watts RPM CFM Net

Weight

Gross

Weight Cubic Feet

52 in.

Low

Medium

High

120

0.09

0.17

0.40

116

170

2394

3957

5367

11.79 lbs

(5.35 kg)

17.81 lbs

(8.08 kg) 2.0 cu.ft.

Part Description Quantity

AA Blade attachment screws 7

BB Plastic wire connector 3

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

AA BB

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Part Description Quantity

A Slide-on mounting bracket (inside canopy) 1

B Ball/downrod assembly 1

C Canopy 1

D Decorative motor collar cover 1

E Fan-motor assembly 1

F Blade 3

Part Description Quantity

G Light kit pan 1

H Light kit tter assembly 1

I Shatter resistant bowl 1

J Receiver 1

K Remote control 1

L 3-pin extension wire 1

M 2-pin extension wire 1

N Battery 2

IMPORTANT: This product and/or components are governed by

one or more of the following U.S. Patents: 5,947,436; 5,988,580;

6,010,110; 6,046,416, 6,210,117 and other patents pending.

Pre-Installation (continued)

PACKAGE CONTENTS

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock,

or personal injury, mount the fan to an outlet box

marked “Acceptable for fan support of 35 lbs.

(15.9kg) or less” and use the screws provided with

the outlet box. An outlet box commonly used for the

support of lighting xtures may not be acceptable for

fan support and may need to be replaced. If in doubt,

consult a qualied electrician.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box directly to the building structure.

Use the appropriate fasteners and materials. The outlet box

and its bracing must be able to fully support the weight

of the moving fan (at least 35 lbs.). Do not use a plastic

outlet box.

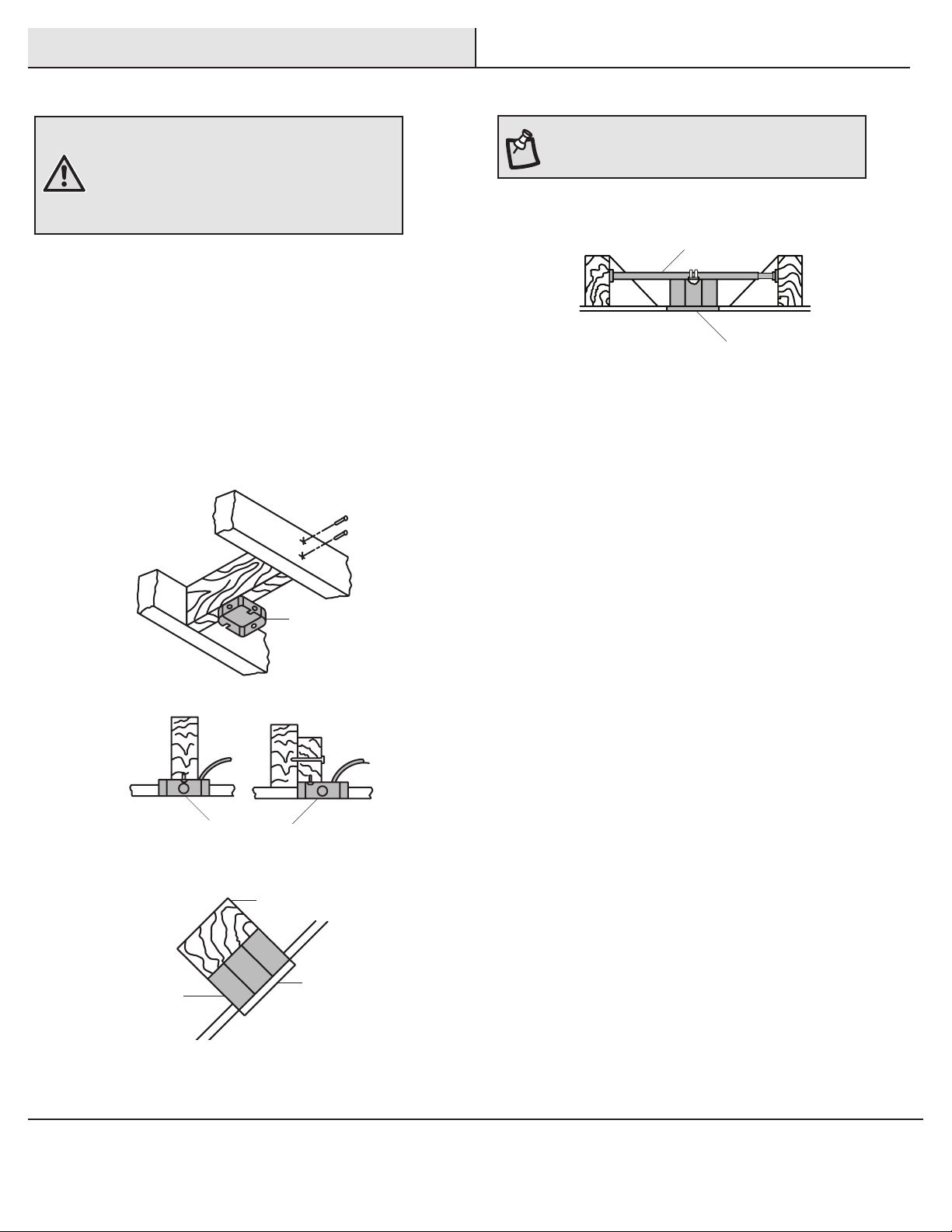

The illustrations below show three different ways to mount the

outlet box.

If the canopy (C) touches the ball/downrod assembly (B), then remove

the decorative canopy bottom cover and turn the canopy (C) 180°

before attaching the canopy (C) to the mounting plate.

To hang your fan where there is an existing xture but no ceiling joist,

you may need an installation hanger bar as shown above

(available at any Home Depot store).

NOTE: You may need a longer downrod to maintain

proper blade clearance when installing on a steep, sloped

ceiling. The maximum angle allowable is 30° away from

horizontal.

Outlet Box

Recessed

Outlet

Box

Provide Strong

Support

Ceiling

Mounting

Plate

Outlet Box

Hanger Bar

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Standard Ceiling Mount

Routing the wiresPreparation for standard mounting

□Route the wires exiting the top of the fan motor assembly

(E) through the decorative motor collar cover (D) and then

the center of the canopy bottom cover (DD).

□Make sure the opening of canopy (C) is on top and insert

the ball/downrod (B) through the canopy (C).

□Route the wires exiting the top of the fan motor assembly

(E) through the downrod as shown.

21□Remove the magnetic canopy bottom cover (DD) from the

canopy (C) by pulling it off.

□Loosen the two canopy screws (CC) located in the bottom of

the mounting bracket (A).

□Turn the mounting bracket (A) counterclockwise and lift it up

to remove the mounting bracket from the canopy (C).

Assembling the fan

□Loosen, but do not remove, the setscrew (EE) on the collar (II)

on top of the fan-motor assembly (E).

□Install the downrod (B) by inserting it into the motor collar (II),

and turning it clockwise until it is tight.

□Re-tighten the setscrew (EE) on the collar (II) on top of the fan

motor assembly (E).

NOTE: This fan is equipped with a safety tab (GG).

Should the setscrew (EE) ever become loose while

the fan is running in reverse, the safety tab (GG) will

engage and stop the fan from falling.

CAUTION: To ensure wobble-free operation and to avoid

damage to the fan, the downrod (B) and the setscrew

(EE) must be completely tightened.

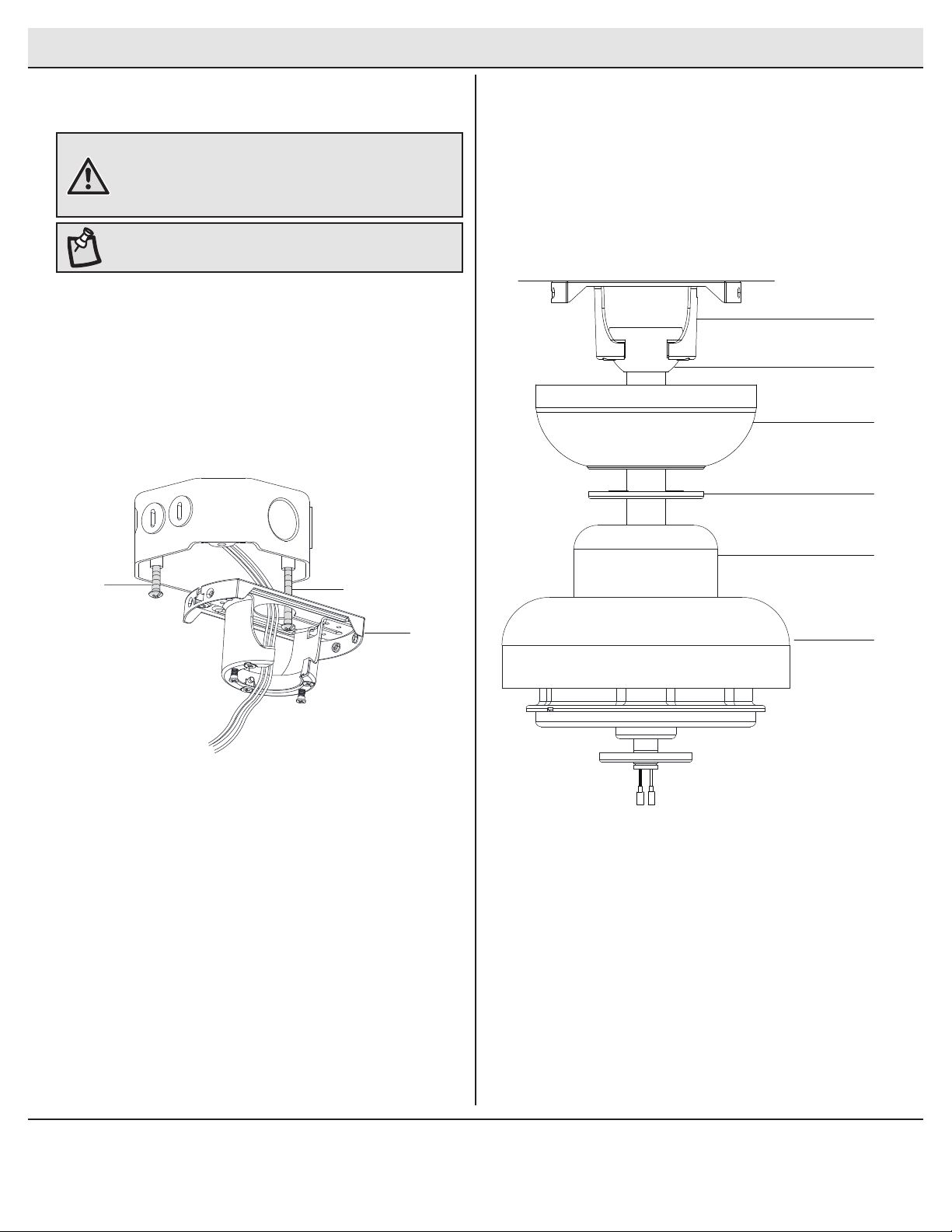

Assembly - Hanging the Fan

Attaching the fan to the electrical

box Hanging the fan

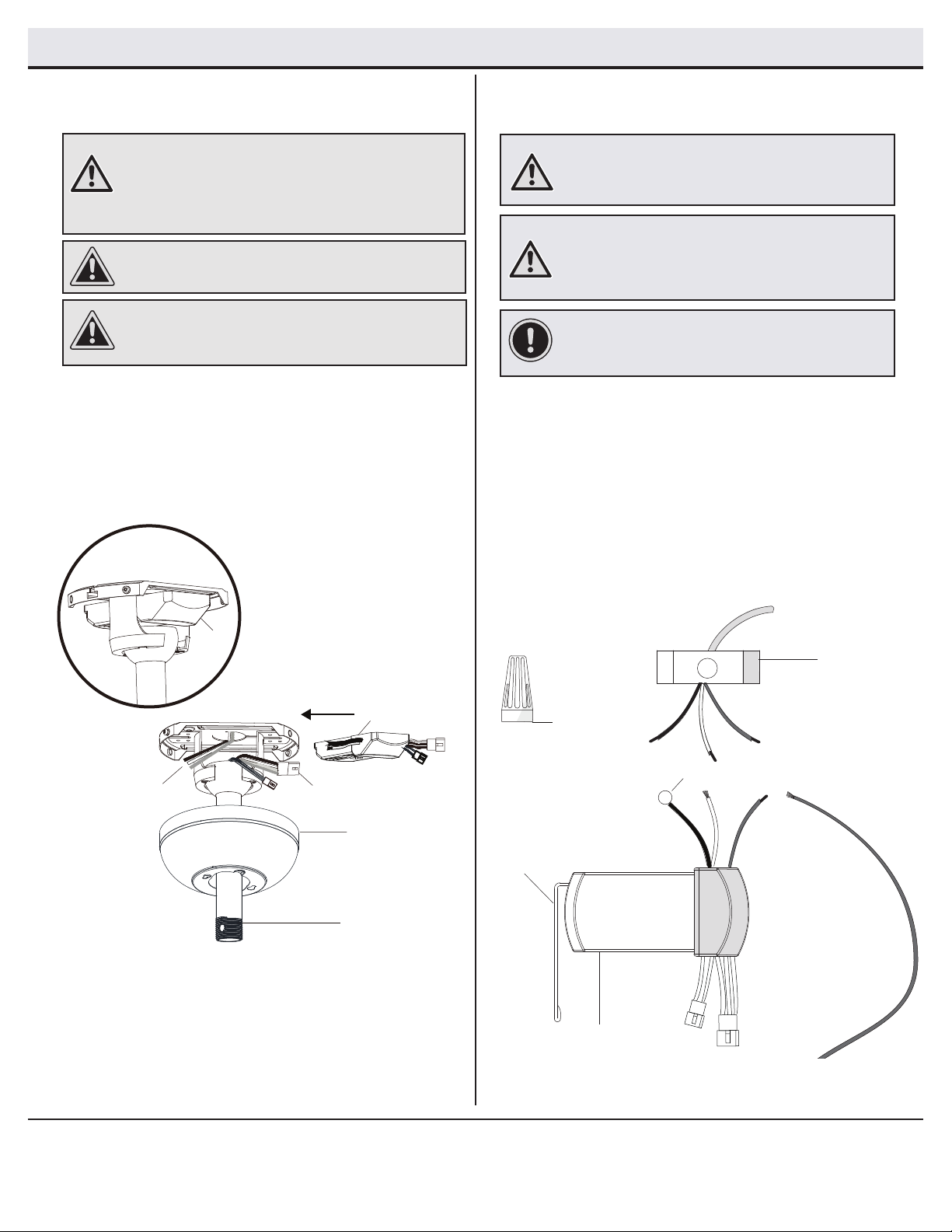

□Pass the 120-Volt supply wires through the center hole in the

slide-on mounting bracket (A).

□Install the ceiling slide-on mounting bracket (A) on the outlet box

by sliding the slide-on mounting bracket (A) over the two screws

(HH) provided with the outlet box. If necessary, use leveling

washers (not included) between the slide-on mounting bracket

(A) and the outlet box. Note that the at side of the slide-on

mounting bracket (A) is toward the outlet box.

□Securely tighten the two mounting screws (HH).

□Carefully lift the fan-motor assembly (E) up to the slide-on

mounting bracket (A).

□Seat the hanger ball portion of the ball/downrod assembly (B)

in the mounting bracket socket. Ensure that the tab on the

slide-on mounting bracket (A) socket is properly seated in the

groove in the hanger ball.

1 2

WARNING: To reduce the risk of re, electric shock, or other

personal injury, mount the fan to an outlet box or supporting

system marked “Acceptable for fan support of 35 lbs.

(15.9kg) or less” and use the mounting screws provided

with the outlet box.

NOTE: The mounting bracket (A) is designed to slide into place

on an outlet box with the outlet box screws (HH).

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly - Hanging the Fan (continued)

3Installing the receiver

□Position the house supply wires (AAA) to one side of the

slide-on mounting bracket (A); position the fan wires (BBB)

to the opposite side.

□Insert the narrow end of the receiver (as shown, at side

towards the ceiling) into the slide-on mounting bracket until

it rests on top of the ball/downrod assembly.

WARNING: To reduce the risk of re or electric shock,

remember to disconnect power. The electrical wiring must

meet all local and national electrical code requirements.

The electrical source and fan must be 110/120 volt, 60Hz.

Do not use this product in conjunction with any variable wall

control. Incorrect wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have this

unit installed by a licensed electrician.

CAUTION: Do not install the receiver in a damp location or

immerse in water (For indoor use only). Do not pull on or cut

the receiver leads shorter. Do not drop or bump the unit.

4Wiring the receiver to the household

wiring

IMPORTANT: Use the wire connecting nuts (BB) supplied

with your fan. Secure the connectors with electrical tape

and ensure there are no loose strands or connections.

WARNING: Each wire nut supplied with this fan is designed

to accept up to one 12-gauge house wire and two wires

from the fan. If you have larger than 12-gauge house wiring

or more than one house wire to connect to the fan wiring,

consult an electrician for the proper size wire nuts to use.

□Spread the wires apart so that the green and white wires

are on one side of the outlet box and the black wire is on the

other side.

□Connect the green fan wires to the household ground wire

(this may be a green or bare wire) using a wire connecting

nut (BB).

□Connect the receiver (J) black wire to the household black

(hot) wire using a wire connecting nut (BB).

□Connect the receiver (J) white wire to the household white

wire (neutral) using a wire connecting nut (BB).

□Secure each wire connecting nut using electrical tape.

WARNING: To avoid possible electrical shock, turn the

electricity off at the main fuse box before wiring. If you

feel you do not have enough electrical wiring knowledge or

experience, contact a licensed electrician.

Black

Green (or Bare)

Green

Outlet Box

Receiver

Antenna

White

Receiver (J)

BB (x3)

Green

AAA

BBB

Assembly - Hanging the Fan (continued)

Wiring the fan to the receiver

□If using the 6 in. ball downrod assembly (B) provided, wire

the receiver to the fan wires by connecting the molded

adaptor plug from receiver (J) with molded adaptor of the

fan motor assembly (E) together.

□If you wish to use longer downrod, you can use the

extension lead wire (L or M) provided by connecting the

molded adaptor together.

NOTE: The fan comes with 12 in. lead wires for use with the

provided 6 in. ball downrod assembly (B), if you wish to use

longer downrod, you can use the extension lead wire (42 in.) (M)

provided.

Outlet box

in the ceiling

(MM)

Green

Mounting the fan-motor assembly

□Align the locking slots of the canopy (C) with the two

screws (CC) and alignment post (KK) in the mounting

bracket (A).

□Push up the canopy (C) and turn it clockwise until the

alignment post (KK) engages to the round hole and the

screws (CC) engage to the key slots.

□Firmly tighten the two mounting screws (CC).

□Align the oval shape on the canopy (C) with canopy bottom

cover (DD).

□Push up the canopy bottom cover (DD) until the screw (CC)

heads engage to the slots on the canopy bottom cover (DD)

so that the magnetic canopy bottom cover (DD) can be

attached to the bottom of the canopy (C) properly.

WARNING: When using the standard ball/downrod mounting,

the tab in the ring at the bottom of the mounting bracket

must rest in the groove of the hanger ball. Failure to properly

seat the tab in the groove could cause damage to the wiring.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection FELDNER 56055 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BAXTAN AM731A-MBK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CARDEN AM852-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HEDLEY AM441-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CONNOR 51847 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CASUN 11252AIWNCN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAMALI 56000 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GRAMERCY YG513-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG618-NI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 51662 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 51528 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 52-MONT Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PORTWOOD YG528-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KYLAND YG612-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FC132-BMRL Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 68681 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 1004 065 046 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CLERMONT Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE II N608A-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FOLSOM YG523-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FAWNDALE 1005 819 911 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KINGSBROOK 60-KBR Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 1003 823 898 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENNEDY AM747A-GM Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
