LINKABLE SOLAR POWER

TWIN HEAD LED

SECURITY LIGHT

(2-PACK)

the bright way to do home security.

ES00935G

INSTALLATION INSTRUCTIONS

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS, AS YOU

MAY NEED THEM AT A LATER DATE.

Warning

IMPORTANT SAFETY OPERATING INSTRUCTIONS

PRECAUTION

LOCATION

1. Please read all warning and instruction labels which are included in the

box and ﬁxture to avoid personal injury, property damage caused by ﬁre,

cuts, bruises, death and other dangers.

2. Please follow these general precautions before installing, maintaining, or

ﬁxing.

1. This ﬁxture should be installed outdoors to a wall.

2. The light ﬁxture should be mounted approximately 5.9~11.5 ft. (1.8m~3.5m)

above the ground.

3. Do not immerse components in liquid.

4. This device may not cause harmful interference, and this device must

accept any interference received, including interference that may cause

undesired operation.

Fixture can be wall mounted.

Recommended installation height: 8 - 11.5 feet above the ground.

Environment will affects the sensor range. It is recommended not to mount

the ﬁxture near a heat source like an air conditioner, vent, or furnace

exhaust, or in a direction facing a light reﬂecting object.

Maybe the sensor detection distance will decrease lower than 40 feet in

some special environment.

1. The packing contains small parts that could be swallowed by children.

2. Keep the packaging material away from children and pets.

3. Do NOT look directly at the LED lights.

4. This light ﬁxture is NOT A TOY and is NOT suitable children.

5. We do not take responsibility if the instruction manual is not followed

correctly or if the product is handled improperly resulting in damage to

person or property.

6. In order to prevent potential serious INJURY or DEATH, babies and

children are NOT allowed to touch batteries. If a battery is accidentally

swallowed, please contact with your doctor immediately.

7. The operating temperature of solar panel is between -4°F (-20°C) and

122°F (50°C).

8. Rechargeable battery only. Recycle or dispose of batteries properly.

9. Do not open,short circut,or mutilate batteries. Injury may be occurred.

WARNING

WARNING:This product can expose you to chemicals including lead

and lead compounds, Di(2-ethylhexyl)phthalate (DEHP), which are

known to the State of California to cause cancer and birth defects or

other reproductive harm. For more information go to

www.P65Warnings.ca.gov.

A B C

D E

Light ﬁxture

What's in the box

x 7

Parameter

1Illumination output: approx. 1500 lumens / 5000K

Sensor detect range: 40 feet x 180 degree

Power source: 3 x 1.2V 2200mAh Lithium rechargeable battery.

PREPARATION

1. Please read all warning and instruction labels which are included in the

box and ﬁxture to avoid personal injury, property damage caused by ﬁre,

cuts, bruises, death and other dangers.

2. Please follow these general precautions before installing, maintaining, or

ﬁxing.

Tools required for assembly (not included): phillips screwdriver, safety

goggles, power drill and ladder.

1. The packing contains small parts that could be swallowed by children.

2. Keep the packaging material away from children and pets.

3. Do NOT look directly at the LED lights.

4. This light ﬁxture is NOT A TOY and is NOT suitable children.

5. We do not take responsibility if the instruction manual is not followed

correctly or if the product is handled improperly resulting in damage to

person or property.

6. In order to prevent potential serious INJURY or DEATH, babies and

children are NOT allowed to touch batteries. If a battery is accidentally

swallowed, please contact with your doctor immediately.

7. The operating temperature of solar panel is between -4°F (-20°C) and

122°F (50°C).

8. Rechargeable battery only. Recycle or dispose of batteries properly.

9. Do not open,short circut,or mutilate batteries. Injury may be occurred.

Anchor

Solar panel

Mounting plate

Mounting screw

2Use a power drill (not included) to drill the holes on your chosen

mounting surface ﬁrst. Then use 3 of the Plastic Anchors (Part E)

and Screws (Part D) to fasten the mounting plate on the wall.

Note: The light ﬁxture should be mounted approximately 8 - 11.5

feet (2.4m-3.5m) above the ground.

Mounting the light ﬁxture as shown in the below ﬁgures

Use your finger

to push up on the

mount plate.

Slide the mounting

plate down off the

back of the light

fixture.

Installation

Slide the light ﬁxture into the grooves of the mounted plate in

parallel.

4Mounting the solar panel as shown in the below ﬁgure:

• Use a power drill (not included) to drill 4 holes on your

chosen mounting wall.

• Use 4 of the Plastic Anchors (Part E) and Screws (Part D) to

ﬁx the solar panel on the wall.

• Adjust the angle of solar panel (Part C) to the direction which can

receive maximum direct sunlight during daytime.

Note: The distance between light ﬁxture and the solar panel must

NOT exceed 15ft.

Note: The solar panel must receive direct sunlight at least 3 hours.

How it Works

1. Swing the lamp heads to adjust the lamp head left and right

or up and down to get the desired lamp direction.

2. Gently grasp the motion sensor and adjust the sensor left and

right or up and down to get the desired sensor direction.

5Connecting the light ﬁxture to the solar panel as shown in the

below ﬁgure

Carefully connect the wire from the solar panel (Part C) into the

socket located under the Light Fixture (Part A), make sure the

plug is securely connected. Your solar panel will now begin to

charge.

Adjusting the lamp heads and motion sensor

3. TIME Setting

This setting is used to control the time span of how long the light

remains on when motion is deteced.Set the switch to the 30, 60,

120 seconds position. The security light will stay on as long as

motion is detected and will go off after the time span you set after

no motion is detected.

2. 4 Working Modes

• Test mode: Check the light’s sensory function in order to testthe

sensory range. The time duration for the light will be 5s.

• Auto: The light will turn on to low brightness automatically atnight.

When motion is detected, the light will turn on full brightness for the

selected time duration.

• On: The light will stay on full brightness when it is switched onand

turn off when it is switched off by light switch, whether it is day or at

night.

Product Function Description

1. SENS Setting

Adjust the SENS setting to adjust range of Passive Infrared

Motion Sensor

SENS

MODE

TEST

30S 60S 120S

AUTO ONOFF

Slide toward the “ ” (low) position for short detection range (3-30 ft).

Slide toward the “ ” (Middle) position for middle detection range ( 3-49 ft).

Slide toward the “ ” (high) position for long detection range ( 3-70 ft).

4. Linkable Channels Setting

This setting has 4 channels. As long as you choose “linkable”

security light or sensors from Home Zone Security, selecting a

speciﬁc channel to connect all linkable security lights and sensors.

They will be grouped as an invisible system and working together.

One linkable light triggered, all linkable lights on.

CHANNELS

Use 3pcs 1.2V AA size 2200mAh Ni-MH rechargeable battery. For

best performance, replaced with the new Ni-MH rechargeable

batteries every 18 months. When the battery expires, it must be

recycled or disposed of properly. Please contact your local waste

disposal authority for correct procedure. Do not put batteries into ﬁre.

•

Only rechargeable batteries are to be used.

•

Do not mix old and new batteries.

•

Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.

•

Exhausted batteries must be removed from the product.

•

Batteries must be placed at the correct polarity.

RECHARGEABLE BATTERY

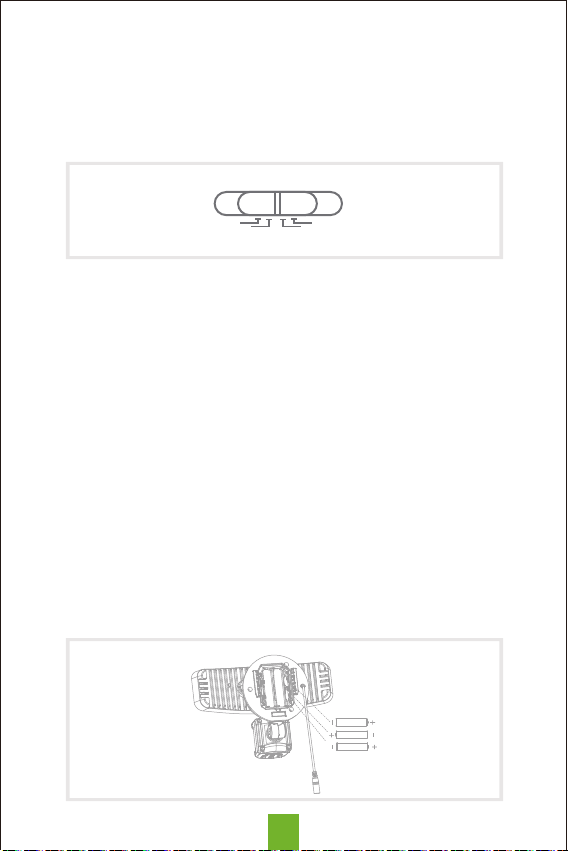

1. Remove the 4 screws from the bottom of the base and the battery

cover.

2. Take all batteries out of the battery chamber.

3. Replace with 3 new 1.2V AA size 2200mAh Ni-MH rechargeable

batteries.

4. Double check if the polarity is correct.

5. Put the battery cover back and mount 4 screws in position.

BATTERY REPLACEMENT:

CH1 CH2 CH3 CH4

FCC

Cleaning and Maintenance

To prolong the original appearance, clean the light ﬁxture with a

soft, damp cloth. Do not use paints, solvents, or other chemicals on

this light ﬁxture. They could cause a premature deterioration of the

ﬁnish.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

This device complies with FCC Part 15 of FCC Rules.

Warning

: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

NOTE

: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with a minumum distance of 20 cm

between the radiator and your body.

Get exclusive offers and deals

when you subscribe!

Thank you for choosing Home Zone Security!

We are here to support you every step of the way.

Please be sure to contact our customer support for troubleshooting

and register your product for additional beneﬁts. Products must be

sold by an authorized reseller or distributor to be valid.

• Receive your extended warranty

• Get professional warranty support

•Be the ﬁrst to hear the latest product news.

• Get exclusive deals delivered to you email.

Scan below for link:

homezonesecurity.com

support@homezone-usa.com

US: +1 888-782-5618

Why Register?

Distributed by

4198 Industry Way

Flowery Branch, GA 30542 USA

Made In Cambodia

Horizon Marketing Group, LLC

Inhaltsverzeichnis

Andere Home Zone Security Scheinwerfer Handbücher

Home Zone Security

Home Zone Security ES00942G Bedienungsanleitung

Home Zone Security

Home Zone Security ES00731V Bedienungsanleitung

Home Zone Security

Home Zone Security MK-SC0108 Bedienungsanleitung

Home Zone Security

Home Zone Security ES06508V Bedienungsanleitung

Home Zone Security

Home Zone Security ES00931G Bedienungsanleitung

Home Zone Security

Home Zone Security ES00937G Bedienungsanleitung

Home Zone Security

Home Zone Security ES00931G Bedienungsanleitung

Home Zone Security

Home Zone Security ES06572G Bedienungsanleitung

Home Zone Security

Home Zone Security AEC-5340 Bedienungsanleitung

Home Zone Security

Home Zone Security ES00735V Bedienungsanleitung

Home Zone Security

Home Zone Security ES00929G Bedienungsanleitung

Home Zone Security

Home Zone Security ES00726V Bedienungsanleitung

Home Zone Security

Home Zone Security ES00836V Bedienungsanleitung

Home Zone Security

Home Zone Security AEC-326KA2-AC14W Bedienungsanleitung

Home Zone Security

Home Zone Security ES06582G Bedienungsanleitung

Beliebte Scheinwerfer Handbücher anderer Marken

VIZULO

VIZULO Micro Martin Benutzerhandbuch

EuroLite

EuroLite LED IP FL-100 SMD Bedienungsanleitung

Cooper Wheelock

Cooper Wheelock XB12 Bedienungsanleitung

Allen + Roth

Allen + Roth 17624-000 Bedienungsanleitung

ADJ

ADJ 4 STAGE PAK Bedienungsanleitung

Cooper Lighting

Cooper Lighting EGL91SW233 Bedienungsanleitung

Max

Max 37496 Bedienungsanleitung

BEGA

BEGA 85 143 Bedienungsanleitung

Beamz

Beamz 151.226 Bedienungsanleitung

EuroLite

EuroLite LED IP FL-8 Bedienungsanleitung

Ledj

Ledj PERFORMER 36 RGB Bedienungsanleitung

Perel

Perel ELS3 Bedienungsanleitung

Perel

Perel ELS3WD Bedienungsanleitung

LumX

LumX LM 36130 Bedienungsanleitung

Xtricity

Xtricity 4-80053 Bedienungsanleitung

Stahl

Stahl 6521/4 Series Bedienungsanleitung

Ecosense

Ecosense EcoSpec Bedienungsanleitung

Ayrton

Ayrton minipanel FX Bedienungsanleitung
