Honeywell RedLINK Bedienungsanleitung

RedLINK™Wireless System

With TrueZONE™Panel & Wireless Adapter

® U.S. Registered Trademark.

Provides wireless control of TrueZONE Panels. (See zone panel information

for heat/cool stage capacity. )

DISCONNECT POWER BEFORE BEGINNING INSTALLATION. Can cause electrical

shock or equipment damage.

MERCURY NOTICE: If this product is replacing a control that contains mercury in a sealed

tube, do not place the old control in the trash. Contact your local waste

management authority for instructions regarding recycling and proper disposal.

Must be installed by a trained, experienced technician. Read these instructions care-

fully. Failure to follow these instructions can damage the product or cause a

hazardous condition.

69-2090EFS-07

Français : voir la page 17 • Español: vea la página 32

Installation guide for:

• FocusPRO®wireless thermostats

• Wirelessremotecontrol

• Wirelessoutdoorairsensor

System

Installation

Guide

RedLINK™ Installation Guide (TrueZONE™)

69-2090EFS—07 2

System installation at a glance

Installation procedure

This document covers linking and installation procedures for FocusPRO wire-

less thermostats and RedLINK accessories in TrueZONE applications.

Before you begin, you must mount, wire & configure the TrueZONE panel

and wireless adapter (see TrueZONE Installation Guide), then follow steps

below.

You must configure the TrueZONE panel before you begin

Install batteries in wireless devices....................................Page 3

Link all devices to wireless network ..............................Pages 3-5

Exit wireless setup..............................................................Page 6

Customize thermostat (installer setup)........................Pages 6-10

Mount thermostat and outdoor sensor .............................Page 11

To replace system components if needed, see page 13

If you have more than one TrueZONE Panel: Thermostats are linked to specific zone

panels. Optional accessories must be linked to each zone panel separately.

M33903

OUTDOOR

AIR SENSOR

HVAC

EQUIPMENT

THERMOSTAT

REMOTE

CONTROL

Tr ueZONE

PANEL

WIRELESS

ADAPTER

Français : voir la page 17 • Español: vea la página 32

3 69-2090EFS—07

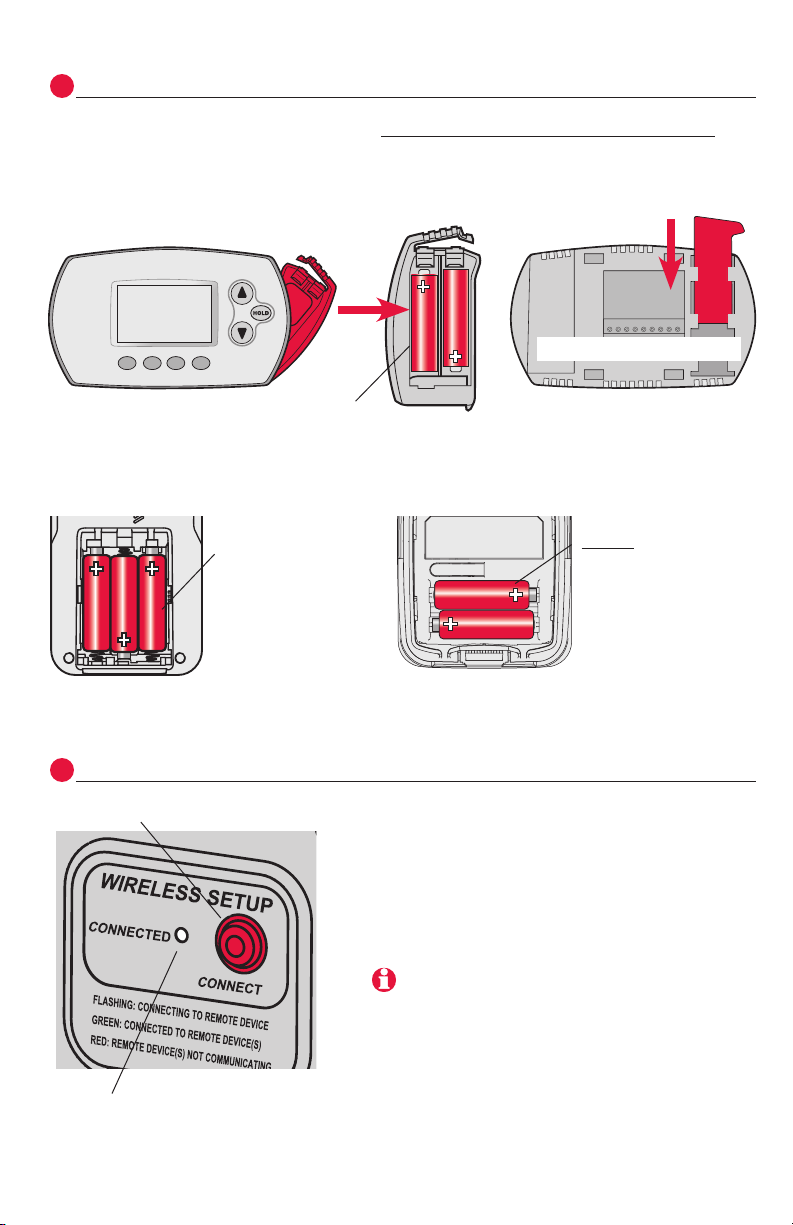

Install batteries in wireless devices

When system wiring is complete and TrueZONE panel is configured for RF,

install batteries in all devices. Make sure batteries are inserted properly (see

illustrations below).

Link all devices to wireless network

Make sure the Connected light on the

wireless adapter is flashing green.

If the light stops flashing before you have

linked all devices, press connect again.

MCR33901

Press connect

Flashing status light times out after 15

minutes of inactivity. Press connect again if

necessary.

Continued on next page >>

If light does not flash, another EIM/wireless

adapter may be in wireless setup mode. Exit

wireless setup at the other EIM/wireless adapter.

M28474

Thermostat

M28472

M28473

Install quick reference cardInstall 2 fresh AA

batteries

MCR32939

Remote control (optional) Outdoor air sensor (optional)

M28444

Install 3 fresh AA

batteries

Install 2 fresh AA

lithium batteries

Programmable models only

RedLINK™ Installation Guide (TrueZONE™)

69-2090EFS—07 4

M28479

Wireless Setup

Connect

Back

M28478

Wireless Setup

Back

M28497

Wireless Setup

Press sor tto set a zone number for this

thermostat (1 to 4), then press next.

Press sor tto change the name or

location of this zone, then press next.

Example: 31 = Living room

Press connect to establish a link to the wire-

less network.

After a brief pause, the confirmation screen

at left should be displayed, to

verify that the wireless connection has been

established.

Press done to display the home screen.

Zone number

Zone name

If E1 appears, see error codes on page 12.

See complete zone list on page 8

Link thermostats to wireless network

M28480

Wireless Setup

Connected

Done

Français : voir la page 17 • Español: vea la página 32

5 69-2090EFS—07

Link remote control to wireless network (optional)

Link outdoor sensor to wireless network (optional)

1Make sure the Connected light on the

wireless adapter is flashing.

2Press the connect button on the back of

the sensor.

3Check thermostat to verify that the out-

door sensor is working. After about 15

seconds, the thermostat should display

outdoor temperature and humidity.

(If you are installing more than one zone

panel, repeat steps 1-3 for each.)

MCR28847A

Press and release

1Make sure the Connected light on the

wireless adapter is flashing.

2Press connect at the remote. There will

be a short delay as the remote seeks a

signal from the wireless network.

3When the screen displays “Connected,”

press done.

4Press no at the next screen to save and

exit. (Or press yes and repeat steps 1-4

to link another zone panel.)

If E1 appears, see error codes on page 12.

MCR32942

CONNECT

WIRELESS SETUP

MCR33902

YES

CONNECT MORE?

The linking procedure may time out if there is

no keypress within 30 minutes. To begin again,

press and hold the blank space (or arrow if pres-

ent) in the lower right corner of the screen until

the display changes (about 3 seconds)

Press to link another

zone panel

Press to save

and exit

RedLINK™ Installation Guide (TrueZONE™)

69-2090EFS—07 6

M28487

Back

Done

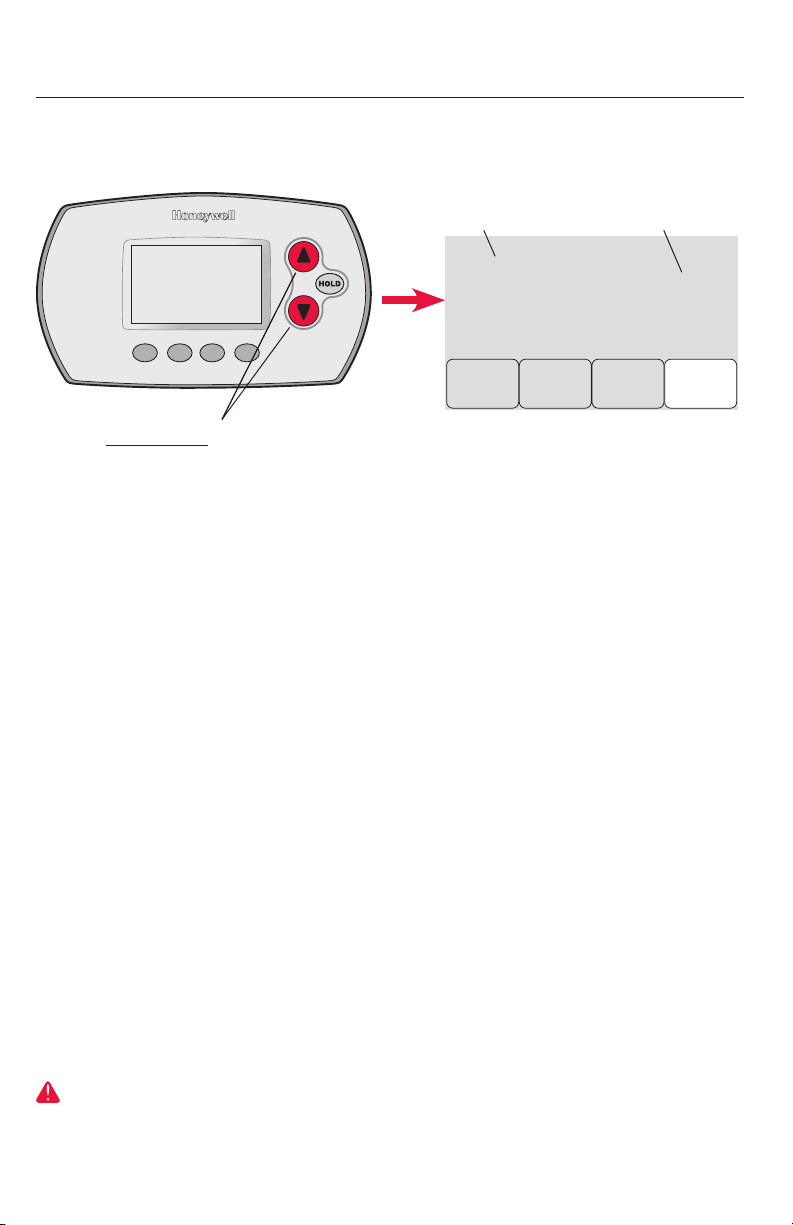

Customize thermostat (installer setup)

Function Setting

Press sor tto change setting

(see tables on pages 7-9)

Press next to display next

function screen

Press done to save & exit.

Follow the steps below to begin installer setup. At each function screen, press

sor tto change the setting as desired, then press next to advance to the next

function screen.

See tables on pages 7-9 for a description of options for each function.

FAN

M28485

To begin, press and hold the fan and sbuttons

until the display changes (about 3 seconds).

Exit wireless setup

Press connect at the wireless adapter to exit wireless setup (light should stop

flashing).

Note: The wireles adapter will automatically exit wireless setup after 15 minutes of

inactivity.

Note: If installing more than one zone panel, you must exit wireless setup before installing an

additional zone panel.

M28498

Back

Done

Français : voir la page 17 • Español: vea la página 32

7 69-2090EFS—07

Installer setup tables

Zone number

System type

Changeover valve

(O/B terminal)

Fan control

(conventional heat)

Stage 1 heat cycle

rate (CPH= cycles

per hour)

Stage 2 heat cycle

rate (CPH)

Stage 3 heat cycle

rate (CPH)

Emergency heat

cycle rate (CPH)

Stage 1 compres-

sor cycle rate

Stage 2 compres-

sor cycle rate

Manual/Auto

changeover

Adaptive Intelligent

Recovery

Temperature

display

0 No zoning (single thermostat used with THM5320R EIM)

[Options: select zone 1, 2, 3 or 4]

0 1 heat/1 cool conventional

1 1 heat/1 cool heat pump (no aux. heat)

2 Heat only (includes Series 20)

3 Heat only with fan

4 Cool only

5 2 heat/1 cool heat pump

6 2 heat/2 cool conventional

7 2 heat/1 cool conventional

8 1 heat/2 cool conventional

9 2 heat/2 cool heat pump

10 3 heat/2 cool heat pump

0 O/B terminal controls valve in cooling

1 O/B terminal controls valve in heating

0 Gas/Oil heat (equipment controls fan)

1 Electric furnace (thermostat controls fan)

5 Gas or oil furnaces (less than 90% efficiency)

1 Steam or gravity systems

3 Hot water systems & furnaces of over 90% efficiency

9 Electric furnaces

[Cycle rate options: 1 to 12 CPH]

5 Gas or oil furnaces (less than 90% efficiency)

1 Steam or gravity systems

3 Hot water systems & furnaces of over 90% efficiency

9 Electric furnaces

[Cycle rate options: 1 to 12 CPH]

5 Gas or oil furnaces (less than 90% efficiency)

1 Steam or gravity systems

3 Hot water systems & furnaces of over 90% efficiency

9 Electric furnaces

[Cycle rate options: 1 to 12 CPH]

9 Electric furnace

[Cycle rate options: 1 to 12 CPH]

3 Recommended cycle rate

[Cycle rate options: 1 to 6 CPH]

3 Recommended cycle rate

[Cycle rate options: 1 to 6 CPH]

0 Manual (User options: Heat/Cool/Off)

1 Automatic (User options: Heat/Cool/Auto/Off)

Applies only to Model TH6320

0 Off **

1 On

0 Fahrenheit

1 Celsius

** See page 9

Setup functions Settings & Options (factory default in bold)

RedLINK™ Installation Guide (TrueZONE™)

69-2090EFS—07 8

Compressor off

time (minimum)

Schedule format

Auxiliary heat

control

Maximum heat

setpoint

Minimum cool

setpoint

Temp. display

offset (indoor)

Temp. display

offset (outdoor)

Humidity display

offset (outdoor)

5 5 minute compressor off time **

[Options: 0 to 4 minutes]

Applies only to Model TH6320

0 Weekday/weekend program schedule

1 Weekday/Saturday/Sunday program schedule

Applies only to Model TH5320

0 Comfort **

1 Economy

90 Max. heat temperature setting is 90°F (32°C)

[Options: 40 to 90°F (4.5 to 32°C)]

50 Min. cool temperature setting is 50°F (10°C)

[Options: 50 to 99°F (10 to 37°C)]

0 Thermostat displays actual temperature

[Options: -3 to +3°F offset (-1.5 to +1.5°C)]

0 Thermostat displays actual temperature

[Options: -5 to +5°F offset (-2.5 to +2.5°C)]

3 Thermostat displays actual humidity

[Other options: 0 = -15%, 1 = -10%, 2 = -5%,

4 = 5%, 5 = 10%, 6 = 15% offset]

Installer setup tables

Setup functions Settings & Options (factory default in bold)

Zone name

Wireless setup

RESET

52 Thermostat

0 Disconnect thermostat from wireless system

1 Thermostat is connected to wireless system

0 No reset

1 Reset installer options & program schedule to factory default

settings

** See page 9

1 Basement

2 Bathroom

3 Bathroom 1

4 Bathroom 2

5 Bathroom 3

6 Bedroom

7 Bedroom 1

8 Bedroom 2

9 Bedroom 3

10 Bedroom 4

11 Boat House

12 Bonus Room

13 Computer Room

14 Den

15 Dining Room

16 Exercise Room

17 Family Room

18 Fireplace

19 Foyer

20 Game Room

21 Garage

22 Great Room

23 Guest Room

24 Gym

25 Kid’s Room

26 Kitchen

27 Kitchen 1

28 Kitchen 2

29 Laundry Room

30 Library

31 Living Room

32 Lower Level

33 Master Bath

34 Master Bed

35 Media Room

36 Music Room

37 Nursery

38 Office

39 Office 1

40 Office 2

41 Pantry

42 Play Room

43 Pool Room

44 Porch

45 Rec Room

46 Sewing Room

47 Spa

48 Storage Room

49 Studio

50 Sun Room

51 Theater

52 Thermostat

53 Upper Level

54 Utility Room

55 Walk In Closet

56 Wine Cellar

57 Workshop

Français : voir la page 17 • Español: vea la página 32

9 69-2090EFS—07

Special functions

Adaptive Intelligent Recovery (Setup Function 13): Allows the thermostat to “learn” how long the

furnace and air conditioner take to reach programmed temperature settings, so the

temperature is reached at the scheduled time.

Compressor Protection (Setup Function 15): Forces the compressor to wait a few minutes before

restarting, to prevent damage. During this time, “Heat On/Cool On” flashes on the display.

Comfort/Economy (Setup Function 26):

If you choose Comfort, auxiliary heat will respond quickly to meet the temperature setpoint. If you

choose Economy, the system will wait longer. Auxiliary heat will be activated only if the setpoint is

not reached within a reasonable time.

RedLINK™ Installation Guide (TrueZONE™)

69-2090EFS—07 10

M28489

Back

Done

System test

M28488

To begin, press and hold the sand tbuttons

until the display changes (about 3 seconds)

Press sor t to check system status

Press next to advance to next test

Press done to terminate system test

Wireless test

Heating system

Emergency

heating system

Cooling system

Fan system

Thermostat

information

(for reference only)

0 Off

1 Test radio signal (after a brief pause, screen displays 1-10

to show signal strength; 5 or higher recommended)

0 Heat and fan turn off

1 Heat turns on

2 Stage 2 heat turns on

3 Stage 3 heat turns on

0 Heat and fan turn off

1 Heat and fan turn on

0 Compressor and fan turn off

1 Compressor and fan turn on

2 Stage 2 compressor turns on

0 Fan turns off

1 Fan turns on

71 Software revision number (major revisions)

72 Software revision number (minor revisions)

73 Configuration identification code (major)

74 Configuration identification code (minor)

75 Production configuration date code (week)

76 Production configuration date code (year)

System Test System Status

Follow the procedure below to test for proper operation.

System test

number

System

status

CAUTION: EQUIPMENT DAMAGE HAZARD. Compressor protection (minimum off time)

is bypassed during testing. To prevent equipment damage, avoid cycling the compressor

quickly.

Andere Handbücher für RedLINK

Inhaltsverzeichnis

Sprachen:

Andere Honeywell Thermostat Handbücher

Honeywell

Honeywell PRO 2000 Series Bedienungsanleitung

Honeywell

Honeywell ST9500C Bedienungsanleitung

Honeywell

Honeywell T7300F Bedienungsanleitung

Honeywell

Honeywell RTH8580WF Bedienungsanleitung

Honeywell

Honeywell TL8100A1008 - Line Voltage Thermostat Bedienungsanleitung

Honeywell

Honeywell SUITEPRO TB6575 Bedienungsanleitung

Honeywell

Honeywell RLV4300 Bedienungsanleitung

Honeywell

Honeywell Tradeline T8024D Bedienungsanleitung

Honeywell

Honeywell BACnet Bedienungsanleitung

Honeywell

Honeywell RTH111 series Bedienungsanleitung

Honeywell

Honeywell RTH2300 series Bedienungsanleitung

Honeywell

Honeywell Wi-Fi VisionPRO8000 Bedienungsanleitung

Honeywell

Honeywell 08161 Bedienungsanleitung

Honeywell

Honeywell DT90E Bedienungsanleitung

Honeywell

Honeywell CT500 Bedienungsanleitung

Honeywell

Honeywell TC500A Bedienungsanleitung

Honeywell

Honeywell TP973 Bedienungsanleitung

Honeywell

Honeywell INNCOM e7w Bedienungsanleitung

Honeywell

Honeywell T7351 Betriebsanleitung

Honeywell

Honeywell Deluxe Bedienungsanleitung

Honeywell

Honeywell WebStat T7350 Bedienungsanleitung

Honeywell

Honeywell PRO TH4110D Bedienungsanleitung

Honeywell

Honeywell RTH7500 Series Bedienungsanleitung

Honeywell

Honeywell RTH2300 series Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung

Aube Technologies

Aube Technologies TH305 Bedienungsanleitung

Powtier Controls

Powtier Controls 505MST Bedienungsanleitung

Kanmor

Kanmor Zone Control 369e Bedienungsanleitung
