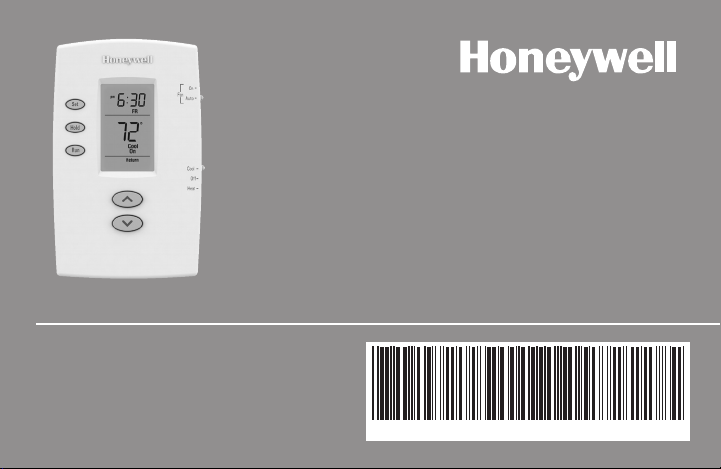

Honeywell TH2210DV Bedienungsanleitung

Operating

Manual

PRO 2000 Series

Programmable Thermostat

69-2799EFS-03

1 69-2799EFS—03

Read and save these instructions.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

® U.S. Registered Trademark. Patents pending.

CAUTION: EQUIPMENT DAMAGE HAZARD.

To prevent possible compressor damage, do not operate cooling system when

outdoor temperature is below 50°F (10°C).

This manual covers the following models:

TH2110DV: For 1 Heat/1 Cool systems

TH2210DV: For 2 Heat/1 Cool heat pump systems only

(Pull thermostat from wallplate and turn over to find model

number.)

1 69-2799EFS—03

About your new thermostat

Thermostat features.............................2

Thermostat is preset, ready to go.......3

Quick reference to controls.................4

Quick reference to display ..................5

Programming & Operation

Set time and day..................................6

Select system setting ..........................7

Select fan setting .................................8

Using program schedules .............9–10

Adjust program schedule ..................11

Program schedule overrides .......12–13

Compressor protection......................14

Early Start...........................................15

Appendices

Battery replacement............................16

Customer assistance ..........................17

In case of difficulty ........................18–19

Limited warranty..................................20

This thermostat is ready

to go!

Your new thermostat is pre-

programmed and ready to go.

See page 9 to check settings.

Table of contents

3 69-2799EFS—03

About your new thermostat

Your new Honeywell thermostat has been designed to give you many years of

reliable service and easy-to-use, push-button climate control.

Features

• Backlit display is easy to read

• Displays ambient (measured) temperature at all times

• One-touch access to setpoint temperature

• Preset program settings

• Temporary and permanent override of schedule

• Early start ensures the right temperature at the right time

• Built-in compressor protection

3 69-2799EFS—03

This thermostat is ready to go!

Your new thermostat is pre-programmed and ready to go. All you have to do is

set the time and day. Then check the settings below and change if needed:

1. Set time and day (required for proper operation)............... See page 6

2. Select system setting: Preset to Off .................... To change, see page 7

3. Select fan setting: Preset to Auto ....................... To change, see page 8

4. Program schedules: Preset to energy-saving levels

while you’re at work or asleep........................ To change, see pages 9-11

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any

time, and manually adjust the temperature (see pages 12-13).

69-2799EFS—03 4 5 69-2799EFS—03

System switch (see page 7)

• Cool: Cooling system control.

• Off: All systems off.

• Heat: Heating system

control.

• Em Heat: Emergency

& Auxiliary Heat control.

Compressor is locked out.

(Select models only.)

M34678

FanAuto

Off

Cool

Heat

Set

Hold

Run

E.M. Heat

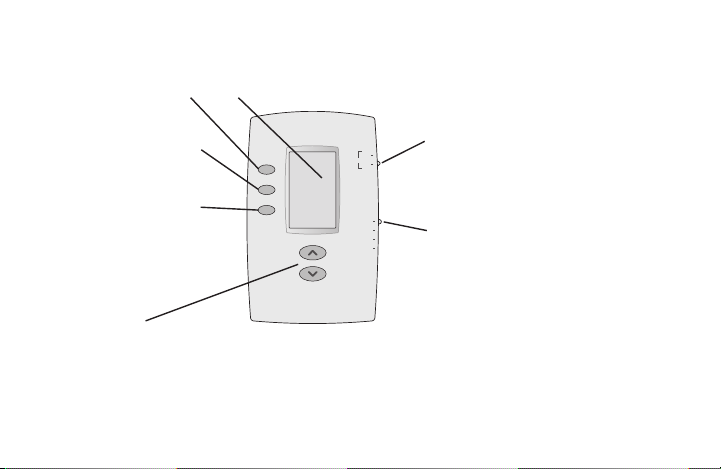

Quick reference to controls

Screen Lit for 12 seconds when you press any button.

Fan Switch (see page 8)

On: Fan runs continuously.

Auto: Fan runs only when heating

or cooling system is on.

Set: Press to set time/

day/schedule.

Hold: Press to override

programmed tempera-

ture control.

Run: Press to resume

program schedule.

Temperature

adjustment

5 69-2799EFS—03

M34803

Temporary

Batt

Wake

Set Schedule

Set

Heat

6:30

Quick reference to display screen

Low battery warning

(see page 16)

Setpoint indicator

Appears when the

setpoint temperature

is displayed.

Temperature

The ambient (measured)

temperature is normally

displayed. To view the setpoint

temperature, press the Up or

Down button once. The setpoint

temperature will appear for five

seconds.

System status

Cool On: Cooling system is on.

Heat On: Heating system is on.

Aux On: Auxiliary heat is on.

(Only for heat pumps with this

capability [select models only].)

When Heat On or Cool On is

flashing, compressor protection

is engaged (see page 14).

Current day/time

(see page 6)

Current program period

Wake/Leave/Return/Sleep

(see pages 9–10)

Set Schedule

(see pages 9–10)

69-2799EFS—03 6 7 69-2799EFS—03

M34811

Set Time

6:30

Set

Hold

Run

M34812

Set Day

Set

Hold

Run

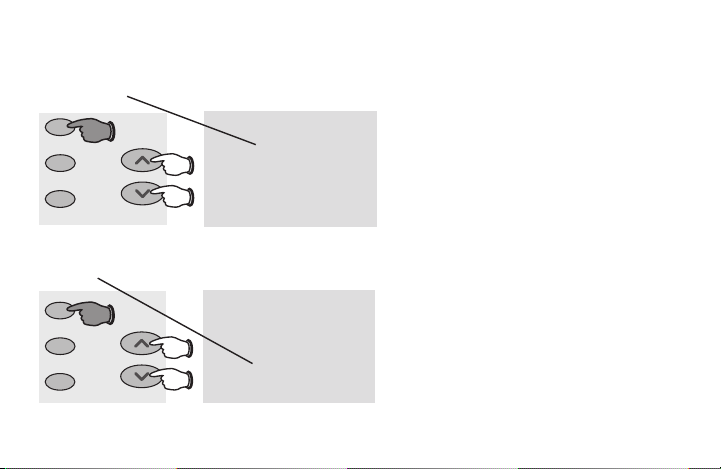

Set the time and day

1. Press the SET button, then

press s or t to set the clock

time.

2. Press the SET button, then

press s or t to select the

day of the week.

3. Press RUN to save & exit.

Note: If the clock flashes, the

thermostat will follow your settings for

the Monday “Wake” time period until

you reset the time and day.

Press SET, then adjust time.

Press SET, then select current day.

7 69-2799EFS—03

M34678

FanAuto

Off

Cool

Heat

Set

Hold

Run

E.M. Heat

Select the system setting

The SYSTEM switch can be set to control

your heating or cooling system, depending

on the season.

• Cool: Cooling system control.

• Off: All systems are off.

• Heat: Heating system control.

• Em Heat: Emergency & Auxiliary Heat

control. Compressor is locked out.

(Select models only.)

Set SYSTEM

switch to

control the

heating

or cooling

system. CAUTION: EQUIPMENT DAMAGE

HAZARD. To prevent possible

compressor damage, do not operate

cooling system when outdoor

temperature is below 50°F (10°C).

69-2799EFS—03 8 9 69-2799EFS—03

Select the fan setting

Set the FAN switch to Auto or On.

In “Auto” mode (the most commonly used

setting), the fan runs only when the heating

or cooling system is on.

If set to “On,” the fan runs continuously.

Set FAN

switch to

choose

whether the

fan runs

continuously

or only as

needed.

M34678

FanAuto

Off

Cool

Heat

Set

Hold

Run

E.M. Heat
