Honeywell VM3AL0N Bedienungsanleitung

Thor™ VM3A

Vehicle-Mount Computer

Quick Start Guide

VM3A-EN-QS-01 Rev A

01/20





Out of the Box

Make sure your shipping box contains these items:

• Thor VM3A vehicle-mounted computer (Model VM3AL0N)

• Regulatory Sheet

If you ordered additional accessories for your computer, verify

that they are also included with the order. Be sure to keep the

original packaging in case you need to return the computer for

service.

Computer Features

P1 P14

P13

P12

P11

P10

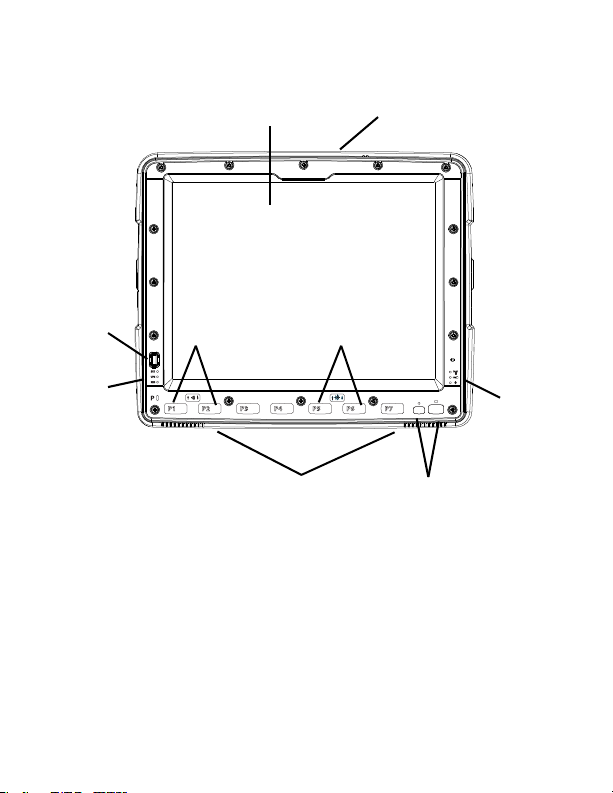

Front Touch Panel

Speakers

System

Status

LEDs

Power

Button

Network

Connection

LEDs

Shift Keys

Volume

Controls Brightness

Controls

NFC Antenna

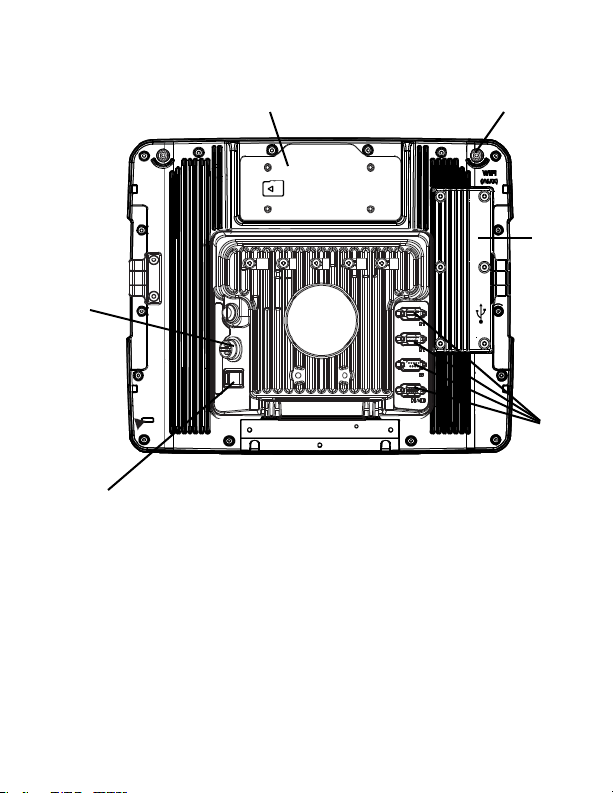

Back

Power Button

DC Power

Input

SD memory expansion

access panel

Wi-Fi/BT

Antenna

connections

Factory

debug

access

panel

COM USB,

and Audio

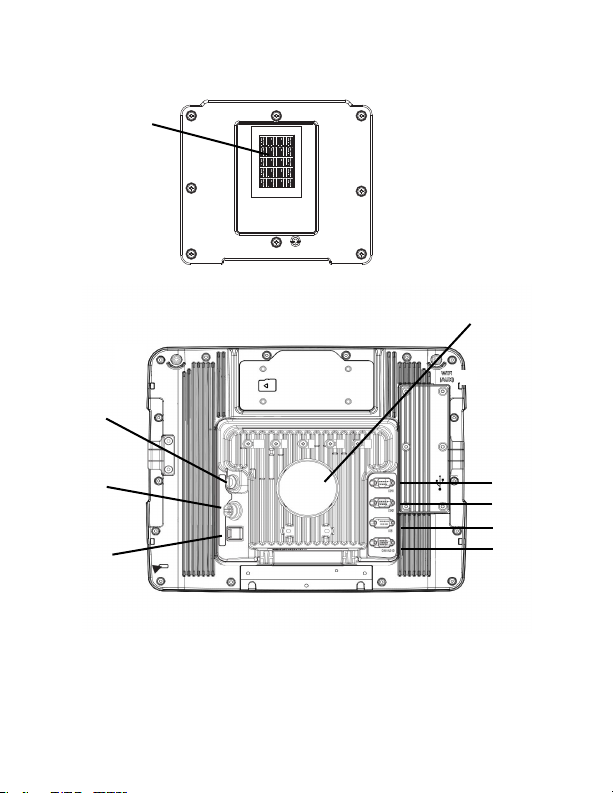

Dock Features

Dock Contact

Pads

Com 1

Com 2

USB

Audio

Power

Switch

Power

Connector

Fuse

Ram Ball

Wi-Fi

(Main)

Wi-Fi

(Aux)

Standard Dock

Mount to Vehicle

The Thor VM3A should be secured to an area in the vehicle

where it:

• Does not obstruct the driver's vision or safe vehicle operation.

• Will be protected from rain or inclement weather.

• Will be protected from extremely high concentrations of dust

or wind-blown debris.

• Can be easily accessed by a user seated in the driver's seat

while the vehicle is not in operation.

To mount the VM3A using a RAM mount system:

1. Attach RAM base to vehicle (RAM ball, RAM Clamp, RAM

Plate, etc.).

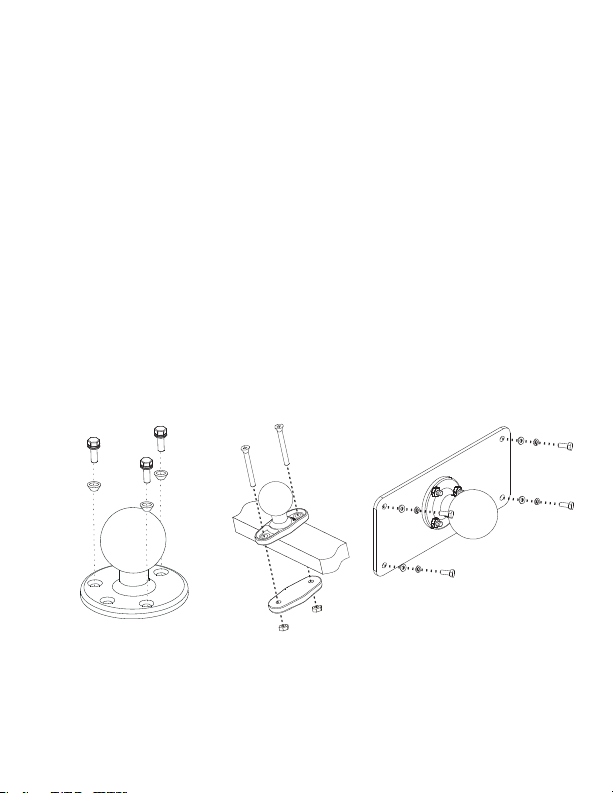

RAM Ball RAM Clamp RAM Plate

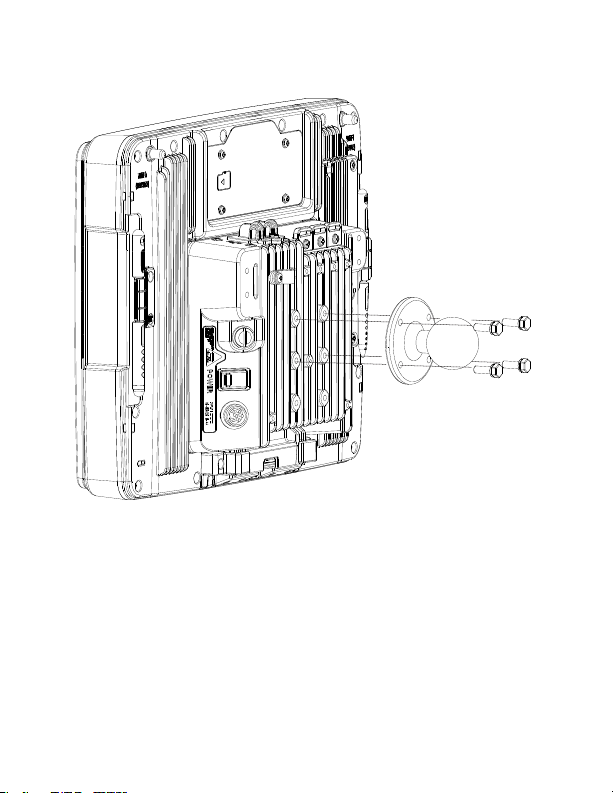

2. Attach RAM ball to the Smart Dock.

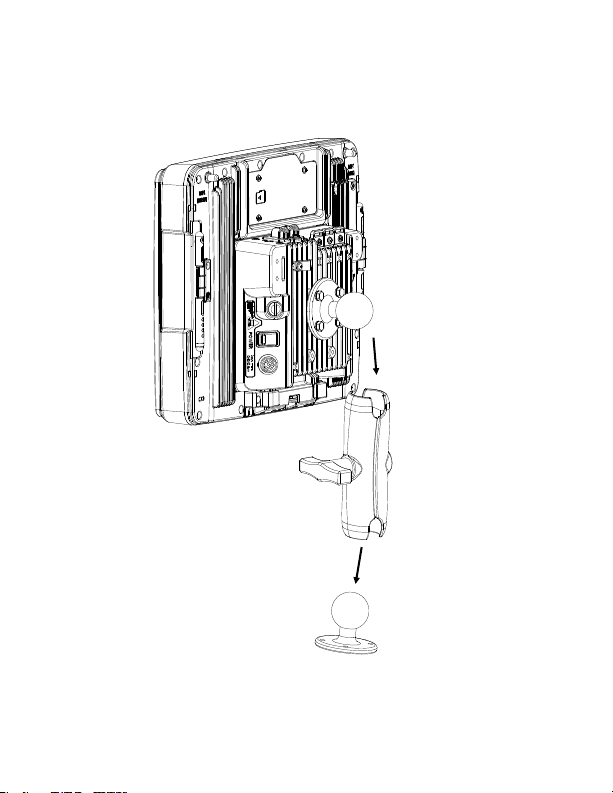

3. Attach VM3A assembly to RAM base using RAM arm and

tighten knob on RAM arm.

For more mounting details, refer to the user guide available at

www.honeywellaidc.com.

Connecting the Power Cable for 12-48 VDC Vehicles

(10-60 VDC Direct Connection)

Note: Refer to the Thor VM3A User Guide for other power

connections, available at www.honeywellaidc.com.

Caution: For installation by trained service

personnel only.

Warning: Fuse Requirements

For proper and safe installation, the input power cable

must be connected to a fused circuit on the vehicle. If

the supply connection is made directly to the battery,

the fuse should be installed in the positive lead within 5

inches of the battery’s positive (+) terminal. The fused

circuit requires a maximum time delay (slow blow) fuse

with a current rating as noted below.

• For 12VDC input, use a 10A slow blow fuse that has a

DC voltage rating greater than 12VDC.

• For 24VDC input, use a 6A slow blow fuse that has a

DC voltage rating greater than 24VDC.

• For 36VDC input, use a 4A slow blow fuse that has a

DC voltage rating greater than 36VDC.

• For 48VDC input, use a 3A slow blow fuse that has a

DC voltage rating greater than 48VDC.

Note: For North America, a UL Listed fuse must be used.

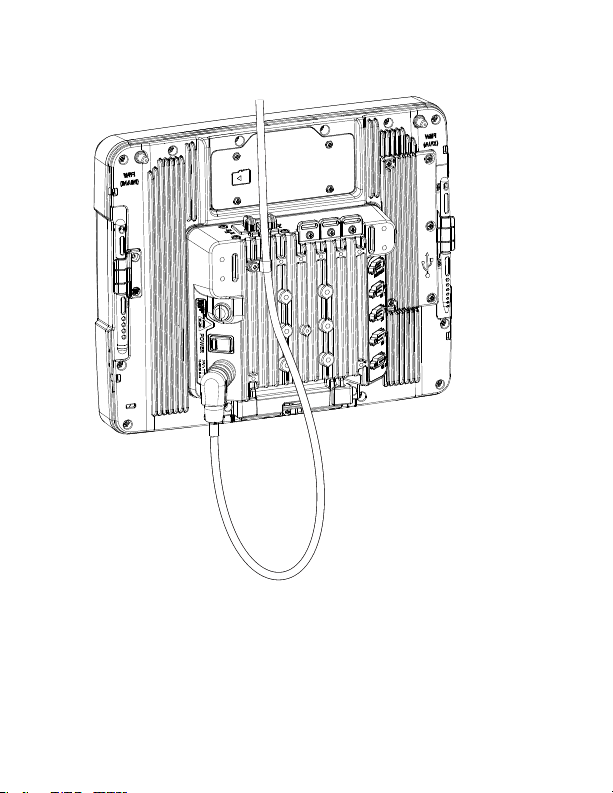

Power Cable Routing
