N8331V3 5/04 Rev. A

ADEMCO 5802MN2

SUPERVISED MINIATURE TRANSMITTER

INSTALLATION AND SETUP GUIDE

The ADEMCO 5802MN is a wireless transmitter that may

be worn on a belt or around the neck (belt clip and

necklace supplied). Pressing both buttons on the

transmitter at the same time sends a signal to the control

receiver. The 5802MN2 is intended for use only with

wireless alarm systems that support 5800 Series devices.

The transmitter is supervised, i.e., it automatically sends a

message to the control receiver that includes battery

status information every 70-90 minutes.

This transmitter can be programmed as any zone type

response (e.g., Emergency Panic, Relay Action, etc.).

BATTERY REPLACEMENT

The 5802MN2 is powered by two long-life Lithium

batteries that may be replaced when a low battery is

eventually indicated by the control unit.

NOTE: Although the 5802MN2 is water-resistant, please

do not submerge.

PROGRAMMING THE SERIAL NUMBER

The 5802MN2 has a unique identification code (serial

number) permanently assigned during manufacture.

You must “enroll” the transmitter’s serial number and loop

number during system programming. The 5802MN2 may

be defined as Input Type “RF” (supervised RF, do not

take out of range) or “UR” (Unsupervised RF). Its loop

number is “1.” See the control unit’s Installation

Instructions for further details regarding programming.

When installation is complete, verify operation from

desired location(s).

Specifications

Unit Dimensions:

2.75” (70mm) x 1.75” (45mm) x 0.5” (13mm)

LED: Lights when unit transmits.

Battery: 3V Duracell DL2430, or Newsum, Maxell, Panasonic,

Renata, or Sanyo CR2430

In UL installations: 3V Renata CR2430 only

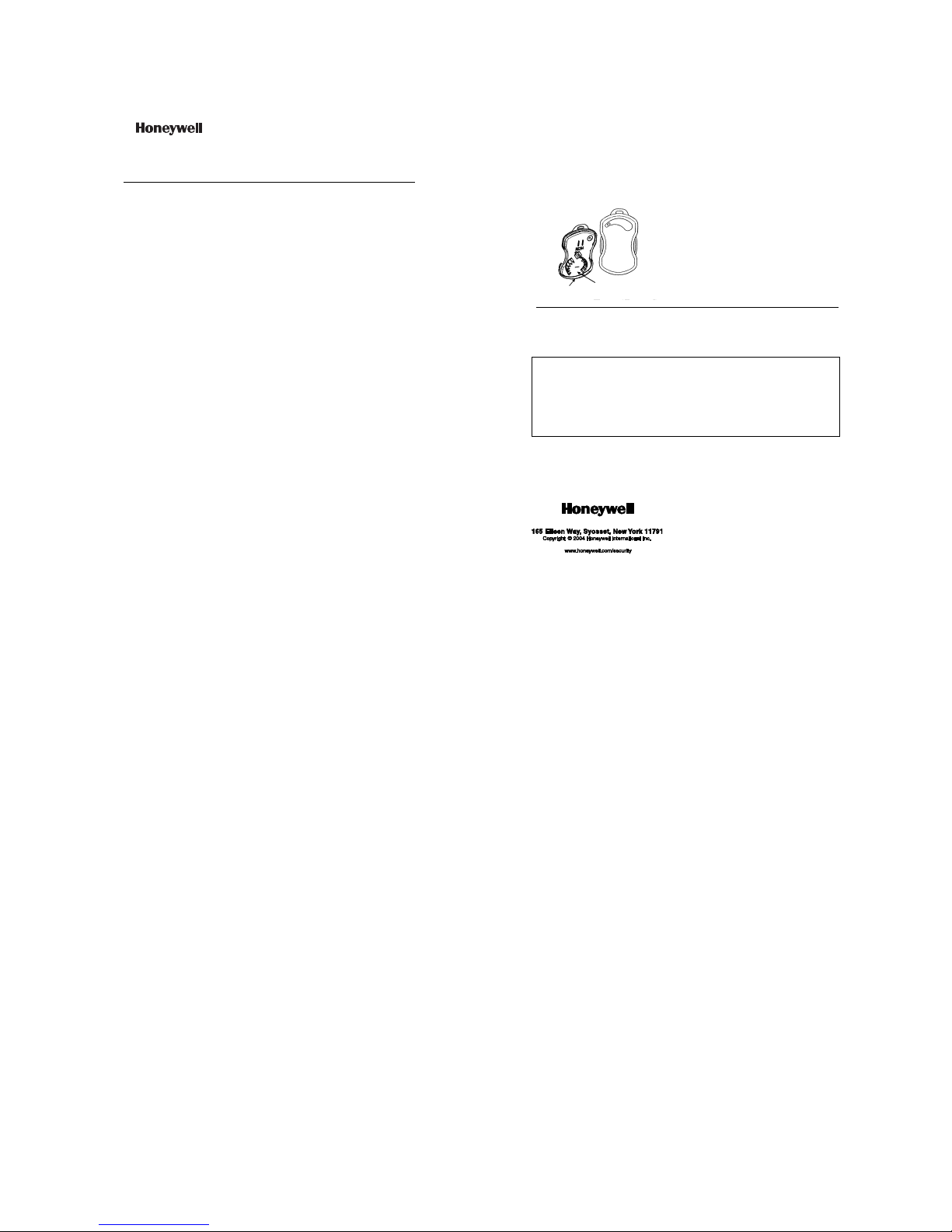

STACK 2 BATTERIES

NEGATIVE SIDE DOWN

REMOVE INSIDE

FRONT COVER

5802MN2-001-V0

To access the batteries, pry ope

the case front. In some cases

you must first remove a small

Phillips-head screw from the case

back before prying open the cas

front

Note battery polarity:

+ POS end must face up (visible

when installed).

REFER TO THE INSTALLATION INSTRUCTIONS FOR THE

RECEIVER/CONTROL WITH WHICH THIS DEVICE IS USED FOR

WARRANTY INFORMATION AND FOR DETAILS REGARDING THE

LIMITATIONS OF THE ENTIRE ALARM SYSTEM.

FCC STATEMENT

FCC ID: CFS8DL5802MN2 CANADA: 1748102611 5 3

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including

interference that may cause undesired operation.

UL US Listings: HOUSEHOLD BURGLARY WARNING SYSTEM

CONTROL UNIT ACCESSORY UL Canadian Listings: HOUSEHOLD

BURGLARY WARNING SYSTEM CONTROL UNIT ACCESSORY ALSO

LISTED FOR USE AS A SIGNAL APPLIANCE, MISCELLANEOUS

CERTIFIED FOR CANADA.

ÊN8331V3QŠ

N8331V3 5/04 Rev. A
