NO.NO. U2GW-1499U2GW-1499

ISSUED: FEB. 08, 1994ISSUED: FEB. 08, 1994

FINAL: APR. 14 , 2004FINAL: APR. 14 , 2004

HOSHIZAKIHOSHIZAKI

CUBELET ICE DISPENSERCUBELET ICE DISPENSER

PARTS LISTPARTS LIST

MODELMODEL

DCM-240BAEDCM-240BAE

C-1C-1 OCT.OCT. 19931993

D-0D-0 MAT.MAT. 19941994

E-0E-0 JAN.JAN. 19951995

F-0F-0 JAN.JAN. 19961996

G-0G-0 JAN.JAN. 19971997

G-1G-1 JUN.JUN. 19971997

FINALFINAL

MATERIAL ABBREVIATIONS

PLASTIC

ABS =Acrylonitrile-butadien-styrene

AC =Polyacetal

EVA =Ethylene vinyl acetate

PA =Polyamide = Nylon

PC =Polycarbonate

PE =Polyethylene

PES =Polyester

PETP =Polyethylene terephthalate = Tetlon

PF =Phenol-formaldehyde

PP =Polypropyleneoride

PS =Polystyrene

PTFE =Polytetrafluoroethylene = Teflon

PUR =Polyurethane

PVC =Polyvinyl chloride

RUBBER

EPDM =EP rubber

NBR =Nitrile butadiene rubber

NR =Natural rubber

SI.R =Silicone rubber

SY.R =Synthetic rubber

STEEL

G.S =Galvanized steel

S.S =Stainless steel

AUXILIARY CODE

Ex.1 K-0 Parts are the same as in the preceding year.

"K" is the tenth in alphabetical order with "I" skipped.

So, "K" indicates "2000".

Ex.2 A-1 "A" is the first in alphabetical order.

So, "A" indicates "2001".

Ex.3 A-2 Each time a part is changed in a year, this number advances.

(Note) = Part deleted.

X = Part deleted and replaced by "O" part.

O = New part for "X" in the same auxiliary code.

FASTENER ABBREVIATION LIST

ST Phillips Truss Head Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw,

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except the list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

MODEL

DCM-240BAE

TITLE

A. ICE DISPENSER ASSY

INDE

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

C-1

D-0

E-0

E-1

F-0F-1

G-0G-1

-106825A02 111-BFRAME ASSY

-106825A06 1

-220559A02 1-CICE MAKING UNIT

-220559A03 111

-106827A02 11-DREFRIGERATION CIRCUIT

-106827A03 11

EWATER CIRCUIT -105416A02 1111

-332587A01 1-FCONTROL BOX (A)

-332587A02 111

GCONTROL BOX (B) -332588A01 1111

HMIDDLE FRONT PANEL ASSY -332787A01 1111

-332589A01 1-JLABEL LOCATION

-332589A02 1

1TIE CV-100 7920-0002 7777

2DRAIN PAN S.S 446639-01 1111

3SPACER PVC 440956-01 3333

4THUMBSCREW S.S, ABS 415949G04 2222

5POWER SUPPLY CORD KP-30B 421824-01 1111

6BUSHING SR-7K-2420472-02 1111

7BUSHING SR-30-1420472-03 2222

8BUSHING SB-1500-21 420470-06 2222

9BUSHING SB-625-8420470-01 1111

10 BARRIER -GEAR MOTOR G.S 446634-01 1111

11 BARRIER G.S 446640-01 1111

12 HOLDER -ACCESS VALVEG.S 446641-01 1111

13 CABINET S.S 424987G13 1111

14 SPOUT (A) ABS 105409-01 1111

15 SPOUT (B) ABS 105410-01 1111

16 THUMBSCREW ABS, S.S 415949G08 1111

17 FRONT BARRIER (L) G.S 425094-01 1111

18 FRONT BARRIER (R) G.S 446642-01 1111

MODEL

DCM-240BAE

TITLE

A. ICE DISPENSER ASSY

INDE

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

C-1

D-0

E-0

E-1

F-0F-1

G-0G-1

19 BARRIER -SOLENOID S.S 446692-01 1111

20 CLAMP NO.4253 427902-05 1111

21 APRON PANEL S.S 327163-01 1111

22 DRAIN PAN ABS 318857G03 1111

23 BRACKET G.S 424988-02 1111

24 COLLAR S.S 4H0171-01 1111

25 FRONT PANEL S.S 216359G03 1111

26 THUMBSCREW S.S 425221-01 1111

27 TOP PANEL (E) G.S 104679-05 1111

28 GRILLE ABS 102936-03 1111

29 ADJUSTABLE LEG 222-P-16B 417192-01 4444

30 LOUVER (A) PP 103344-05 1111

PP 208840G01 1-31 AIR FILTER (A)

PP 208840G03 111

32 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 1111

MODEL

DCM-240BAE

TITLE

B. FRAME ASSY

INDE

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

C-1

D-0

E-0

E-1

F-0F-1

G-0G-1

G.S 106824G02 111-1FRAME (A)

G.S 106824G06 1

2FRAME (B) G.S 329483-01 1111

MODEL

DCM-240BAE

TITLE

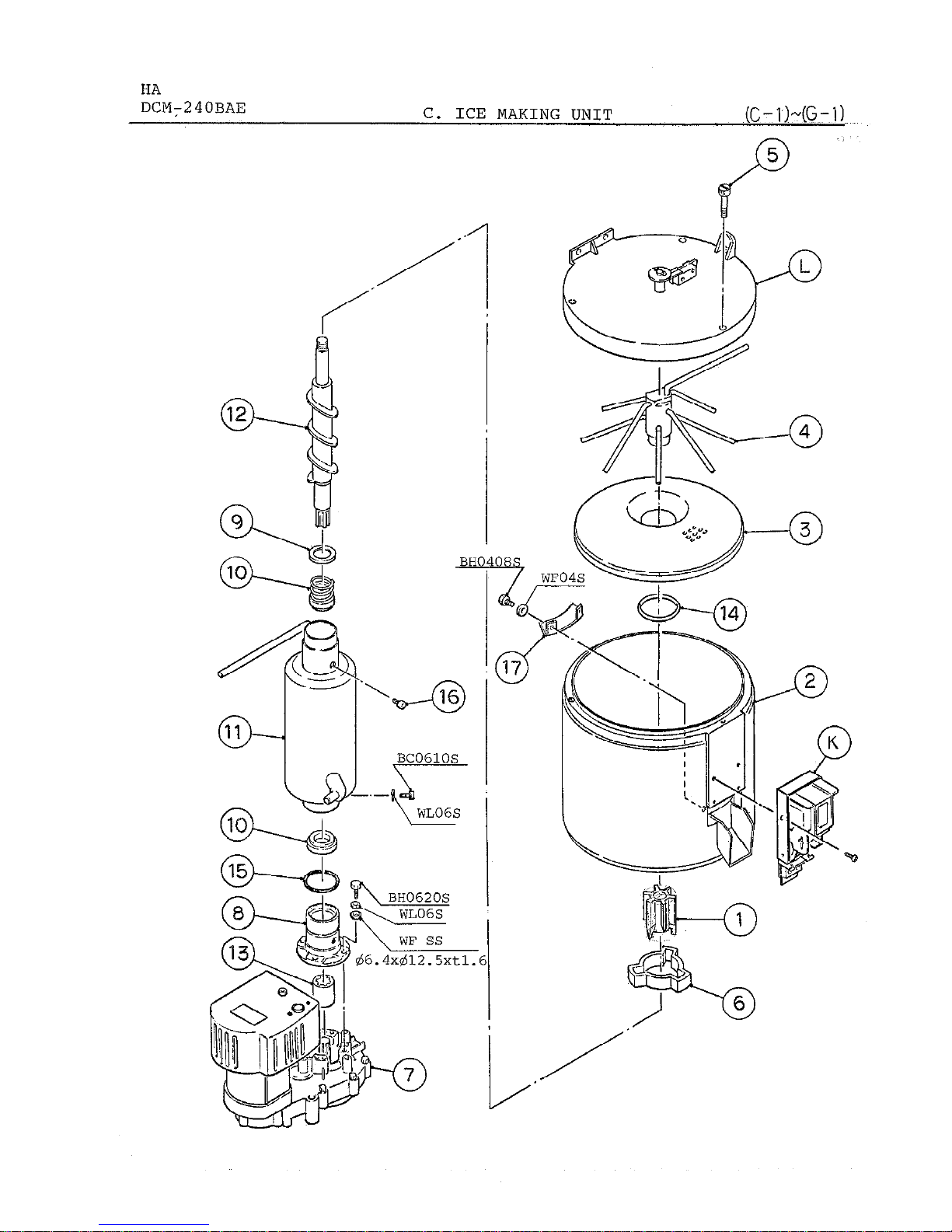

C. ICE MAKING UNIT

INDE

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

C-1

D-0

E-0

E-1

F-0F-1

G-0G-1

KSHUTTER ASSY -211265A09 1111

LCOVER ASSY -BIN TOP -207757A01 1111

1EXTRUDING HEAD -45C S.S 327236G02 1111

2STORAGE BIN -211630G01 1111

3DRIP RING S.S 207754-01 1111

4AGITATOR S.S 314997G01 1111

5THUMBSCREW S.S, ABS 430825G01 3333

6COVER -UPPER, EVAPORATOR PE FOAM 413446-01 1111

7TC1125,

120V 80W

2U0105-01 x 1

TC1148,

120V 80W

2U0146-01 o 1 x 1

GEAR MOTOR

TC1185 2U0147-01 111

8HOUSING COPPER ALLOY 206013G03 1111

9RING (B) S.S 432494-01 1111

10 MECHANICAL SEAL HK9A-MS 432491-01 1111

11 EVAPORATOR -INSULATION AD -332576G01 1111

12 AUGER S.S 328527G01 1111

13 COUPLING -SPLINE S.S 418316-01 1111

14 "O" RING P48 7616-P048 1111

15 "O" RING G40 7616-G040 1111

16 SOCKET HEAD CAP SCREW S.S, M8x14 429121-01 3333

17 DRIP PLATE (B) S.S 412676-01 1111
