NO.

ISSUED:

MODEL

HOSHIZAKI

STACKABLE CRESCENT CUBER

(FINAL) PARTS LIST

KM-2400SRB3

JAN. 19, 1992

JULY 31, 2000

71066

REVISED:

B-1 Nov., 1991

B-2 May, 1992

C-0 Jan., 1993

C-1 July, 1993

D-0 Dec., 1993

E-0 Jan., 1995

E-1 May, 1995

F-0 Jan., 1996

G-0 Jan., 1997

G-1 Se t., 1997

H-1 Jan., 1998

H-2 June, 1998

H-3 Nov., 1998

J-1 Jan., 1999

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed non-interchangeably

in a year, this number advances.

FASTENER ABBREVIATION LIST

S Phillips russ Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

1 Phillips russ Head apping Screw (Correspond to ype A)

2 Phillips russ Head apping Screw (Correspond to ype B)

3 Phillips russ Head apping Screw (Correspond to ype C)

F Phillips russ Head apping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

W External ooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. S 0308S (Phillips russ Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

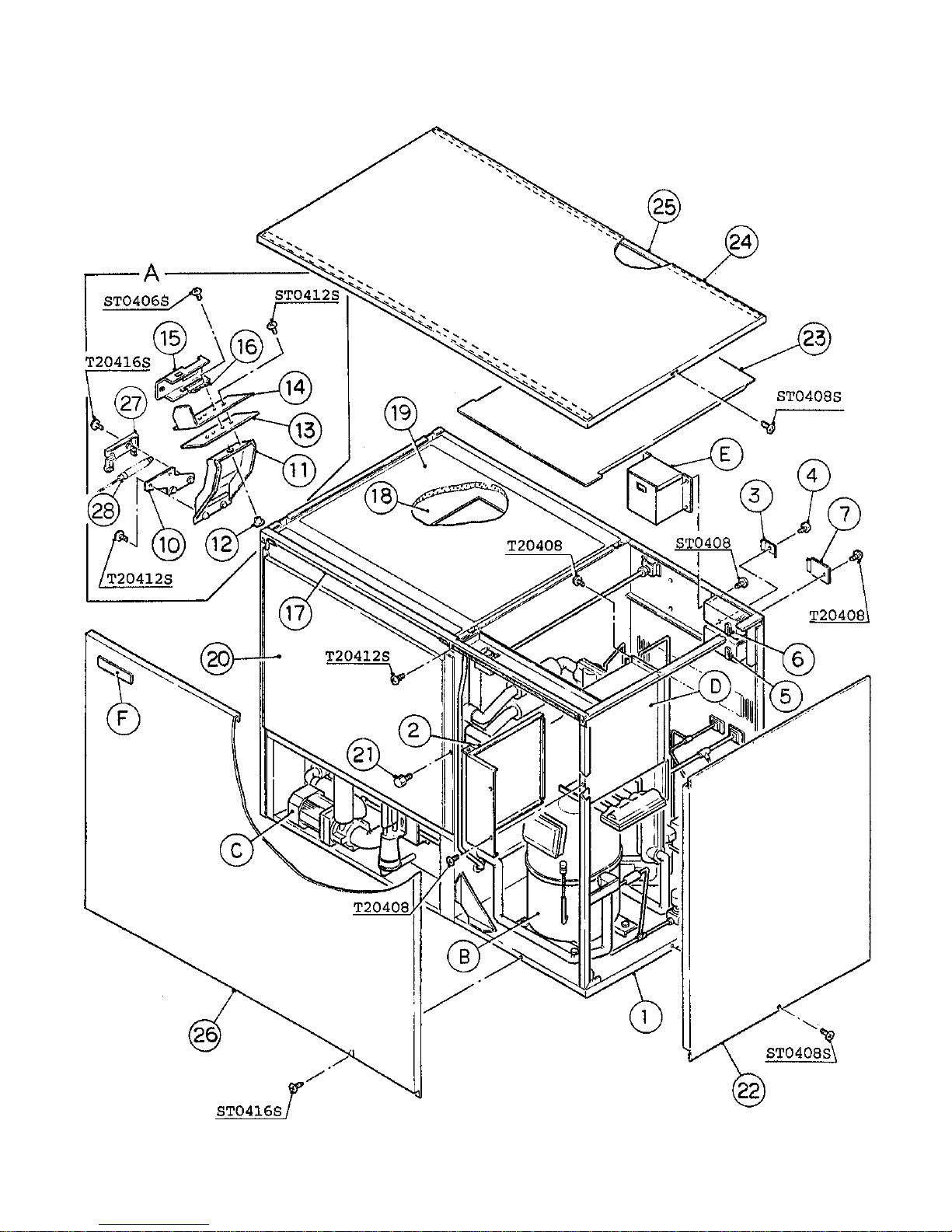

KM-2400SRB3 A. ICE CUBER ASSEMBLY B-1

KM-2400SRB3 A. ICE CUBER ASSEMBLY B-2

KM-2400SRB3 A. ICE CUBER ASSEMBLY C-0

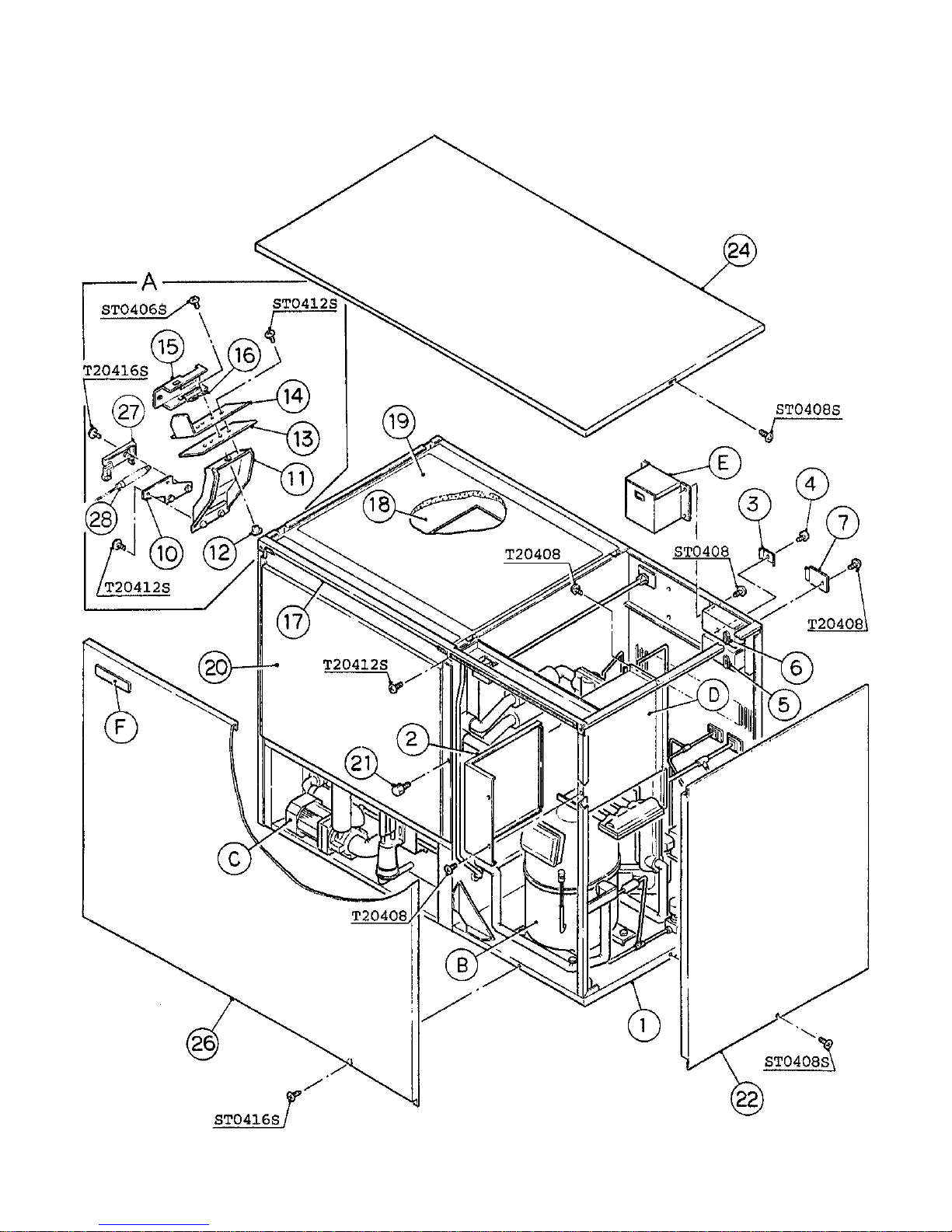

KM-2400SRB3 A. ICE CUBER ASSEMBLY C-1, D-0, E-0, E-1, F-0, G-0,

G-1, H-1, H-2, H-3, J-1

MODEL: KM-2400SRB3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER B-1 B-2 C-0 C-1 D-0

E-0

E-1 F-0

G-0

G-1

H-1 H-2 H-3 J-1

B REFRIGERATION CIRCUIT - 105287A01 1 1 x1

- 105287A02 o1 1 -

- 105287A03 1 -

- 105287A04 1 11111

C WATER CIRCUIT - 105122A02 1 1 1 -

- 105122A03 1 1 -

- 105122A04 1 11111

D CONTROL BOX ASSEMBLY - 215962A01 1 1 x1

- 215962A02 o1 1 1 1 1 -

- 215962A03 1 1 -

- 215962A04 1 1

ETRANSFORMER BOX ASSEMBLY - 326680A01 1 1 111111111

F LABEL LOCATION - 326682A01 1 1 1111111-

- 326682A02 1 1

1 EVAP. CASE GS, SS 105861G03 1 1 1 1 1 -

GS, SS 105861G08 1 1 1 -

GS, SS 2A1102G05 1 1 -

GS, SS 2A1102G10 1

2 CONTROL BOX COVER GS 326681G01 1 1 x1

GS 3A0214-01 o1 1 1 1 1 -

GS 3A0851-01 1 1 1 1

3 SQUARE WASHER BRASS 433537-02 2 2 222222222

4 SCREW - GROUNDING BRASS 433304-02 2 2 222222222

5 BUSHING SR-30-1 420472-03 1 1 111111111

6 BUSHING SR-31-2 420472-08 1 1 111111111

7 JUNCTION BOX COVER GS 433410-03 2 2 222222222

8 BULB HOLDER (A) SS 433707-01 1 -

9 BULB HOLDER (B) ABS 436549-01 1 -

MODEL: KM-2400SRB3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER B-1 B-2 C-0 C-1 D-0 E-0

E-1

F-0

G-0

G-1

H-1 H-2 H-3 J-1

10 BULB HOLDER (C) ABS 325845G01 11111111111

11 BULB HOLDER (D) ABS 215644G01 11111111111

12 BUSHING EP RUBBER 425307-01 11111111111

13 SPACER ABS 439727-01 11111111111

14 BULB HOLDER (E) GS 439725-01 11111111111

15 BULB HOLDER (F) GS 328743-01 11111111111

16 BULB HOLDER (G) GS 439726-01 11111111111

17 FRONT PANEL - BRACKET SS 323903-01 11111111111

18 SPACER ABS 324321-01 11111111111

19 TOP INSULATION ABS, PE 324216G01 11111111111

20 FRONT INSULATION ABS, PE 326041G01 11111111111

21 THUMBSCREW ABS, SS 415949G01 11111111111

22 SIDE PANEL (R) SS 215381G01 11111111111

23 BARRIER GS 325920-01 1 1 1 -

24 TOP PANEL (A) (324217A01) 213669-01 1 1 x1

TOP PANEL SS 213669-01 o1 1 1 x1

SS 213669-02 o1 1 1 1 1 1

25 GASKET (324217A01) 427014-03 2 2 -

26 FRONT PANEL (A) SS 215382-01 11111111111

27 BULB HOLDER PE 328919-01 1111111111

28 SPACER PE 443545-01 2221111111

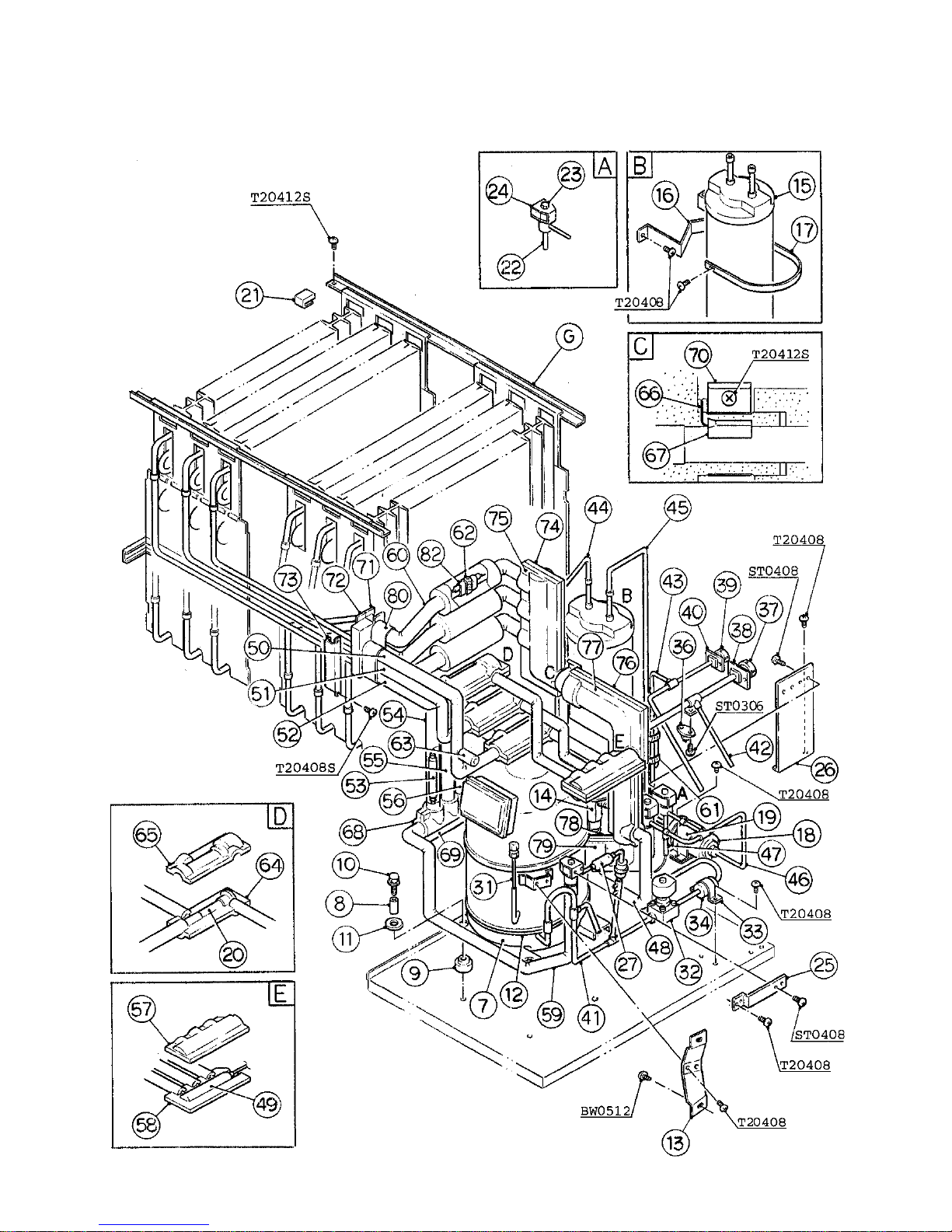

KM-2400SRB3 B. REFRIGERATION CIRCUIT (1/2) B-1
