Model
KM-600MAH
Modular Crescent Cuber
Hoshizaki America, Inc.
Number: 71288
Issued: 10-1-2008
PARTS LIST
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 3
Material Abbreviations ........................................................................................................... 4
A. Ice Cuber Assembly .......................................................................................................... 5
B. Refrigeration Circuit .......................................................................................................... 7
C. Water Circuit ................................................................................................................... 11
D. Control Box Assembly ..................................................................................................... 14
E. Label Location ................................................................................................................. 16
F. Front Panel Assembly ..................................................................................................... 18
G. Top Panel Assembly ...................................................................................................... 19
H. Pump Motor Assembly .................................................................................................... 0
J. Accessories & Packaging ................................................................................................ 1
3
Auxiliary Codes
KM-600MAH T-0 June 008
Auxiliary Code Breakdown
K-0
Designates the year. "K" indicates the year 000. Years progress or regress in alphabetical order.
"J" is 1999, "L" is 001, "M" is 00, and so on. The letters "I" and "O" were skipped.
Designates signicant part changes within the same year for this model. Base is 0 and this number
advances for each change.
Example: T-1
"T" indicates 008.
"1" indicates the rst signicant part change for 008.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered
separately.
4
Material Abbreviations
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrauoroethylene = Teon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
5

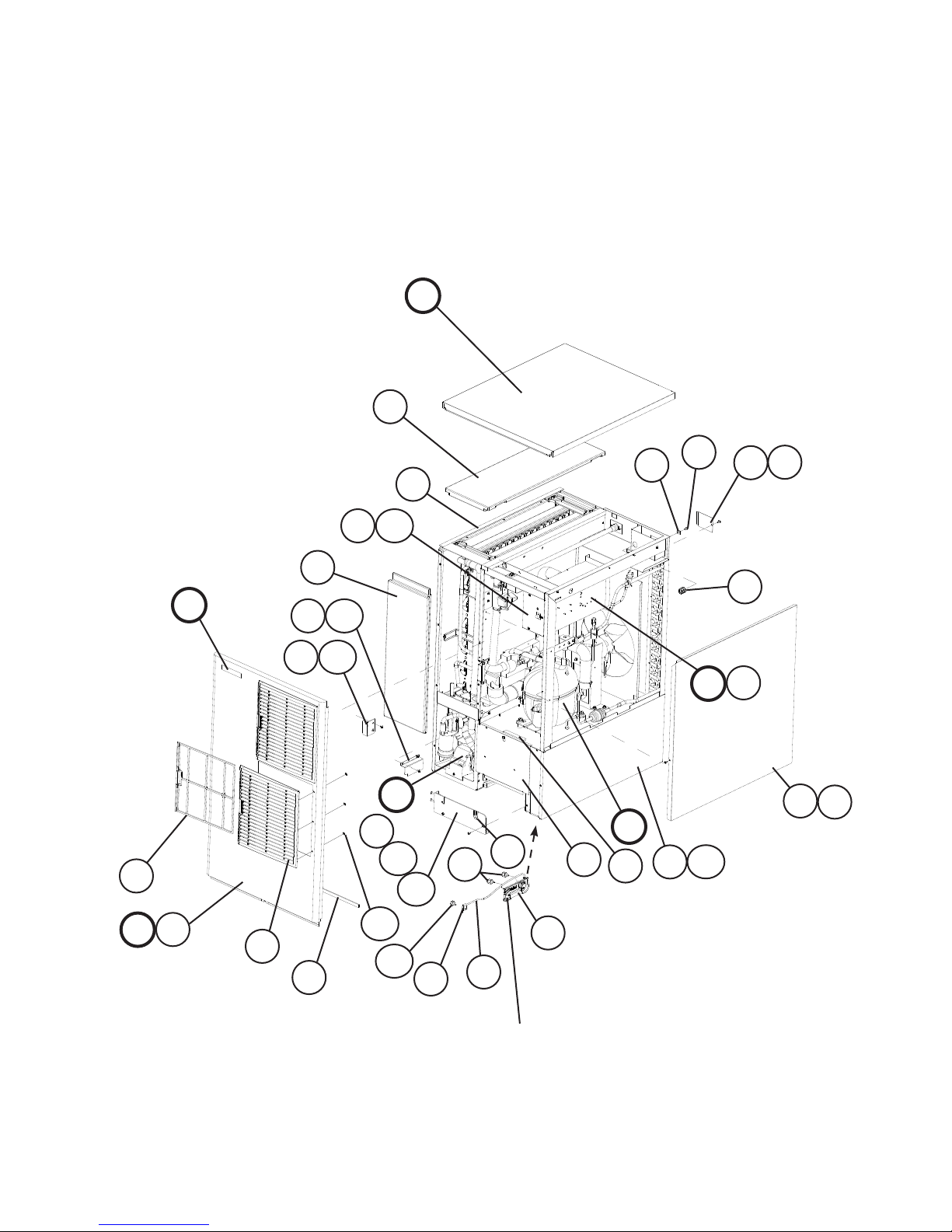

A. Ice Cuber Assembly
KM-600MAH
T-0
For Thermostat, see
"D. Control Box Assembly"
B
C
E
1
4
3
13
18
17
16
1
DD1
15 15a
6
6a
55a
10 10a
a
0
G
FF1
19
14
99a
8
7
11 11a
a
1
1a
1b
17a
6
Title: A. Ice Cuber Assembly Model: KM-600MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
B Refrigeration Circuit 1A1540A01 1
C Water Circuit 1A083A08 1
D Control Box Assembly A4603A01 1
D1 T Screw 4×8 7P31-0408 3
E Label Location 3A4815A01 1
F Front Panel Assembly A43G01 1
F1 Truss Head Screw 4×8, SS 7C3-0408 1
G Top Panel Assembly 3A3878A01 1
1 Evaporator Case 1A0579G07 1
Control Box Cover 3A371-01 1
a T Screw 4×8 7P31-0408 3
3 Square Washer 433537-0 1
4 Grounding Screw 433304-0 1
5 Junction Box Cover 433410-01 1
5a T Screw 4×8 7P31-0408 1
6 Bulb Holder 3A3903-01 1
6a Thumbscrew Black 415949G11
7 Top Insulation 15730G01 1
8 Front Insulation 15731G0 1
9 Side Panel (R) SS A117G0 1
9a T Screw 4×8, SS 7P3-0408 1
10 Insulation Barrier 4A1167-01 1
10a T Screw 4×8 7P31-0408
11 Base A146G15 1
11a FT Screw 4×8 7F31-0408 7
1 Frame 3A503G01 1
1a Truss Head Screw 4×5, SS 7C3-045
1b Truss Head Screw 4×8, SS 7C3-0408 1
13 Base Cover SS 3155G01 1
14 Bushing SR-34- 4047-05 1
15 Barrier 4A035-01 1
15a T Screw 4×8 7P31-0408
16 Air Filter A06G01
17 Louver 1A0547-01
17a Push Retainer 4A414-01 6
18 Capillary Ring 45307-01 1
19 Gasket L=554 4A0808L0 1
0 Foam Tape L=100 808-0005 1
1 Silicone Hose L=380 7730I381 1
Strap 435487-01 1
a Thumbscrew Black 415949G10 1
7

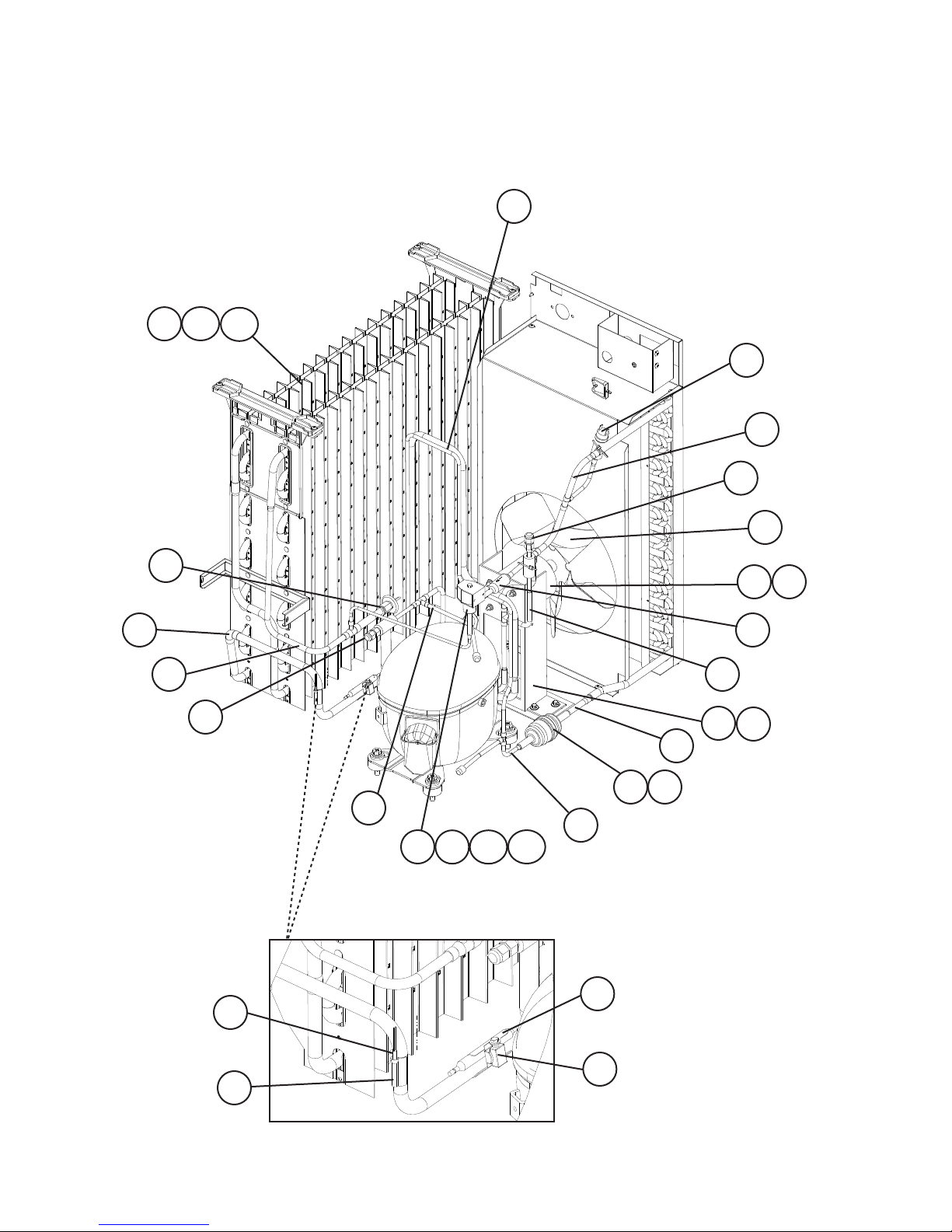

B. Refrigeration Circuit
1/2
KM-600MAH
T-0
a
40
37
39
3a
3
36
35 40
30 31
1a
1
3a
3
44c4b4a
5a
5
6a
6
7
9 40
8

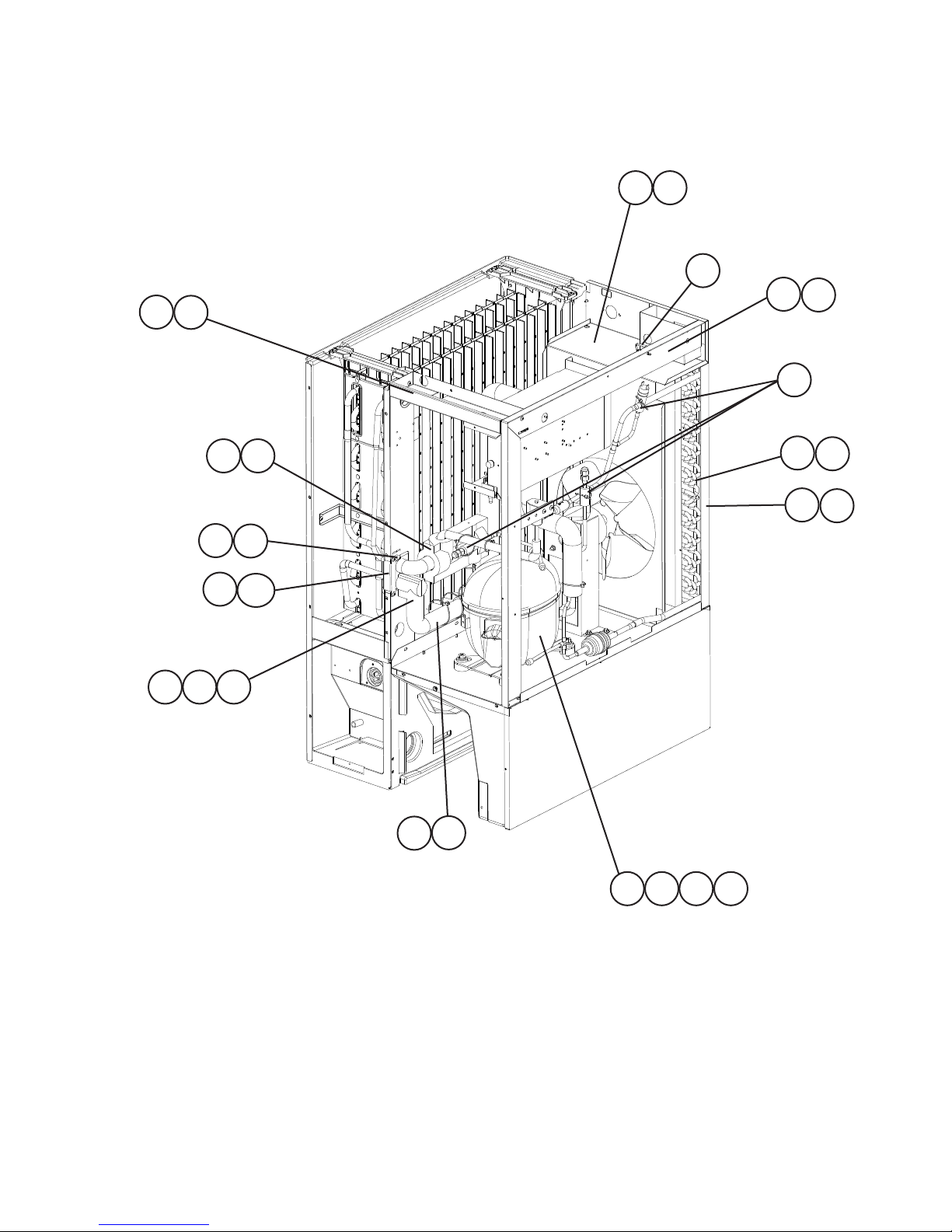

B. Refrigeration Circuit
2/2
KM-600MAH
T-0
8a
8
11
1
17
13
38
5
10
99a
14
15
3 4
6
1 1a 1b
0
18
16
17
19a 19b
19
34
33
8
7
9
Title: B. Refrigeration Circuit Model: KM-600MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
1 Side Frame A1301G01 1
1a T Screw 4×8 7P31-0408 6
Shroud Assembly A3849G01 1
a T Screw 4×8 7P31-0408 5
3 Top Frame (A) 3A1893-01 1
3a T Screw 4×8 7P31-0408
4 Compressor RST55C1E-CAA-
0 4A4376-01 1
4a Grommet 4A593-01 4
4b Spacer 4A595-01 4
4c Bolt 8×45 437889-01 4
5 Condenser A3853-01 1
5a T Screw 4×8 7P31-0408 4
6 Barrier 433693-0 1
6a T Screw 4×8 7P31-0408
7 Insulation Tube L=40 776-100 3
8 Fan Motor Bracket 37180-01 1
8a Hex Head Bolt w/Washer (LF) 5×1 7B013051 4
9 Fan Motor 50 Watt-GEHI 4A3158-01 1
9a Self-Locking Nut No. 8-3 7N1I083 4
10 Fan Blade 4A3959-01 1
11 Heat Exchanger A4585G0 1
1 Copper Tube (A)-High Side 3A489G01 1
13 Copper Tube (B)-High Side 3A4803G01 1
14 Copper Tube (C)-High Side 3A4475G01 1
15 Copper Tube (F)-High Side 4A4084-01 1
16 Copper Tube-Access Valve 3A4783G01 1
17 Access Valve 45779-01
18 Copper Tube-Hot Gas A4588G01 1
19 Evaporator 106396G01 1
19a T Screw 4×16, SS 7P3-0416 4
19b T Screw 4×1, SS 7P3-041
0 Valve Body-Hot Gas 4A3978-01 1
1 Coil-Valve 4A377-01 1
1a Bolt 4A377F01 1
1b Truss Head Screw 4×8 7C31-0408
Strainer 441569-0 1
3 Drier 4A666-01 1
4 Nylon Tie PLWP3H-TL 8911-0301 1
5 Pressure Switch 463180-04 1
6 Expansion Valve 4A4619-01 1
7 Expansion Valve Holder 3A0107-01 1
8 Clamp 443461-0 1
9 Expansion Valve Cover 3A0944-01 1
30 Rubber Insulation (A) 3A1044-01 1
31 Rubber Insulation (B) 3A1045-01 1
3 Insulation Holder SS 4A1550-01 1
3a T Screw 4×8, SS 7P3-0408
33 Thermistor L=1050 49006-03 1
34 Holder-Thermistor 47430-01 1
10
Title: B. Refrigeration Circuit Model: KM-600MAH
Index
No. Description
Material or
Model Number Part Number
Required Number
T-0
35 Insulation-Thermistor (A) 439368-01 1
36 Insulation-Thermistor (B) 439368-0 1
37 Insulation Tube L=00 776-3555 1
38 Elbow 417395-03 1
39 Clamp 4A338-01 1
40 Nylon Tie 8911-000 15
