Hoshizaki PTR1SSB-HGHS Bedienungsanleitung

Cabinet Con truction

•Stainless steel interior and exterior for long life, durability

and easy maintenance

•Ducted air distribution system achieves a uniform box

temperature elimnating “hot spots” even when full

•(3) heavy duty epoxy shelves per section are standard;

adjustable in 1" increments

•Cabinet door perimeter heater provides condensation

control and is equipped with a back-up heater. Manual

on/off switch allows for energy savings

•Cabinet and doors are 2 3/8” thick, insulated with R-134A,

CFC free foamed in place polyurethane

•Interior fluorescent light manually activated

•Die cast legs and stainless steel feet offer increased

durability

Door Con truction

•Two half height solid doors are constructed of high grade

300 Series stainless steel inside and out located on

operators side

•Flush mount door handles maximize aisle space by

eliminating protruding parts

•Door hinges are all metal with tension spring closure and

will not wear out like traditional cam-lift hinges; Doors stay

open at 105˚ and are self-closing at 75˚

•Step door design protects door gasket when product is

removed

•Door hinging is field reversible

•Two half height glass doors (located on service side) are constructed of double pane, heated glass with

silver finish aluminum frame

•Snap in magnetic door gaskets are durable and easily removed

•Door hinges are all metal with tension spring closure and will not wear out like traditional cam-lift

hinges; Doors stay open at 90˚ and are self-closing at 85˚

Refrigeration Sy tem

•High efficiency refrigeration system is designed with a large capacity condenser and evaporator

resulting in lower overall power consumption

•TempGuard’s®EverCheck®controls monitor high and low temperatures, high pressure, high and low

voltage, clean filter and cabinet temperature functions.The controls are located on operators side of

the unit

•Refrigeration system is mounted on a fully insulated rotocast platform and is easily removable from

the main unit

•Evaporator coil is coated for extended life

•Refrigeration system is equipped with solid state digital controls

•Removable, cleanable air filter protects condenser and reduces cleaning requirements

•Hot gas condensate evaporator is standard

•115 volt units equipped with cord and plug

•Refrigerant: R-404A with expansion valve control

Hoshizaki

©HOSHIZAKI AMERICA, INC.

618 Hwy. 74 S., Peachtree City, GA 30269 TEL 1-800-438-6087 FAX 1-800-345-1325 www.hoshiza i.com

PPTTRR11SSSSBB--HHGGHHSS DDIIMMEENNSSIIOONNSS

W x D x H

PTR1SSB-HGHS

5/08

Item # 13146

TEMPG ARD®PASS THR REFRIGERATOR

Warranty

Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in

other countries.

Two Year - Parts & Labor on entire machine.

Five Year - Parts on: Compressor.

PTR1SSB-HGHS

Item #

Project:

Qty:

Hoshizaki reserves the right to change specifications without notice.

27.5 x 35.9 x 84.5*

*with 6" adj. legs

TEMPG ARD®Self-Contained Pass Thru Refrigerator with EverCheck®Audio Alert

PTR1SSB-HGHS

*AutoCad available on CL

115/60/1

12.0

15.0

5 - 15P

16.0

2273

3610 (1/2HP)

104 - 126

45° - 100°F

36° to 50°F

R-404A

Hoshizaki

DDIIMMEENNSSIIOONNSS

W x D x H

PTR1SSB-HGHS

27.5 x 35.9 x 84.5*

* with 6" adj. legs

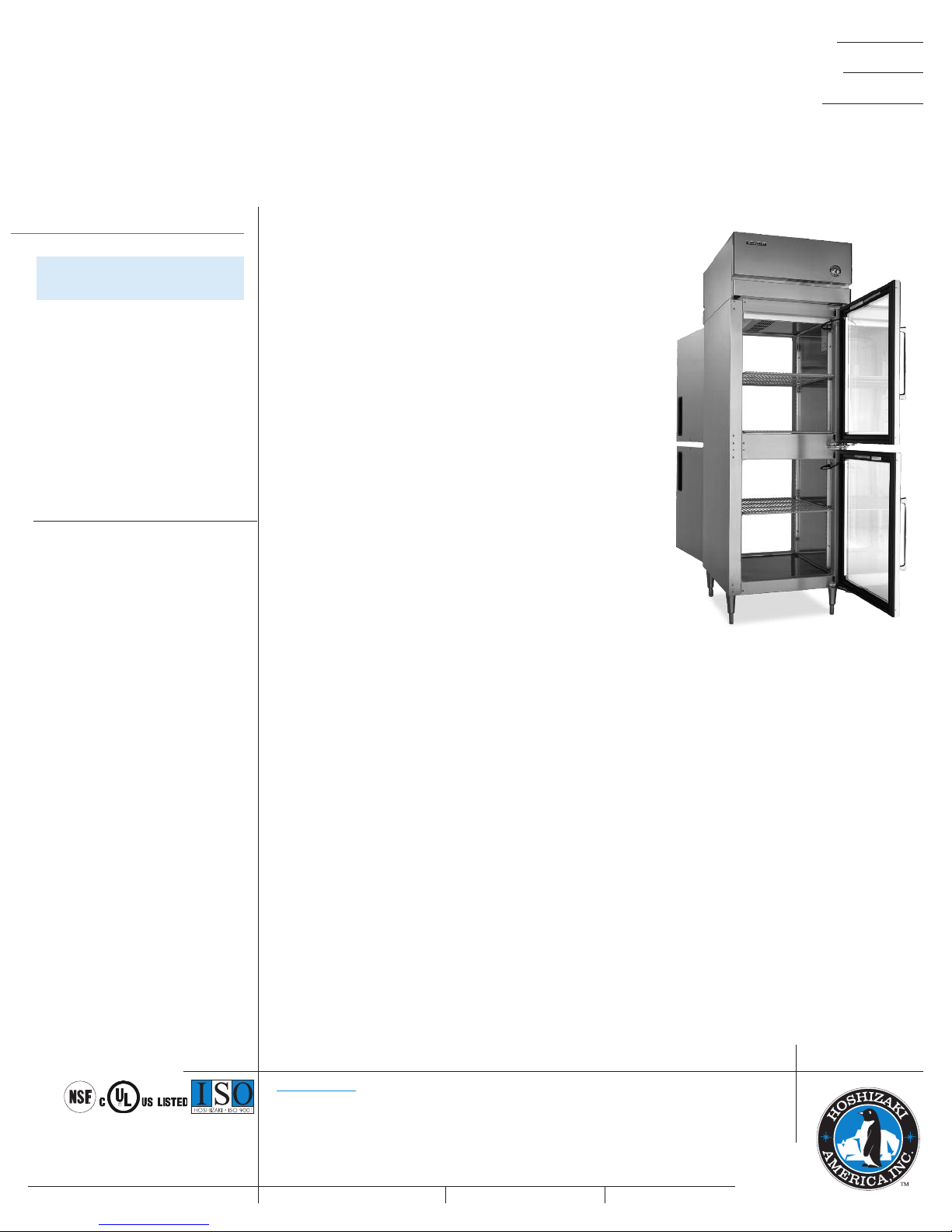

PAS S TH RU REF RIG ERATOR

©HOSHIZAKI AMERICA, INC.

618 Hwy. 74 S., Peachtree City, GA 30269 TEL 1-800-438-6087 FAX 1-800-345-1325 www.hoshiza i.com Printed in U.S.A.

PTR1SSB-HGHS

PASS THR REFRIGERATOR

• 1 section pass thru refrigerator

OPTIONS

• Heavy duty casters • Door reversal kit (solid doors

only)

• Additional epoxy shelves • Stainless steel shelves

DIMENSIONS/CAPACITY

Mo el #

Interior Storage Capacity (CF)

Overall Wi th

Overall Depth

Height (including 6" dj. legs)

Depth with Door open at 90°

Door Opening Wi th

Door Opening Height

A justable Shelves

Shelf Dimensions (W x D)

Crate Shipping Weight

Crate Height

Crate Wi th

Crate Depth

One Section

PTR1SSB-HGHS

ELECTRICAL & REFRIGERATION DATA

Mo el #

Voltage

Amperage

HACR Breaker

Electrical Connection(NEMA)

*Energy Consumption(kwh/d y)

* Heat Rejection(BTU/Hr.)

Approximate Nominal

Compressor BTU/Hr.(HP)

Voltage Range

Ambient Temp. Range

Control Setpoint Range

*Refrigerant

23.8 ft3

27.5"

35.9"

84.5"

85.1"

21.75"

26.75"

21.2" x 30.75"

475 lb

80"

32"

38"

* B sed on 100°F mbient cycling t setpoint

One Section

PTR1SSB-HGHS

DOOR SWING

SIDE VIEW

PLANE VIEW

FRONT VIEW

85.1"

25.0"

6.7"

35.9"

24.4"

St ys open t 105°

St ys open t 90°

35.9"

84.5"

78.5"

26.75"

65.0"

27.5"

35.9"

84.5"
