Hotpoint FFUQ 20 Series Betriebsanleitung

Refrigerators

Bottom Freezer

200D9366P006

Safety Instructions . . . . . . . . . . .2, 3

Operating Instructions

Care and Cleaning . . . . . . . . . . . . . . . .7, 8

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Crispers and Pans . . . . . . . . . . . . . . . . . . .5

Freezer Compartment . . . . . . . . . . . . . . .6

Replacing the Light ulbs . . . . . . . . . . . .8

Shelves and ins . . . . . . . . . . . . . . . . . . . .4

Installation Instructions

Installing the Refrigerator . . . . . . .10–12

Preparing to Install

the Refrigerator . . . . . . . . . . . . . . . . . . . . .9

Reversing the Door Swing . . . . . .13–16

Troubleshooting Tips . . . . . .17–19

Normal Operating Sounds . . . . . . . . . .17

Consu er Support

Consumer Support . . . . . . . . . . . . . . . . .24

Product Registration . . . . . . . . . . . .21, 22

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . .23

Write the odel and serial

nu bers here:

Model # ____________________

Serial #______________________

Find these numbers on a label

on the right side, near the top of the

refrigerator compartment.

Models 20 and 22

Owner’s Manual and

Installation Instructions

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this wner’s Manual.

SAFETY PRECAUTI NS

When using electrical appliances, basic safety precautions should be followed, including the following:

■

■This refrigerator must be properly installed

and located in accordance with the Installation

Instructions before it is used.

■

■Do not allow children to climb, stand or hang

on the shelves in the refrigerator. They could

damage the refrigerator and seriously injure

themselves.

■

■Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet.

Skin may stick to these extremely cold surfaces.

■

■Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

■

■Keep fingers out of the “pinch point” areas;

clearances between the doors and between

the doors and cabinet are necessarily small.

e careful closing doors when children are

in the area.

■

■In refrigerators with automatic icemakers,

avoid contact with the moving parts of the

ejector mechanism, or with the heating element

that releases the cubes. Do not place fingers or

hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

■

■Unplug the refrigerator before cleaning and making

repairs.

NOTE: We strongly recommend that any servicing

be performed by a qualified individual.

■

■Setting either or both controls to the off position

does not remove power to the light circuit.

■

■Do not refreeze frozen foods which have

thawed completely.

PR PER DISP SAL F THE REFRIGERAT R

Child entrapment and suffocation are not problems of

the past. Junked or abandoned refrigerators are still

dangerous…even if they will sit for “just a few days.”

If you are getting rid of your old refrigerator, please

follow the instructions below to help prevent

accidents.

Before You Throw Away Your Old

Refrigerator or Freezer:

■Take off the doors.

■Leave the shelves in place so that children may not

easily climb inside.

Refrigerants

All refrigeration products contain refrigerants,

which under federal law must be removed prior

to product disposal. If you are getting rid of an

old refrigeration product, check with the company

handling the disposal about what to do.

USE F EXTENSI N C RDS

Because of potential safety hazards under certain conditions, we strongly recommend against

the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a CSA certified, 3-wire

grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating

of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISK OF CHILD ENTRAPMENT

Consu er Support Troubleshooting Tips Operating Instructions Safety Instructions

Installation

Instructions

Consu er SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation

Instructions

WARNING!

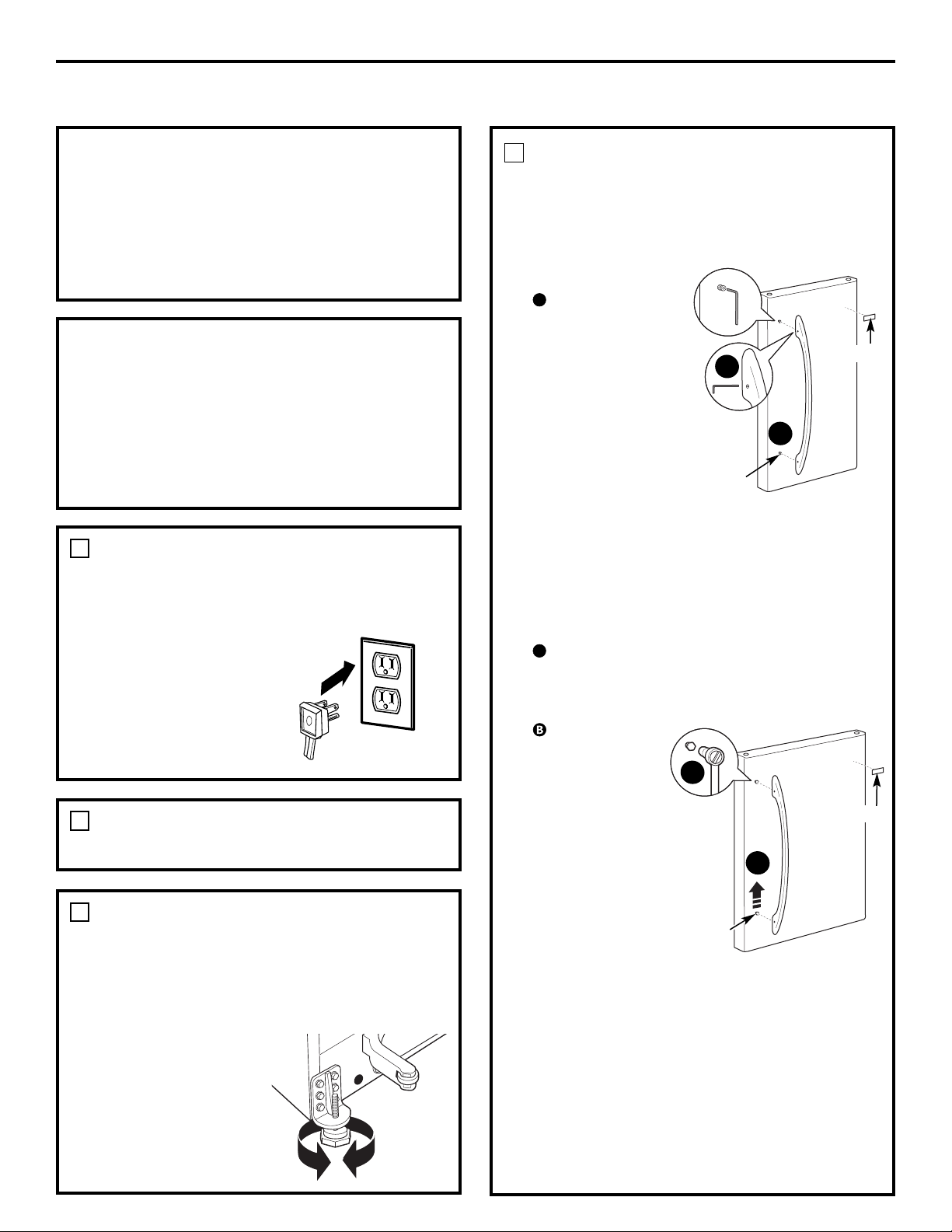

H W T C NNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped

with a 3-prong (grounding) plug which mates

with a standard 3-prong (grounding) wall outlet

to minimize the possibility of electric shock hazard

from this appliance.

Have the wall outlet and circuit checked by a

qualified electrician to make sure the outlet is

properly grounded.

Where a standard 2-prong wall outlet is encountered,

it is your personal responsibility and obligation to

have it replaced with a properly grounded 3-prong

wall outlet.

The refrigerator should always be plugged into its

own individual electrical outlet which has a voltage

rating that matches the rating plate.

This provides the best performance and also prevents

overloading house wiring circuits which could cause

a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the

power cord. Always grip plug firmly and pull straight

out from the outlet.

Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end.

When moving the refrigerator away from the

wall, be careful not to roll over or damage the

power cord.

READ AND F LL W THIS SAFETY INF RMATI N CAREFULLY.

SAVE THESE INSTRUCTIONS

USE F ADAPTER PLUGS

Adapter plugs are not permitted in Canada.

Rearranging the Shelves

To re ove:

Remove all items from the shelf.

Tilt the shelf up at the front.

Lift the shelf up at the back and

bring the shelf out.

To replace:

While tilting the shelf up, insert the top

hook at the back of the shelf in a slot

on the track.

Lower the front of the shelf until the

bottom of the shelf locks into place.

About the shelves and bins.

Not all features are on all models.

Some models have wire shelves

that can be adjusted in the same

manner.

Shelves in the refrigerator compartment are adjustable.

Refrigerator Co part ent

About the controls.

Initially, set the refrigerator control at 5and the freezer control at 5. Allow 24 hours for the temperature

to stabilize. Several adjustments may be required. Adjust the controls one increment at a time, and allow

24 hours after each adjustment for the refrigerator to reach the temperature you have set. Setting the

refrigerator control knob to 0stops cooling in both the refrigerator and freezer compartments, but does

not shut off electrical power to the refrigerator.

Consu er Support Troubleshooting Tips Operating Instructions Safety Instructions

Installation

Instructions

Non-Adjustable Shelves on the Door

To re ove: Lift the shelf straight up, then

pull out.

To replace: Engage the shelf in the molded

supports on the door and push down.

It will lock in place.

Consu er SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation

Instructions

About the crispers and pans.

Fruit and Vegetable Crisper

Excess water that may accumulate in the

bottom of the drawers or under the drawers

should be wiped dry.

Adjustable Hu idity Crisper (on some models)

Slide the control all the way to the

HIGH setting to provide high humidity

recommended for most vegetables.

Slide the control all the way to the LOW

setting to provide lower humidity levels

recommended for most fruits.

Snack Pan (on some models)

This pan can be moved to the most useful

location for your family’s needs.

To re ove, slide the pan out to the stop

position, lift the pan up and past the stop

position and lift it out.

Freezer Shelves and Baskets

A full-width fixed wire shelf

A full-width sliding wire basket

NOTE: Do not fill baskets higher than the rim

of the basket. This may cause baskets to stick

or jam when opening or closing.

Basket Re oval

To re ove the full-width sliding wire basket:

Open the basket out to its full extension.

Lift up the front of the basket and pull

straight out to remove.

When replacing the full-width sliding

wire basket:

Insert the wire basket into the lower liner’s

rails and push back into place.

About the freezer co part ent.

Consu er Support Troubleshooting Tips Operating Instructions Safety Instructions

Installation

Instructions

Fixed Shelf Re oval

The full-width wire shelf is not intended

to slide.

To re ove for cleaning:

Hold the shelf at the front and pull it firmly

forward.

When replacing the full-width wire shelf:

Insert the wire shelf into the upper liner’s

rails and push back into place.

Non-Adjustable Shelf on Freezer Door

To re ove: Lift the shelf straight up,

then pull out.

To replace: Engage the shelf in the molded

supports on the door and push down. It will

lock in place.

To remove

To replace

Care and cleaning of the refrigerator.

Cleaning the Outside

The door handles and tri . Clean with a

cloth dampened with soapy water. Dry with

a soft cloth. Do not use wax on the door

handles and trim.

Keep the outside clean. Wipe with

a clean cloth lightly dampened with kitchen

appliance wax or mild liquid dish detergent.

Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled

dish cloth or wet towel. These may leave

a residue that can erode the paint. Do not

use scouring pads, powdered cleaners,

bleach or cleaners containing bleach

because these products can scratch

and weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box

of baking soda in the refrigerator and freezer

compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture

out of sponge or cloth when cleaning around

switches, lights or controls.

Use an appliance wax polish on the inside

surface between the doors.

Use warm water and baking soda solution—

about a tablespoon (15 ml) of baking soda to

a quart (1 liter) of water. This both cleans and

neutralizes odors. Rinse and wipe dry.

After cleaning the door gaskets, apply a thin

layer of petroleum jelly to the door gaskets

at the hinge side. This helps keep the gaskets

from sticking and bending out of shape.

Avoid cleaning cold glass shelves with hot

water because the extreme temperature

difference may cause them to break.

Handle glass shelves carefully. Bumping

tempered glass can cause it to shatter.

Do not wash any plastic refrigerator parts

in the dishwasher.

Consu er SupportTroubleshooting Tips

Operating Instructions

Safety Instructions Installation

Instructions

Behind the Refrigerator

e careful when moving the refrigerator

away from the wall. All types of floor

coverings can be damaged, particularly

cushioned coverings and those with

embossed surfaces.

Raise the leveling legs located at the bottom

front of the refrigerator.

Pull the refrigerator straight out and return it

to position by pushing it straight in. Moving

the refrigerator in a side direction may

result in damage to the floor covering

or refrigerator.

Lower the leveling legs until they touch

the floor.

When pushing the refrigerator back, make

sure you don’t roll over the power cord or

icemaker supply line (on some models).

Consu er Support Troubleshooting Tips Operating Instructions Safety Instructions

Installation

Instructions

Refrigerator Lights

CAUTION: Light bulbs may

be hot.

Unplug the refrigerator.

To remove the light shield, grasp the

shield at the back and pull out to release

the tabs at the back.

Rotate the shield down and then forward

to release the tabs at the front of the

shield.

After replacing with an appliance bulb

of the same or lower wattage, replace

the shield.

Plug the refrigerator back in.

NOTE: Appliance bulbs may be ordered from

GE Parts and Accessories, 800.626.2002.

Replacing the light bulbs.

Turning the control to the off position does not remove power to the light circuit.

For long vacations or absences, remove

food and unplug the refrigerator. Clean the

interior with a baking soda solution of one

tablespoon (15 ml) of baking soda to one

quart (1 liter) of water. Leave the doors open.

If the temperature can drop below freezing,

have a qualified servicer drain the water

supply system (on some models) to prevent

serious property damage due to flooding.

Care and cleaning of the refrigerator.

Preparing for Vacation

Preparing to Move

Secure all loose items such as base grille,

shelves and drawers by taping them

securely in place to prevent damage.

When using a hand truck to move the

refrigerator, do not rest the front or back

of the refrigerator against the hand truck.

This could damage the refrigerator. Handle

only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright

position during moving.

Installation

Refrigerator

Instructions Models 20 and 22

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT —Save these instructions

for local inspector’s use.

•IMPORTANT —Observe all governing

codes and ordinances.

• Note to Installer – e sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions for

future reference.

• Skill level – Installation of this appliance requires

basic mechanical skills.

• Completion time – Refrigerator Installation

20 minutes

Water Line Installation

30 minutes

•Proper installation is the responsibility of the

installer.

•Product failure due to improper installation is not

covered under the Warranty.

PREPARATION

MOVING THE REFRIGERATOR INDOORS

If the refrigerator will not fit through a doorway,

the refrigerator door and freezer drawer can be

removed.

•To remove the refrigerator door, see Step 1 in

the Reversing the Door Swing section.

•To remove the freezer drawer, see the Removing

the Freezer Drawer section.

TOOLS YOU MAY NEED

Adjustable Wrench

Phillips Head Screwdriver

3/8″ and 5/16″Socket

Ratchet/Driver

3/32″, 1/8″and 3/16″ Allen

wrenches

Pencil

1/8″Drill it and

Electric or Hand Drill Tape measure

1/4″Nut Driver

Wire Cutters Level

PLUG IN THE REFRIGERATOR

On models with an icemaker, before plugging in

the refrigerator, make sure the icemaker power

switch is set to the O (off) position.

See the grounding

information attached

to the power cord.

PUT THE REFRIGERATOR IN PLACE

Move the refrigerator to its final location.

LEVEL THE REFRIGERATOR

Adjustable legs at the front corners of the

refrigerator should be set so the refrigerator is

firmly positioned on the floor, and the front is

raised just enough that the door closes easily

when opened about halfway.

To adjust the leveling

legs, turn the legs

clockwise to raise the

refrigerator,

counterclockwise to

lower it.

Installation Instructions

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

•Do not install the refrigerator where the temperature

will go below 60°F (16°C) because it will not run often

enough to maintain proper temperatures.

•Do not install the refrigerator where the temperature will

go above 100°F (37°C) because it will not perform properly.

•Install it on a floor strong enough to support it fully loaded.

CLEARANCES

Allow the following clearances for ease of installation, proper

air circulation and plumbing and electrical connections.

Standard Depth

Models

Sides 1/8″(3 mm)

Top 1″(25 mm)

Back 1″(25 mm)

REMOVE THE FRESH FOOD

DOOR HANDLE

(For placement in the installation location

or reversal of the handles – on some

models)

Stainless steel (on

some models):

REMOVING

THE DOOR

HANDLE: Loosen

the set screws

with the 3/32″

Allen wrench

and remove

the handle.

NOTE: For

Double Door

models follow

the same

procedure on

the opposite door.

Plastic handle

(on some models):

REMOVING THE DOOR HANDLE: Depress the

tab on the underside of the handle and slide

the handle up and off of the mounting

fasteners.

REVERSING THE

DOOR HANDLE

(on some

models):

• Remove

the handle

mounting

fasteners with

a 3/16″Allen

wrench and

transfer

the handle

mounting

fasteners to

the right side.

• Remove the logo badge.

• Remove and transfer the plug button to

the left side of the fresh food door. NOTE:

Use a flat plastic edge to prevent damaging

the door. Remove any adhesive on the door

with a mild detergent. Remove the paper

covering on the adhesive backing on

the logo badge prior to carefully attaching

the badge to the door.

Mounting

Fasteners

Mounting

Fasteners

adge

(appearance may vary)

Andere Handbücher für FFUQ 20 Series

Dieses Handbuch passt für folgende Modelle

Andere Hotpoint Kühlschrank Handbücher

Hotpoint

Hotpoint HTS22GBP Bedienungsanleitung

Hotpoint

Hotpoint HTR17BBSRWW - 16.6 cu. Ft. Top Freezer... Bedienungsanleitung

Hotpoint

Hotpoint FFM81 Instructions for and use Bedienungsanleitung

Hotpoint

Hotpoint E2BLH xxxx F (TK) Bedienungsanleitung

Hotpoint

Hotpoint RTA 42 Bedienungsanleitung

Hotpoint

Hotpoint HME400N Bedienungsanleitung

Hotpoint

Hotpoint CSX27H Bedienungsanleitung

Hotpoint

Hotpoint HTR17BBSL Handbuch

Hotpoint

Hotpoint HSS22IFM Gebrauchsanweisung

Hotpoint

Hotpoint SH8 1Q XRFD 1 Bedienungsanleitung

Hotpoint

Hotpoint NMTL 1915 FW (TK)/HA Bedienungsanleitung

Hotpoint

Hotpoint 6970 Stücklistenhandbuch

Hotpoint

Hotpoint HMB313I Bedienungsanleitung

Hotpoint

Hotpoint HTS17BCSLWW - 16.6 cu. Ft. Top Freezer... Bedienungsanleitung

Hotpoint

Hotpoint HSZ2321L Bedienungsanleitung

Hotpoint

Hotpoint Energy Star HTH18GBTWW Gebrauchsanweisung

Hotpoint

Hotpoint HT303NI Bedienungsanleitung

Hotpoint

Hotpoint FUFY Bedienungsanleitung

Hotpoint

Hotpoint SH8 2D XROFD 2 Bedienungsanleitung

Hotpoint

Hotpoint SXBHAE 924 WD Bedienungsanleitung

Hotpoint

Hotpoint CTF14 Montageanleitung

Hotpoint

Hotpoint HTR16ABSLCC - R 15.6 cu. Ft. Top-Freezer... Montageanleitung

Hotpoint

Hotpoint CTF14 Montageanleitung

Hotpoint

Hotpoint CSF22M Betriebsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
