Read the rest of these instructions to get the best from your appliance and

remember to fill in your guarantee registration.

GETTING STARTED:

To ensure that your fridge freezer runs reliably and efficiently follow these steps.

SAFETY &

INSTALLATION CONTROLS USEFUL ADVICE

CLEANING &

MAINTENANCE

SERVICE &

GUARANTEE

TROUBLESHOOTING

Choose a location for your

fridge freezer, away from

any heat sources and

allow adequate

ventilation - 100mm

(4 inch) gap above.

Level the fridge freezer by

adjusting the front feet.

This will stop rocking or

vibration and keep the

door aligned.

Before plugging in and

switching on, leave the

fridge freezer in its final

location for at least 15

minutes to allow it to

settle.

Your fridge freezer is now

working.

If after 24 hours your

fridge freezer is not

operating as you want,

refer to the

TROUBLESHOOTING

section.

Move the fridge freezer

into position, using the

sides of the cabinet.

Take care to avoid

damaging the refrigerant

circuit pipe work on the

rear.

Plug in and switch on.

Allow the fridge freezer to

cool before placing food

inside.

All food in the fridge

freezer should be

covered.

STEP 1 STEP 2

STEP 3 STEP 4

STEP 5 STEP 6

Keep this Book in a safe place for quick reference.

NB.The spanner is for illustration

only and is not supplied with the

fridge freezer.

FRIDGE FREEZER - MODELS RFA17, RFM17, RFA16, RFM16

INSTRUCTIONS FOR INSTALLATION & USE

This appliance must not be installed in a location where the room temperature

drops below 10oC, or exceeds 32oC, for prolonged periods.

For Your Safety

For your safety, read the following advice:

The fridge freezer cooling system contains a small amount of gas which is

environmentally friendly but flammable. To avoid any risk :-

Install the fridge freezer following the installation instructions and ensure

that ventilation openings are kept clear of obstruction.

Take care when installing or moving the fridge freezer to avoid damaging

the pipes on the rear.

If you suspect a leak, do not switch on the fridge freezer, but open the

windows and doors to ventilate the room.

Do not use any mechanical or electrical devices inside the fridge freezer, for

instance for manual defrosting, they may cause damage.

Only use this fridge freezer for storing domestic foodstuffs.

When installing your fridge freezer :-

Ensure that the mains cable is not trapped underneath or behind the fridge

freezer when you install or move it.

Do not stack any other appliance on top of this fridge freezer as they may

damage the fridge freezer or become unstable.

When using your fridge freezer :-

Do not sit or stand on top of your fridge freezer.

Do not store poisonous, flammable or dangerous substances in your fridge

freezer.

Do not use aerosol sprays for defrosting or cleaning your fridge freezer.

If you sell the fridge freezer, pass on this booklet to the new owner.

SAFETY &

INSTALLATION

Installation

Location & Air Circulation

WARNING: This appliance must not be installed in a

location where the room temperature drops below 10oC,

or exceeds 32oC, for prolonged periods.This is because

correct storage temperatures will not be maintained.

Locate your fridge freezer away from sources of heat e.g.

cookers, radiators, direct sunlight as extreme temperature

will affect its performance.

Allow a minimum 100mm (4 inches) between the top of

the fridge freezer and the ceiling or the underside of a

wall cupboard.

Providing you follow the recommended ventilation

requirements you will :-

Prolong the life of the fridge freezer.

Minimise the risk of condensation on the outside of

the fridge freezer.

Minimise the running costs.

Minimise operating sounds caused by vibration.

Minimum space required to open door

The fridge freezer needs a space of 600mm (24 inches) in front to allow the door

to open.

When positioning the fridge freezer next to a unit, a gap of 30mm (11/4inch) can

be left at the hinge side of the door to allow the easy removal of furniture. If

preferred the fridge freezer can be positioned so that a gap is not left.This will

restrict how far the door can be opened but the furniture can still be removed

(see diagrams below).The door hinge side can be changed to make it easier to

open (see ‘Door Reversal’ in the CLEANING & MAINTENANCE section).

SAFETY &

INSTALLATION

100mm

(4 inches)

TOP VIEW TOP VIEW

less than 30mm

30mm or more

600mm

Installation

Levelling:

Level the fridge freezer when it is in its final location by adjusting the front feet, until

firm contact is made with the floor. This will stop rocking or vibration and keep the

doors aligned which helps the fridge freezer run reliably and efficiently.

Note: Before plugging in and switching on, leave the fridge freezer standing

in its final location for at least 15 minutes to allow it to settle.

SAFETY &

INSTALLATION

Defrost Tube:

A tube is supplied to help feed defrost water into a collecting vessel, ie. a bowl (see

‘Defrosting’ in the CLEANING & MAINTENANCE section).

For safe keeping until required, the tube can be stored in the floor of the freezer

compartment.

Floor of the freezer compartment

Defrost tube in storage position

WARNING: Failure to level the appliance correctly may result in misalignment

of the cabinet and/or doors.

Installation

Electrical Supply

WARNING: This appliance must be earthed.

The appliance must be positioned so that the plug is accessible after

installation.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the

fuse, only use those rated at 13A and ASTA approved to BS1362.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

anywhere else.

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE :

Green/Yellow - Earth

Blue - Neutral Brown - Live

If you change the plug, the colour of wires in the mains lead may not correspond with

the colour of the markings identifying terminals in the plug. You should therefore

wire it as shown above.

Changing the Mains Lead

This appliance is fitted with a special mains lead. If you need to replace the mains

lead due to damage, one can be bought from Hotpoint Service (see KEY CONTACTS,

back page).

It is strongly advised that this work is carried out by a qualified electrician.

CE Marking certifies that this appliance conforms to the following EEC

directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

SAFETY &

INSTALLATION

Controls

Controlling the Temperature of the Fridge Compartment

The control wheel on the front of the worktop adjusts the internal fridge

compartment temperature. The internal temperature should be 5˚C or colder,

although some sections such as the salad bin will be slightly warmer.

The setting of the control wheel will depend on the location of the appliance, the

room temperature and how often the doors are opened. The normal set point

(marked by a 3 and N on the dial) is usually suitable. If you need to adjust the

temperature turn the control wheel:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

Controlling the Temperature of the Freezer Compartment

With a suitable fridge compartment temperature, the freezer compartment will

automatically be maintained at the correct temperature (below -18˚C).

You can check the temperature of the fridge freezer compartments by using a Fridge

Freezer Thermometer available from Hotpoint Genuine Parts and Accessories Mail

Order Hotline (see KEY CONTACTS back page).

WARNING: Do not use a mercury filled thermometer, as breakage would cause a

health hazard.

CONTROLS

Temperature Indicator

(not applicable to all models)

The temperature indicator is located on the bottom right

hand side of the fridge compartment wall.

This indicator shows when the fridge compartment of your

fridge freezer is operating at the correct temperature.

After plugging in and switching on PLEASE WAIT 24 HOURS for the fridge

compartment temperature to stabilise. After this time the indicator should clearly

show OK and that indicates the fridge compartment is operating at the correct

temperature.

If the indicator is completely black, the compartment temperature is too high and

you should adjust the control wheel to a colder setting (see above).

If you have to adjust the temperature setting please WAIT A MINIMUM OF 10 HOURS,

this is time for the temperature to stabilise before checking that the indicator is

showing OK.

If large quantities of food have been added or if the fridge compartment door has

been opened frequently it is normal for the temperature indicator not to show OK.

WAIT A MINIMUM OF 10 HOURS before adjusting the temperature to a colder setting.

Useful Advice

Note:

The Rating Plate, which lists the

appliance Model Number and Serial

Number can be found near the bottom

of the freezer compartment on the

interior wall.

Note:

The photographs indicate the Fast

Freeze and storage areas (see tables).

The fridge cabinet and door furniture

will vary according to each model

specifications.

USEFUL ADVICE

Fast Freeze

Making the best use of your Fridge Freezer

Note : Always use the handle provided to open the fridge / freezer door.

To ensure that your fridge freezer operates as efficiently as possible :

Follow food packaging “best before/use by”instructions or your suppliers

advice on a suitable maximum storage time.

Keep foods tightly covered to retain moisture and prevent flavour/odour

transference. Plastic bags, aluminium foil, plastic stretch wrap and containers

with lids are ideal.

Select chilled and frozen food last when shopping, transport in a ‘cool bag’

and place in freezer as soon as possible after arriving home.

Avoid opening the doors unnecessarily or for longer than needed.

Allow hot or warm food to cool down in covered containers before placing in

the fridge or freezer, as placing hot food inside reduces efficiency.

Prepare fresh foods for freezing in small quantities to ensure that the food

freezes quickly and so that its quality does not deteriorate.

Ensure that packets/containers of food are dry before freezing otherwise

they may freeze together.

Storing Food in a Fridge

Pack and store cooked and fresh food separately.

Wrap raw or defrosting meat and poultry in polythene or foil and store

below cooked foods and dairy products to avoid contamination of dripping

food juices.

Wrap cheese in greaseproof paper and place in an airtight container or

polythene bag.

Bring to room temperature before consuming.

Empty left over canned food into a covered storage containers before

placing in the fridge.

Position food to allow cold air to circulate freely, ensuring nothing comes

into contact with the back of the fridge compartment, or covers the defrost

gutter drain hole below this.

Use the different storage zones inside your fridge compartment to store a

wide variety of food items.

Useful Advice

USEFUL ADVICE

STORAGE ZONES

Zone Type Food Storage

A Cool Dairy products, Cheese, butter, margarine,

Low fat spreads, cooking fats / lards

Preserves - Jam, curd, marmalade,

spread, salad dressing or sauces.

B Colder General food storage

C Coldest Meat fish & poultry

Pre-cooked / chilled food

D Salad Bins Vegetables, fruit and salad items

(Not recommended for the storage of

bananas or onions).

Useful Advice

USEFUL ADVICE

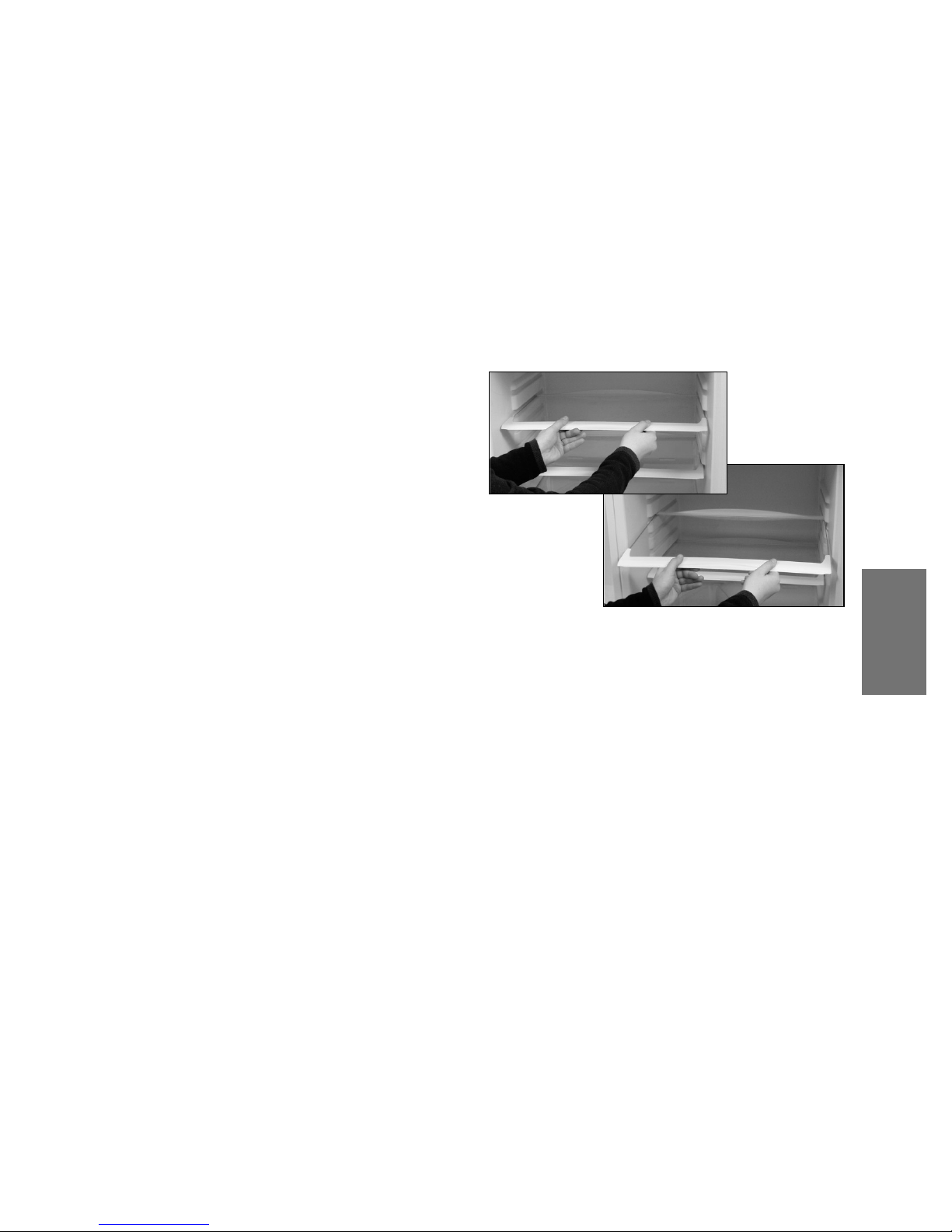

Advice on Adjusting Shelves

Make the most of the interior storage

space by repositioning shelves to suit the

various heights of individual items you

wish to store.

To remove, ensure that the door is open fully.

Slide the shelf forward and tilt from position.

Commodity and Bottle Racks

Commodity racks can be repositioned in the door to suit your storage requirements.

To remove, lift rack vertically to release from fixing supports. To replace, align grooves

on either side of the rack above fixing supports and push down until secure.

Salad Bins

For the storage of fruit, vegetables and salad items.

When storing vegetables, remove unusable leaves and soil. Leave lettuce, cabbage

and cauliflower on the stem.

It is advisable to clean the salad bin regularly, it can be removed by sliding it out from

position.

Note : Care must be taken to ensure that the salad bin is pushed in fully before

shutting the fridge door.

Useful Advice

USEFUL ADVICE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hotpoint Kühlschrank Handbücher

Hotpoint

Hotpoint CB16M 60/40 Bedienungsanleitung

Hotpoint

Hotpoint HTH16BBXLCC - 15.5 cu. Ft. Top-Freezer... Bedienungsanleitung

Hotpoint

Hotpoint CTX18EACAA Bedienungsanleitung

Hotpoint

Hotpoint HL161I Bedienungsanleitung

Hotpoint

Hotpoint FF Series Bedienungsanleitung

Hotpoint

Hotpoint RLA51 Bedienungsanleitung

Hotpoint

Hotpoint SXBHAE 924 WD Bedienungsanleitung

Hotpoint

Hotpoint Electronic No-Frost Refrigerator Bedienungsanleitung

Hotpoint

Hotpoint FFFL Bedienungsanleitung

Hotpoint

Hotpoint MSZ 906 DF (UK) Bedienungsanleitung

Hotpoint

Hotpoint RLA81 Bedienungsanleitung

Hotpoint

Hotpoint 162D6746P002 Betriebsanleitung

Hotpoint

Hotpoint SDS Series Bedienungsanleitung

Hotpoint

Hotpoint CSX22T Montageanleitung

Hotpoint

Hotpoint CTF16E Montageanleitung

Hotpoint

Hotpoint HL161AI Bedienungsanleitung

Hotpoint

Hotpoint STM 15xx xx Bedienungsanleitung

Hotpoint

Hotpoint FFB6200AX Bedienungsanleitung

Hotpoint

Hotpoint CTX18BACWW Bedienungsanleitung

Hotpoint

Hotpoint HS2321L Bedienungsanleitung

Hotpoint

Hotpoint CSX27C Series Bedienungsanleitung

Hotpoint

Hotpoint HME400N Bedienungsanleitung

Hotpoint

Hotpoint ENBLH 19xxx FW O3 Bedienungsanleitung

Hotpoint

Hotpoint HTS16BBSALCC and Betriebsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
