Hotpoint RN328HSA Handbuch

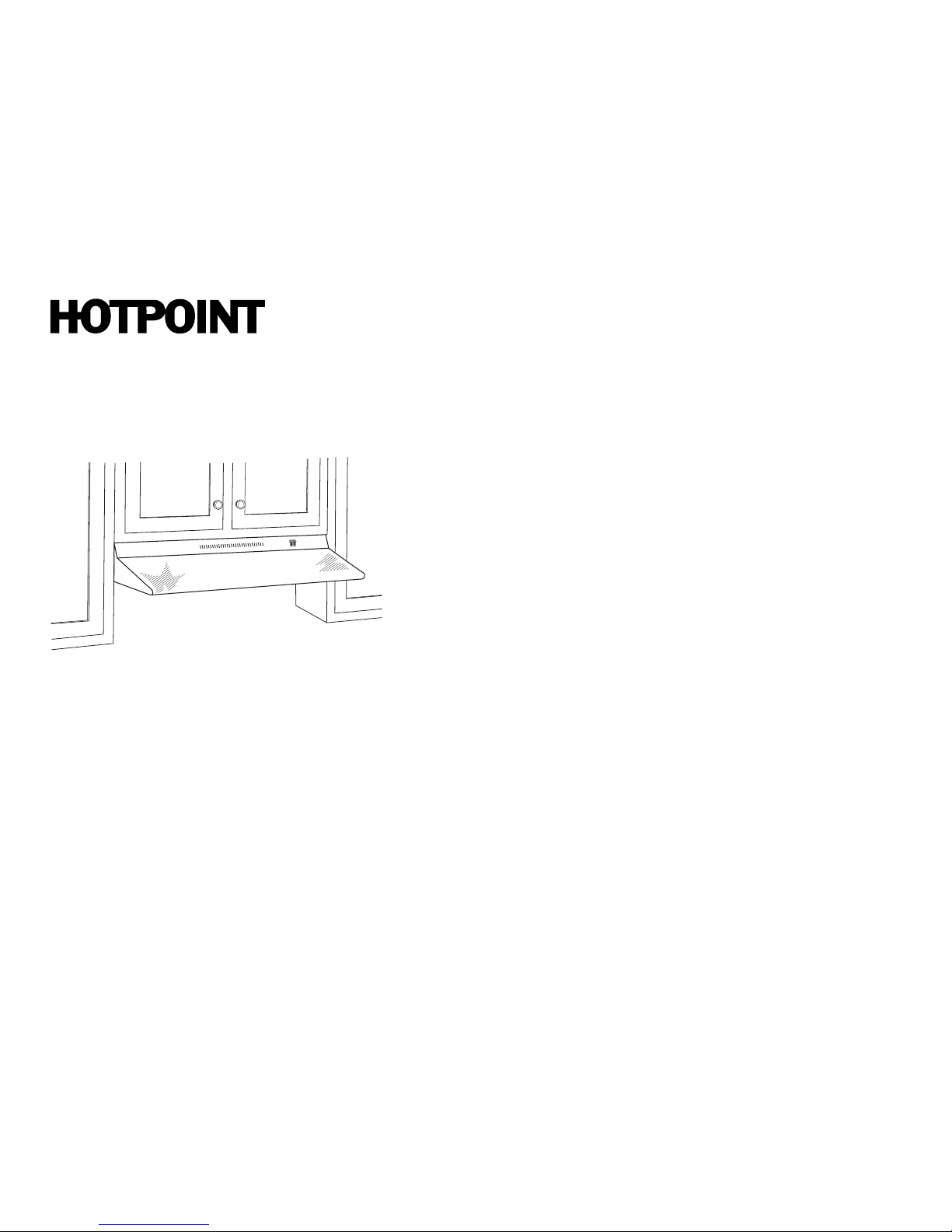

RN328H – Hotpoint Standard Range Hood

5-1/2

29-7/8

17-1/2

1-3/8" Typ.

8-5/16" Typ.

Center line

of hood

1-1/4

Optional top power

supply connection

1-1/8" Typ.

7-3/4

3-1/4

1/2

Rear power

supply connection

1-3/8" Typ.

8-5/16" Typ.

Center line

of hood

1-1/4

Optional power

supply connection

1-1/8" Typ.

7-3/4

5-3/4

WB02X9381 replacement grease filter and WB02X10700 replacement charcoal

filter are available for additional cost. Call toll-free 800.626.2002.

JXHC1 Cord Kit: Allows a receptacle in the cabinet over the range to accommodate

either an over-the-range microwave oven or a standard hood.

Installation Information: Before installing, consult installation instructions,

packed with product, for current dimensional data.

Model JN327

Center

line of hood

1-1/4

Optional power

supply connection

Exhaust outlet

1-1/8" Typ.

7-3/4

1-3/8" Typ.

8-1/4" Typ.

Dimensions (in inches)

KW Rating

120V 2.5

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Listed by

Underwriters

Laboratories

Specification Created 1/04

430300

Specification Created 1/04

430300

Features and Benefits

• Non-Vented – Effectively filters smoke and vapors through the hoods filtration system.

• Cooktop light – Provides light to illuminate cooking surface below hood.

• Removable carbon filter – Odor absorbing activated charcoal filter can be easily replaced.

• Round ducting – Hood is designed to fit standard round duct work.

• Model RN328HSA – Silver metallic

RN328H – Hotpoint Standard Range Hood

RN328SHSA
