Microtower Brios hp brio ba300 5-1

hp brio ba300

models and accessories

Product

Number

Hard

Drive

Video

Controller

Std.

RAM

Multi-

media1

Modem/

LAN

OS2

Models with Intel Celeron Processor FCPGA3package (socket 370) and

66MHz System Bus Speed

700 MHz / 128k (CPL-OFF: 10/01)

P4680C

10 GB Integrated

Direct AGP

8MB

64 MB

SDRAM

48 ✕Max

CD-ROM

Linux

P4681A

W98

2nd Ed.

P4682A 20 GB 10/100

Base-T

733 MHz / 128k (CPL-OFF: 10/01)

P4684A

20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM

48 ✕Max

CD-ROM

No W98

2nd Ed.

P4686A 10/100

Base-T Linux

P4688C No

Models with Intel Celeron Processor FCPGA3package (socket 370) and

100MHz System Bus Speed

800 MHz / 128k (CPL-OFF: 10/01)

P4689A

20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM

48 ✕Max

CD-ROM

W98

2nd Ed.

P4692A/B 10/100

Base-T

P4693C No Linux

850 MHz / 128k (CPL-OFF: 10/01)

P4694C

20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM

48 ✕Max

CD-ROM No

W98

2nd Ed.

P4695C Linux

hp brio ba300

Microtower Brios5-2 hp brio ba300

900 MHz / 128k (CPL-OFF: 10/01)

P4696A

20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM

48 ✕Max

CD-ROM

W98

2nd Ed.

P4696C

Linux

P4697A

P4697C

W98

2nd Ed.

P4698A/B 10/100

Base-T

Models with Intel Pentium III Processor FCPGA3package (socket 370) and

133 MHz System Bus Speed

866MHz / 256k (CPL-OFF: 10/01)

P4683A 20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM

48 Max

CD-ROM

10/100

Base-T

W98

2nd Ed.

933MHz / 256k (CPL-OFF: 10/01)

P4685A

20 GB

Integrated

Direct AGP

8MB

64 MB

SDRAM 48 Max

CD-ROM

10/100

Base-T

W98

2nd Ed.

P4685B

P4687A 128 MB

SDRAM

1000 MHz / 256k (CPL-OFF: 10/01)

P4690A/B 40 GB Integrated

Direct AGP

8MB

128 MB

SDRAM 48 Max

CD-ROM

10/100

Base-T

W98

2nd Ed.

P4691A/B 20 GB 64 MB

SDRAM

1. All models have an integrated full-duplex AC97 audio controller.

2. Operating system preloaded on these models, as indicated in the table (with Linux models

the operating system CD is in the box, not preloaded).

3. FCPGA=Flip Chip Plastic Grid Array.

Product

Number

Hard

Drive

Video

Controller

Std.

RAM

Multi-

media1

Modem/

LAN

OS2

hp brio ba300

Microtower Brios hp brio ba300 5-3

supported accessories

Memory

64-MB kit 32-bit SDRAM, 133 MHz non-ECC main memory module P1536T

64-MB kit 32-bit SDRAM, 133 MHz non-ECC main memory module

(pack of 20)

P1540T

128-MB, 32-bit SDRAM, 133 MHz non-ECC main memory module P1537T

256-MB, 32-bit SDRAM, 133 MHz non-ECC main memory module P1528T

Monitors

All current HP Monitors (see the HP Monitors Service Handbook)

Mass Storage

20 GB IDE Ultra ATA/66 HDD P2666A

Multimedia / Audio Accessories

48 ✕Max IDE CD-ROM drive D9444A

48 ✕Max IDE CD-ROM drive (pack of 20) D9445A

Data Communications and LAN Adapter Boards

HP 10/100 Base-T PCI Ethernet Adapter D7508B

External USB Modem P1979A

For manuals and documentation refer to the HP Support web where

PDF files are available for download at:

www.hp.com/go/briosupport.

For information on HP Brio accessories, visit the following HP web

site:

www.hp.com/go/pcaccessories.

hp brio ba300

Microtower Brios5-4 hp brio ba300

system board, BIOS, and memory

Power supply

Up to Three PCI Expansion

Card Slots:

Some slots may come with

pre-installed cards

Main memory modules

(2 slots):

133 MHz SDRAM

64 MB kit; 128 MB kit

Hard drive

One Free Front Access

Device Shelf

Floppy drive

Processor

hp brio ba300

Microtower Brios hp brio ba300 5-5

system board jumpers

NOTE: The PC’s power must be unplugged from the power

outlet to Clear CMOS. Once the power is disconnected

move the jumper to the clear CMOS position for 5

seconds, then put it back in the normal position.

BIOS History

For the latest BIOS, the flasher utility program, and the BIOS history refer to the

HP World Wide Web site.

http://www.hp.com/go/briosupport/

Clear CMOS (J6)

Clear CMOS

Default position

Clear Passwords (J8)

Clear Password

Default position

hp brio ba300

Microtower Brios5-6 hp brio ba300

part numbers

678

hp brio ba300

Microtower Brios hp brio ba300 5-7

parts list for hp brio ba300 pcs

Item Description Repl.

Part Number

Exchange

Part Number

1 Chassis barebone includes chassis frame, top

cover, front bezel with ON/OFF circuitry, FDD

& HDD frames, I/O Plate, PSU, FDD, cables

5065-4268 —

2 Bezel kit includes front bezel with ON/OFF

circuitry, and a 5.25 inch filler

5065-4283 —

3 Power supply P4680-63021 —

4 Cable Kit (including CD-ROM to audio cable) 5065-4281 —

5 Floppy disk drive (without front bezel) P4680-63011 —

6 48X IDE CD-ROM drive D4389-60091

7 IDE hard disk drive

10 GB U5

20 GB U5

20 GB 5400 rpm

40 GB 5400 rpm

—

P2019-63004

P2021-63004

P4738-63001

P4737-63001

P2019-69004

P2021-69004

P4738-69001

P4737-69001

8 Scrolling mouse C4737-60001 —

Standard keyboard (not shown) C4739-601xx —

9 Telephone Cable for:

US 5182-5432 —

UK 5182-5438 —

Australia 5184-3806 —

Thailand 8120-8871 —

India 8121-0561 —

10 Power Cord (not shown) 8120-xxxx —

11 Modems:

USB Modem V90 (US) 5065-2590 —

USB Modem (US) 5064-9789 —

USB Modem (Australia) 5065-1204 —

Accton Tana II 5065-2523 —

12 System board See system board parts list

13 1

1. Not shown

HP Image Recovery Creation & CD-ROM

(Windows 98)

HP Diagtools CD-ROM

5970-0470-xx2

5970-0471-CH3

5970-4073

2. xx=US, Taiwan, Korea, Hong Kong, Thailand

3. CH=China

—

hp brio ba300

Microtower Brios5-8 hp brio ba300

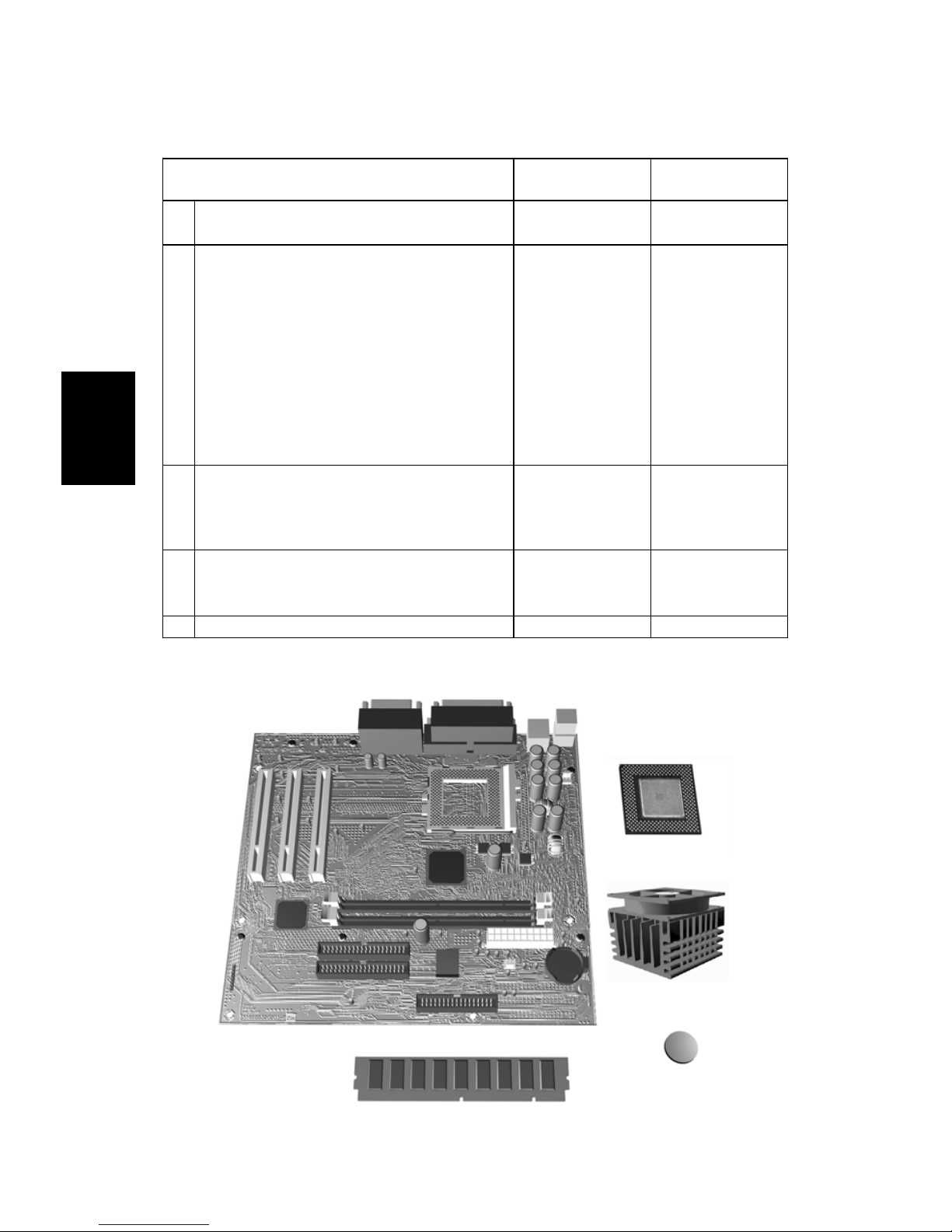

system board parts list for hp brio ba300 pcs

Description Repl.

Part Number

Exchange

Part Number

1 System board:

Brio BA300 system board — P4680-69001

2 Processors (socket 370):

Intel Celeron 700/66 128KB L2 cache, 370p P1838-63001 —

Intel Celeron 733/66 128KB L2 cache, 370p P1839-63001 —

Intel Celeron 766/100 128KB L2 cache, 370p P1840-63001 —

Intel Celeron 800/100 128KB L2 cache, 370p P1841-63001 —

Intel Celeron 850/100 128KB L2 cache, 370p P1842-63001 —

Intel Celeron 900/100 128KB L2 cache, 370p P1843-63001 —

Intel PIII 866/133 256KB L2 cache, 370p — D9873-69001

Intel PIII 933/133 256KB L2 cache, 370p — D9486-69001

Intel PIII 1000/133 256KB L2 cache, 370p — P1579-69001

3 Heatsink:

Active Heatsink for PIII 1GHz models

Heatsink Assembly for Celeron models and

PIII models below 1GHz

5065-1297

5065-4753

—

4 Main memory modules:

1 ✕64MB, 133 MHz non-ECC PC133 P1536-63010 —

1 ✕128MB, 133 MHz non-ECC PC133 P1537-63010 —

5 Battery type CR2032: 1420-0356 —
