HP Compaq Presario Handbuch

3-28

Volume Two

Presario 4600

System Boards (w/o Processor) Spare Part System

Processor Board, w/o Processor 311009-001 All

Heat Sink/ Clip, PII 317216-001 All

Configuration Jumper Settings

Frequency (MHz) JP1 JP2 JP3

233 OFF ON ON

266 ON OFF OFF

300 ON OFF ON

333 ON ON OFF

Pentium II Jumper Table

Function Jumper Position Setting

CMOS J7 Normal 1-2*

CLEAR CMOS: To clear CMOS,

move the jumper from pins 1-2 to

pins 2-3 for 10 seconds, then

return to pins 1-2.

2-3

* Default

Microprocessors Spare Part System

PII/266 w/ 512 Cache 328412-001 4620, 26, 40

PII/300 w/ 512 Cache 328413-001 4665, 60

Heat Sink/Clip Kit, PII Processor 317216-001 4600

Memory Assembly Spare Part System

16 MB Synch DRAM, DIMM,

60ns 278030-002 278066-001 4640

32 MB DIMM 286548-001 304287-001 All

1 MB Video Memory, EDO 210257-003 271462-001 All

2 MB Video Memory, EDO 170719-001 All

Miscellaneous Assembly Spare Part System

Keyboard, U.S./Can. English 286220-003 304286-003 All

Mouse, Ivory 149998-006 199181-101 All

Speaker 304257-001 304241-001 All

Fan 298474-001 All

Hardware Kit 304239-001 All

Hard Drives Spare Part System

4.0 GB, IDE 286248-001 4620, 26, 40

8.0 GB, IDE 298464-001 4660

12.0 GB, IDE 298465-001 4665

Volume Two

3-29

Presario 4600

CD-ROM Drive Spare Part System

CD-ROM, IDE, 24-spd 317211-001 4620, 26

DVD-ROM Drive Spare Part System

DVD-ROM 170718-001 4640, 60, 65

Diskette Drives Spare Part System

1.44 MB, 3.5” 239612-401 All

56 Kb/s Modem

Country Assembly Spare Part Cable

Spare Part

APD 292256-003 317297-373 165224-001

Australia 007201-003 317296-001 304398-011

Belgium 007201-003 317296-001 304398-181

Brazil 292256-003 317297-001 165224-001

Canada 292256-003 317297-001 165224-001

Caribbean 292256-003 317297-001 165224-001

Denmark 007201-003 317296-001 304398-081

Finland 007201-003 317296-001 304398-351

France 007201-003 317296-001 304398-051

Germany 007201-003 317296-001 290663-001

Italy 007201-003 317296-001 165224-062

Japan 292256-003 317297-002 165224-001

Korea 007201-003 317296-001 165224-001

Latin America 292256-003 317297-001 165224-001

Mexico 292256-003 317297-001 165224-001

Netherlands 007201-003 317296-001 304398-331

New Zealand 007201-003 317296-001 165224-033

Norway 007201-003 317296-001 304398-091

Puerto Rico 292256-003 317297-001 165224-001

Singapore 007201-003 317296-001 304398-AF1

Spain 292256-003 317297-001 304398-071

Sweden 007201-003 317296-001 304398-101

Switzerland 007201-003 317296-001 304398-111

Taiwan 292256-003 317297-002 165224-001

Thailand 292256-003 317297-001 165224-001

U Kingdom 007201-003 317296-001 165224-033

US 292256-003 292269-003 165224-001

Cables Spare Part System

Cable Kit: HD, Diskette, CD-ROM Data, CD-

ROM Audio, Serial Cable 170720-001 All

ROM Information Spare Part System

System ROMPaq 148218-001 All

Power Supply/Battery Spare Part System

Power Supply, 110W 317218-001 All

Battery 234556-001 All

3-30

Volume Two

Presario 4600

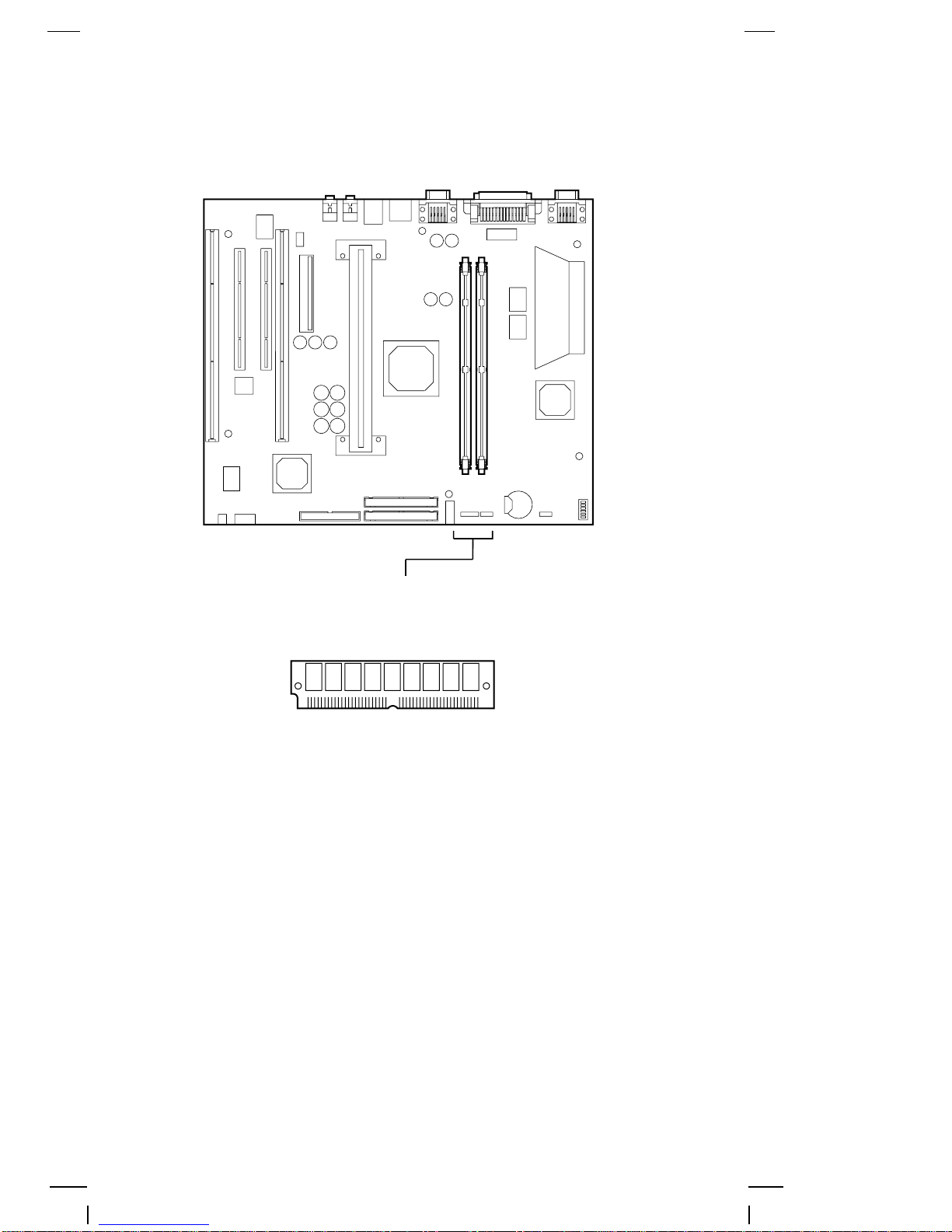

Memory Upgrade Chart

16-MB SDRAM, - OPTION PN 271433-001

A MAXIMUM OF 256 MB TOTAL MEMORY

SYSTEM IS UPGRADABLE TO 256MB USING 16, 32, 64, and 128MB DIMMS.

I/O BOARD

SPARE PART 311009-001

32-MB SDRAM, - OPTION PN 271343-001
