HP EliteDesk 705 G2 Desktop Mini Montageanleitung

EL-MF877-00 Page 1

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Product End-of-Life Disassembly Instructions

Product Category: Personal Computers

Marketing Name / Model

[List multiple models if applicable.]

HP EliteDesk 705 G2 SFF Business PC

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions

for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU

directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description

Notes

Quantity

of items

included

in product

Printed Circuit Boards (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq cm

Main Board

Batteries

All types including standard alkaline and lithium coin

or button style batteries RTC

Mercury-containing components

For example, mercury in lamps, display backlights,

scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater

than 100 sq cm

Includes background illuminated displays with gas

discharge lamps

Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height

External electrical cables and cords

AC power cord

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants

weighing > 25 grams (not including PCBs or PCAs

already listed as a separate item above)

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations.

Components and waste containing asbestos

Components, parts and materials containing

refractory ceramic fibers

EL-MF877-00 Page 2

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Components, parts and materials containing

radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if

applicable)

Description #1

Description #2

Description #3

Description #4

Description #5

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

1. Remove access panel

2. Remove all add-on cards

3. Remove all cables from main board and devices

4. Remove front bezel and hood lock

5. Remove SD card reader and ODD

6. Remove all equipped HDD

7. Remove PSU

8. Remove M/B

9. Remove 95W / 65W heat sink from M/B

10. Remove DDR and battery from M/B

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).

EL-MF877-00 Page 3

Template Revision B

PSG instructions for this template are available at EL-MF877-01

1. Remove access panel

Lift the latch to

release access

panel of SFF

chassis as photo1

shown

Rotate the driver

cage up to vertical

position and release

the retainer bracket

as photo2 shown



EL-MF877-00 Page 4

Template Revision B

PSG instructions for this template are available at EL-MF877-01

2. Remove all add-on cards

Remove all of the

add-on cards if sku

obtained

(See Photo3,4,5)




EL-MF877-00 Page 5

Template Revision B

PSG instructions for this template are available at EL-MF877-01

3. Remove all cables from main board and devices

Release all the

cables have been

connected between

M/B and devices

(See Photo6)

1) Power cable (6 pin)

2) Heat sink cable

3) 12v PWR cable (4pin)

4) Audio cable

5) Front USBx2 & card

reader

6) HDD SATA & PWR

7) ODD SATA & PWR

8) Add on card cabl

9) Hood lock cable


EL-MF877-00 Page 6

Template Revision B

PSG instructions for this template are available at EL-MF877-01

4. Remove front bezel and hood lock

Lift up 3 latches

then remove front

bezel

(See Photo7,8)

Release tamper

proof screw then

release the cable

from M/B

(6-32 x .187”

Security Head)

(See Photo9,10,11)






EL-MF877-00 Page 7

Template Revision B

PSG instructions for this template are available at EL-MF877-01

5. Remove SD card reader and ODD

Release 1 screw

from card reader

(6-32 x 0.187”)

(See Photo12)

Remove card reader

module from chassis

(See Photo13,14)

Release the latch

from ODD cage then

pull ODD out of

cage; direction as

photo16 shown

(See Photo15,16)

Remove the plastic

latch from ODD as

photo17 shown

(See Photo17)







EL-MF877-00 Page 8

Template Revision B

PSG instructions for this template are available at EL-MF877-01

6. Remove all equipped HDD

Lift HDD latch then

press HDD to the

right for escaping

from cage

(See Photo18)

Remove HDD

towards up right

direction as 1st HDD

releasing

(See Photo19)

Lift HDD latch (Red

one) up then press

HDD to the right for

escaping from cage

(See Photo20)

Remove HDD

towards the direction

as shown as 2nd

HDD releasing

(See Photo21)





EL-MF877-00 Page 9

Template Revision B

PSG instructions for this template are available at EL-MF877-01

Release the screw

first then pull HDD

out of cage

(6-32 x 0.187”)

(See Photo22)

Remove HDD

towards up right

direction as 3rd HDD

releasing

(See Photo23)



EL-MF877-00 Page 10

Template Revision B

PSG instructions for this template are available at EL-MF877-01

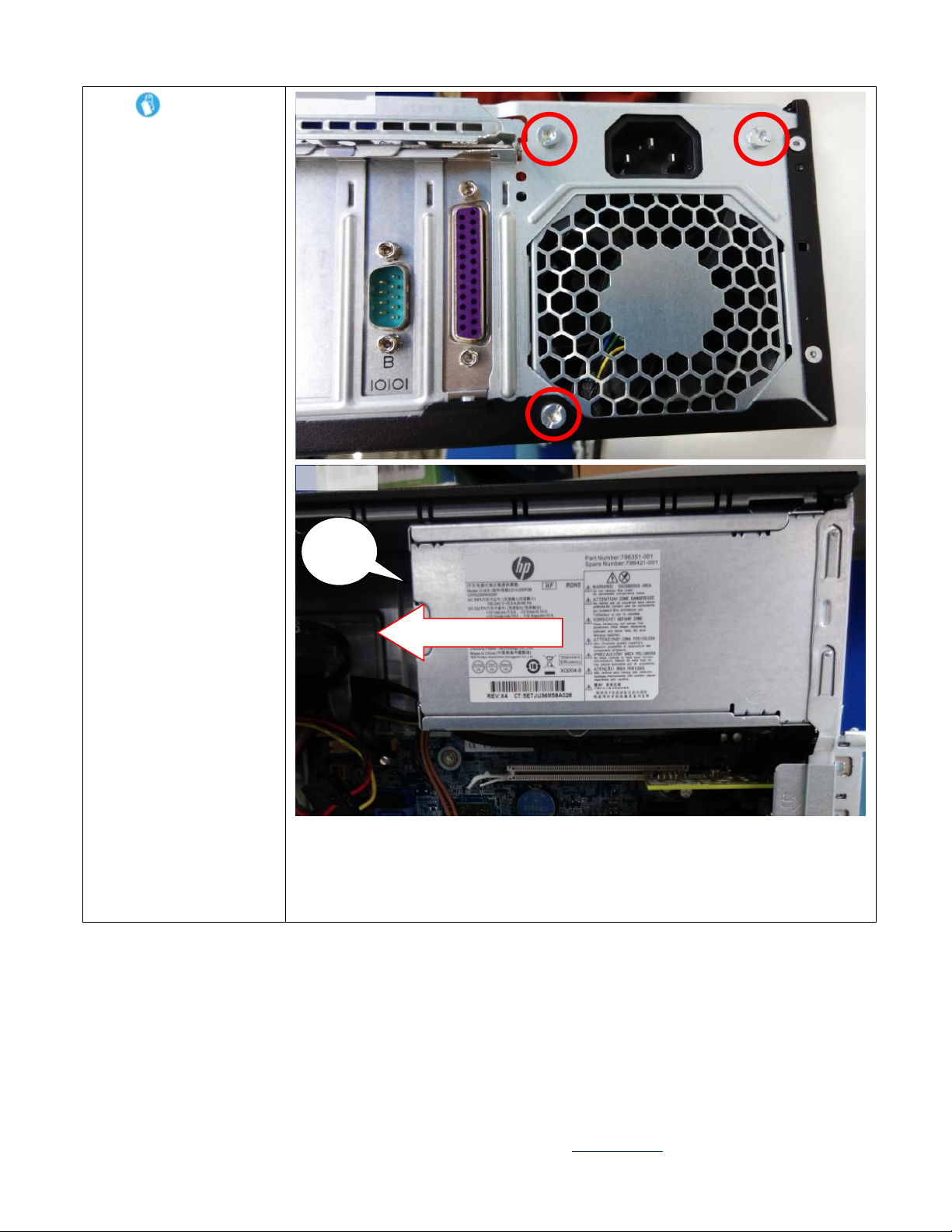

7. Remove PSU

Release 3 screws of

PSU

(See Photo24)

Draw PSU to the

direction as shown

by pressing down

the latch

(See Photo25)



Latch is

inside

here
