HP TouchSmart 9300 Elite Gebrauchsanweisung

Touch-enabled Full HD LED backlit LCD display

12.

HP optical mouse

Dual wireless antennas

13.

HP low-profile keyboard with numeric keypad

Dual microphone array

14.

High-performance 2.0 speakers

Adjustable 2MP Webcam

15.

Volume buttons

Slot-load optical drive (optional)

16.

Mute button

Optical drive activity LED

17.

Hard drive activity LED

Optical drive eject button

18.

Media card reader activity LED

Adjustable reclining stand

19.

Media card reader

IR Receiver (select models)

20.

(2) USB 2.0 ports

10.

Power LED

21.

Microphone in

11.

Power button

22.

Headphone jack

* Base of stand includes a swivel pad and a VESA mounting bracket.

** USB wired keyboard and mouse are standard, wireless optional.

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Overview

DA - 13903 North America — Version 17 — July 26, 2012

Page 1

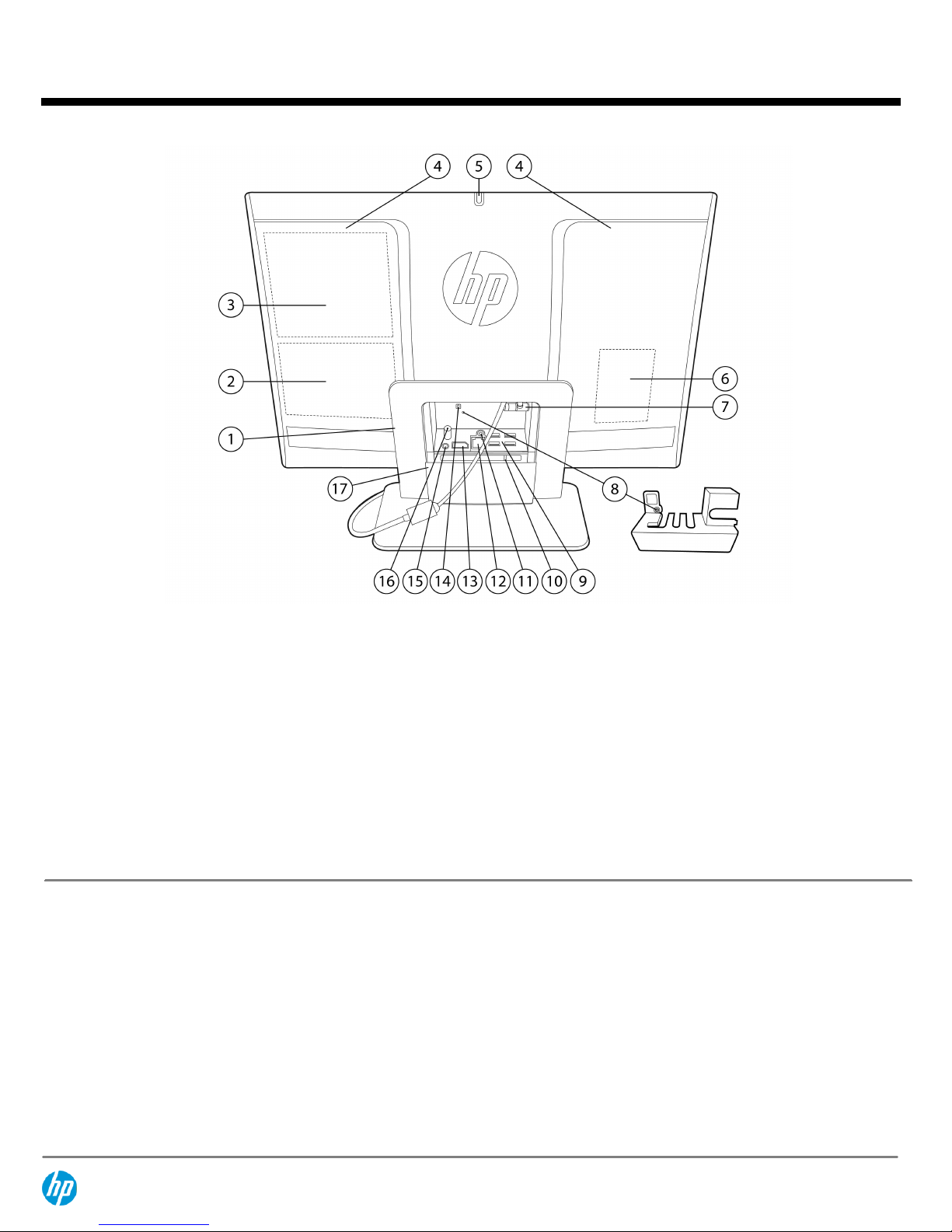

Adjustable reclining stand

10.

USB port for optional wireless keyboard/mouse receiver

Hard drive access

11.

IR Emitter (Blaster) output (optional)

Optical drive access

12.

RJ-45 Gigabit Ethernet port

Removable access panels

13.

DisplayPort

Webcam adjustment wheel

14.

Security lock slot

Memory access

15.

Audio line out

Power cord connecter and power indicator light

16.

TV coax in (optional)

Rear port security cover

17.

Rear port access door

(4) USB 2.0 ports

* Rear port security cover, attached with Torx screw, holds cables in place and prevents rear port access door from opening.

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Overview

DA - 13903 North America — Version 17 — July 26, 2012

Page 2

At A Glance

Intel® 2nd Generation Core™ i7, i5, or i3 processor

Intel H67 chipset

Integrated Intel HD Graphics, or discrete MXM graphics

Integrated Gigabit Network Connection (10/100/1000 NIC)

Optional wireless connectivity:

Integrated 802.11 a/b/g/n or b/g/n wireless LAN module

Bluetooth® 3.0

Integrated adjustable 2MP webcam, dual microphone array, and premium stereo speakers

Optional TV Tuner

Up to 16 GB of DDR3 SDRAM standard, dual channel memory support, four SODIMM slots

Up to 1 TB hard drive, or up to 160 GB Solid State Drive

Slot-load Blu-ray Combo Drive (Blu-ray Reader/DVD Burner) or SuperMulti DVD Burner

6-in-1 Media Card Reader

HP TouchSmart software suite for instant access to calendar, internet, notes, and multimedia content

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Overview

DA - 13903 North America — Version 17 — July 26, 2012

Page 3

Processors

Intel® 2nd Generation Core™ i7 Processors

Intel Core i7-2600 Processor (3.40 GHz, 8M cache, 4 cores/8 threads)*

Intel® 2nd Generation Core™ i5 Processors

Intel Core i5-2500 Processor (3.30 GHz, 6M cache, 4 cores/4 threads)*

Intel® Core™ i5-2400 with Intel HD Graphics 2000 (3.10 GHz, 6 MB cache, 4 cores)*

Intel® Core™ i5-2300 with Intel HD Graphics 2000 (2.80 GHz, 6 MB cache, 4 cores

Intel® 2nd Generation Core™ i3 Processors

Intel Core i3-2130 Processor (3.40 GHz, 3M cache, 2 cores/4 threads)*

Intel Core i3-2120 Processor (3.30 GHz, 3M cache, 2 cores/4 threads)*

Intel® Pentium Processors

Intel Pentium G870 Processor (3.1 GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G860 Processor (3.0 GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G850 Processor (2.9GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G840 Processor (2.8 GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G640 Processor (2.8 GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G630 Processor (2.7 GHz, 3 MB L3 cache, 2 cores)

Intel Pentium G620 Processor (2.6 GHz, 3 MB L3 cache, 2 cores)

Intel® Celeron Processors

Intel Celeron G550 Processor (2.6-GHz, 2 MB L3 cache, 2 cores)

Intel Celeron G540 Processor (2.5-GHz, 2 MB L3 cache, 2 cores)

Intel Celeron G530 Processor (2.4 GHz, 2 MB L3 cache, 2 cores)

* Intel's numbering is not a measurement of higher performance.

Operating System

Preinstalled

Genuine Windows 7 Professional Edition 64

Genuine Windows 7 Professional Edition 32

FreeDOS

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the

Windows 7 software and take full advantage of Windows 7 functionality.

See

http://www.microsoft.com/windows/windows-7/

for details.

Chipset

Intel H67 chipset

Graphics

Integrated Intel HD Graphics

Optional ATI Radeon HD 5570 MXM discrete graphics card (1 GB video memory)

Optional NVIDIA GeForce GT 425M MXM discrete graphics card (1 GB video memory)

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Standard Features

DA - 13903 North America — Version 17 — July 26, 2012

Page 4

Display

23-inch diagonal widescreen WLED backlit BrightView LCD

Multi-touch panel

Resolution

1920 x 1080 resolution (16:9), Full HD (1080p)

Aspect ratio

16:9

Touch Panel accuracy

USB reported touch resolution 32767 x 32767

Contrast ratio

1000:1

Image brightness

250 nits typical

Vertical viewing angle

178 degrees

Horizontal viewing angle

178 degrees

Adjustable Reclining

Stand

Tilt angle

-5º to +60º to the vertical plane

Fully reclined position

30º from horizontal

Memory

Standard Configurations

PC3-10600 DDR3 non-ECC SDRAM (runs at 1333 MHz)

Four 204-pin SODIMM slots supporting dual channel memory

2 GB SODIMMs (up to 4 for 8 GB memory)

4 GB SODIMMs (up to 4 for 16 GB memory)

Maximum memory

Upgradeable to up to 16 GB using four (4) 4 GB SODIMMs

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and

speed in both memory slots.

NOTE:

Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows 32-

bit operating systems, the amount of usable memory is dependent upon your configuration, so that above

3 GB all memory may not be available due to system resource requirements.

Communications

Realtek 8111EDL

Ethernet Connection

Integrated 10/100/1000 NIC

HP 802.11 PCIe Minicard

Wireless Module

(optional)

Support for 802.11 b, g, and n

Up to 300 mbps data rate

Built-in dual antennas

Intel Centrino Advanced-

N 6205 Wireless Network

Interface Connection PCIe

Minicard

(optional)

Support for 802.11 a, b, g, and n

Up to 300 mbps data rate

Built-in dual antennas

Bluetooth Wireless

Technology

(optional)

Bluetooth 3.0 compliant

Works with a wide range of Bluetooth devices

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for

Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,

connection to a Gigabit Ethernet server and network infrastructure is required.

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Standard Features

DA - 13903 North America — Version 17 — July 26, 2012

Page 5

Keyboard

HP USB Low Profile

Keyboard

104 keys plus special keys for Mute, Volume Up, Volume Down. Separate

numeric keypad.

Cable length 51 in (130 cm)

Optional HP Low Profile

Wireless Keyboard

104 keys plus special keys for Mute, Volume Up, Volume Down

Separate numeric keypad.

Operates at ~ 2.4 GHz and supports a working distance of up to 32 ft (10 m).

Pointing Device

HP USB Optical Scroll

Mouse

Two buttons with scroll wheel acting as third button.

Cable length 69 in (175 cm)

Optional HP Wireless

Optical Scroll Mouse

Two buttons with scroll wheel acting as third button.

Operates at ~ 2.4 GHz and supports a working distance of up to 32 ft (10m).

Storage

Hard Drive

3.5-inch, 7200 rpm, 6.0 Gb/s SATA Hard Drive:

250 GB

500 GB

750 GB

1 TB

2.5-inch Self Encrypting Drive:

320 GB

2.5-inch SATA Solid State Drive:

80 GB

160 GB

Optical Drive

Slot Load SuperMulti Blu-ray Writer

Write: 6x max BD-R (SL/DL), 2x max BD-RE (SL/DL), 8x max DVD±R SL,

6x max DVD±R DL, 8x max DVD+RW, 6x max DVD-RW,

5x max DVD-RAM, 24x max CD-R/RW

Read: 6x max BD-ROM/R/RE (SL/DL), 8x max DVD-ROM/±R SL,

6x max DVD-ROM/±R DL, 8x max DVD±RW, 5x max DVD-RAM,

24x max CD-ROM/R/RW

Slot Load SuperMulti Blu-ray Combo Drive

Write: 8x max DVD±R SL, 4x max DVD±R DL, 8x max DVD+RW,

6x max DVD-RW, 5x max DVD-RAM, 24x max CD-R/RW

Read: 6x max BD-ROM/R SL, 4x max BD-ROM/R DL, 4x max BD-RE SL/DL,

8x max DVD-ROM/±R SL, 6x max DVD-ROM/±R DL, 8x max DVD±RW,

5x max DVD-RAM, 24x max CD-ROM/R/RW

Slot Load SuperMulti DVD Writer

Write: 8x max DVD±R SL, 6x max DVD±R DL, 8x max DVD+RW,

6x max DVD-RW, 5x max DVD-RAM, 24x max CD-R/RW

Read: 8x max DVD-ROM SL/DL, 8x max DVD±R SL, 6x max DVD±R DL,

6x max DVD±RW, 5x max DVD-RAM, 24x max CD-ROM/R/RW

Option for no optical drive

6-in-1 Media Card Reader

Supports Secure Digital (SD, SDHC), MultiMedia Card (MMC),

xD-Picture Card, Memory Stick, Memory Stick Pro

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Standard Features

DA - 13903 North America — Version 17 — July 26, 2012

Page 6

Interfaces

DisplayPort 1.2

One (supports video and audio)

USB 2.0

Seven (2 side, 4 rear, 1 bottom rear for optional wireless keyboard/mouse

receiver)

Microphone in

One

Headphone jack

One

Audio line out

One

Power connector

One

RJ-45/Ethernet

One

IR Emitter (Blaster) out

One (with TV tuner option only)

TV Coax connector

One (with TV tuner option only)

Audio/Visual

High Definition Audio support - 16 & 24-bit PCM

Integrated high-performance 2.0 speakers (4W X 2) with Sonic Focus audio post-processing software

Integrated dual-microphone array

Volume control and mute buttons

Stereo headphone jack

Microphone in

Stereo line out

Microsoft Lync certification pending

Vidyo Telepresence certified

Integrated adjustable 2 MP webcam

Up to 30 frames/sec

TV Tuners (configurable)

Hybrid ATSC/NTSC, Clear QAM, Over the Air TV Tuner, HW encoded

Software

Preinstalled software

(varies by country)

HP Power Assistant

Corel WinDVD

Corel Paint It! For TouchSmart

Roxio Creator Business

Roxio Cinema Now for TouchSmart

HP Connect Solutions

HP Setup Manager

HP TouchSmart Browser

HP TouchSmart Calendar

HP TouchSmart Canvas

HP TouchSmart Clock

HP TouchSmart DVD

HP TouchSmart Hulu

HP TouchSmart Live TV

HP TouchSmart Music

HP TouchSmart Video

HP Touch Smart Photo

HP TouchSmart Netflix

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Standard Features

DA - 13903 North America — Version 17 — July 26, 2012

Page 7

HP TouchSmart Notes

HP TouchSmart RSS Reader

HP TouchSmart Symphony

HP TouchSmart Twitter

HP TouchSmart Weather

HP TouchSmart Webcam

PDF Complete

Norton Internet Security 2011*

Microsoft Office 2010 Preloaded (purchase of a Product Key required to

activate a full Office 2010 suite)**

* 60 day trial period for Norton Internet Security 2011 software. Internet access required to receive

updates. First update included. Subscription required for updates thereafter.

** Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of

Product Key required to activate full Office 2010 suite available at participating resellers/retailers and

http://www.office.com

HP Power Assistant

Provides real-time reporting of how system settings impact the energy consumed by the PC and the

potential savings over time.

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management

information.

Security

Kensington lock slot

Rear port security cover

Power Supply

180W 90% efficient external power adapter (when configured with Intel Celeron, Pentium or Core i3

processors)

230W 90% efficient external power adapter (when configured with Intel Core i5, i7 processors)

Service and Support

On-site Warranty

Note 1

: One-year (1-1-1) limited warranty delivers one year of on-site, next business-

day

Note 2

service for parts and labor and includes free telephone support

Note 3

24 x 7. One-year onsite and

labor are not available in all countries. To choose the right level of service for your HP product, use the HP

Care Pack Services Lookup Tool at:

http://www.hp.com/go/lookuptool

. Additional HP Care Pack Services

information by product is available at:

http://www.hp.com/hps/carepack

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other

warranty variations may be offered in your region.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP

third-party provider, and is not available in certain countries. Global service response times are based on

commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified

hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Standard Features

DA - 13903 North America — Version 17 — July 26, 2012

Page 8

Memory

HP 2GB DDR3-1333 (PC3-10600) SODIMM

VH640AA

HP 4GB DDR3-1333 (PC3-10600) SODIMM

VH641AA

Memory

HP USB Graphics Adapter

NL571AA

HP DisplayPort To DVI-D Adapter

FH973AA

HP DisplayPort To VGA Adapter

AS615AA

HP DisplayPort To HDMI Adapter

BP937AA

Input Devices

HP 2.4-GHz Wireless Keyboard and Mouse

NB896AA#xxx

HP USB 2-Button Optical Scroll Mouse

DC172B

HP USB 2-Button Laser Mouse

GW405AA

HP USB Standard Keyboard

DT528A#xxx

Security

HP Keyed Cable Lock

BV411AA

Miscellaneous

Thin USB Powered Speakers

KK912AA

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Options

DA - 13903 North America — Version 17 — July 26, 2012

Page 9

System Unit

Dimensions

(HxWxD)

With stand:

17.7 in x 23.0 in x 4.1 in

450.1 mm x 584.5 mm x 103 mm

Without stand, with VESA adapter for wall mount

16.0 in x 23.0 in x 3.8 in

405.2 mm x 584.5 mm x 96 mm

Weight

With stand:

Integrated graphics: 26.0 lb (11.8 kg)

Discrete graphics: 26.7 lb (12.1 kg)

Without stand, with VESA adapter for wall mount:

Integrated graphics: 19.2 lb (8.7 kg)

Discrete graphics: 20.0 lb (9.05 kg)

Shipping Carton

Dimensions

(HxLxW)

21.5 in x 26.8 in x 12.6 in

545 mm x 680 mm x 320 mm

Shipping Carton Weight

36.4 lb (16.5 kg)

Stand-Alone Power

Requirements

Average Operating Power

Integrated graphics: TBD W

Discrete graphics: TBD W

Max Operating Power

Integrated graphics: < 230 W

Discrete graphics: < 180 W

Temperature

Operating

41° to 95° F (5° to 35° C)

Non-operating

-22° to 149° F (-30° to 65° C)

Relative Humidity

Operating

15% to 80% @ 26º C

Altitude

(unpressurized)

Operating

0 to 6,562 ft (0 to 2000 m)

Non-operating

0 to 15,000 ft (0 to 4,572 m)

Industry Standard

Certifications

Yes

CSA

Yes

FCC Compliance

Yes

ENERGY STAR®

Yes

EPEAT

Silver

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

QuickSpecs

HP TouchSmart 9300 Elite All-in-One PC

Technical Specifications

DA - 13903 North America — Version 17 — July 26, 2012

Page 10

Andere Handbücher für TouchSmart 9300 Elite

Inhaltsverzeichnis

Andere HP Desktop Handbücher

HP Pavilion Elite HPE-570 Bedienungsanleitung

HP 8000 - Elite Convertible Minitower PC Installationsanleitung

HP Compaq 6005 Pro MT Bedienungsanleitung

HP Pavilion t500 - Desktop PC Gebrauchsanweisung

HP Media Center m7100 - Desktop PC Technisches Datenblatt

HP Pavilion u700 - Desktop PC Bedienungsanleitung

HP dc72 - Blade Workstation Client Bedienungsanleitung

HP Z VR Backpack G1 Montageanleitung

HP dx2420 - Microtower PC Bedienungs- und Wartungshandbuch

HP Omni Pro 110 Gebrauchsanweisung

HP Pavilion a250 Originalbetriebsanleitung

HP dx2480 - Microtower PC Einrichtungshandbuch

HP E-PC C10 Bedienungsanleitung

HP Pavilion t112 Bedienungsanleitung

HP Pro 3100 Series Gebrauchsanweisung

HP Compaq Presario Technisches Datenblatt

HP 200 G4 22 Handbuch

HP d330 - Desktop PC Bedienerhandbuch

HP Compaq t1010 Handbuch

HP ProOne 440 G3 Montageanleitung

HP Z220 SFF Series Bedienungsanleitung

HP Pavilion t400 - Desktop PC Bedienungsanleitung

HP Model 747i - Workstation Referenzhandbuch

HP 9835A Betriebsanleitung

Beliebte Desktop Handbücher anderer Marken

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung

Everex

Everex eXplora Bedienungsanleitung

Lenovo

Lenovo ThinkCentre M75e Bedienungsanleitung

Dell

Dell Alienware Area-51 R4 Bedienungsanleitung
