Rack Mount Tray Kit Installation

k

Rack Mount Tray Kit Installation

HP xw4200/4300 Workstation

This document describes how to install a rack mount tray on an HP xw4200/4300 Workstation, and how to

mount the workstation in a rack.

Kit Contents

The following parts are shipped with this kit:

Tools Required

■T-15 and T-20 Torx drivers

■Cross-tip driver

■Rail Assembly ■Warranty Card

■Rack Guide Strips ■Rack Mount Installation Instructions

■M5 and M6 Hardware Packets ■Rack Mount Tray

■Rack Mount Template Card

Rack Mount Tray Kit Installation

Page 2 of 4

Attach Rack Mount Tray to Workstation

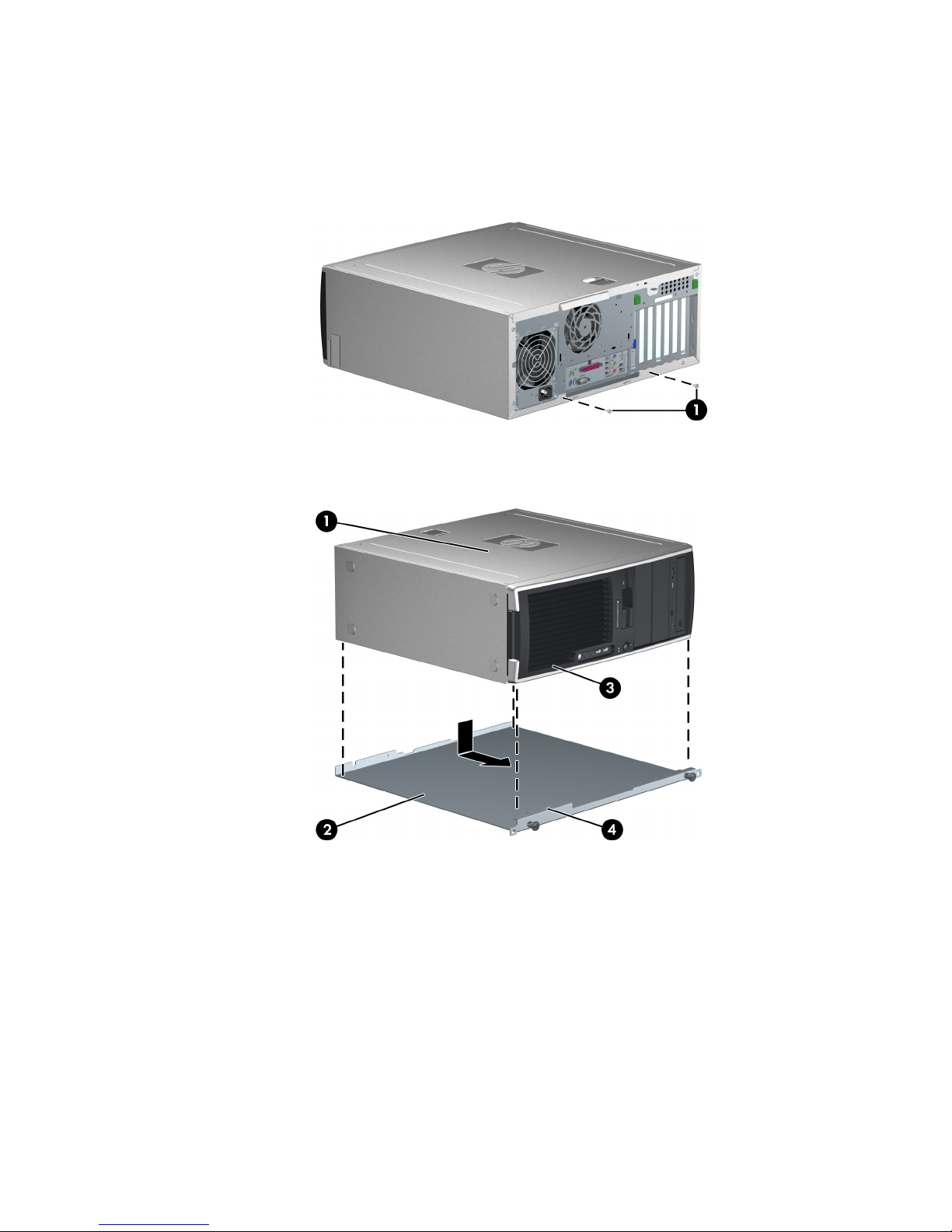

1. Using a T-15 Torx driver, remove the two middle chassis screws 1from the rear of the workstation

and set them aside for reuse.

Remove Chassis Screws

2. Place the workstation 1in the tray 2. Guide the front bezel of the workstation 3forward, under the

lip of the tray 4. Then lower the workstation onto the tray.

Place Workstation in Tray

Rack Mount Tray Kit Installation

Page 3 of 4

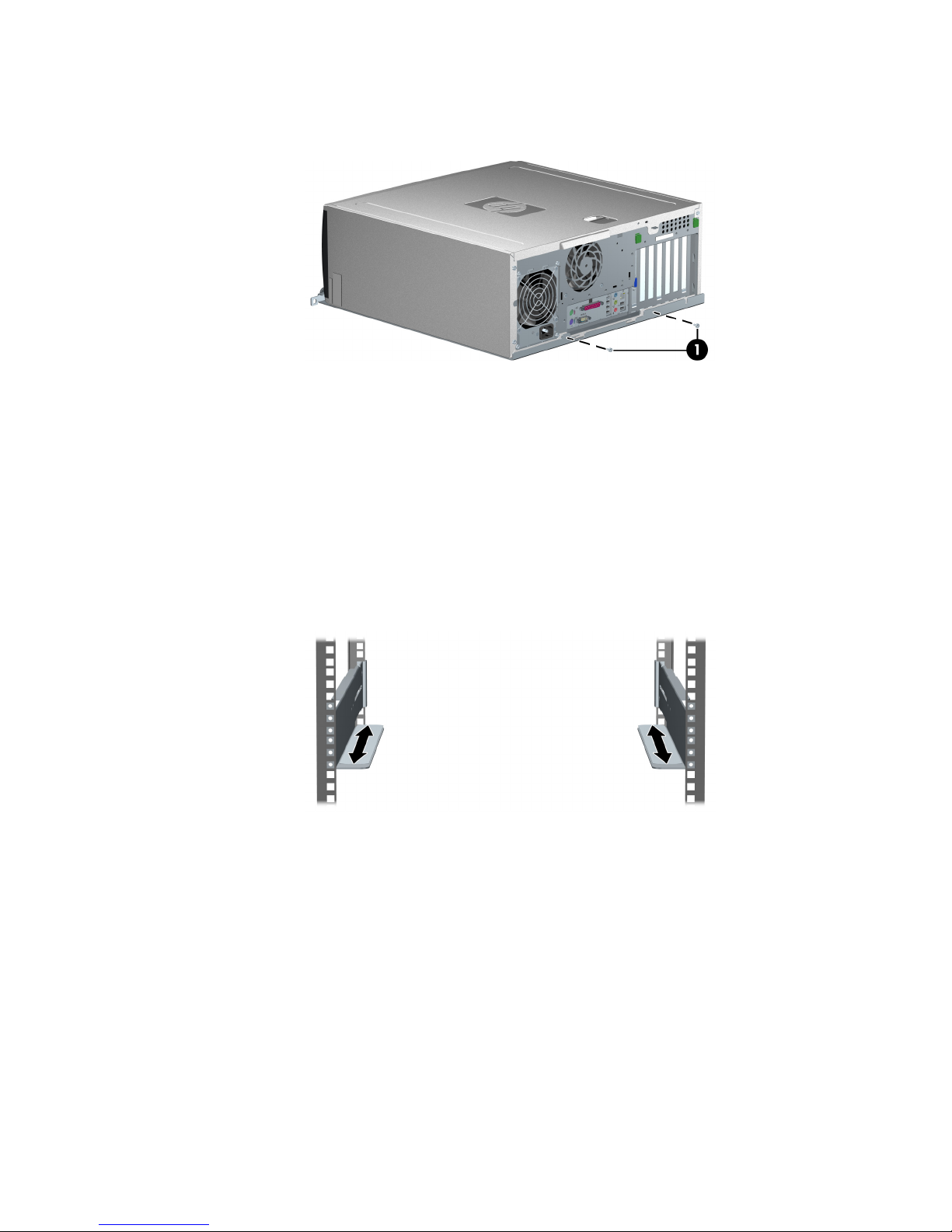

3. Align the screw holes in the tray with the screw holes at the rear of the workstation 1.

Fasten Tray to Workstation

4. Using a T-15 Torx driver, fasten the tray to the workstation with the two chassis screws set aside in

Step 1.

Mount Workstation in Rack

1. Attach the rails to the rack. Refer to the rail installation instructions in this kit.

2. Remove the backing from the adhesive on the back of the guide strips.

3. Apply a guide strips to the top surface of each rail.

Apply Guide Strips

Rack Mount Tray Kit Installation

Page 4 of 4

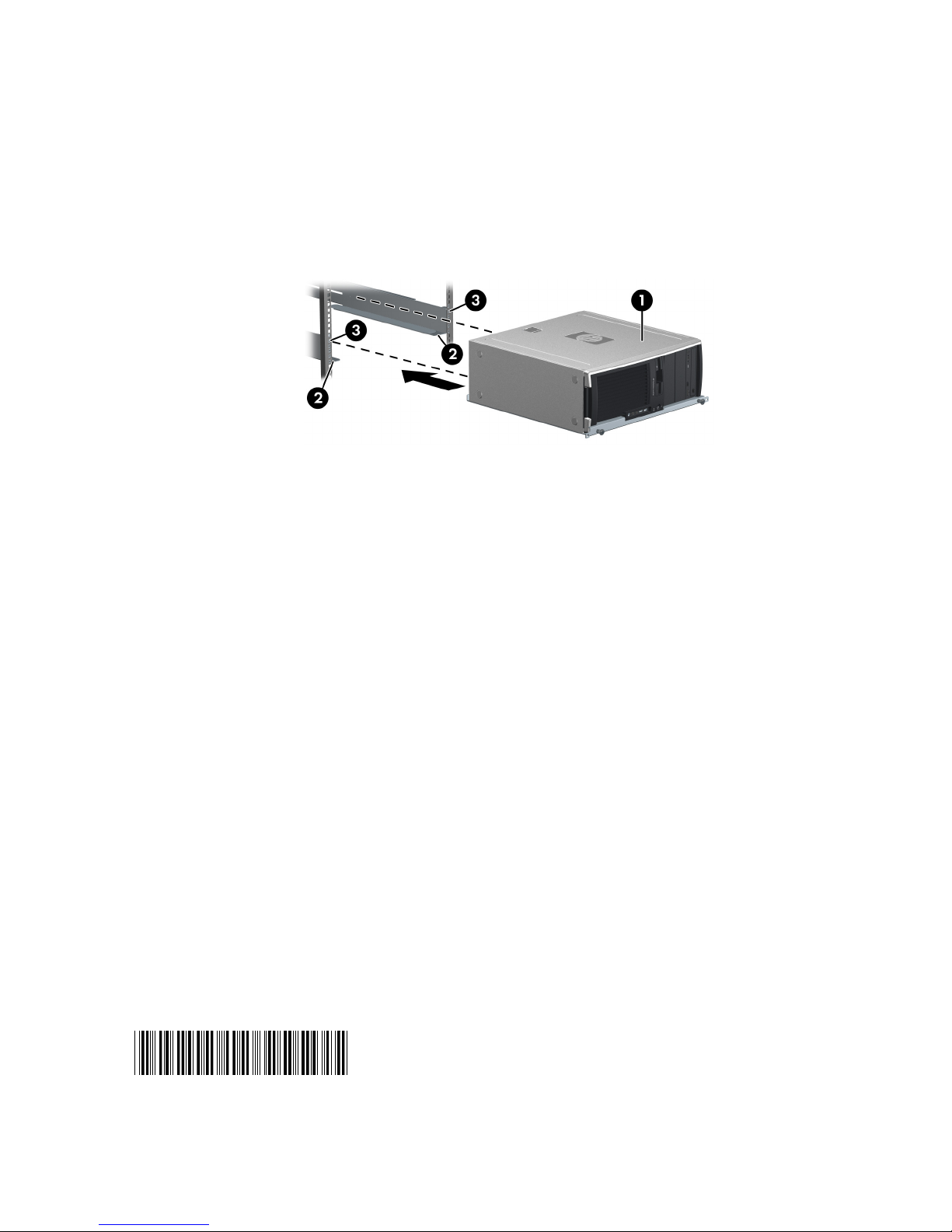

4. Place the workstation with the attached tray 1onto the rails 2in the rack.

5. Slide the workstation all the way into the rack.

6. Using a cross-tip screw driver, secure the workstation to the rail mounting flanges with two M6 screws

3.

For product-specific information, refer to the Service and Technical Reference Guide for your HP

Workstation at http://www.hp.com/support/workstation_manuals.

Fasten Workstation to Rack

© 2005 Hewlett-Packard Development Company, L.P. The HP Invent logo is a registered trademark of

Hewlett-Packard Development Company, L.P.

405363-001
