HP NetServer LH 3r

Installation Guide

for

Compaq®4000/7000 Racks

HP Part Number 5967-5208

Printed in July 1998

Notice

The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose. Hewlett-Packard shall

not be liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this material.

Hewlett-Packard assumes no responsibility for the use or reliability of its software

on equipment that is not furnished by Hewlett-Packard.

This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied,

reproduced, or translated to another language without the prior written consent of

Hewlett-Packard Company.

Compaq is a registered trademark of Compaq Computer Corporation.

APC is a registered trademark of American Power Conversion Corp.

Hewlett-Packard Company

Network Server Division

Technical Marketing / MS 49EU-FQ

5301 Stevens Creek Boulevard

P.O. Box 58059

Santa Clara, CA 95052-8059 USA

Audience Assumptions

The user guide is for the person who installs, administers, and troubleshoots

network servers. Hewlett-Packard Company assumes you are qualified in the

servicing of computer equipment and trained in recognizing hazards in products

with hazardous energy levels.

iii

Contents

1 Introduction ................................................................................................. 1

HP NetServer LH 3r – Compaq Rack Precautions......................................... 4

2 Overview ...................................................................................................... 5

3 Installation ................................................................................................... 7

Preparation.................................................................................................... 7

Marking the Installation Holes.................................................................... 7

Installing the Bar Nuts, Screws, and Rack Nuts......................................... 9

Mounting the Slides................................................................................. 10

Installing the NetServer............................................................................... 11

Installing the Recessed Mounting Brackets.................................................. 14

4 Warranty and Support............................................................................... 17

HP Repair and Telephone Support.............................................................. 18

Index............................................................................................................... 19

1 Introduction

This document describes how to mount an HP NetServer LH 3r into a Compaq®

model 4000- or 7000-series rack enclosure. Refer to the HP NetServer LH 3r

Road Map and the HP NetServer LH 3/3r User Guide that came with the

NetServer for instructions on adding accessories to and configuring the

NetServer.

The HP NetServer LH 3 (the pedestal version of this NetServer) cannot be

installed in a rack enclosure. If you want to convert an LH 3 to an LH 3r for

installation in a rack enclosure, contact your HP Reseller for information about

the available conversion kit (HP NetServer LH 3 Pedestal-to-Rack Conversion

Kit). The HP NetServer LH 3 and LH 3r are shown in Figure 1-1.

LH 3r (Rack-Optimized)LH 3 (Pedestal)

Figure 1-1. Versions of the NetServer LH 3

Chapter 1 Introduction

WARNING To prevent the rack from tipping over and causing equipment

damage or bodily injury, be sure that the stabilizing, anti-tip

feature is installed on this rack enclosure (see Figure 1-2).

WARNING To prevent the rack from tipping over and causing equipment

damage or bodily injury, do not extend more than one piece

of equipment at a time out of the front of the rack enclosure.

Be sure that the stabilizing, anti-tip feature is installed on the rack enclosure in

which you are installing the HP NetServer LH 3r. This option consists of two

"feet" at the front of the base of the enclosure and, if you are installing this

NetServer in a single rack enclosure, two "feet" each on the left and right sides of

the enclosure (see Figure 1-2).

Chapter 1 Introduction

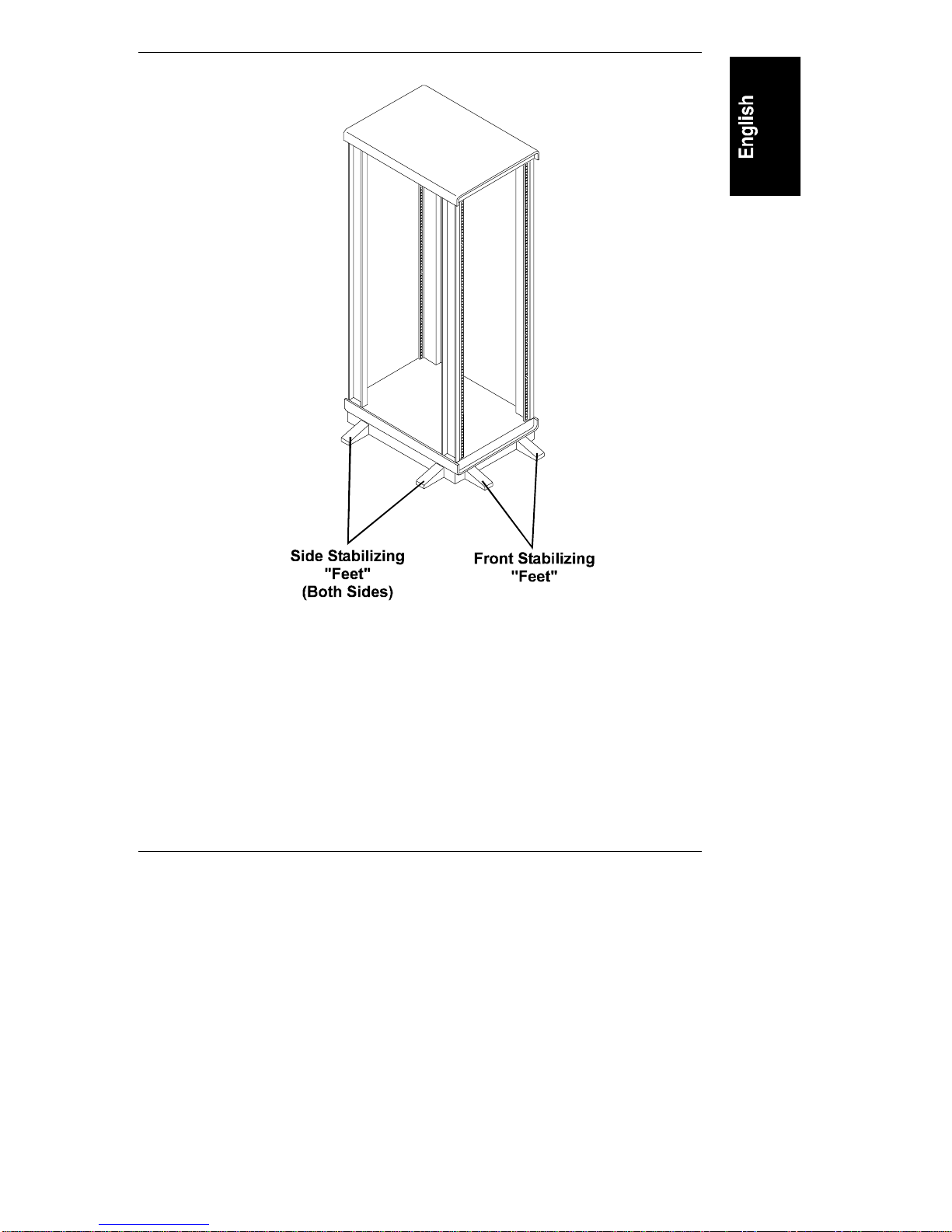

Figure 1-2. Single Rack Enclosure With the Anti-Tip Stabilizing

Feature Installed

Chapter 1 Introduction

HP NetServer LH 3r – Compaq Rack Precautions

CAUTION If this NetServer is not installed according to these

instructions, damage to the NetServer or accessories may

result. Damage due to improper installation is not covered by

the HP Warranty. Observe the precautions listed in this

section to maintain the NetServer’s reliability.

When the HP NetServer LH 3r is installed in a Compaq rack enclosure, certain

requirements must be addressed to assure that the needs of the NetServer are met.

This NetServer will meet the requirements designed for the NetServer if:

•The NetServer is installed in a Compaq model 4000- or 7000-series rack

enclosure. This NetServer is not supported in any other non-HP rack

enclosure.

•If you choose to use a door on this enclosure, only a Compaq model 4000-

or 7000-series door may be used. No other door may be used. The

enclosure may be used with the door open, closed, or removed.

•Mass storage devices listed in the Tested Products List (located on the

HP NetServer Navigator CD-ROM) are used exclusively in the NetServer.

•Use HP rack accessories. (Note that HP rack accessories are not optimized

for Compaq rack enclosures.)

Compaq rack accessories have not been tested with HP NetServer

products, but components such as monitors, keyboards, switchboxes, and

PDUs often work.

•Use APC®uninterruptible power supplies (UPS) with HP NetServers.

APC offers mounting kits for Compaq rack enclosures.

This NetServer is not supported in a rack enclosure under circumstances other

than those listed above.

See the "Warranty and Support" section of this document for additional support

considerations.

2Overview

The steps required to install the NetServer in the rack are summarized below:

NOTE This is only a summary; detailed instructions are provided on the

following pages.

•Measure and mark the appropriate holes on all four rack columns

•Install one bar nut on each of the four rack columns

•Insert two rack nuts on each of the two front columns only

•Attach the slides to the columns

•Extend the slides

•Remove power supply modules and hot-swap drives from theNetServer

•Lift the NetServer onto the slides

•Secure the NetServer to the slides

•Remove the lifting handles from the NetServer

•Install the power supply modules and hot-swap drives in the NetServer

•Push the NetServer back into the chassis

•Install the recessed mounting brackets on the two front columns only

Chapter 2 Overview

Terms used in this document are defined in the table below.

Term Definition

Bar nut Short, threaded bar used behind slide mounting flanges.

Used in place of individual nuts to mate with slide

mounting screws.

Rack nut Single nut designed to clip behind the rack column and

accept a screw through the hole in the column.

Slide Extendible side bracket which is attached to the rack

chassis columns on which the NetServer is mounted.

Consists of stationary component, and an extendible

member (see Figure 3-3). Allows access to the NetServer

after it is installed in the rack chassis.

Slide mounting flange Mounting flange located at either end of the slide (see

Figure 3-3).

Rack (rack chassis,

rack enclosure) The equipment enclosure in which the NetServer will be

installed.

Recessed mounting

brackets Two brackets (one tall, one short) that attach to the front of

the NetServer and the front rack columns to hold the

NetServer in the closed position.

EIA unit Industry standard measurement (1.75 inches / 44.45 mm),

consisting of four vertical mounting holes in a rack

column.
