Huawei Mate10 Pro Bedienungsanleitung

User Guide

Contents

Essentials

Basic Gestures 1

Lock and Unlock Your Screen 4

Get Familiar with the Home Screen 5

Notication and Status Icons 6

Control Panel 7

Screenshots & Screen Recording 11

multi-window 13

Smart Features

Huawei Print 16

Multi-Device Collaboration 16

Audio Control Panel 17

Camera and Gallery

Take Photos 19

Shoot in Portrait, Night, and Wide Aperture Modes 20

Master AI 21

Moving Pictures 22

Pro Mode 23

Record Videos 26

Slow-Mo Recording 28

Time-Lapse Photography 29

Adjust Camera Settings 29

Manage Gallery 31

Highlights 35

Apps

MeeTime 37

Notepad 39

Settings

Biometrics & Password 44

Security 45

About Phone 45

Essentials

Basic Gestures

Basic Gestures and Shortcuts

System Navigation Gestures

Go to Settings > System & updates > System navigation and make sure that Gestures is

selected.

Return to the previous screen

Swipe in from the left or right edges to return to the previous screen.

Back to home screen

Swipe up from the bottom to go to the home screen.

Recent tasks

Swipe up from the bottom of the screen and hold to view recent tasks.

Close an app

When viewing recent tasks, swipe up on an app preview to close the app.

Switch between apps

•Slide across the bottom edge of the screen to switch between apps.

Before using this gesture, touch Settings on the System navigation

screen, and ensure that Slide across bottom to switch apps is enabled.

•Swipe across the bottom of the screen in an arc to switch between apps.

If your device does not have the Slide across bottom to switch apps switch, it indicates

that the corresponding feature is not supported.

Knuckle Gestures

Before using knuckle gestures, use either of the following methods to make sure that all

necessary features are enabled (depending on your device model):

•Go to Settings > Accessibility features > Shortcuts & gestures, and enable Take

screenshot and Record screen.

•Go to Settings > Accessibility features > Motion control > Take screenshot, and enable

Smart screenshot.

Take a screenshot

Knock twice on the screen with a knuckle to take a screenshot.

Take a scrollshot

Knock on the screen with a knuckle and draw an "S" to take a scrolling

screenshot.

Capture part of the screen

Knock and draw an enclosed area with a knuckle to capture part of the

screen.

Essentials

Record screen

Knock twice on the screen with two knuckles to start or end a screen

recording.

More Gestures

Access Home screen editing mode

Pinch two ngers together on the home screen.

Display the shortcut panel on the lock screen

Turn on the screen and swipe up from the bottom of the lock screen.

Display the search bar

Swipe down from the middle of the home screen.

Display the notication panel

Swipe down from the upper left edge of the screen.

Turn on a shortcut switch

Swipe down from the upper right edge of the screen to display Control

Panel and touch to expand the shortcut switches panel (depending on

your device model).

Essentials

Button Shortcuts

Power o and restart

Press and hold the Power button until your phone displays the Power o

and Restart menu.

Turn up volume

Press the Volume up button.

Turn down volume

Press the Volume down button.

Take a screenshot

Press the Volume down and Power buttons simultaneously.

Some products do not have volume buttons.

Lock and Unlock Your Screen

Lock Your Screen

Auto-lock:

Your phone will automatically turn o when you haven't used it for a certain period of time.

You can go to Settings > Display & brightness > Sleep, and set the screen timeout duration.

Manually lock the screen:

To lock the screen, use either of the following methods:

•Press the Power button.

•On the home screen, pinch two ngers together to enter editing mode. Touch Widgets, and

drag the Screen Lock icon to the home screen. Then touch the Screen Lock icon to lock the

screen.

Essentials

Wake Screen

You can turn on the screen in either of the following ways:

•Press the Power button.

•Go to Settings > Accessibility features > Motion control > Raise and enable Wake

device.

Unlock Your Screen

Password unlock: Once the screen is turned on, swipe up from the middle of the screen to

display a panel where you can enter your lock screen password.

Face unlock: Once the screen is turned on, bring your face in front of the screen. Your phone

will unlock automatically after recognizing your face.

Fingerprint unlock: Touch the ngerprint sensor zone with a nger that you have enrolled.

Be sure to rst wake the screen, if your device has an in-screen ngerprint sensor.

Get Familiar with the Home Screen

Create and Use Large Folders

You can group similar apps in a large folder and name the folder for better management.

You can also turn a standard folder into a large one (both the folder and the app icons in it

will be enlarged) to access apps more easily.

Create a Large Folder

1Touch and hold an app icon and drag it over another icon to create a new folder.

2Touch and hold a folder to switch between display modes. For example, you can touch

and hold a new folder and select Enlarge from the displayed menu to create a large

folder.

3You can touch the lower right corner of the large folder to open it and then touch the

folder name to rename it.

You can also rename the folder by touching and holding it and selecting Rename.

Operations in a Large Folder

You can perform the following operations in large folders:

•Open apps: In a large folder, touch an icon to access the app directly.

•Enter and exit folders: Touch the lower right corner of a large folder to enter it. Touch a

blank area in the folder to exit it.

When there are more than nine apps within a large folder, a stacked icon will appear in the

lower right corner of the folder. You can touch the stacked icon to view more apps within

the folder.

Essentials

•Add or remove apps: Open a large folder, touch , and add or remove apps as required.

If you deselect all apps within the folder, the folder will be deleted.

•Switch between display modes: Touch and hold a folder to switch between a standard

and large display. For example, you can touch and hold a standard folder and select

Enlarge from the displayed menu to create a large folder.

Notication and Status Icons

Network status icons may vary depending on your region or network service provider.

Supported functions vary depending on the device model. Some of the following icons

may not be applicable to your phone.

5G network connected 4G network connected

3G network connected 2G network connected

Full signal strength Roaming

Data saver enabled. No SIM card inserted

Hotspot enabled Hotspot connected

Hotspot disconnected Switching network via Wi-Fi+

Wi-Fi connected Wi-Fi network is faulty, unable to

connect to the Internet

Wi-Fi 6 connected Wi-Fi 6 network is faulty, unable

to connect to the Internet

Wi-Fi 6+ connected Wi-Fi 6+ network is faulty, unable

to connect to the Internet

Airplane mode is ON Alarm set

Battery empty Low battery power

Charging Quick charging

Super charging Wireless super charging

Wireless fast charging Regular wireless charging

Essentials

Power Saving mode on Digital Balance enabled

Bluetooth enabled Bluetooth device battery

Bluetooth device connected VPN connected

Driving mode Projection device connected

Location service enabled Eye Comfort enabled

Headset connected Headset with a microphone

connected

In call VoLTE enabled

Missed call There are unread messages.

Silent mode Vibration

NFC enabled Do Not Disturb mode enabled

Syncing… Syncing failed

Performance mode enabled New email

Event reminder More notications

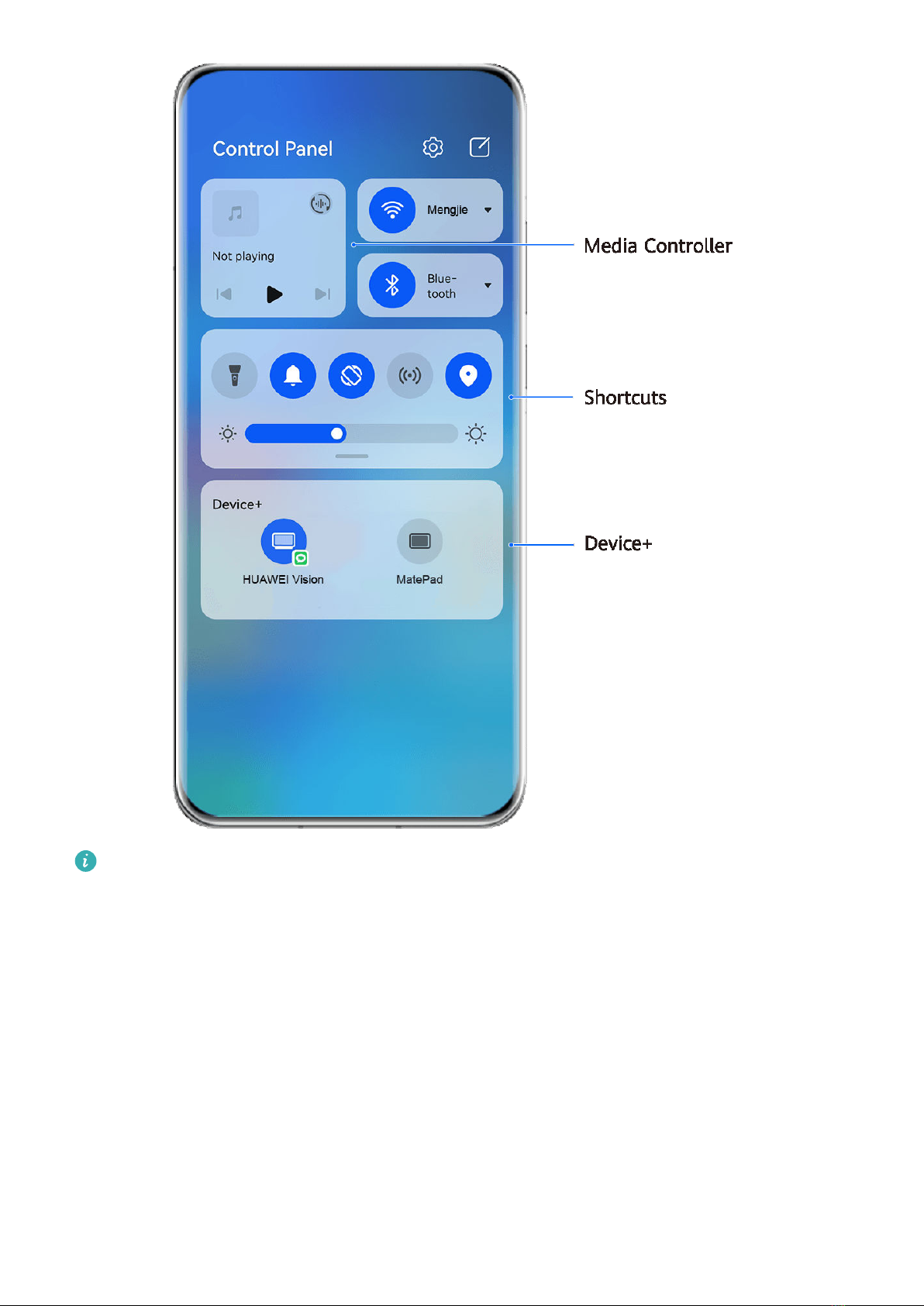

Control Panel

Introduction to Control Panel

You can easily manage and control media playback, shortcuts, and Device+ in the Control

Panel.

Swipe down from the upper right edge of the screen to display Control Panel where you can

access the following features with ease:

Essentials

The gures are for reference only.

•Media controls: To control media playback and switch between recently used media apps

and media devices (such as Visions and Bluetooth headsets).

•Shortcut controls: To enable, disable, or set frequently used features.

•Device+: Automatically discovers nearby devices logged in to the same HUAWEI ID and

allows you to link them so they work together as one.

•Device controls: To manage and control devices and scenes that have been added in AI

Life.This feature is only available in some countries and regions.

Use Shortcut Switches

Essentials
