Huawei HG536a Bedienungsanleitung

HUAWEI HG536a

Home Gateway Quick Start

1 Installation

Host Installation

The following figure shows how to connect the cables to the host.

Using the power adapter of 12 V, 1.5 A to connect to the host.

1. Power adapter 2. Computer 3. Telephone jack on the wall

To connect the cables to the host, do as follows:

Step 1 Connect the telephone jack on the wall to the ADSL interface on the HG536a

with a telephone line. Connect the telephone to the PHONE interface on the

splitter with a telephone line.

Step 2 Connect the ADSL interface on the HG536a to the MODEM interface on the

splitter with a telephone line.

Step 3 Connect the LAN1 interface on the HG536a to the Ethernet interface on your

computer with a network cable.

Step 4 Connect the POWER interface on the HG536a to the power socket with the

power adapter.

Battery Installation

A handset is provided with the HG536a. Install the battery before using your handset,

take the following figures as a reference:

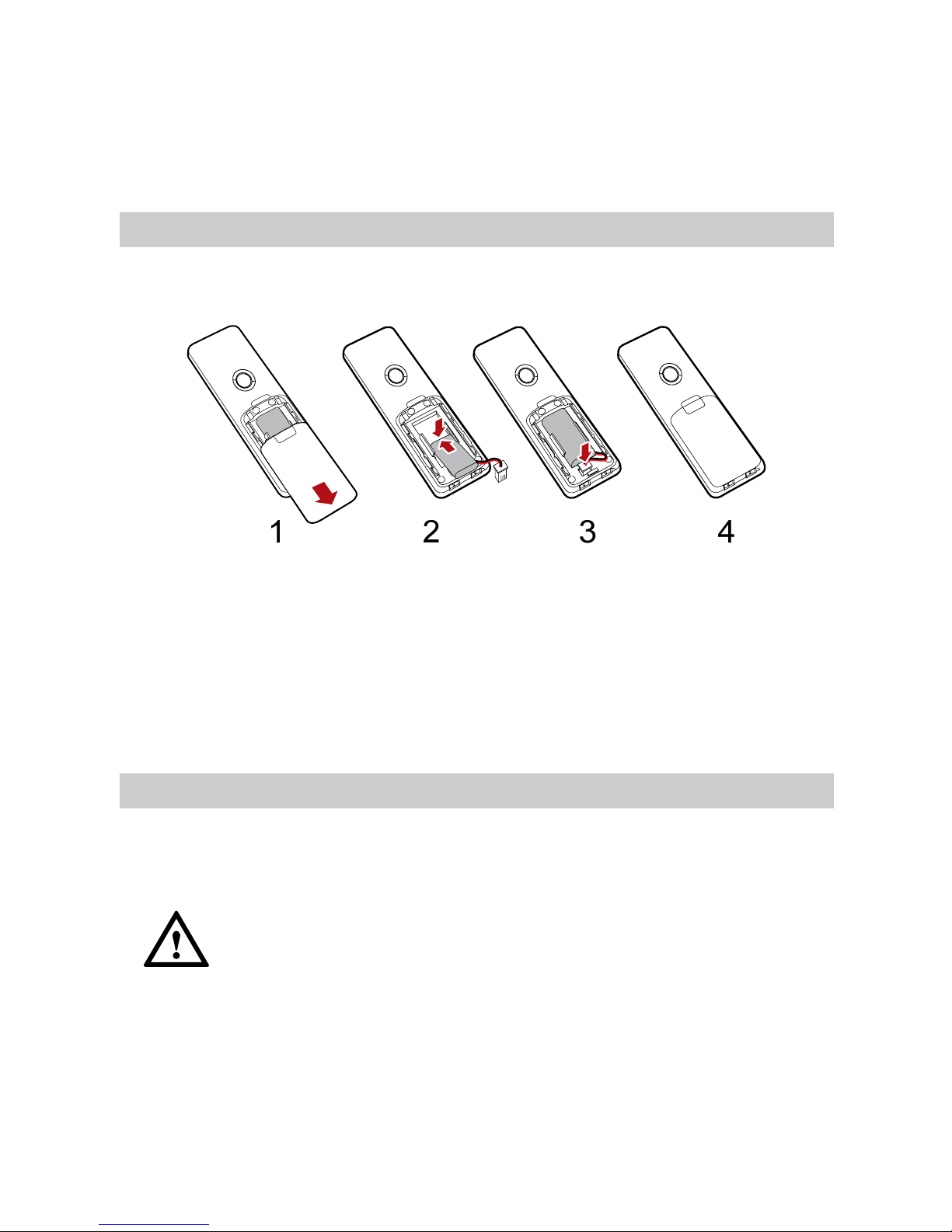

To install the battery, do as follows:

Step 1 Slide the battery cover down to remove it.

Step 2 Insert the battery into the battery compartment.

Step 3 Plug the battery connector into the receptacle in the battery compartment.

Step 4 Slide the cover up until it snaps in place.

Charging the Battery

Charging by the handset power adapter

Before using the handset for the first time, fully charge it for 16 hours

continuously.

Step 1 Electrify the base.

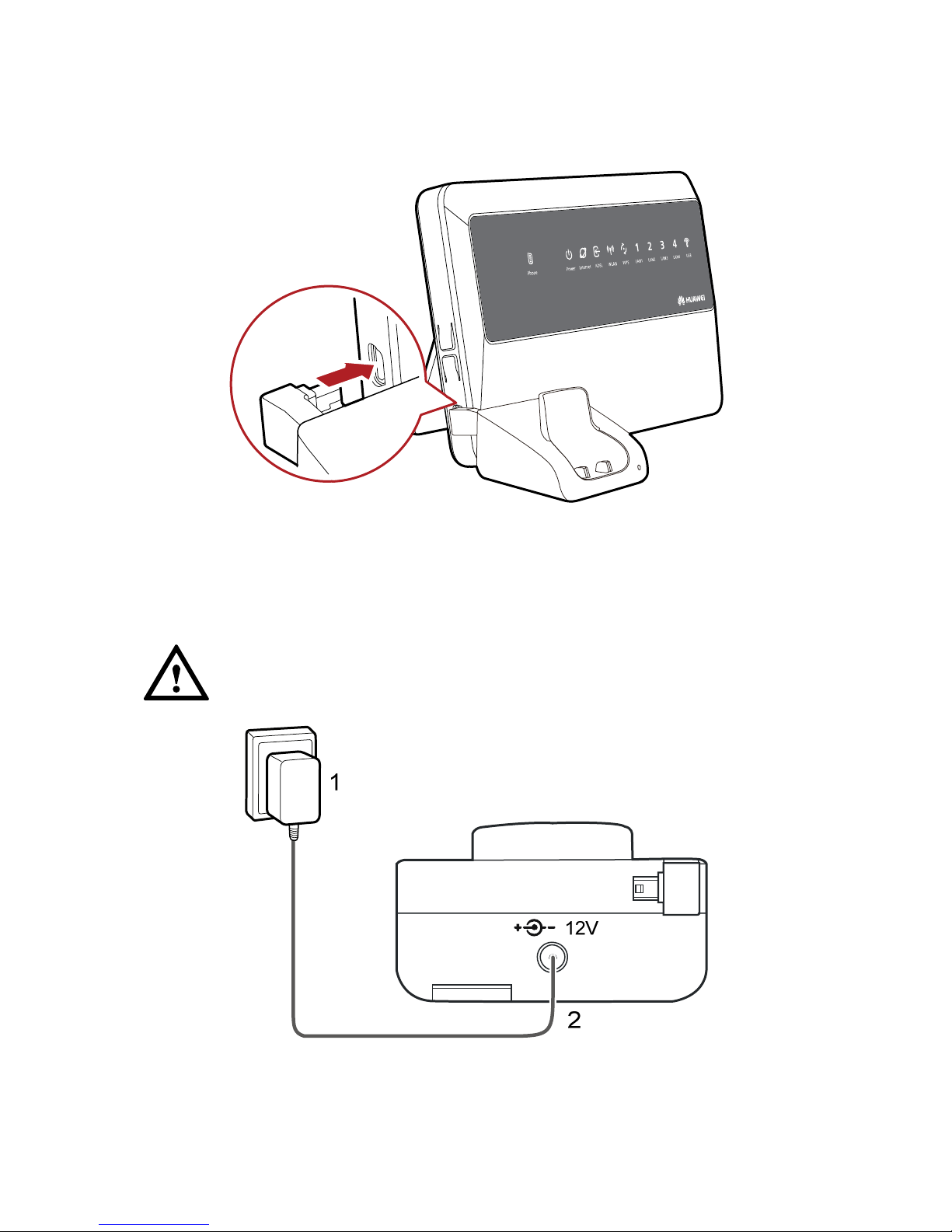

The handset is charged by the base. There are two different ways to electrify the

base, taking either of the following figures as a reference:

- Electrify the base by connected to the host.

- Electrify the base by connected the power adapter.

Using the power adapter of 12 V, 0.5 A to connect to the base.

1. Power adapter for base 2. Base

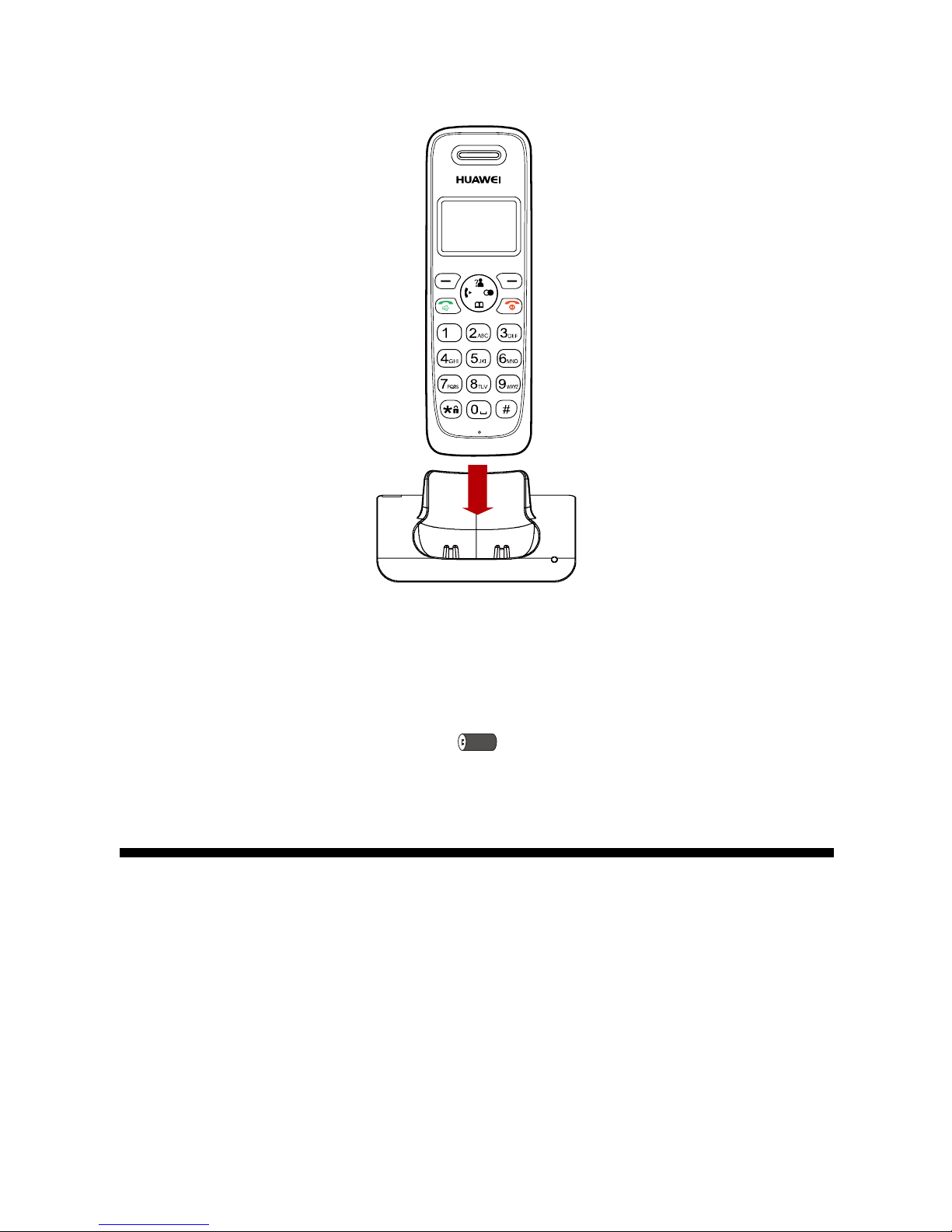

Step 2 Place the handset on the base, taking the following figure as a reference:

After you place the handset on the base, the indicator on the base turns solid on, which

indicates that the handset is being charged.

If the handset power is low, you can also place the handset on the base for charging,

during this condition, the bars inside the icon are displayed on the LCD scroll.

2 Powering On

To power on the HG536a, press the ON/OFF button on the side panel of the HG536a.

After you power on the HG536a, the ADSL indicator blinks (for less than three minutes),

which indicates that the HG536a is being activated. Later, the ADSL indicator turns

solid on. The Power indicator is also solid on, which indicates that the HG536a is

working properly.

3 Setting the Internet Access Parameters

To set the Internet access parameters, do as follows:

Step 1 Set the network connection of your computer and ensure that your computer

obtains an IP address automatically.

By default, the DHCP function of the HG536a is enabled. In this case,

the HG536a assigns an IP address to your computer automatically and

you do not need to configure the IP address of your computer.

Step 2 Log in to the Web-based configuration utility of the HG536a.

Launch the Internet Explorer on your computer. Enter http://192.168.1.1 in

the address bar, and then press Enter.

In the displayed dialog box, enter the user name (admin by default) and the

password (admin by default), and then click Login.

After the user name and the password are verified, you can access the

Web-based configuration utility.

Step 3 Enable the embedded dial-up function.

In the navigation tree on the left, choose Basic > WAN.

Click New to create a WAN connection.

Select DSL from the Link Type option button.

Select Enable for WAN connection.

Enter the VPI and VCI parameters that are provided by the network

operator in the VPI/VCI text boxes.

Select INTERNET from the Service list option button.

Select PPP(oE) from the Connection type drop-down combo box.

Enter the user name and password that are provided by the network operator

in the User name and Password text boxes, keep the default settings of other

parameters.

Click Submit.

After you complete the preceding settings, you can surf the Internet.

You need to perform the preceding operations on a computer once only. The next time

when you power on your computer, you can surf the Internet without any configuration.

4 Configuring the Wireless Network

Connection

If a wireless network adapter is installed on your computer, you can connect you

computer to the HG536a through a wireless connection. To configure the wireless

network connection, do as follows:

Step 1 Log in to the Web-based configuration utility.

Step 2 Set the wireless network name and access password of the HG536a.

To set the wireless network name and the access password, do as follows (taking the

authentication type WPA-PSK as an example):

In the navigation tree on the left of the Web-based configuration utility,

choose Basic > WLAN.

Select the Enable WLAN option.

Enter a wireless network name in the SSID text box.

Select WPA-PSK from the Security drop-down combo box.

Enter an access password in the WPA pre-shared key text box.

Select AES from the WPA encryption drop-down combo box.

Click Submit to save the settings.

Step 3 Enable the wireless configuration service.

Taking the Windows XP operating system as an example, do as follows:

Right-click My Computer, and then choose Manage from the shortcut

menu.

In the Computer Management window, choose Computer Management

(Local) > Services and Applications > Services.

From the services listed in the right pane of the Computer Management

window, right-click Wireless Zero Configuration, and then choose

Properties from the shortcut menu.

In the Wireless Zero Configuration Properties (Local Computer) dialog

box, check whether Service status is Started. If not, click the Start button.

Click OK to close the dialog box. Then, close the Computer Management

window.

Step 4 Configure the wireless network connection on your computer.

To configure the wireless network connection, do as follows (taking the Windows XP

operating system as an example):

Choose Start > All Programs >Accessories >Communications >

Network Connections.

In the Network Connections window, right-click Wireless Network

Connection to display a shortcut menu, and then select View Available

Wireless Networks from the shortcut menu.

Select the wireless network that is configured in Step 2, and then click

Connect in the lower right corner of the window.

In the displayed dialog box, enter the access password that is preset in Step

2, and then click Connect.

After the password is verified, Connected appears on the icon of the wireless network in

the wireless network list, which indicates that the computer is connected to the HG536a

through a wireless connection.

5 Handset Registration

You can register up to five handsets to your host. The HG536a assigns a name to each

handset according to the registration order of the handsets. For example, the name

assigned to the first handset that is registered is HS 1, and in standby mode, the name HS

1 is displayed on the LCD of that handset.

If you want to register the handset, do as follows:

Step 1 Pressing the Page button on the side panel of the host until the Phone indicator

blinks, and then release the button.

Step 2 Within one minute, register the handset to the host.

press on the handset to display the main menu.

Press or repeatedly to select Registration, and then press .

3. Press or repeatedly to select the Base with which you want the

handset to register, and then press .

Enter the registration code (0000 by default), and then press .

If the registration is successful, the handset will return to the standby mode and the

handset number (for example, HS 1) will be displayed on the LCD of the handset.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of

their respective owners.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS

REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,

RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO

CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY

SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR

LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED

SAVINGS.

Issue: 01 (2010-11-12)

Part Number: 201217
