Huawei SmartAX MA5608T Bedienungsanleitung

SmartAX MA5608T

Quick Installation Guide

Issue: 03

Date: 2015-04-30

HUAWEI TECHNOLOGIES CO., LTD.

Contents

1 Precautions...............................................................................................................................................3

2 Check Tools and Meters .......................................................................................................................4

3 Outline and Structure.............................................................................................................................5

4 Installing the Chassis.............................................................................................................................6

4.1 Installation in a Cabinet or a Rack.................................................................................................................................6

4.2 Installation in the Network Cabinet of the Customer ...................................................................................................7

4.3 Guide for Grounding the Network Cabinet of the Customer ........................................................................................8

5 Routing Cables........................................................................................................................................9

5.1 Routing the PGND Cable and the External Power Cable..............................................................................................9

5.2 Routing Subscriber Cables ..........................................................................................................................................10

5.3 Routing Trunk Cables..................................................................................................................................................11

5.4 Routing Network Cables..............................................................................................................................................12

5.5 Routing Optical Fibers.................................................................................................................................................13

6 Checking the Installation....................................................................................................................14

7 Powering On the System.....................................................................................................................15

Precautions

Electrostatic Protection

Before touching the device, or holding the boards or IC chips, wear the ESD gloves or the ESD wrist strap (Ensure that the

other end of the ESD wrist strap is well grounded.) to prevent the electrostatic discharge of the human body from damaging

the sensitive components.

Bundling cables

lThe distance between cable ties inside the cabinet should be within 250 mm. (For subscriber cable, the distance is 200

mm.)

lThe distance between cable ties for all cables outside the cabinet is determined according to the distance between two

horizontal beams. For the cabling trough without beams, bundle the cables with the distance not exceeding 250 mm

between cable ties.

Affixing labels / tags

Affix the label or tag to the signal cable, 2 cm away from the connector. When the cable is placed vertically, the label or

tag should point towards the right. When the cable is placed horizontally, the label or tag should point downwards.

Check Tools and Meters

Before you begin, get the following tools ready.

Marker pen Flathead screwdriver Phillips screwdriver Diagonal pliers

Wire cutter Paper knife Adjustable wrench Mount bar

Tape measure Cable cutter

Network cable crimping

pliers Network cable tester

Multimeter Optical power meter ESD gloves ESD wrist strap

Outline and Structure

Installing the Chassis

4.1 Installation in a Cabinet or a Rack

Installing the Chassis

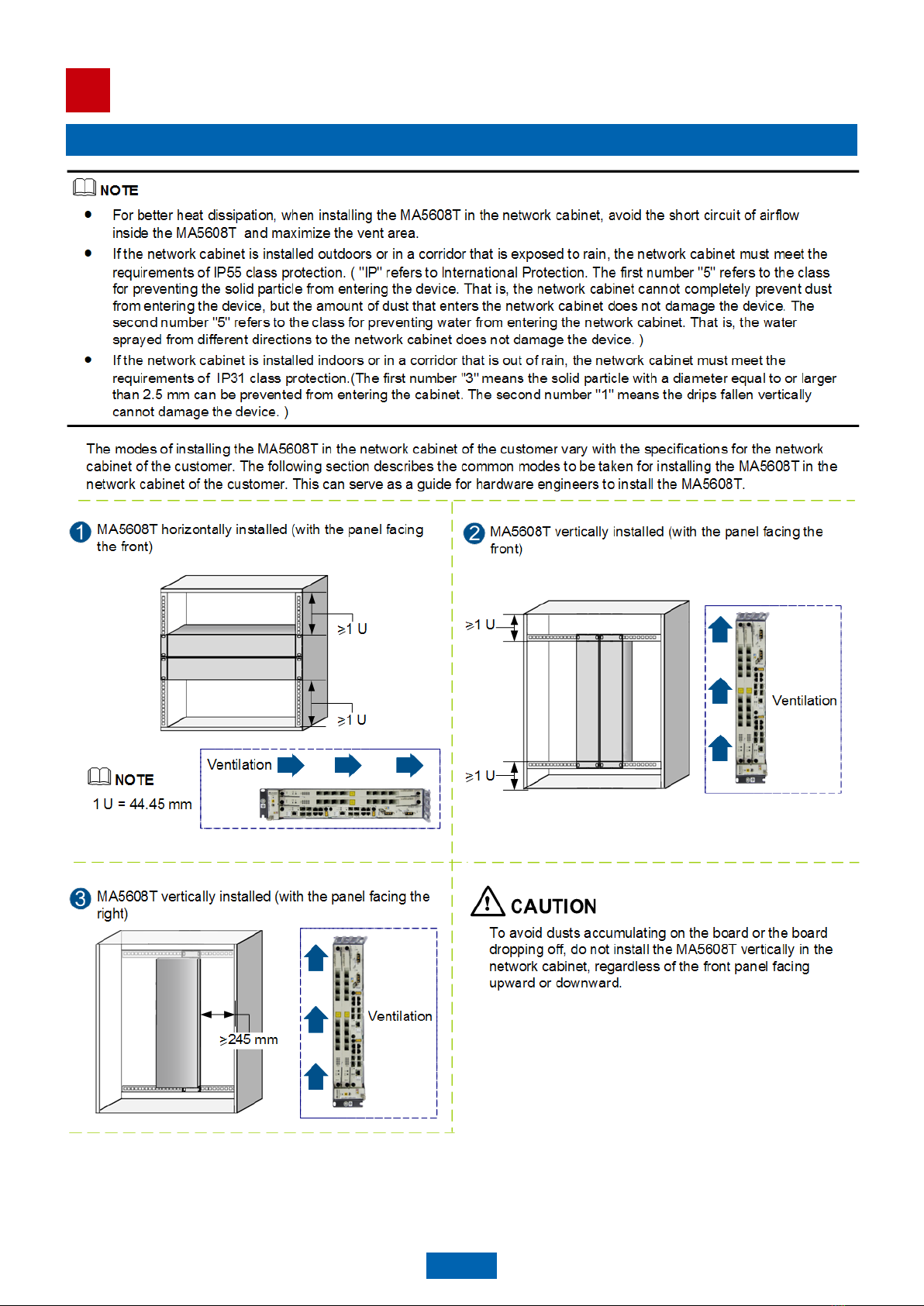

4.2 Installation in the Network Cabinet of the Customer

Installing the Chassis

4.3 Guide for Grounding the Network Cabinet of the Customer

Routing Cables

5.1 Routing the PGND Cable and the External Power Cable

Routing Cables

5.2 Routing Subscriber Cables
