SSC2132T/SSC2132

ODN V100R007C02

Product Description

Issue

Date

2012-7-15

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

support@huawei.com

SSC2132T/SSC2132

Product Description

Contents

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

Contents

1 Positioning........................................................................................................................................... 1

2 Features................................................................................................................................................. 2

3 Product Overview .............................................................................................................................. 3

3.1Appearance.......................................................................................................................................................3

3.2 Structure...........................................................................................................................................................4

3.3 Optical Splitter.................................................................................................................................................6

3.4 Splicing Tray....................................................................................................................................................7

3.5 Fittings for Sealing and Securing Optical Cables.............................................................................................7

3.6 Aerial Accessories ..........................................................................................................................................10

4 Application Scenarios and Configurations............................................................................... 12

4.1 Overview........................................................................................................................................................12

4.2 Configurations and Routing...........................................................................................................................13

5 Technical Specifications ................................................................................................................ 17

6 Acronyms and Abbreviations ....................................................................................................... 20

SSC2132T/SSC2132

Product Description

1 Positioning

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

1 Positioning

Mounted to the aerial optical cable the SSC2132T/SSC2132 free-breathing aerial closure

(aerial closure for short) is mainly used in the fiber to the home-optical distribution network

(FTTH-ODN) for optical splitting, distribution, branching connection, and straight-through

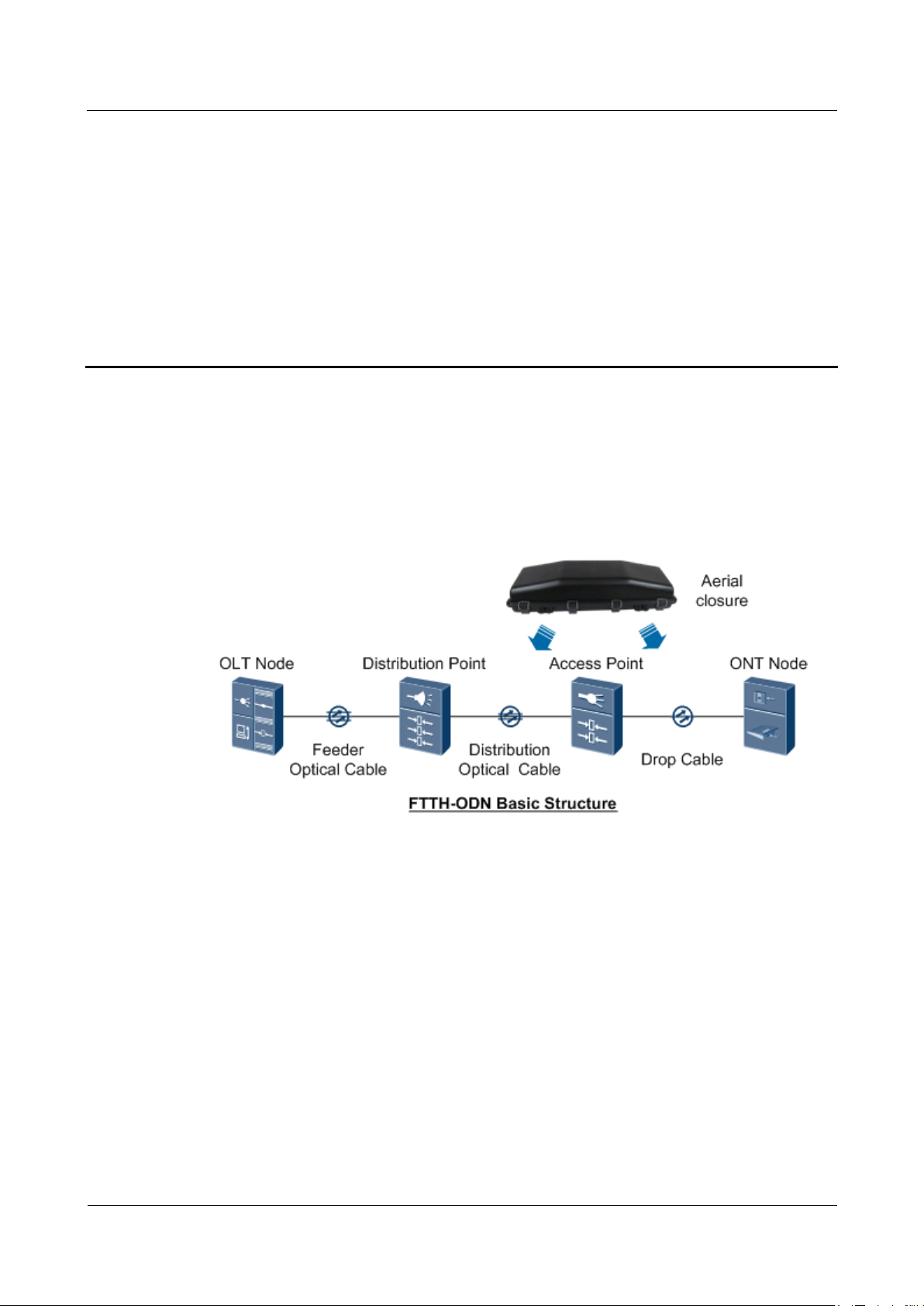

storage. Figure 1-1 shows the position of the aerial closure in a network.

Figure 1-1 Position of the aerial closure

SSC2132T/SSC2132

Product Description

2 Features

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

2 Features

Flexible Configuration

Various optical splitters

Multiple split ratios

Multiple splicing capacities

Different cable diameters

Various drop cables

Convenient Construction

Tool-free closure opening or closing

Tool-free drop cable securing

Maintenance without tools

Large operation space

Clear Routing

Separated straight-through area and other areas by a flap

Separated cable distribution area and splicing area

Reliable Protection

IP54 protection rating

Anti-ultraviolet (UV), anti-corrosion and anti-mildew material for the closure housing

SSC2132T/SSC2132

Product Description

3 Product Overview

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

3 Product Overview

3.1 Appearance

The appearance of SSC2132 series aerial closure is the same as that of SSC2132T series,

Figure 3-1 shows the appearance of the aerial closure.

Figure 3-1 Appearance of the aerial closure

1. Closure housing

2. Buckle

The closure housing is made of anti-UV, anti-corrosion and anti-mildew

high-performance plastic, meeting outdoor application requirements.

The closure housing is buckled and can be opened or closed without any tools,

facilitating construction.

The closure housing supports an opening angle over 180 degrees, providing large

operation space.

The aerial closure has four buckles at the front and two breathing holes at the rear. Figure 3-2

shows the breathing holes.

SSC2132T/SSC2132

Product Description

3 Product Overview

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

Figure 3-2 Breathing hole and grounding port

1. Breathing hole

2. Grounding port

The breathing holes are covered with metal grids, with a slice of sponges inside. The

design helps prevent dust.

After the aerial closure is installed, its breathing holes appear at the bottom. The closure

also provides an internal flow guiding trough, effectively preventing condensation.

3.2 Structure

Function

With its modular design, the aerial closure can be configured with different function modules

to achieve different functions. Table 3-1 lists the functions of the aerial closure.

Table3-1 Functions of the aerial closure

Model

SSC2132T Series

SSC2132 Series

Function module configured

Bracket-mounted optical

splitter

Splicing tray

Bare optical splitter

Splicing tray

Function

Optical splitting

Cable distribution

Straight-through

Optical splitting

Splicing

Straight-through

SSC2132T Series

Figure 3-3 shows the structure of the SSC2132T series aerial closure.

SSC2132T/SSC2132

Product Description

3 Product Overview

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

Figure 3-3 Structure of the SSC2132Tseries aerial closure

1. Holes for

common cables

2. Pressure plate for

drop cables

3. Bracket-mounted

optical splitter

4. Installation position of device for fixing

and stripping protection of optical cables

5. Flap

6. Splicing tray

7. Straight-through area

8. Fiber block pole

The aerial closure provides a splicing tray under the flap, and the splicing tray is used to

splice and store the input ends of optical splitters and the pigtails.

The operation space in the straight-through area is large enough for the coiled

straight-through cables, facilitating storage of straight-through cables.

SSC2132 Series

The structure of the SSC2132 series aerial closure is similar to that of SSC2132T series. The common

components of these two series are not described here.

Figure 3-4 shows the structure of the SSC2132 series aerial closure.

SSC2132T/SSC2132

Product Description

3 Product Overview

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

Figure 3-4 Structure of the SSC2132 series aerial closure

1. Splicing tray

2. Bare optical splitter

The aerial closure provides a splicing tray under the flap.

Splicing trays are buckled together, ensuring reliable connections and also facilitating

removal.

3.3 Optical Splitter

The aerial closure supports the SPL2803 bracket-mounted optical splitter and the SPL9102

bare optical splitter. Figure 3-5 shows the appearance of such optical splitters.

Figure 3-5 Appearance of optical splitters

1. SPL2803 bracket-mounted optical splitter

SPL9102 bare optical splitter

Table 3-2 describes the configuration principles of optical splitters.

SSC2132T/SSC2132

Product Description

3 Product Overview

Issue 01 (2012-7-15)

Huawei Proprietary and Confidential

Table3-2 Configuration principles of optical splitters

Closure model

SSC2132T

SSC2132

Splitter model

SPL2803

SPL9102

Split Ratio

1:4

1:8

1:16

1:4

1:8

Maximum Number of

Optical Splitters

3.4 Splicing Tray

Figure 3-6 shows the appearance of the splicing tray.

Figure 3-6 Splicing tray (with an bare optical splitter)

1. SPL9102 bare optical splitter

Each splicing tray supports a maximum of 24 cores.

The splicing tray can integrate an SPL9102 bare optical splitter.

The splicing tray can route cables from four directions, the routing is flexible.

The splicing tray has a large space for storing optical fibers.

3.5 Fittings for Sealing and Securing Optical Cables

Cable Hole

The aerial closure has four cable holes on the right side and four on the left side, leading in

eight optical cables. The cable holes are sealed with gaskets. Figure 3-7 shows the appearance

of cables holes on the aerial closure.
