Huawei DN8245V-50 Bedienungsanleitung

DN8245V-50

Quick Start

Issue 01

Date 2020-08-13

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every eort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: https://www.huawei.com

Email: [email protected]

Contents

1 Placing the Device................................................................................................................... 1

2 Connecting Cables................................................................................................................... 3

3 Indicator Description.............................................................................................................. 5

4 Ports and Buttons.................................................................................................................... 7

5 FAQs............................................................................................................................................ 9

DN8245V-50

Quick Start Contents

1 Placing the Device

Do not install the DN8245V-50 outdoors or in an outdoor cabinet.

Keep 10 cm clearance on all sides to ensure adequate ventilation.

DN8245V-50

Quick Start 1 Placing the Device

It is recommended that the computer and DN8245V-50 be put far away from

electric appliances that generate strong magnetic or electric elds, such as

microwave ovens.

1. Mark the positions of two holes used for mounting the DN8245V-50, and

ensure that the two holes have the same spacing as the two mounting holes.

2. Select a proper drill according to the outer diameter of the screws. Use this

drill to drill the marked positions on the wall. Then, clean the wall and install

two expansion bolts.

3. Use a screwdriver to fasten the screws into the expansion bolts, leaving the

heads of the screws 10 mm over the wall. Then, install the DN8245V-50.

NO TE

● You can also place the DSL home gateway horizontally on the desk.

● The appearance shown in this document may be dierent from the actual appearance

of the product. The actual product provided by the carrier prevails.

DN8245V-50

Quick Start 1 Placing the Device

2 Connecting Cables

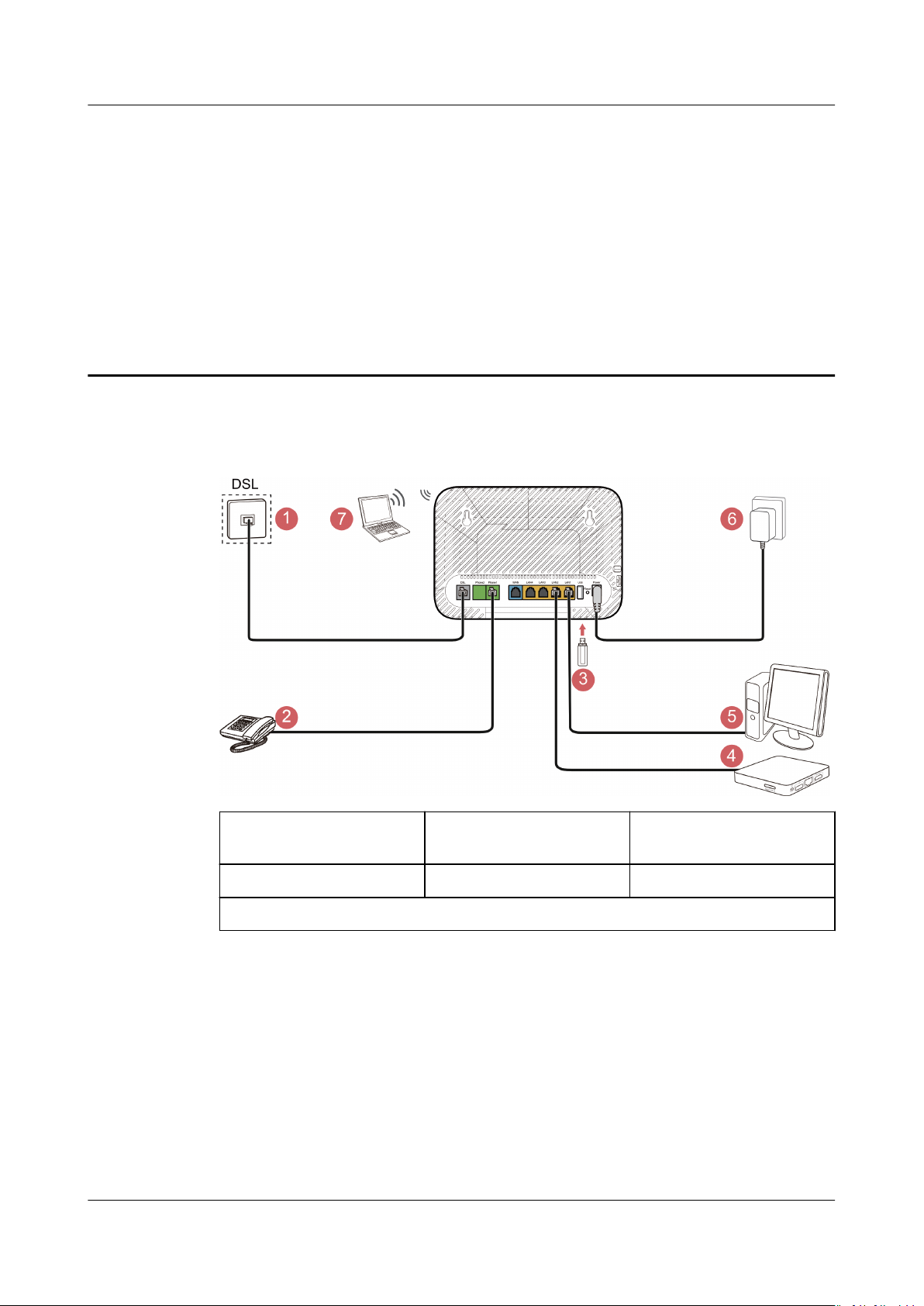

DSL upstream connection mode

1 Telephone jack on the

wall

2 Telephone 3 USB device

4 STB 5 Desktop computer 6 Power adapter

7 Laptop computer

DN8245V-50

Quick Start 2 Connecting Cables

Ethernet upstream connection mode

1 Network port on the

wall

2 Telephone 3 STB

4 USB device 5 Desktop computer 6 Power adapter

7 Laptop computer

NO TE

● The DN8245V-50 supports two upstream connection modes: DSL and Ethernet. Select

one upstream transmission mode at a time.

● Some accessories are not delivered with the DN8245V-50. Prepare them by yourself.

DN8245V-50

Quick Start 2 Connecting Cables

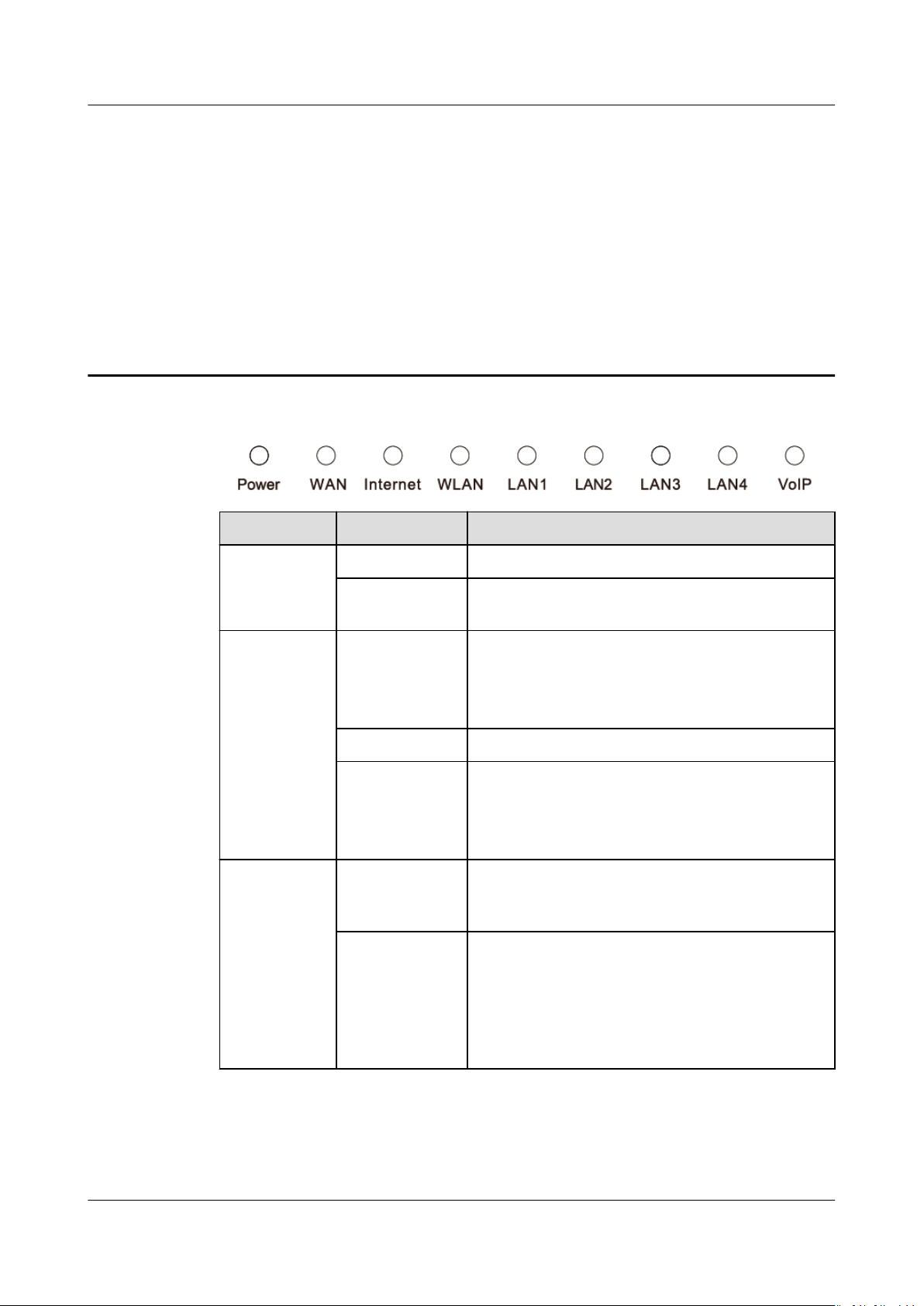

3 Indicator Description

Indicator Status Description

Power Steady green The DSL home gateway is powered on.

O The DSL home gateway is powered o or

faulty.

WAN Steady green ● DSL connection has been set up and

activated.

● The WAN port is connected to a network

cable.

Blinking green DSL connection is being activated.

O ● No DSL connection has been set up, or the

DSL connection is faulty.

● The WAN port is not connected to a

network cable.

Internet Steady green The DSL home gateway is connected to the

Internet in router mode, but no data is being

transmitted.

Blinking green ● The DSL home gateway is being connected

to the Internet in router mode. (Blinks 4

times per second.)

● The DSL home gateway is connected to the

Internet in router mode, and data is being

transmitted. (Blinks twice per second.)

DN8245V-50

Quick Start 3 Indicator Description

Indicator Status Description

O ● The WAN port is not connected to a

network cable.

● The DSL line is not activated.

● The DSL home gateway is in bridge mode.

● The DSL home gateway does not obtain the

IP address in router mode.

WLAN Steady green The WLAN function is enabled, but no data is

being transmitted.

Blinking green ● The WLAN function is enabled, and data is

being transmitted. (Blinks twice per

second.)

● The DSL home gateway is attempting to

connect to a wireless client over the WLAN

using the WPS function. The WLAN

indicator blinks for 120s. (Blinks once per

second.)

O The WLAN function is disabled.

LAN1–LAN4 Steady green The LAN port is connected to an Ethernet

device (such as a computer) with a network

cable, but no data is being transmitted.

Blinking green The LAN port is connected to an Ethernet

device with a network cable, and data is being

transmitted.

O The LAN port is not connected to any Ethernet

device.

VoIP Steady green The DSL home gateway is registered with an

SIP server, but no data is being transmitted.

Blinking green ● The DSL home gateway is being registered

with an SIP server. (Blinks twice per

second.)

● The DSL home gateway is registered with

an SIP server, and data is being transmitted.

(Blinks 4 times per second.)

O No VoIP service, or no VoIP WAN conguration

exists.

DN8245V-50

Quick Start 3 Indicator Description

4 Ports and Buttons

No. Item Description

1 DSL Connects to a DSL lter or telephone socket.

2 Phone1/2 Connects to a telephone.

3 WAN Connects to an Ethernet device that provides Internet

access, such as a modem or switch.

4 LAN1–LAN4 Connects to Ethernet devices, such as computers, set-top

boxes (STBs), and switches.

DN8245V-50

Quick Start 4 Ports and Buttons
